Turbo Function Setting - Brook GEN-SX mini FIGHTING BOARD User Manual

• There are currently ve button press frequencies available： 5, 10, 15,
20, and 25 Hits/Sec.
• Hold 【Fn+Option】, then press ↑ to increase the frequency; press ↓
EN
to decrease the frequency.
TW
• Hold 【 Fn+ Option 】, then press the button you want to set or
cancel the turbo function
• The buttons that can be set for the Turbo function are： 1P、2P、3P
、4P、1K、2K、3K、4K、L3、R3

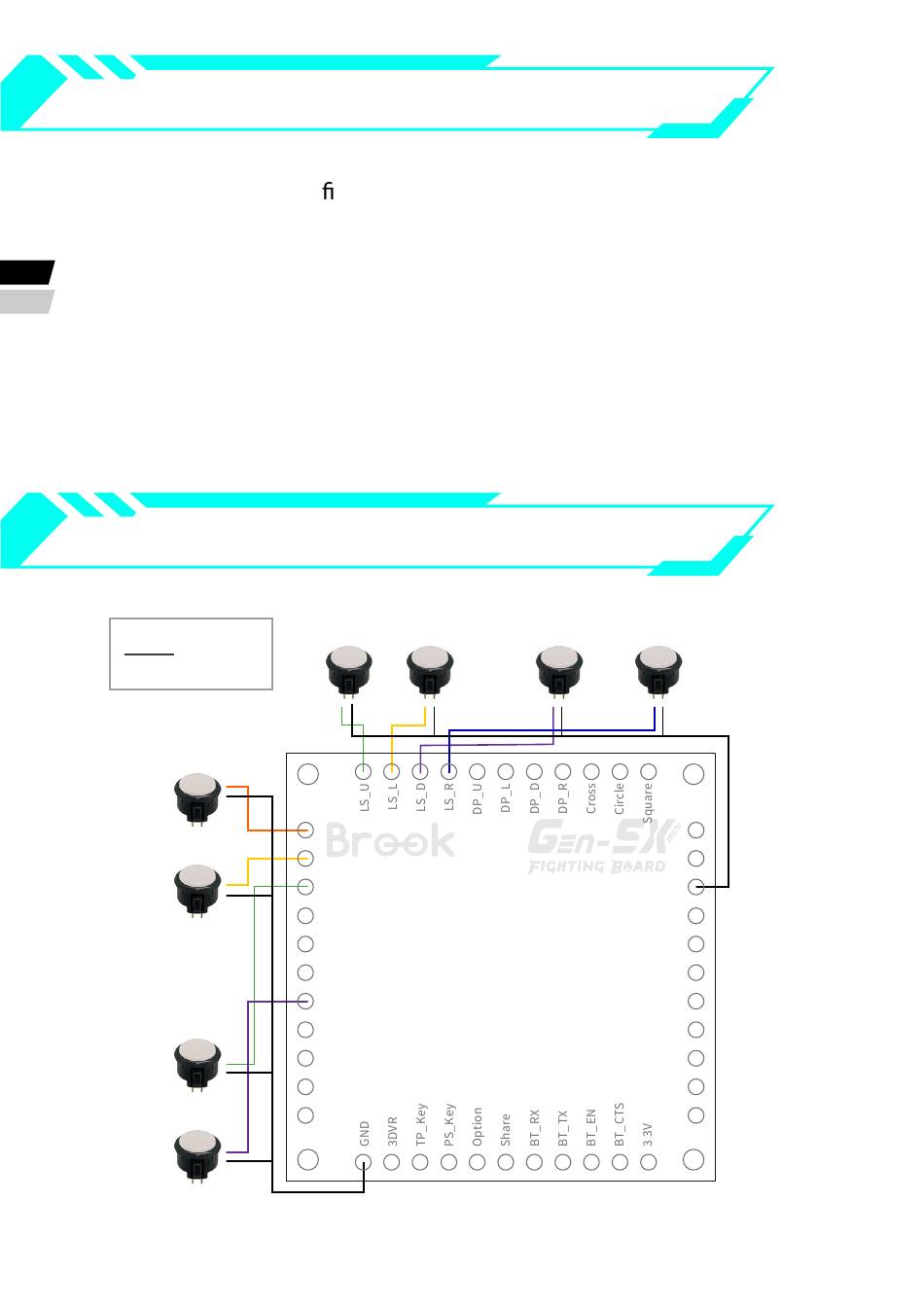

How to connect RS/LS button
RS Right
RS Down
RS Left
RS Up

Turbo function setting

LS Up
GND
J1
RS_R
RS_D
RS_L
RS_U
L�
R�
J�-�
J�-�
RGB_LED
OLED_SCL
OLED_SDA
J4
LS Left LS Down
4
LS Right
J2
Triangle
FN_key
GND
D+
D-
VBUS
L�
R�
L�
R�
Reset
J3
U3_1
