Installation Instructions

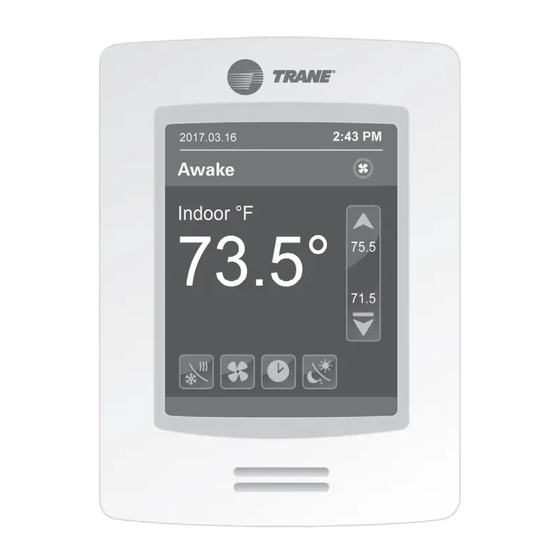

Trane® Residential Touch Screen
Programmable Zone Sensor
for Symbio™ 400/Tracer® UC400 Controls
Model Number:
X13790992
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of
heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training.
Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury.
When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are
attached to the equipment.
August 2022
SAFETY WARNING
BAS-SVN026H-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X13790992 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trane X13790992

  • Page 1 Installation Instructions Trane® Residential Touch Screen Programmable Zone Sensor for Symbio™ 400/Tracer® UC400 Controls Model Number: X13790992 SAFETY WARNING Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training.
  • Page 2: Warnings, Cautions, And Notices

    (CFCs) and those containing Hydrogen, Chlorine, Fluorine and Carbon (HCFCs). Not all refrigerants containing these compounds have the same potential impact to the environment. Trane advocates the responsible handling of all refrigerants-including industry replacements for CFCs and HCFCs such as saturated or unsaturated HFCs and HCFCs.
  • Page 3 Copyright This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.
  • Page 4: Revision History

    Introduction Trademarks All trademarks referenced in this document are the trademarks of their respective owners. Revision History • Updated Specifications chapter. • Running edits. BAS-SVN026H-EN...
  • Page 5: Table Of Contents

    Table of Contents Equipment/Software Supported ........6 Installation and Guidelines .
  • Page 6: Equipment/Software Supported

    Equipment/Software Supported The zone sensor will work with Trane fan coil, blower coil, unit ventilator, and water source heat pump equipment that uses the Trane UC400 control system. Installation and Guidelines • Do not install on an outside wall. •...
  • Page 7: Wiring And Power

    Wiring and Power Suggested Supplier: Windy City Wire • Plenum rated P/N: 043005AL • Non-plenum rated P/N: 108760 Symbio™ 400/UC400 Terminal Block and Wiring to Sensor Symbio™400/UC400 BAS-SVN026H-EN...
  • Page 8: Symbio™ 400/Uc400-B Terminal Block And Wiring To Sensor

    Wiring and Power Symbio™ 400/UC400-B Terminal Block and Wiring to Sensor Symbio™ 400-B/UC400-B BAS-SVN026H-EN...
  • Page 9: General Information

    General Information The sensor displays Power on during initial power-up and advances to display the Home Screen. All user accessible functions are easily set from the Home screen: Occupancy Fan Status Status Increment Up Cooling Setpoint Temperature Heating Setpoint Increment Down Fan Mode Schedule Menu Heat/Cool Mode...
  • Page 10: Configuring Settings On The Home Screen

    Configuring Settings on the Home Screen Cool/Heat Mode • Off: the system will not cool or heat the space. • Auto: the system switches between cooling and heating automatically to condition the space. • Cool: the system will only provide cooling to the space. •...
  • Page 11: Interface Flowcharts

    Interface Flowcharts User Menus Touch the Schedule Menu button on the display to setup, Clock, Schedule, Setpoints, Vacation, and Options. BAS-SVN026H-EN...
  • Page 12: Clock, Schedule, Setpoints, Display, Vacation, And Options

    Interface Flowcharts Clock, Schedule, Setpoints, Display, Vacation, and Options Configures the following: • Time format: configured as either AM-PM (displays as 8:00 PM) or 24 Hours (displays as 20:00). • Time: displays according to the time format. Clock • Year: set the year. •...
  • Page 13: Installer Menus

    Interface Flowcharts Installer Menus Note: The Installer password is 4017 and cannot be changed. BAS-SVN026H-EN...
  • Page 14: Configuring The Sensor

    BACnet address of the UC400/UC400-B (range of 0-127). Baud rate Sets the baud rate. Default is 76800 (leave default value unless directed by Trane Technical Support). This setting is not configurable. It indicates that BACnet communication is occurring between the Status UC400/UC400-B and the sensor.
  • Page 15: Specifications

    Specifications Sensor Operating Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature –22°F to 122°F (–30°C to 50°C) Storage and Operating Humidity Range 0% to 95%, non-condensing Temperature Control Accuracy +/- 0.9°F (+/– 0.5°C) @ 70F (21°C) typical calibrated Temperature Sensor Resolution +/–...
  • Page 16 For more information, please visit trane.com or tranetechnologies.com. Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
