CTS MCT-100 Series User Manual

Trademarks
CTS is a registered trademark of Connection Technology
Systems Inc. Contents are subject to revision without prior
notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright  Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in part, in
any way whatsoever unless prior consent has been obtained
from Connection Technology Systems Inc.
FCC Warning
The MCT-100 Series converters have been tested and found
to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These standards are designed to
provide reasonable protection against harmful interference
when these devices are operated in a commercial environment.
These devices generate, use, and can radiate radio frequency
energy and may cause harmful interference to radio
communications unless installed in accordance with this
User's Guide. Operation of these devices in a residential area
is likely to cause harmful interference which will make the user
responsible for the appropriate remedial action at his / her own
expense.
CE Mark Warning
These are Class A products. In a domestic environment these
products may cause radio interference in which case the user
will need to consider adequate preventative methods.
1. Checklist
The MCT-100 package should contain the following items:
- MCT-100 Converter
- AC-DC Power Adapter
- Quick Guide
Please contact your sales representative immediately if any
items are missing or damaged.
2. Overview

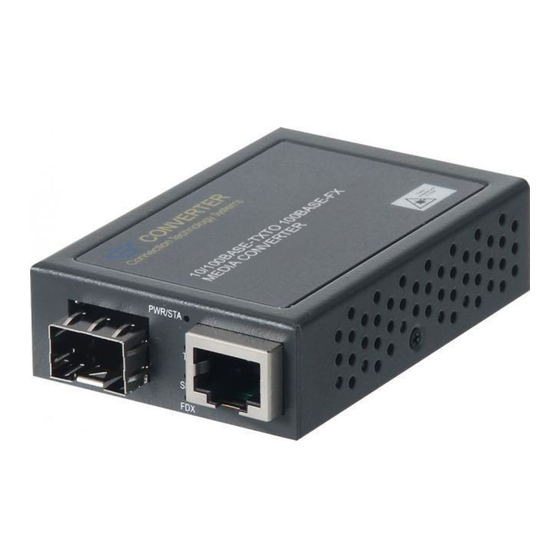

Connection Technology Systems (CTS) MCT-100 series
media converters are the Ethernet 10/100Base-TX to
100Base-FX media converter. The media converter converts
traditional twisted-pair RJ-45 cable into various fiber media,
including multi-mode, single-mode, SC/ST connector or
bi-directional WDM, and extends transmission distance for the
deployment to the household, apartment or campus.
The installation and operation procedures of MCT-100 are
simple & straightforward. Operation status can be monitored
through a set of Diagnostic LED indicators on the front panel.
Major Features:
-
Provide one 10/100Base-TX RJ-45 port & one 100Base-FX
SFP port
- Compatible with IEEE 802.3, 802.3u
- Support 9K Jumbo Frames
- Store & Forward Switching Mechanism
- MDI/MDIX Auto-Crossover supported
Support Auto-Negotiation or Manual mode for TP port's
-
speed & duplex configuration.
- Support Link Alarm function
- Support 128K bytes packet buffer
3. Installation
Please follow the steps described below and refer to Figure 1
or 2 and 3 to complete the network installation.
 Attach a fiber cable from MCT-100 to the fiber network.
 Attach a UTP cable from the 10/100Base-TX network to
the RJ-45 port on MCT-100.
 Connect the power adapter to MCT-100 and the
PWR/STA LED will light up. The TP and F/O Link/Act
LEDs will light up as soon as if all the cable connections
are satisfactory.

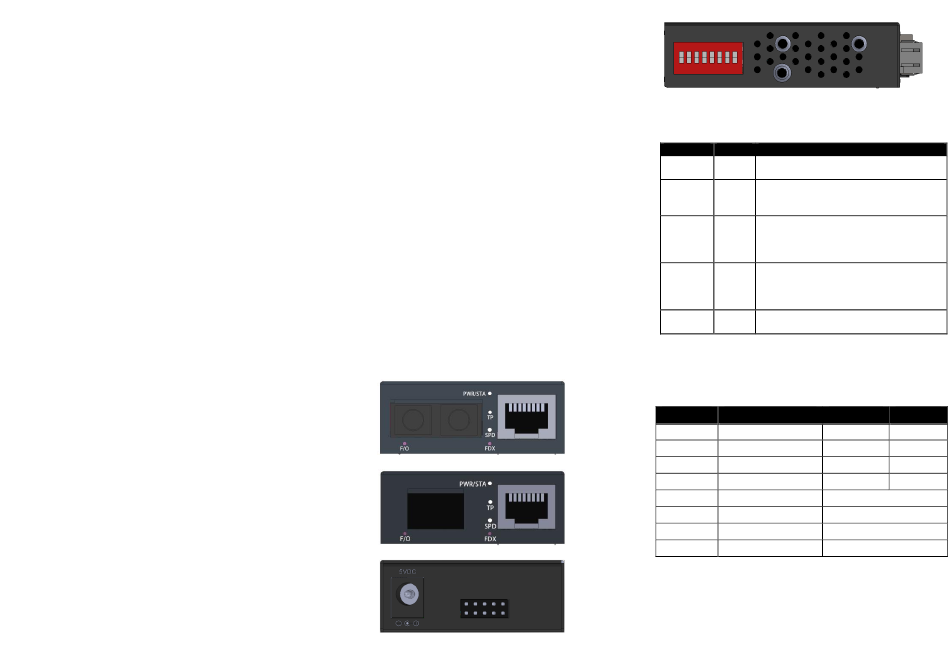

Fig. 1 Dual Fiber Front Panel of MCT-100 Converter
Fig. 2 WDM & SFP Front Panel of MCT-100 Converter
Fig. 3 Rear Panel of MCT-100 Converter
Fig. 4 Side Panel of MCT-100 Converter
4. LED Description
LED Color Function
PWR/
Green Lit when power is available.
STA
Lit when TP cable connection with the
TP Green remote device is good.
Blinking when TP traffic is present.
Lit when Fiber cable connection at the
speed of 100Mbps with the remote device
F/O Green
is good.
Blinking when F/O traffic is present.
Lit when TP port works in full-duplex
mode.
FDX Green
Off when TP port works in half-duplex
mode.
Lit when TP 100Mbps port link is up.
SPD Green
Off when TP 10Mbps port link is up.
5. DIP Switch Setting
The default setting for PIN 1 to PIN 8 is OFF.
Pin NO. Function
1 TP Auto-Negotiation
2 Manual TP Speed
3 Manual TP Duplex
4 Link Alarm
5
Reserved
6
Reserved
7
Reserved
8
Reserved
NOTE:
1. Before adjusting the configuration of the DIP Switch, the
power should be unplugged.
2. Disable TP Auto-Negotiation function before configuring TP
speed/duplex manually.
OFF ON
Enable Disable
100M 10M
Full Half
Disable Enable
Always Keep OFF
Always Keep OFF
Always Keep OFF
Always Keep OFF
