Sumake ST-AD705E38 Instructions Manual

80mm offset angle head air drill
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

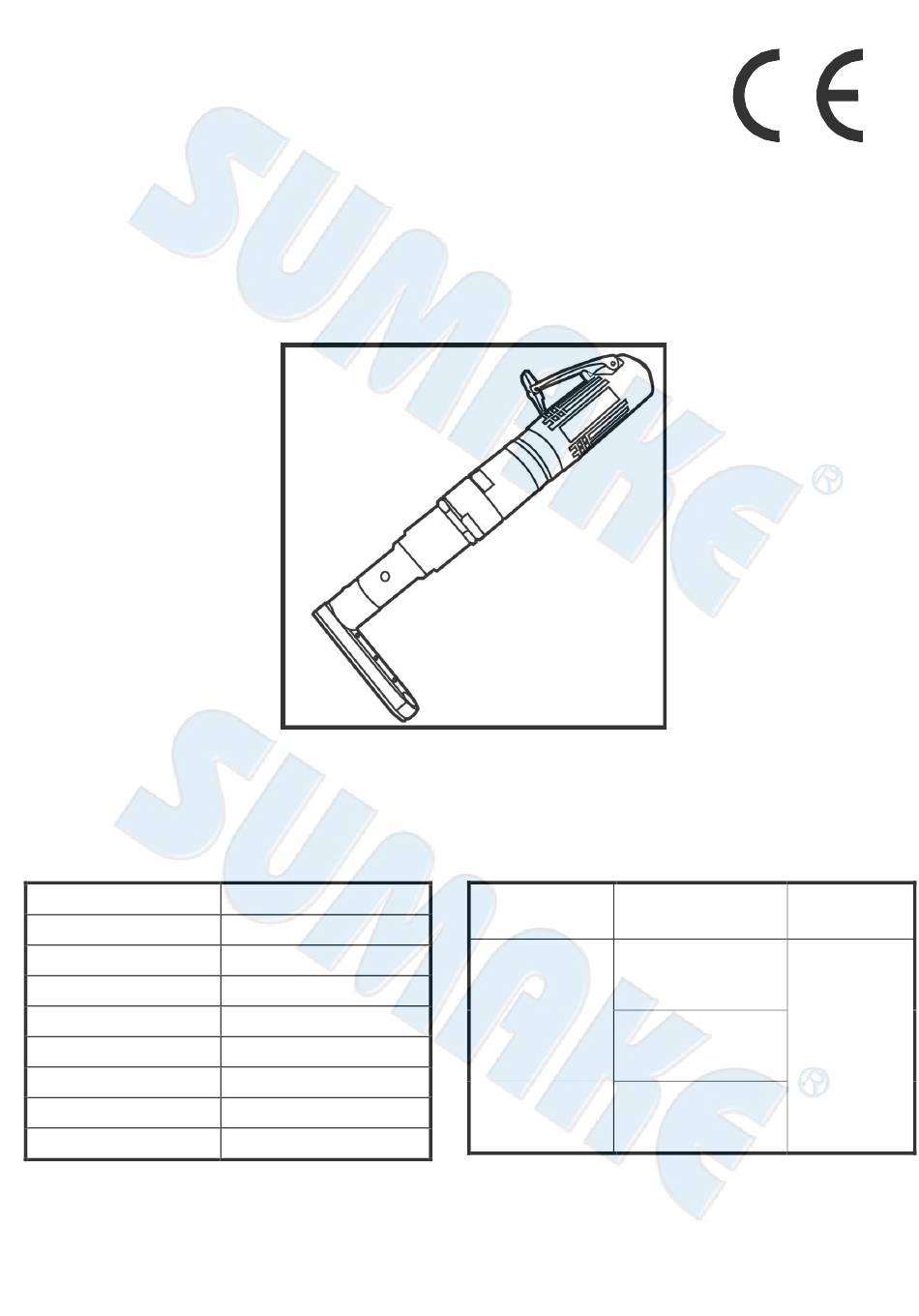

SUMAKE
80mm Offset Angle Head Air Drill
Specification:
Free Speed
Motor
Threaded Type
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-AD705E38
3,800 r/min
0.5HP
1/4"-28
10 CFM (280 L/min)
9-4/9" (240mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
1.85lb (0.84kg)
Noise and Vibration:
Vibration
EN ISO 28927-5
Sound Pressure Level
Load:
0.3 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
No load: 82 dB(A)
Sound power level
environment
No load: 93 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-AD705E38-S-2409A-K5F
Remark
wear ear
protector at
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-AD705E38 and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake ST-AD705E38

Summary of Contents for Sumake ST-AD705E38

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) ² K= 1.5 m/s K= 3dB Net Weight 1.85lb (0.84kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-AD705E38-S-2409A-K5F...

  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 80MM OFFSET ANGLE HEAD AIR DRILL Model/ Serial No.： ST-AD705E32, ST-AD705E38 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 Use a 3 HP or larger compressor for each Forward, which is marked with an “F”, means sparks when grind with metal material. Sumake is a manufacturer and exporter of air tools sander. clockwise direction and reverse, which is 3.

  • Page 4: Parts List

    ST-AD705E38 80MM OFFSET ANGLE HEAD AIR DRILL PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty AD705N-01 Housing AD705N32-26 AD705N-02 O-Ring AD705N32-27 Needle Bearing AD705N-03 Valve Pin AD705E38-28 Planetary Gear AD705N-04 O-Ring AD705E38-29 Gear Base AD705N-05 Valve Plate AD705E32-33...
  • Page 5 DRILL Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 Safety precautions for repetitive motions hazards 1. When using a drill to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body. 2. While using a drill, the operator should adopt a comfortable posture whilst maintaining a secure footing and avoiding awkward or off-balanced postures.

  • Page 8: Specific Safety Instructions

    Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the drill. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.

This manual is also suitable for:

St-ad705e32
