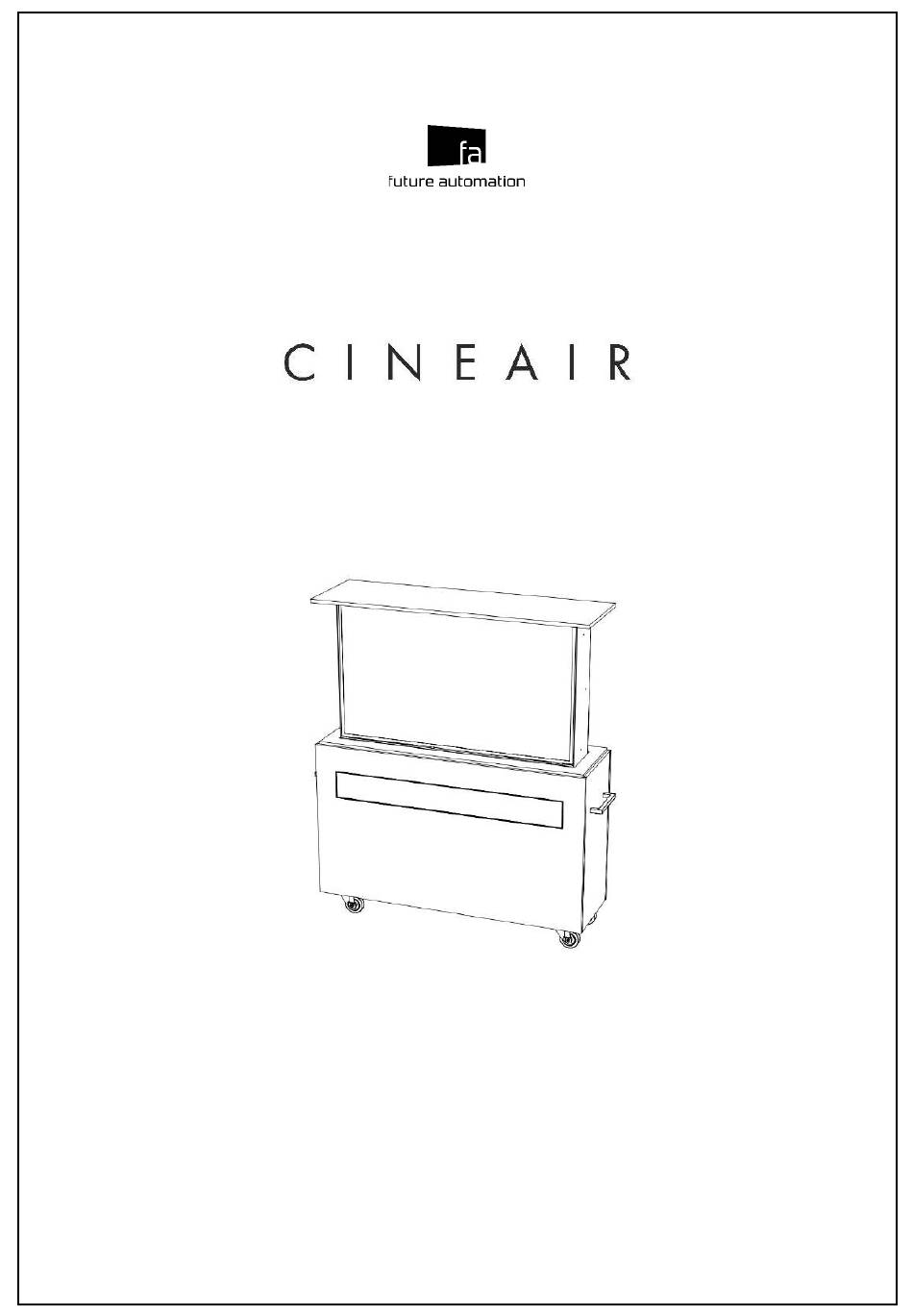

- Page 1 OUTDOOR TV LIFT WITH CABINET 55’’ – 75’’ INSTALLATION INSTRUCTIONS ISSUE 002...
-
Page 3: Safety Disclaimer
Contact the original installer/manufacturer to arrange repair or return. Future Sound & Vision, trading as Future Automation, intend to make this and all documentation as accurate as possible. However Future Automation makes no claim that the information contained herein covers all details, conditions, or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 4: Product Warranty & Risk Assessment
Under the warranty, Future Automation aims to either solve the issue remotely (via telephone or email support) or if the mechanism requires a part, arrange a visit to your premises by a Future Automation approved engineer or send replacement items where appropriate. - Page 5 Sheet must be held by the end user for the duration of the products life and will be referred to during servicing or warranty queries. The Safety and Servicing Information document also contains two Service History Forms that must be filled in by the approved Future Automation dealer who is performing the first required yearly service of this product.
-
Page 6: Table Of Contents
GUIDE CONTENTS SAFETY DISCLAIMER PRODUCT WARRANTY & RISK ASSESSMENT GUIDE CONTENTS PACKAGE CONTENTS MECHANISM START GUIDE SCREEN AND SPEAKER MOUNTING CABLE ROUTING AV EQUIPTMENT WIRING AND STORAGE KEY SWITCH AND LINAK REMOTE CONTROL OPERATION SAFTEY CARE GUIDE... -
Page 7: Package Contents
PACKAGE CONTENTS 1 MECHANISM 3 CONTROL AND WALL BOX CONPONENTS 1.1 - ACTUATOR 3.0 - KEY PLATE AND SWITCH 1.2 - LIFTING GUIDES 3.1 - NEUTRIX POWER CONNECTOR 1.3 - LIFTING BRACES 3.2 - WALL BOX 1.4 - CLADDING BRACKETS 3.3 - REMOAVBLE PANEL BRACKETS 1.5 - KH SCREEN PLATE 3.4 - ACTUATOR CONTROL BOX... -
Page 8: Mechanism Start Guide
MECHANISM START GUIDE Cineair products are shipped with the control box connected along with a mains lead. The Cineair just requires mains power to begin set up. Unpack and check the Cineair fully for any damage or obvious visual faults before •... -
Page 9: Screen And Speaker Mounting
Note: the securing bolt is found in the bottom of the bracket and attaches directly to the speaker, fit this first before securing the speaker to the Cineair. • Run the speaker cabling down inside of unit front to the wall box using the cable management and ties provided, ensuring cable is flat to the cabinet surface. -
Page 10: Cable Routing
ROUTING Cabling both too and from the TV, speaker and wall box should be neat and flat to the Cineair unit surface. Due to the rise and fall movement of the mechanism, nothing should obstruct moving components when the mechanism is operation. -
Page 11: Av Equiptment Wiring And Storage
AV EQUIPTMENT WIRING AND STORAGE Extra AV equipment can be connected to the TV and stored in the Cineair inside the wall box along with the Linak control box, junction box and Samsung control box. Using cable ties, attach the AV equipment on the wall box back plate and wire through to the TV using the PINK cable route stated above. -
Page 12: Key Switch And Linak Remote Control
This key switch comes pre-wired into a junction box located on the wall box mounting panel. For safety, Cineair will operate when the key is turned and held in place. If released, the mechanism will stop movement, limiting the chances of trapping objects or fingers during operation. -
Page 13: Operation Saftey
As the mechanism closes, the top panel of the box shuts onto the body of the Cineair to close off the aperture. Due to the box closing in a downwards motion onto the cabinet, the lid should NOT be permanently fixed to the surrounding box, allowing the lid to move and release should anything get caught between the box lid and cabinet top. -
Page 14: Care Guide
If you can, store Cineair indoors with the cover on to protect the cabinet from weathering. • We recommend installing Cineair in a sheltered area like a veranda or terrace to keep both the • cabinet and the mechanism protected from the elements where possible. - Page 15 NOTES: ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………………….
-
