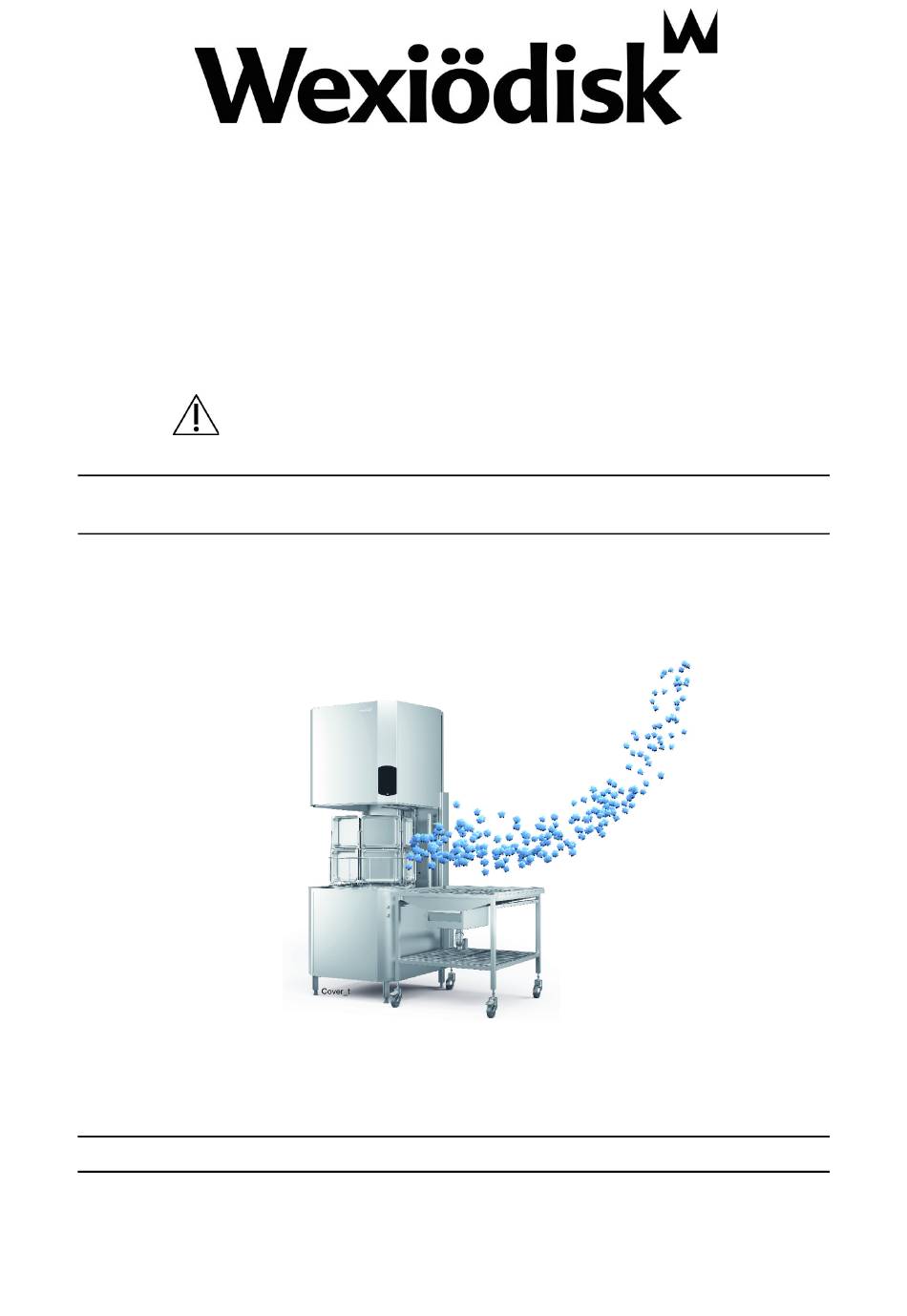

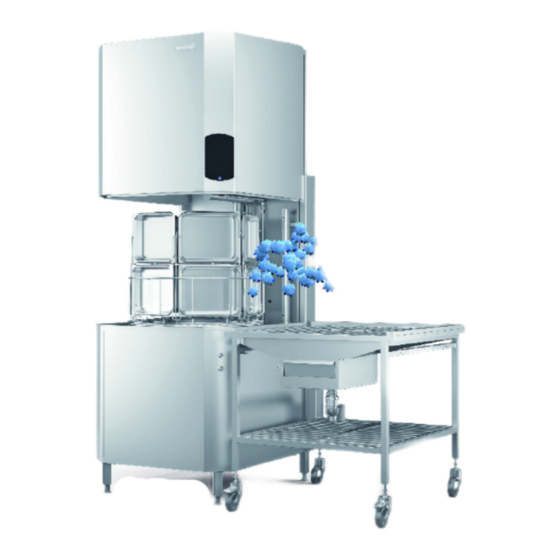

COMBI DISHWASHER
WD-90 DUO
touch
(original documentation)
Read the manual before using the machine!
Installation and user manual
S/N: (En)
Valid from: 202403
Rev.: 00
