Dynabrade 53415 Operating, Maintenance And Safety Instructions

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
53415 – 3,200 RPM, with Roloc
53417 – 3,200 RPM

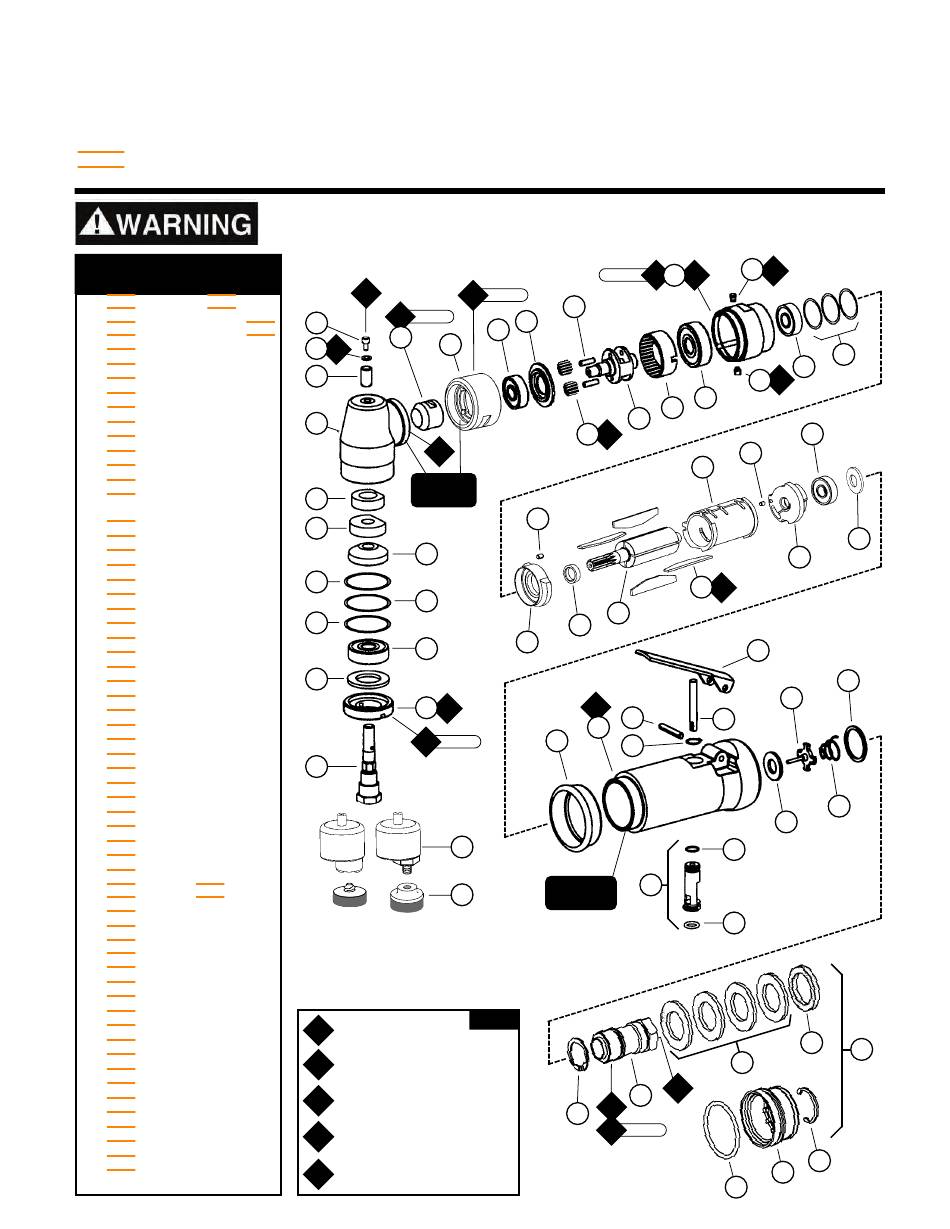

Index Key
No. Part # Description
1 54031 Pad - Model 53415
54018 Pad - Model 53417
2 54029 Orbital Head - Model 53415
54028 Orbital Head - Model 53417
3 02034 1/4"-28 Spindle (Female)
4 02035 Lock Ring
5 01486 Felt Silencer (5)
6 54520 Bearing (2)
7 97116 Shim
8 97117 Shim
9 97118 Shim
10 02599 Gear
11 02044 Wick - Bottom
12 02045 Wick - Top
13 02031 Housing (includes: Gear
oil fitting, plate and needle bearing)
14 02033 Needle Bearing
15 02041 Gear Oil Plate
16 01041 Gear Oil Fitting
17 02600 Pinion - 20,000 RPM
18 50019 Lock Nut
19 02649 Bearing (2)
20 50022 Spacer
21 06213 Gear (2)
22 54472 Gear Shaft (2)
23 50023 Planetary Carrier
24 54468 Ring Gear
25 50024 Gear Case
26 01041 Grease Fitting
27 50784 Set Screw
28 54529 Shim Pack (3/pkg.)
29 01478 Bearing Plate
30 50767 Pin (2)
31 01479 Spacer
32 54553 Rotor
33 01480 Blades (4)
34 01476 Cylinder
35 02676 Bearing Plate
36 02696 Bearing
37 02679 Shield
38 01547 Collar
39 53422 Housing - 53415
53423 Housing - 53417
40 12132 Pin
41 01449 Valve Stem
42 01448 Throttle Lever
01462 Safety Lock Lever
43 95558 Retaining Ring
44 95730 O-Ring
45 01024 O-Ring
46 01469 Speed Regulator Assy.
47 01464 Seal
48 01472 Tip Valve
49 01468 Spring
50 01564 Air Control Ring
51 95711 Retaining Ring
52 01578 Inlet Adapter
53 01379 Bronze Muffler
54 96065 O-Ring
55 01446 Air Deflector
56 95620 Retaining Ring
57 94535 Muffler Assembly
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
® Mini Orbital Head
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
W
1
T
17 N•m
16
17
18
A
15
4
14
13
A
8
Left Hand
Threads
12
11
10
9
8
7
6
5
A
4
T
23 N•m
3
O Oil: O = Air Lube
1
Wicking: W = Gear Oil
W
1
A Adhesive: A = Loctite #680
4
A = Loctite #567
8
T Torque: N•m x 8.85 = In. - lbs.
Grease: G = Lubriplate 630 AA
G
1
.4 Hp/Right-Angle/Planetary Geared/Rear Exhaust
34 N•m
T
23 N•m
22
20
19
G
21
1
30
32
31
29
A
8
8
40
39
38
43
2
Right Hand
1
Threads
KEY
A
8
51
T
Parts Page Reorder No. PD04•50
Effective October, 2004
Supersedes PD01•99
Mini-Dynorbital
Air Motor and Machine Parts
A
27
A
T 8
25
8
19
G
26
1
6
24
23
36
30
34
35
O
33
1
42
48
41
47
44
46
45
53
5
O
1
52
23 N•m
55
54
'
s
28
37
50
49
57
56
