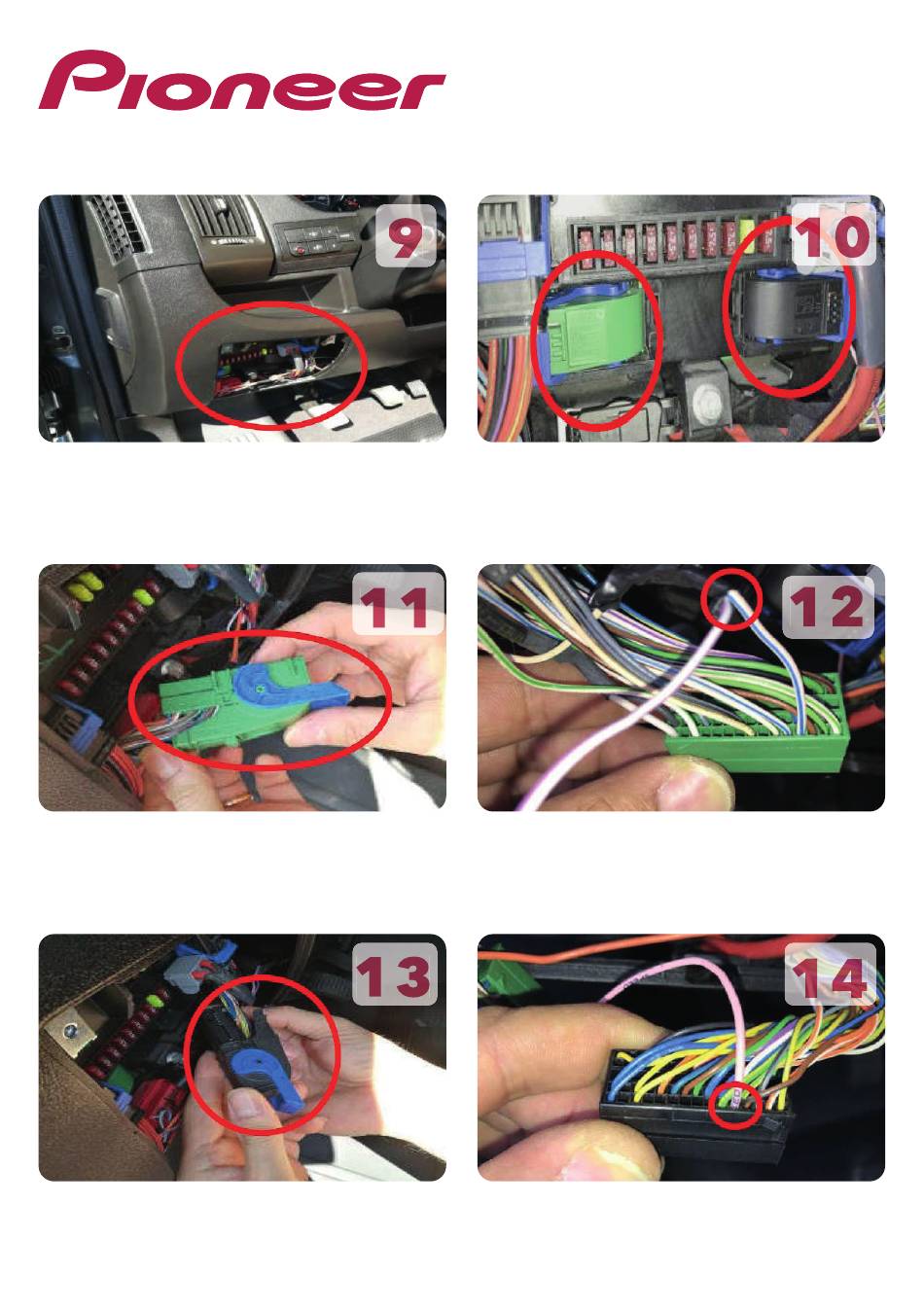

Open the fuse box in the dashboard
Locate the black and green connector
underneath the steering wheel
as indicated
Open the green connector and
Connect the violet/white cable (reverse signal)
slide the cables out
to the cable in pin four.
Open the black connector and
Insert the pink cable pin (speedpulse)
slide the cables out
to the open position fi fty six (56)
Pioneer installation manual - Fiat Ducato X290 SPH-EVO950DAB - v1.01
