Pioneer SPH-EVO950DAB-D7 Installation Manual page 2

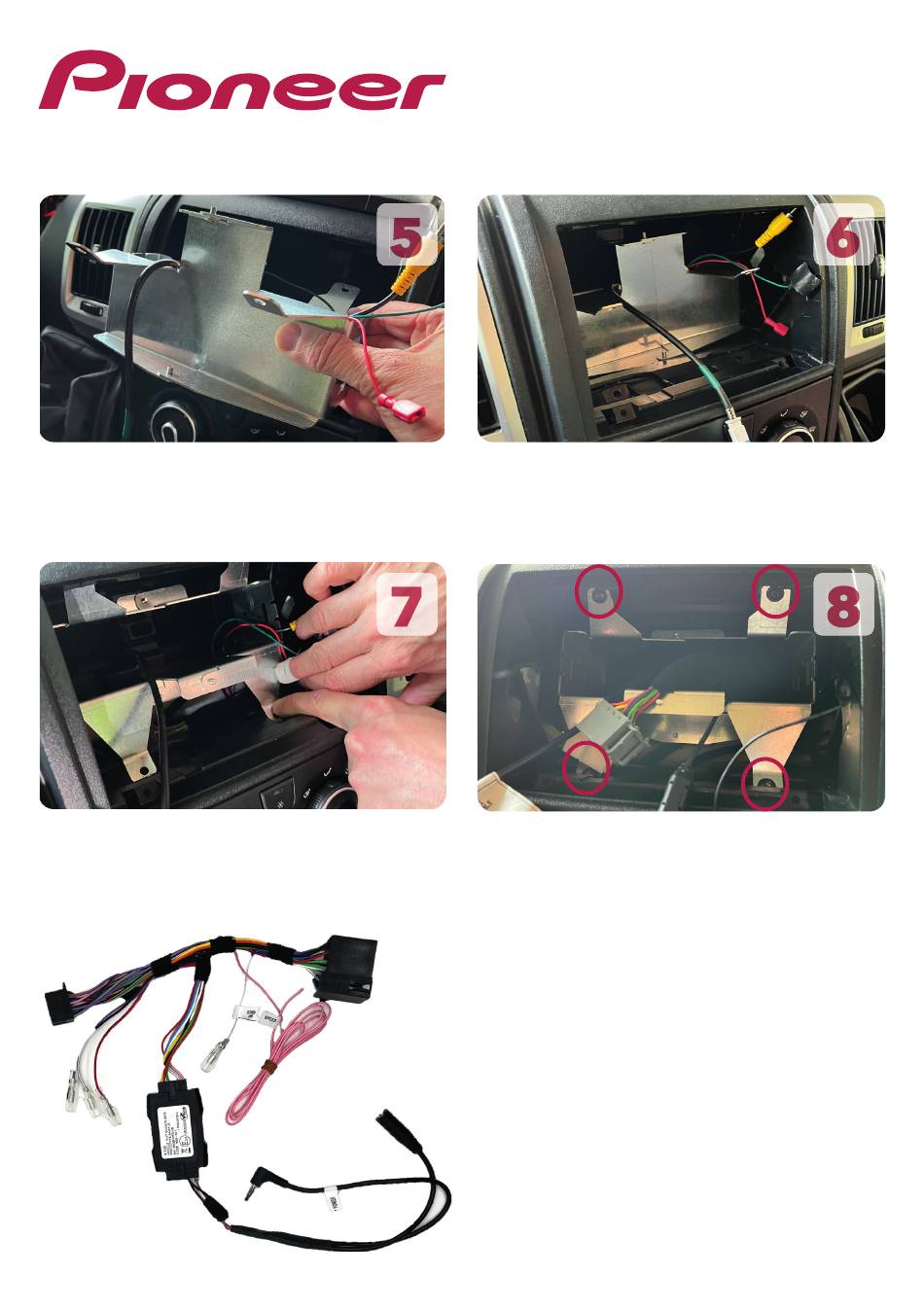

Slide the installation bracket in the dashboard
with the bottom side towards you
Tilt the bracket from the top 90 degrees
towards you
5
6
4
Pioneer installation manual - Fiat Ducato X290 SPH-EVO950DAB - v1.01
1
7
2
3
Make sure it sits deep enough in the
dashboard as shown
Secure the bracket on the 4 points indicated
1 - Connect to the vehicle main ISO cable
2 - Wired input for optional remote
(CD-ME300 or similar)
3 - Steering wheel control input - Connect to
backside of Pioneer head unit - Step 11
4 - Violet/White - Reverse gear input - Step 7/8
Red - Optional 12v ACC supply
Black - Optional GND supply
5 - Pioneer head unit main power connector
6 - Remote output for optional external amplifi er
7 - Speed pulse wire - See step 9/10
