Graco 244057 Instructions-Parts List Manual

Pole gun with cleanshot shut–off valve and contractor in–line valve
Hide thumbs

Advertisement

Table of Contents

Parts

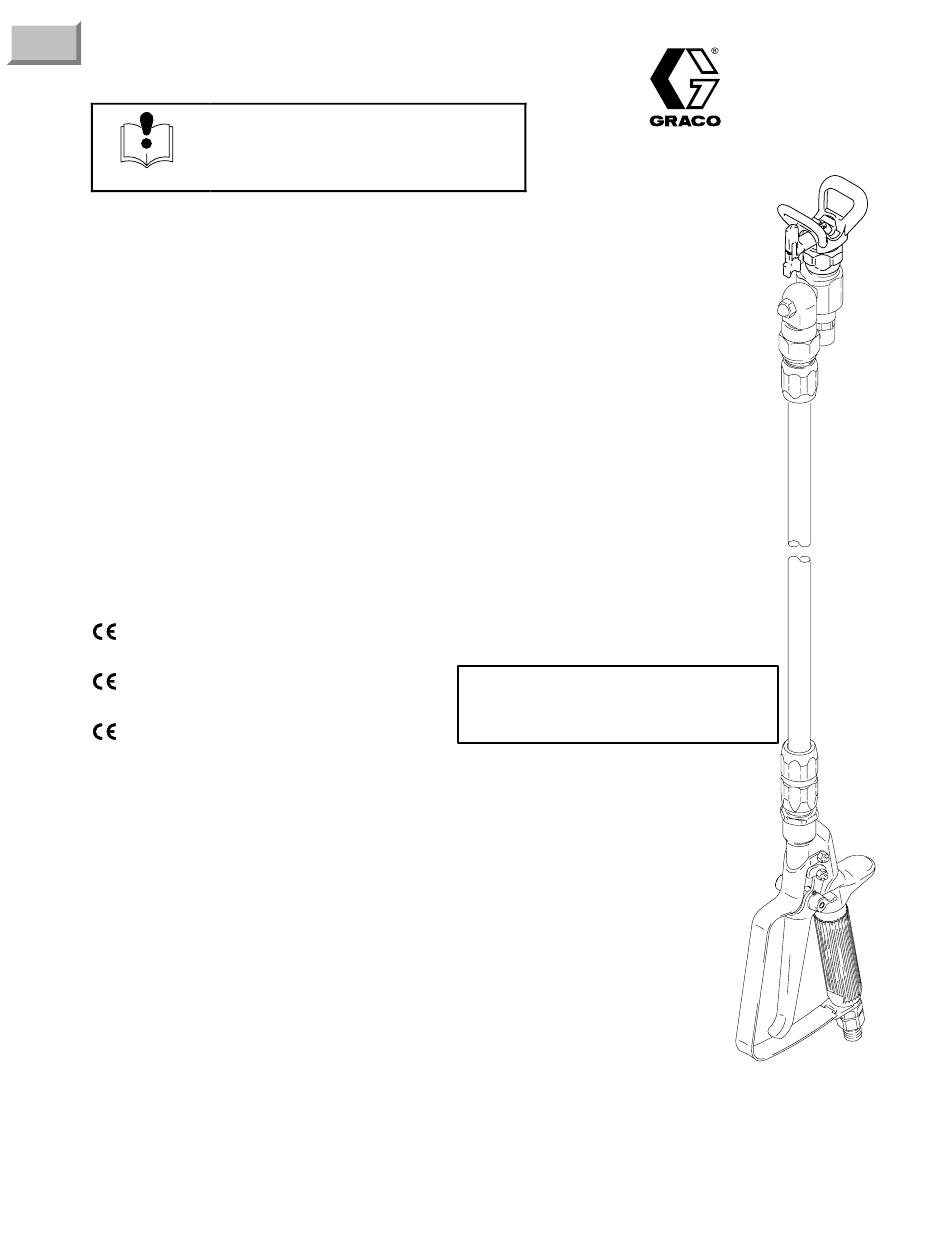

INSTRUCTIONS-PARTS LIST
INSTRUCTIONS
Pole Gun with Cleanshott
Shut-off Valve and
Contractort In-line Valve
3600 psi (25 MPa, 248 bar) Maximum Working Pressure
Model 244057, Series A (North America)
With 3-ft (0.9 m) extension (244163)
Model 244058, Series A (North America)
With 6-ft (1.8 m) extension (244164)
Model 244161, Series A (North America)
Contractor Inline Valve
Model 244366, Series A, (Europe)
With 3-ft (0.9 m) extension (244163)
Model 244367, Series A (Europe)
With 6-ft (1.8 m) extension (244164)
Model 244364, Series A (Europe)
Contractor Inline Valve

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Graco Inc. is registered to I.S. EN ISO 9001
Model 244368, Series A (Asia)
With 3-ft (0.9 m) extension (244163)
Model 244369, Series A (Asia)
With 6-ft (1.8 m) extension (244164)
Model 244365, Series A (Asia)
Contractor Inline Valve
WARNING: HIGH PRESSURE.
Keep Clear of Nozzle.
Read these instructions carefully.
2
4
6
6
13
15
16
18
18
ECOPYRIGHT 2001, GRACO INC.
309237
Rev. A
TI0666

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 244057 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco 244057

Summary of Contents for Graco 244057

  • Page 1: Table Of Contents

    ......TI0666 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 2001, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Symbols

    D Handle and route hoses and tubes carefully. Keep hoses and tubes away from moving parts and hot surfaces. Do not use the hoses to pull equipment. Do not expose Graco hoses to temperatures above 150_F (65_C) or below –40_F (–40_C).
  • Page 3 D Use the equipment only for its intended purpose. If you are uncertain about the usage, call your distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories. D Check the equipment daily. Repair or replace worn or damaged parts immediately.

  • Page 4: Installation

    Installation Installation 4. Rotate the spray valve knob counter–clockwise to the out/flush position. Fig. 2. 1. Connect grounded fluid hose to the Contractort 5. Hold metal part of pole gun firmly to side of groun- In–line valve. ded metal waste container. Trigger in-line valve to 2.
  • Page 5 Installation D Ground the pump or sprayer as instructed in its Electrical Grounding separate manual. WARNING D Ground the air compressor or hydraulic power FIRE AND EXPLOSION HAZARD supply according to the local electrical code and Improper grounding could cause static the manufacturer’s recommendations.

  • Page 6: Operation

    Operation Startup WARNING 1. Start pump. Adjust fluid pressure so spray is INJECTION HAZARD completely atomized. Always use lowest pressure To reduce the risk of a fluid injection that gets desired results. Higher pressure may not injury, do not operate the pole gun with improve spray pattern and causes premature tip the tip guard or trigger guard removed.
  • Page 7 Operation Changing Spray Pattern Orientation Clearing a Clogged Spray Tip Frequently during the job and at the end of each WARNING workday, relieve the pressure and manually clean the tip with a solvent-soaked brush. Frequent cleaning To reduce the risk of a fluid injection injury, never helps keep fluid buildup from drying and clogging the spray without the tip guard.
  • Page 8 Operation Flushing the Cleanshott Shut–off Valve 3. If flushing with water, flush last with a rust inhibitor or Graco Pump Armor to protect the system from Rotate the spray valve knob counter–clockwise to the corrosion. flush position (see Using the Cleanshott Shut–off 4.
  • Page 9 Operation Cleaning the Filter (Fig. 6) Clean the filter assembly (5) daily, as follows: 1. Follow Pressure Relief Procedure on page 4. 2. Push up on the trigger guard (3) and swing it away from the trigger (2). 3. Unscrew the gun handle (13) from the housing (11).
  • Page 10 Service Changing the Needle (Fig. 7) 2. Install bracket (10) and locknut (D) loosely on threaded end of needle (C). Squeeze trigger to pull NOTE: Needle (C), diffuser/seat (A), gasket (B) and needle assembly (C) into gun body (11). Tighten locknut (D) must be replaced together.
  • Page 11 Service Replacing the Swivel (Fig. 8) Disassembly 1. Follow Pressure Relief Procedure on page 4. 2. Push up on trigger guard (3) and rotate trigger guard away from trigger (2). 3. Unscrew gun handle (13) from housing (11). Remove filter (5) and clean in compatible solvent. 4.
  • Page 12 Notes 309237...

  • Page 13: Parts

    Parts Model 244160 Cleanshott Shut–off Valve Model 244161 Contractort In–line Gun (North America) Model 244164 Contractort In–line Gun (Europe) Model 244165 Contractort In–line Gun (Asia) (included in kit 286517) 40/41 Page 14 TI0667 309237...
  • Page 14 Parts Cleanshott Repair Kit (31) 244162 Swivel Repair Kit (35) 244363 Torque 26–32 ft–lbs Torque 55–60 in–lbs Torque 26–32 ft–lbs ti0947 309237...

  • Page 15: Parts List

    Parts List Model 244160 Cleanshott Shut–off Valve Model 244161 Contractort In–line Gun (North America) Model 244164 Contractort In–line Gun (Europe) Model 244165 Contractort In–line Gun (Asia) Ref. Ref. Part No. Description Qty. Part No. Description Qty. 070199 SEALANT, anaerobic 218070 NEEDLE–DIFFUSER/SEAT KIT 243161 HandTitet Guard...

  • Page 16: Technical Data

    Weight Model 244057, 244366, 244368 ............
  • Page 17 Notes 309237...

  • Page 18: Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
