5. ASSEMBLY
CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.
FIG.8
5.1. SELECTING CORRECT IMPACT SOCKET
Always use the correct size impact socket for bolts and nuts. An incorrect size impact socket will result in inaccurate and inconsistent
fastening torque and/or damage to the bolt or nut.

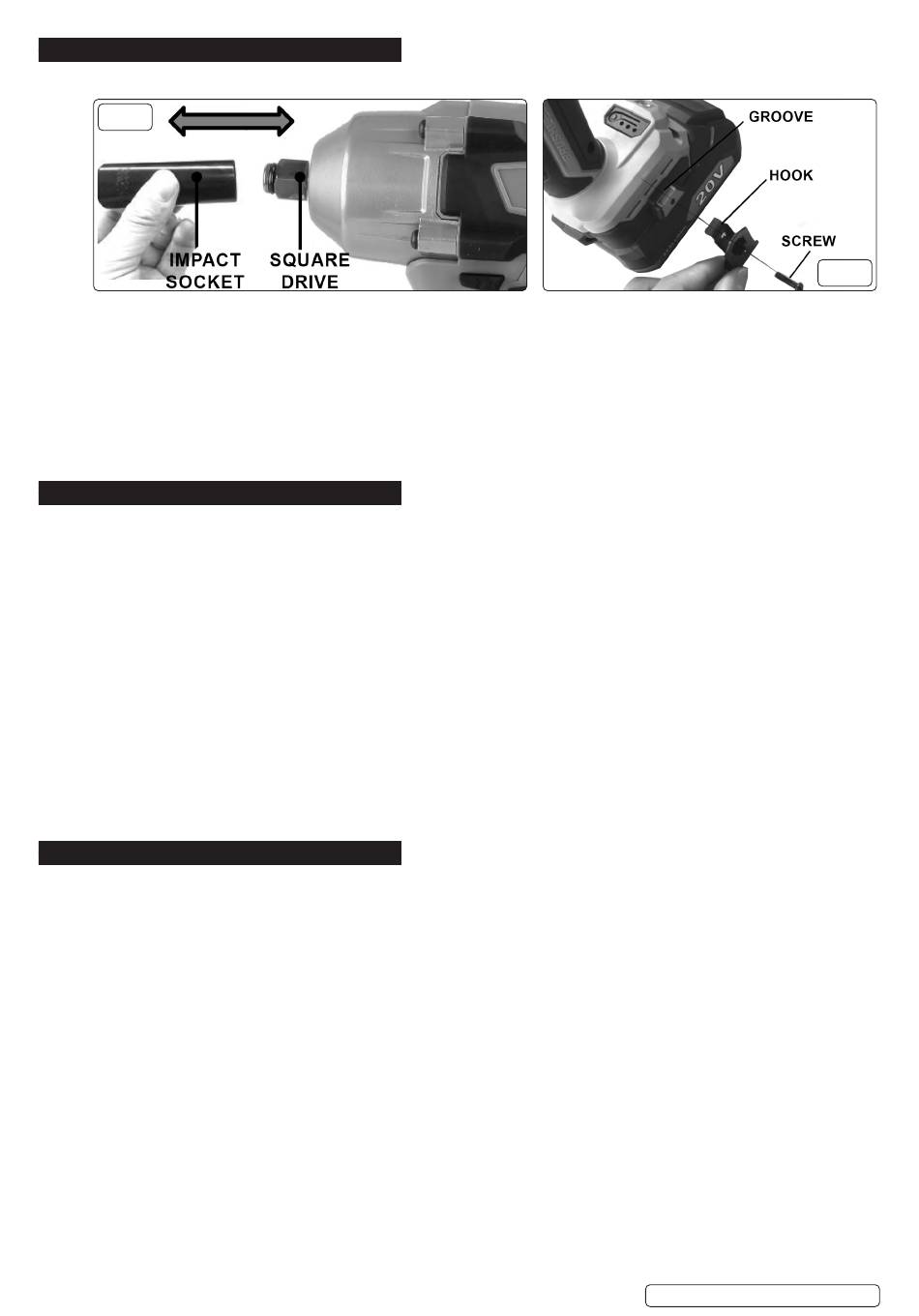

5.2. INSTALLING OR REMOVING IMPACT SOCKET (FIG.8)
To install the impact socket, push it onto the square drive of the tool until it locks into place. To remove the impact socket, simply pull it off.
5.3. INSTALLING HOOK (FIG.9)
CAUTION: When installing the hook, always secure it with the screw firmly. If not, the hook may come off from the tool and result in the
personal injury.
The hook is convenient for temporarily hanging the tool. This can be installed on both side of the tool. To install the hook, insert it into a
groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.
6.

OPERATION

CAUTION: Always insert the battery cartridge all the way until it locks in place. If not, it may accidentally fall out of the tool, causing
injury to you or someone around you.
6.1. FASTENING
6.1.1. Hold the tool firmly and place the impact socket over the bolt or nut. Turn the tool on and fasten for the proper fastening time.
6.1.2. THE FASTENING TORQUE IS AFFECTED BY A WIDE VARIETY OF FACTORS, INCLUDING:
1 - BATTERY CHARGE
When the battery cartridge is discharged almost completely, voltage will drop and the fastening torque will be reduced.
2 - IMPACT SOCKET
Failure to use the correct size impact socket will cause a reduction in the fastening torque. A worn impact socket (wear on the hex end
or square end) will cause a reduction in the fastening torque.
3 - BOLT
Even though the torque coefficient and the class of bolt are the same, the proper fastening torque will differ according to the diameter
of bolt. Even though the diameters of bolts are the same, the proper fastening torque will differ according to the torque coefficient, the
class of bolt and the bolt length.
4 - OPERATING SPEED
Operating the tool at low speed will cause a reduction in the fastening torque.
6.2. LOOSENING
6.2.1. Depress the reversing switch lever from the B side for anticlockwise rotation.
6.2.2. Squeeze the trigger.
7.

MAINTENANCE

CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or
maintenance.
DO NOT use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
7.1.
7.2. Repairs and any other maintenance or adjustment should be performed by authorised service centres, using genuine Sealey
replacement parts. Contact Sealey for details of local service centres.
WARNING! HAND ARM VIBRATION
‰
The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard
test method and may be used for comparing one tool with another. The declared vibration total values and the declared noise emission
values may also be used in a preliminary assessment of exposure. The vibration and noise emissions during actual use of the
power tool can differ from the declared values depending on the ways in which the tool is used, especially what kind of workpiece is
processed. Perform a risk assessment to identify safety measures to protect the operator based on an estimation of exposure and the
actual condition of use.
