Vynco VAFT150 Installation Instructions

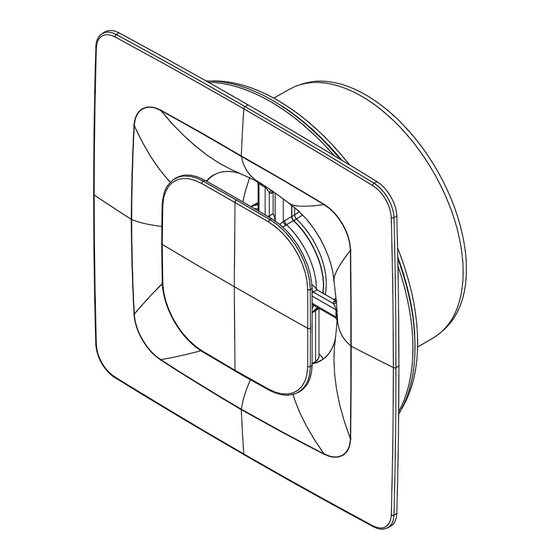

VAFT150 - THROUGH WALL FAN
SPECIFICATIONS
Rated Operational
Voltage
Input Power
Motor Type
Duct Size
Spigot Cutout Size
SAFETY
Product Safety Standard.
AS/NZS 60335.1 & AS/NZS 60335.2.80
In conjunction complies with Electromagnetic
Compatibility (EMC) standard AS/NZS CISPR 14.1
VYNCO INDUSTRIES (NZ) LIMITED
CHRISTCHURCH
388 Tuam Street, Phillipstown, Christchurch, 8011
PO Box 9022, Tower Junction, Christchurch 8149
New Zealand
P +64 3 379 9283
E sales@vynco.co.nz
VYNCO.CO.NZ
IP44
100 - 240V AC,
50/60Hz
13W
EC Type Brushless
150mm
159mm
INSTALLATION INSTRUCTIONS
WARRANTY
This warranty protects against defects in workmanship
and material. Any defects will be rectified by
replacement if the goods are returned to place of
purchase, with proof of purchase, and with a brief
explanation of the experienced fault.
The warranty does not include compensation for any
associated expenses involving installation or removal,
such as labour or travel.
This warranty becomes null and void if, in our opinion,
the product has been misused, tampered with or
incorrectly installed.
WARNING
• Ensure the fan is switched off from the supply
mains before removing the fascia.
• The fan is NOT intended for mounting in outside
windows or outside an external wall (indoor
mounting only).
• Precautions must be taken to avoid the back flow
of gases into the room from the open flue of gas or
other fuel-burning appliances.
• When installing through an external wall, a cowl
grill must be used externally to prevent water
ingress.
• Do not use the fan if it is damaged, malfunctions or
is dropped.
• This fixed appliance is not intended for use by
persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instructions concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they
do not play with the appliance.
• The fan is to be installed so that the blades are
more than 2.1m above the floor
