SC228-GL
Hardware Guide
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC228-GL and is the answer not in the manual?

Questions and answers

Related Manuals for Fibocom SC228-GL

Summary of Contents for Fibocom SC228-GL

  • Page 1 SC228-GL Hardware Guide V1.2...
  • Page 2 Disclaimer Any action you take in the course of using this document is at your own risk, and Fibocom shall not be liable for any damages or losses under any circumstances. Due to product version upgrade or other reasons, Fibocom reserves the right to modify any information in this document at any time without prior notice and any responsibility.

  • Page 3: Table Of Contents

    5 Regulatory Compliance statement......................18 5.1 CE Regulatory Compliance statement ....................18 5.2 FCC Conformance information ....................18 5.3 ISED Conformance information ....................25 Appendix A. Reference Documents ....................... 29 Appendix B. Acronyms and Abbreviations ....................30 Copyright © Fibocom Wireless Inc.

  • Page 4: Applicable Models

    Applicable Models Applicable Models Applicable Model Description SC228-GL-20 4GB+64GB memory, suitable for Global Copyright © Fibocom Wireless Inc.

  • Page 5: Foreword

    3GPP TS 36.124V10.3.0: Electro Magnetic Compatibility（EMC）requirements for mobile terminals  and ancillary equipment 3GPP TS 21.111 V10.0.0: USIM and IC card requirements  3GPP TS 51.011 V4.15.0: Specification of the Subscriber Identity Module -Mobile Equipment （SIM-  ME） interface Copyright © Fibocom Wireless Inc.
  • Page 6 3GPPTS27.005 V10.0.1: Use of Data Terminal Equipment -Data Circuit terminating Equipment （DTE  - DCE）interface for Short Message Service（SMS）and Cell Broadcast Service （CBS） PCI_Express_M.2_Specification_Rev1.1_TS_12092016_NCB  Universal Serial Bus Specification 2.0  Universal Serial Bus Specification 3.0  Copyright © Fibocom Wireless Inc.

  • Page 7: Product Overview

    Android operating system and supports various interfaces such as MIPI/USB/UART/SPI/I2C. It is the optimal solution for the core system of wireless smart products. Its corresponding network modes and frequency bands are as follows: Table 1. Introduction to bands of SC228-GL Mode Band...
  • Page 8 Bluetooth features BT5.0 Satellite positioning GPS(L1+L5)/BeiDou/GLONASS/Galileo/QZSS Text and PDU modes Point-to-Point MO and MT SMS cell broadcast SMS storage: stored in the module by default LCD interface One 4-Lane MIPI_DSI D-PHY 1.2 interface Maximum rate 1.5Gbps/lane Copyright © Fibocom Wireless Inc.
  • Page 9 2 Product Overview Camera interface Three 4-Lane MIPI_CSI D-PHY 1.2 interfaces Maximum rate 2.5Gbps/lane, configurable as 4+4+2+1 Audio interface Audio input: 3 analog microphone inputs with integrated internal bias Audio output: A set of differential earphone output Copyright © Fibocom Wireless Inc.
  • Page 10 : -30°C~75°C Storage temperature: -40°C~85°C Software update USB/OTA/SD RoHS Comply with RoHS standard When the module is operating within this temperature range, the functions of it are normal and the relevant performance meets the 3GPP standard. Copyright © Fibocom Wireless Inc.

  • Page 11: Antenna Interfaces

    19/B20/B25/B26/B28/B6 /B71 6/B71 LTE-TDD: LTE-TDD: B34/B38/B39/B40/B41 B34/B38/B39/B40/B41 ANT_ LTE(LB/MB/HB LTE-FDD: LTE-FDD: 617MHz- DRX) B1/B2/B3/B4/B5/B7/B8/B B1/B2/B3/B4/B5/B7/B8/ 2689.9MHz 12/B13/B14/B17/B18/B1 B12/B13/B14/B17/B18/B 9/B20/B25/B26/B28/B66 19/B20/B25/B26/B28/B6 /B71 6/B71 LTE-TDD: LTE-TDD: B34/B38/B39/B40/B41 B34/B38/B39/B40/B41 ANT_GNSS GNSS antenna GNSS 2.4G/5G/BT 2.4G/5G/BT ANT_WIFI/BT WI-FI/BT antenna Copyright © Fibocom Wireless Inc.

  • Page 12: Operating Frequency

    Band 2 1850-1909.9 1930-1989.9 Band 3 1710-1784.9 1805-1879.9 Band 4 1710-1754.9 2110-2154.9 Band 5 824-848.9 869-893.9 Band 7 2500-2569.9 2620-2689.9 Band 8 880-914.9 925-959.9 Band 12 699-715.9 729-745.9 Band 13 777-786.9 746-755.9 Band 14 788-797.9 758-767.9 Copyright © Fibocom Wireless Inc.

  • Page 13: Wifi

    5G band supports OFDM, VHT20, VHT40, VHT80  Test condition: 3.8V power supply, environment temperature of 25°C Table 32. WIFI transmitting power Frequency Mode Date Rate Bandwidth (MHz) TX Power (dBm) 2.4G 802.11b 1Mbps 17 ±3 Copyright © Fibocom Wireless Inc.
  • Page 14 MCS8 12 ±3 MCS0 14 ±3 MCS9 11 ±3 MCS0 13 ±3 MCS9 10 ±3 Table 33. WIFI receiving sensitivity Frequency Mode Date Rate Bandwidth (MHz) Sensitivity (dBm) 2.4G 802.11b 1Mbps 11Mbps 802.11g 6Mbps 54Mbps Copyright © Fibocom Wireless Inc.

  • Page 15: Bluetooth

    The module supports BT5.0 (BR/EDR+BLE) standard. The modulation method supports GFSK, 8-DPSK and π/4-DQPSK. The BR/EDR channel bandwidth is 1MHz and can accommodate 79 channels. The BLE can accommodate 40 channels. Its main features are as follows: Copyright © Fibocom Wireless Inc.

  • Page 16: Gnss

    GNSS. Test condition: 3.8V power supply, environment temperature of 25°C Table 38. GNSS positioning performance Parameter Description Typical Result Unit Acquisition -145 Sensitivity Tracking -157 -130dBm dB-Hz Copyright © Fibocom Wireless Inc.
  • Page 17 TTFF Warm Start Hot Start Static accuracy (95% @-130dBm) Table 39. GNSS operating frequency Mode Frequency Unit L1: 1575.42 ±1.023 L5: 1176.45 ±5.11 GLONASS L1: 1597.5-1605.9 BeiDou B1I: 1561.098±2.046 Galileo E1: 1575.42±2.02 QZSS L1: 1575.42±1.023 Copyright © Fibocom Wireless Inc.

  • Page 18: Structure Specifications

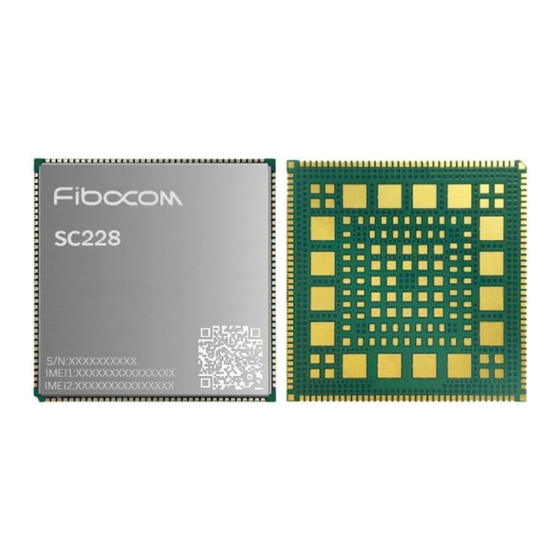

    4 Structure Specifications 7.1 Product Appearance Figure 30. Product appearance Copyright © Fibocom Wireless Inc.

  • Page 19: Structure Dimensions

    7.3 PCB Package The following figure shows the PCB package size of the module, and users can design the PCB package Fibocom_SC228_ Package by themselves. Fibocom also provides users with a designed document , which can be found in the package.

  • Page 20: Regulatory Compliance Statement

    This equipment should be installed and operated withminimum distance of 20 cm between the radiator and your body. Hereby, Fibocom Wireless Inc. declares that the radio equipment type SC228-GL is in compliance with Directive 2014/53/EU as well as UK Radio Equipment Regulations SI 2017 No.1206. The full text of the EU/UK declaration of conformity is available at the following internet address: Download Center (fibocom.com) for CE.
  • Page 21 Fibocom Wireless Inc. that they wish to change the antenna trace design. In this case, a Class II permissive chang...
  • Page 22 Only antennas of the same type and with equal or less gains as shown below may be used with this module. Other types of antennas and/or higher gain antennas may require additional authorization for operation. Copyright © Fibocom Wireless Inc.
  • Page 23 LTE Band 2 Dipole 2.85 LTE Band 4 Dipole 2.98 LTE Band 7 Dipole 2.21 LTE Band 12 Dipole 1.61 LTE Band 13 Dipole 1.83 LTE Band 17 Dipole 1.58 LTE Band 25 Dipole 2.77 Copyright © Fibocom Wireless Inc.
  • Page 24 RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Federal Communication Commission Interference Statement Copyright © Fibocom Wireless Inc.
  • Page 25 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for Copyright © Fibocom Wireless Inc.
  • Page 26 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Copyright © Fibocom Wireless Inc.

  • Page 27: Ised Conformance Information

    Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled Copyright © Fibocom Wireless Inc.
  • Page 28 Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et Copyright © Fibocom Wireless Inc.
  • Page 29 Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be Copyright © Fibocom Wireless Inc.
  • Page 30 à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel. Copyright © Fibocom Wireless Inc.

  • Page 31: Appendix A. Reference Documents

    Appendix A. Reference Documents Appendix A. Reference Documents Category Document Name Fibocom_SC228_Package Reference design Fibocom_SC228_Reference Design Fibocom_SC228_ADP User Guide Development kit Fibocom_EVB-SOC_User Guide Fibocom_Design Guide_RF Antenna User Guide Fibocom_SC228_SMT Design Guide Fibocom_General Thermal Design Guide for Modules Copyright © Fibocom Wireless Inc.

  • Page 32: Appendix B. Acronyms And Abbreviations

    Printed Circuit Board Protocol Data Unit Phase Shift Keying Quadrature Amplitude Modulation QPSK Quadrature Phase Shift Keying Radio Frequency RHCP Right Hand Circularly Polarized RMS Root Mean Square Real Time Clock Receive Short Message Service Copyright © Fibocom Wireless Inc.
  • Page 33 Maximum Output High Level Voltage Value VOHmin Minimum Output High Level Voltage Value VOLmax Maximum Output Low Level Voltage Value VOLmin Minimum Output Low Level Voltage Value VSWR Voltage Standing Wave Ratio WCDMA Wideband Code Division Multiple Access Copyright © Fibocom Wireless Inc.
