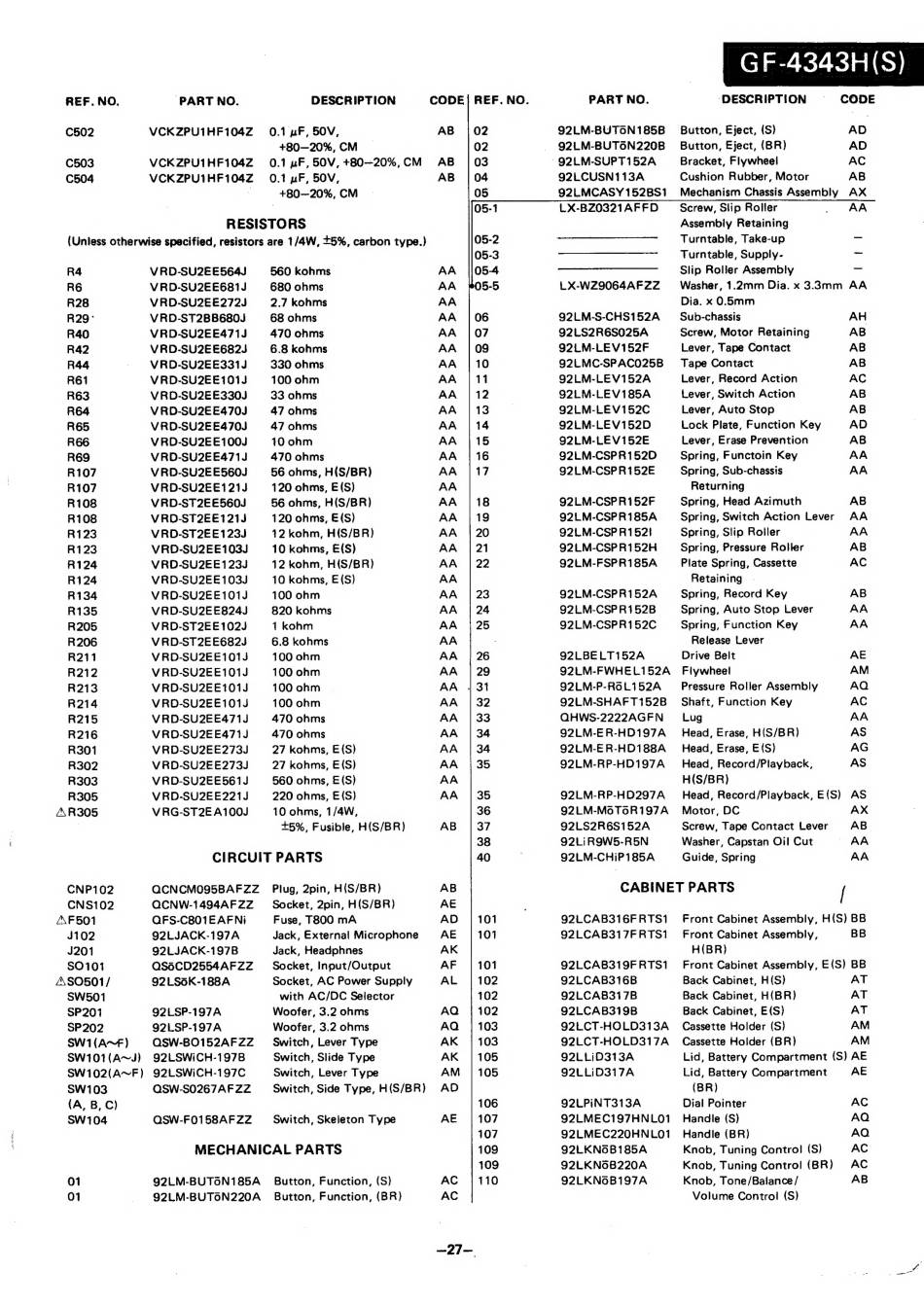

GF-4343H(S}
REF. NO. PART NO. DESCRIPTION CODE} REF. NO. PART NO. 'DESCRIPTION $$CODE
C502 VCKZPU1HF104Z 0.1 uF, 50V, AB | 02 92LM-BUTON185B =' Button, Eject, (S) AD
+80—20%, CM 02 92LM-BUTSN220B8_ = Button, Eject, (BR) AD
C503 VCKZPU1HF104Z 0.1 uF, 50V, +80—-20%,CM AB | 03 '92LM-SUPT152A Bracket, Flywheel AC
C504 VCKZPU1HF104Z 0.1 uF, SOV, AB | 04 92LCUSN113A Cushion Rubber, Motor AB
| +80—20%, CM 05 92LMCASY152BS1 Mechanism Chassis Assembly AX
| 05-1 LX-BZO321AFFD Screw, Slip Roller . AA
RESISTORS Assembly Retaining
(Unless otherwise specified, resistors are 1/4W, 5%, carbon type.) 05-2 ————_——_—= Turntable, Take-up ma
05-3 = —— ope Turntable, Supply- =
R4 VRD-SU2EE564J 560 kohms AA {|05-4 ——-——— Slip Roller Assembly =
R6 VRD-SU2EE681J 680 ohms AA #05-5 LX-WZ9064AFZZ Washer, 1.2mm Dia. x 3.3mm AA
R28 VRD-SU2EE2725 2.7 kohms AA Dia. x 0.5mm
R29° VRD-ST2BB680J 68 ohms AA | 06 92LM-S-CHS152A = Sub-chassis AH
R40 VRD-SU2EE471J 470 ohms AA |07 92LS2R6S025A Screw, Motor Retaining AB
R42 VRD-SU2EE682J 6.8 kohms AA | 09 92LM-LEV152F Lever, Tape Contact AB
R44 ~ VRD-SU2EE331J 330 ohms AA | 10 92LMC-SPACO25B-__—s Tape Contact AB
R61 VRD-SU2EE10145 100 ohm AA | 11 92LM-LEV152A Lever, Record Action AC
R63 VRD-SU2EE3305 33 ohms AA | 12 92LM-LEV185A Lever, Switch Action AB
R64 VRD-SU2EE470J 47 ohms AA |13 | 92LM-LEV152C Lever, Auto Stop AB
R65 VRD-SU2EE470J 47 ohms AA | 14 92LM-LEV152D Lock Plate, Function Key AD
R66 VRD-SU2EE100J 10 ohm AA ; 15 92LM-LEV152E Lever, Erase Prevention AB
R69 VRD-SU2EE471J 470 ohms AA | 16 92LM-CSPR152D Spring, Functoin Key AA
R107 VRD-SU2EE560J 56 ohms, H(S/BR) AA |17 92LM-CSPR152E Spring, Sub-chassis AA
R107 VRD-SU2EE121J 120 ohms, E(S) AA Returning
R108 VRD-ST2EE560J 56 ohms, H({(S/BR) AA | 18 92LM-CSPR152F Spring, Head Azimuth AB
R108 VRD-ST2EE121J 120 ohms, E(S) AA | 19 92LM-CSPR185A Spring, Switch Action Lever AA
R123 VRD-ST2EE123J 12 kohm, H(S/BR) AA | 20 92LM-CSP R152! Spring, Slip Roller AA
R123 VRD-SU2EE103J 10 kohms, E(S) AA | 21 92LM-CSPR152H Spring, Pressure Roller AB
R124 VRD-SU2EE123J 12 kohm, H(S/BR) AA | 22 92LM-FSPR185A Plate Spring, Cassette AC
R124 VRD-SU2EE103J 10 kohms, E(S) AA Retaining
R134 VRD-SU2EE101J 100 ohm AA | 23 92LM-CSPR152A Spring, Record Key AB
R135 VRD-SU2EE824J 820 kohms AA | 24 92LM-CSP R152B Spring, Auto Stop Lever AA
R205 VRD-ST2EE102J 1 kohm AA | 25 92LM-CSPR152C Spring, Function Key AA
R206 VRD-ST2EE682J 6.8 kohms AA Release Lever
R211 VRD-SU2EE101J 100 ohm AA | 26 92LBELT152A Drive Belt AE
R212 VRD-SU2EE101J 100 ohm AA | 29 92LM-FWHEL152A Fiywheel AM
R213 VRD-SU2EE101J
100 ohm | AA | 31
92LM-P-ROL152A
= Pressure Roller Assembly AQ
R214 VRD-SU2EE101J 100 ohm AA | 32 92LM-SHAFT152B Shaft, Function Key AC
R215 VRD-SU2EE471J 470 ohms AA | 33 QHWS-2222AGFN Lug AA
R216 VRD-SU2EE471J 470 ohms AA | 34 92LM-ER-HD197A Head, Erase, H(S/BR) AS
R301 VRD-SU2EE273J 27 kohms, E(S) AA | 34 92LM-ER-HD188A Head, Erase, E(S) AG
R302 VRD-SU2EE273J 27 kohms, E(S) AA {35 92LM-RP-HD197A Head, Record/Playback, AS
R303 VRD-SU2EE561J 560 ohms, £(S) AA H(S/BR)
R305 VRD-SU2EE221J 220 ohms, E(S) AA | 35 92LM-RP-HD297A Head, Record/Playback, E(S) AS
/\R305 VRG-ST2E A100J 10 ohms, 1/4W, 36 92LM-MoTOR197A Motor, DC AX
+5%, Fusible, H(S/BR) AB_ | 37 92LS2R6S152A Screw, Tape Contact Lever AB
38 92LIRQOW5-R5N Washer, Capstan Oil Cut AA
CIRCUIT PARTS 40 | 92LM-CHiP185A Guide, Spring AA
CNP102 QCNCMOS5BAFZZ Plug, 2pin, H(S/BR) AB CABINET PARTS /
CNS102 QCNW-1494AFZZ = Socket, 2pin, H(S/BR) AE
/\F501 QFS-C801EAFNi Fuse, T800 mA AD | 101 92LCAB316FRTS1 Front Cabinet Assembiy, H{(S) BB
J102 92LJACK-197A Jack, External Microphone AE 101 92LCAB317FRTS1 Front Cabinet Assembly, BB
J201 92LJACK-197B Jack, Headphnes AK H(BR)
$0101 QS6CD2554AFZZ = Socket, Input/Output AF | 101 92LCAB319FRTS1_ Front Cabinet Assembly, E(S) BB
A$O501/ 92LS6K-188A Socket, AC Power Supply AL | 102 92LCAB316B Back Cabinet, H(S) AT
SW501 with AC/DC Selector 102 92LCAB317B Back Cabinet, H(BR) AT
SP201 92LSP-197A Woofer, 3.2 ohms AQ ; 102 92LCAB319B Back Cabinet, E(S) AT
SP202 Q92LSP-197A Woofer, 3.2 ohms AQ | 103 92LCT-HOLD313A Cassette Holder (S) AM
SW1(A~F) OQSW-BO152AFZZ Switch, Lever Type AK | 103 92LCT-HOLD317A Cassette Holder (BR) AM
SW101(A~J) Q2LSWICH-197B Switch, Slide Type AK | 105 92LLID313A Lid, Battery Compartment (S) AE
SW102(A~F) 92LSWICH-197C Switch, Lever Type AM | 105 92LLiD317A Lid, Battery Compartment AE
SW103 QSW-S0267AF ZZ
Switch, Side Type, H(S/BR) AD
(BR)
(A, B, C)
106 92LPINT313A
Dial Pointer AC
SW104 QSW-FO158AFZZ
Switch, Skeleton Type AE | 107
92LMEC197HNLO1 Handle (S)
AQ
107 Q92LMEC220HNLO1 Handle (BR) AQ
MECHANICAL PARTS 109 92LKNOB185A Knob, Tuning Control (S) AC
109 92LKNOB220A Knob, Tuning Control (BR) AC
01 92LM-BUTON185A _ Button, Function, (S) AC |110 92LKNGB197A Knob, Tone/Balance / AB
01 _ 92LM-BUTON220A _ Button, Function, (BR) AC Volume Control (S)
