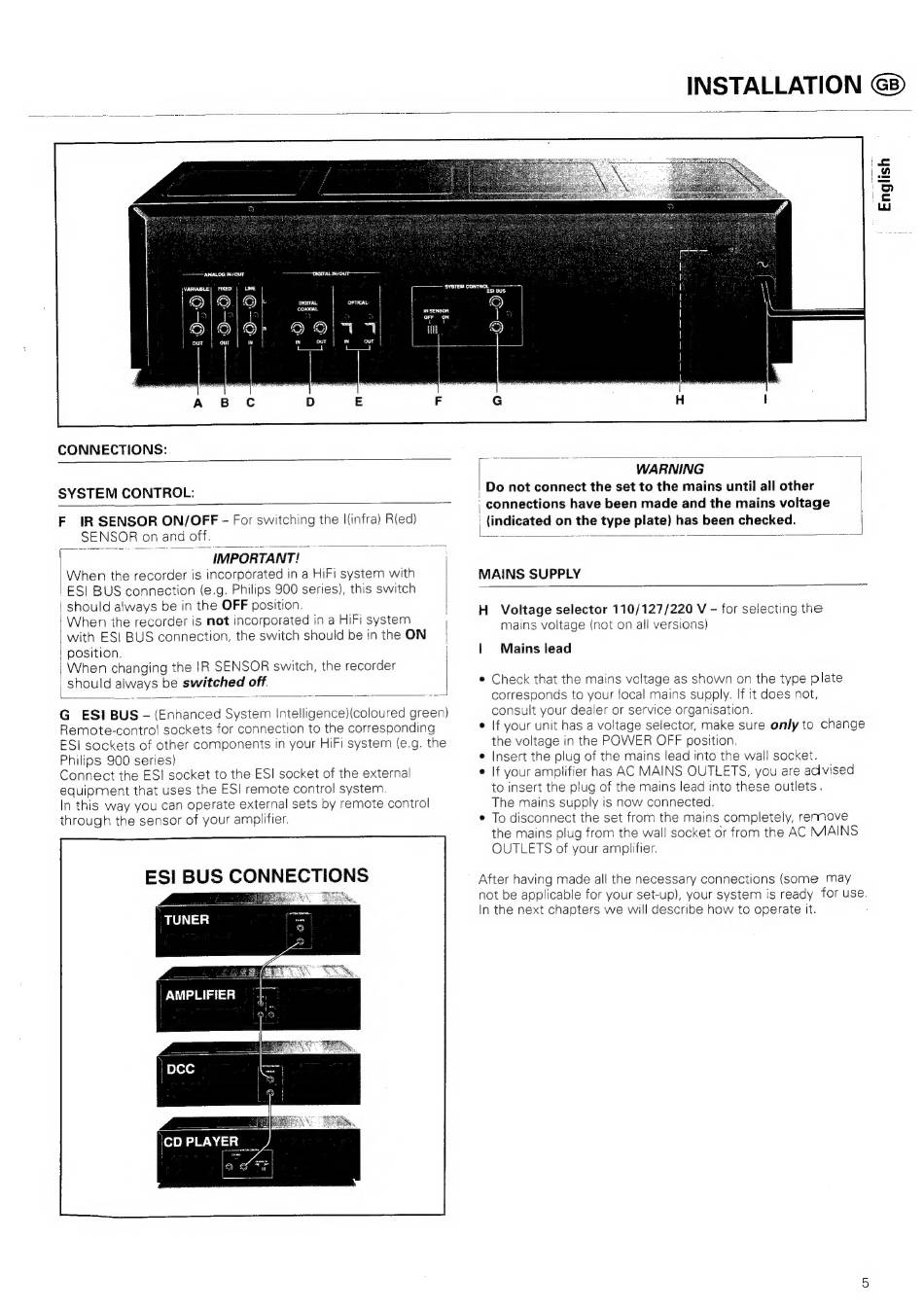

INSTALLATION
CONNECTIONS:
SYSTEM CONTROL:
IMPORTANT!
When the recorder is incorporated in a HiFi system with
ESI BUS connection (e.g. Philips 900 series), this switch
| should always be in the OFF position.
| When the recorder is not incorporated in a HiFi system
with ESI BUS connection, the switch should be inthe ON |
position.
i
| When changing the IR SENSOR switch, the recorder
| should always be switched off.
| |
G ESI BUS — (Enhanced System Intelligence)(coloured green)
Remote-control sockets for connection to the corresponding
ESI sockets of other components in your HiFi system (e.g. the
Philips 900 series)
Connect the ES! socket to the ESI socket of the external
equipment that uses the ESI remote control system.
In this way you can operate external sets by remote control
through the sensor of your amplifier.
ES! BUS CONNECTIONS
CD PLAYER
English
WARNING
Do not connect the set to the mains until all other
; connections have been made and the mains voltage
| tisdicated on the type plate) has been checked.
MAINS SUPPLY
H Voltage selector 110/127/220 V — for selecting the
mains voltage (not on all versions)
| Mains lead
Check that the mains voltage as shown on the type plate
corresponds to your local mains supply. If it does not,
consult your dealer or service organisation.
If your unit has a voltage selector, make sure only to change
the voltage in the POWER OFF position.
¢ Insert the plug of the mains lead into the wall socket.
lf your amplifier has AC MAINS OUTLETS, you are advised
to insert the plug of the mains lead into these outlets .
The mains supply is now connected.
¢ To disconnect the set from the mains completely, rennove
the mains plug from the wall socket or from the AC MAINS
OUTLETS of your amplifier.
After having made all the necessary connections (some may
not be applicable for your set-up), your system is ready for use.
In the next chapters we will describe how to operate it.
