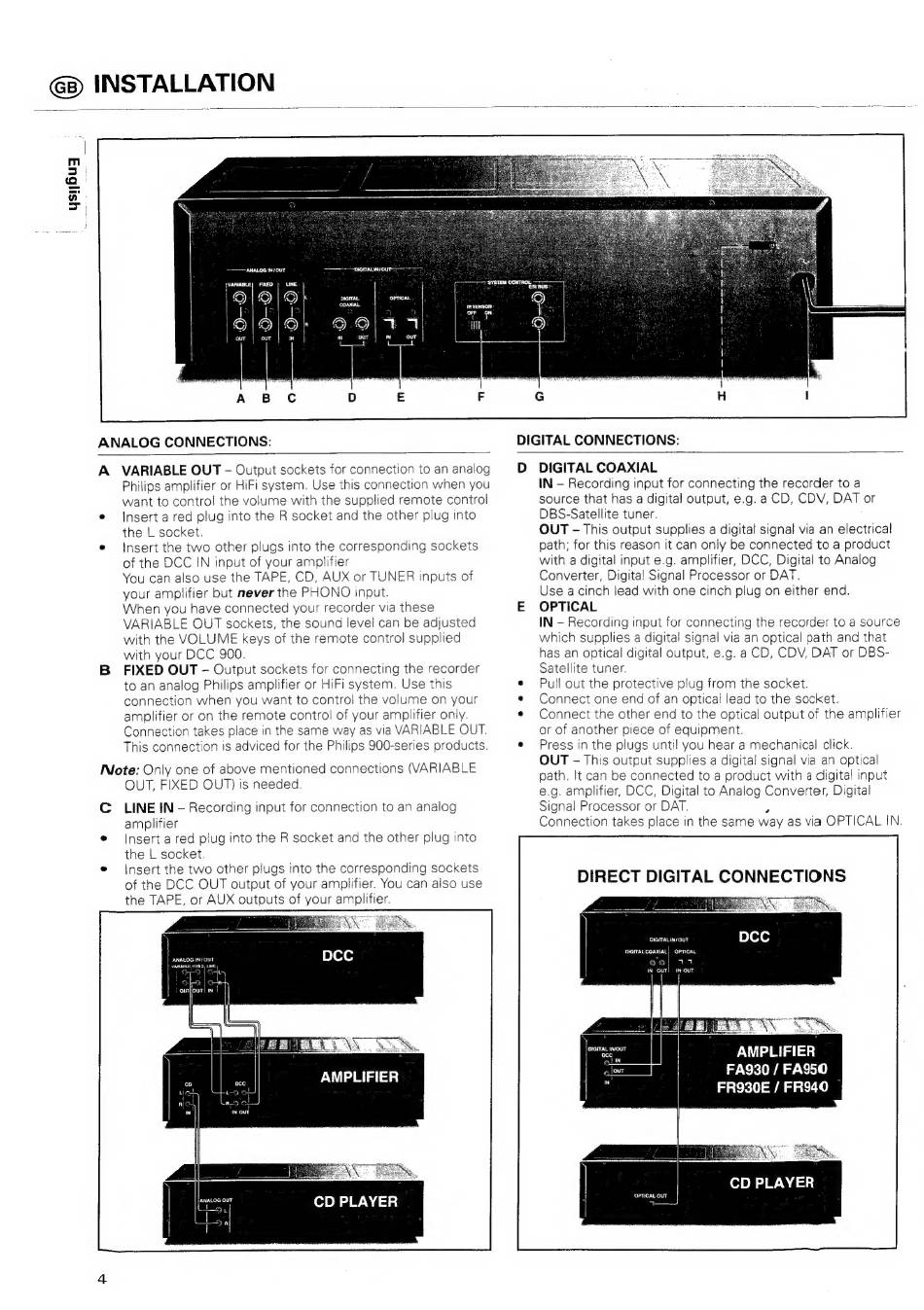

INSTALLATION
ysi6uq
TALI OU
COAXIAL
Q99Oi47
tt our | our
DAGITAL OPTICAL, |
a |
ANALOG CONNECTIONS:
DIGITAL CONNECTIONS:
A VARIABLE OUT - Output sockets for connection to an analog
Philips amplifier or HiFi systern. Use this connection when you
want to control the volume with the supplied remote control
e Insert a red plug into the R socket and the other plug into
the L socket.
e |nsert the two other plugs into the corresponding sockets
of the DCC IN input of your amplifier
You can also use the TAPE, CD, AUX or TUNER inputs of
your amplifier but never the PHONO input.
When you have connected your recorder via these
VARIABLE OUT sockets, the sound level can be adjusted
with the VOLUME keys of the remote control supplied
with your DCC 900.
B FIXED OUT — Output sockets for connecting the recorder
to an analog Philips amplifier or HiFi system. Use this
connection when you want to control the volume on your
amplifier or on the remote contro! of your amplifier only.
Connection takes place in the same way as via VARIABLE OUT.
This connection is adviced for the Philips 900-series products.
Note: Only one of above mentioned connections (VARIABLE
OUT, FIXED OUT) is needed.
CLINE IN — Recording input for connection to an analog
amplifier
¢ Insert a red plug into the R socket and the other plug into
the L socket.
e Insert the two other plugs into the corresponding sockets
of the DCC OUT output of your amplifier. You can also use
the TAPE, or AUX outputs of your amplifier.
ANALOG IN/QUT
WAMABLE,FIKED,
)
AMPLIFIER
CD PLAYER
D DIGITAL COAXIAL
IN — Recording input for connecting the recorder to a
source that has a digital output, e.g. a CD, CDV, DAT or
DBS-Satellite tuner.
OUT - This output supplies a digital signal via an electrical
path; for this reason it can only be connected to a product
with a digital inout e.g. amplifier, DCC, Digital to Analog
Converter, Digital Signal Processor or DAT.
Use a cinch lead with one cinch plug on either end.
E OPTICAL
IN - Recording input for connecting the recorder to a source
which supplies a digital signal via an optical path and that
has an optical digital output, e.g. a CD, CDV, DAT or DBS-
Satellite tuner.
e Pull out the protective plug from the socket.
e Connect one end of an optical lead to the socket.
¢ Connect the other end to the optical output of the amplifier
or of another piece of equipment.
e Press in the plugs until you hear a mechanical click.
OUT - This output supplies a digital signal via an optical
path. It can be connected to a product with a digital input
e.g. amplifier, DCC, Digital to Analog Converter, Digital
Signal Processor or DAT. 7
Connection takes place in the same way as via OPTICAL IN.
DIRECT DIGITAL CONNECTIONS
DIGITALIN/ QUT
pierratcoaxiat| OPTICAL
ea|/ 147
IN OUT! IN OUT
AMPLIFIER
FA930 / FA950
FR930E / FR940 ©
CD PLAYER
OPTICAL OUT
