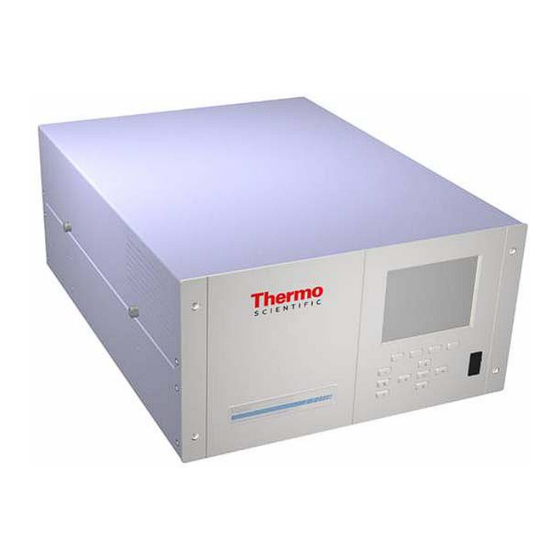

Page 1 Model 80i Instruction Manual Hg Analyzer Part Number 103194-00 7Mar2016...
Page 2 © 2007 Thermo Fisher Scientific Inc. All rights reserved. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details. Thermo Fisher Scientific Air Quality Instruments 27 Forge Parkway Franklin, MA 02038 1-508-520-0430 www.thermo.com/aqi...
Page 3: Weee Compliance
WEEE Compliance This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE) Directive 2002/96/EC. It is marked with the following symbol: Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
Page 5: About This Manual
About This Manual This manual provides information about installing, operating, maintaining, and servicing the Model 80i. It also contains important alerts to ensure safe operation and prevent equipment damage. The manual is organized into the following chapters and appendices to provide direct access to specific operation and service information.
Page 6 The service procedures in this manual are restricted to ▲ qualified service personnel only. The Model 80i is supplied with a three-wire grounding cord. Under no circumstances should this grounding ▲ system be defeated. Equipment Damage Do not attempt to lift the instrument by the cover or other ▲...
Page 7: Weee Symbol
Service is available from exclusive distributors worldwide. Contact one of Where to Get Help the phone numbers below for product support and technical information or visit us on the web at www.thermo.com/aqi. 1-866-282-0430 Toll Free 1-508-520-0430 International Thermo Fisher Scientific Model 80i Instruction Manual...
Page 9: Table Of Contents
, Hg , and Hg Coefficients ............. 3-11 Dilution Ratio................3-12 Reset User Calibration Default ............3-13 Calibration Menu ................3-13 Calibrate Hg and Hg Backgrounds ..........3-13 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 10 Contents Calibrate Hg , Hg , and Hg Coefficients ........3-14 Auto Zero/Span Check ..............3-14 Next Time .................. 3-15 Period Hours ................3-15 Instrument/System Zero/Span Duration Minutes ....... 3-16 Instrument/System Zero/Span Calibration Reset ......3-16 ...
Page 11 Percent ..............3-54 Compensation Coefficients ............ 3-54 Alarms Associated with the Oxygen Sensor ......... 3-54 Oxidation Schedule ................ 3-55 Probe Blow Back Schedule ............. 3-55 Next Time .................. 3-55 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 12 Diagnostics Menu ................3-59 Program Versions ................3-59 Voltages ..................3-60 Motherboard Voltages ..............3-60 Interface Board 80i ..............3-60 Interface Board 82i ..............3-61 I/O Board Voltages ..............3-61 Temperatures ................. 3-62 ...
Page 13 Oxidizer Set Temperature ............3-91 Lamp Set Temperature ............... 3-92 Set Pressures ................... 3-92 Blow Back Set Pressure ............... 3-93 Eductor Set Pressure ..............3-93 Dilution Set Pressure ..............3-94 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 14 Drying ..................4-1 Scrubbing ..................4-2 Pre-Calibration ................... 4-2 Calibration ..................4-3 Connect 80i to 81i ................4-3 Adjust Instrument Gain ..............4-3 Set Hg and Hg Background to Zero ..........4-3 Calibrate the Hg Channel to the Hg Calibration Gas ....
Page 15 Pressure Transducer Assembly Replacement ........7-24 Pressure Transducer Calibration............7-26 Flow Transducer Replacement ............7-27 Flow Transducer Calibration ............7-28 Heater Assembly Replacement ............7-30 Thermistor Replacement ..............7-31 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 16 Contents Ambient Temperature Calibration ............ 7-32 Input Board Replacement ..............7-33 Input Board Calibration ..............7-35 I/O Expansion Board Replacement ........... 7-35 Digital Output Board Replacement ........... 7-37 Motherboard Replacement ..............7-38 Measurement Interface Board Replacement ........7-39 ...
Page 17 Value String ................B-64 Value Source ................B-64 Alarm Information ..............B-65 Translation Table ................ B-65 Selection Table ................B-65 Button Designator ..............B-65 Examples ..................B-66 Thermo Fisher Scientific Model 80i Instruction Manual xiii...
Page 18 Contents Appendix C MODBUS Protocol .................... C-1 Serial Communication Parameters ............. C-1 TCP Communication Parameters ............C-2 Application Data Unit Definition ............C-2 Slave Address ................C-2 MBAP Header ................C-2 Function Code ................C-3 ...
Page 19 Figure 2–3. Connect Glass Orifice for Stand-Alone Configuration ..... 2-4 Figure 2–4. Model 80i Rear Panel ............... 2-5 Figure 2–5. 80i and 81i Plumbing Connections ..........2-6 Figure 2–6. Model 80i Bypass Dump Connections ..........2-7 ...
Page 20 Figure 9–1. Rack Mount Option Assembly ............9-4 Figure 9–2. Bench Mounting ................9-5 Figure 9–3. EIA Rack Mounting ................9-6 Figure 9–4. Retrofit Rack Mounting ..............9-7 Figure B–1. Flag Status ..................B-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 21 Table 6–9. Digital Output Board Connector Pin Descriptions ......6-21 Table 6–10. Input Board Connector Pin Descriptions ........6-22 Table 7–1. Model 80i Replacement Parts ............7-4 Table 7–2. Model 80i Cables ................7-5 Table 7–3. External Device Connection Components ......... 7-5 ...
Page 22 Table B–14. Analog Voltage Output Range Values ......... B-59 Table B–15. Default Output Assignment ............B-60 Table C–1. Read Coils for 80i ................C-8 Table C–2. Read Registers for 80i ..............C-11 Table C–3. Write Coils for 80i ................C-13 ...
Page 23: Introduction
Chapter 1 Introduction The Model 80i Hg Analyzer combines proven detection technology, easy to use menu-driven firmware, and advanced diagnostics to offer unsurpassed flexibility and reliability. The Model 80i has the following features: 320 x 240 graphics display ● Menu-driven firmware ●...
Page 24: Principle Of Operation
Hg Continuous Emission Monitoring System (CEMS). Thermo Fisher Scientific’s Mercury Freedom System is comprised of a Hg analyzer (Model 80i), a Hg calibrator (Model 81i), a Hg probe controller (Model 82i), and a Hg probe (Model 83i) along with additional peripheral components, such as a zero air supply, umbilical, and instrument rack.
Page 25: Figure 1-1. Model 80I Flow Schematic
Calibration gas from the Hg calibrator (Model 81i) is plumbed to the zero air and cal gas bulkheads on the rear panel of the Model 80i. The zero or span gas is routed through an internal critical orifice, through either the NO or NC port of Solenoid S4, through the NC port of Solenoid S3 and into the fluorescence chamber.
Page 26: Specifications
Introduction Specifications Specifications Table 1–1. Model 80i Specifications Preset ranges 1.5, 3, 6, 15, 30, 60, 150, 300 μg/m Zero noise 1 ng/m RMS (300 second averaging time) Lower 2 ng/m (300 second averaging time) 0.4 ng/m with as a carrier gas...
Page 27: Installation
Equipment Damage Do not attempt to lift the instrument by the cover or other external fittings. ▲ Depending on the intended use, the Model 80i is shipped complete in two Unpacking and containers. One container includes the 80i instrument; the other container Inspection includes the vacuum pump.
Page 28 6. Check that all connectors and circuit boards are firmly attached. 7. Install the two glass orifices Figure 2–2) so that pre-filters are first in the flow path (closest to the rear panel) . 8. Re-install the cover. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 29: Setup Procedure
Model 81i Hg Calibrator, or as a stand-alone instrument used with a Hg calibrator from another source. If the Model 80i is used to measure Hg from another source, refer to the setup procedure in the manual from that source.
Page 30: Stand-Alone Installation
Installation Setup Procedure WARNING The Model 80i is supplied with a three-wire grounding cord. Under no circumstances should this grounding system be defeated. ▲ Note All tubing should be constructed of PFA Teflon® with an OD of 1/4- inch and a minimum ID of 1/8-inch.
Page 31: System Installation
Installation System Installation Figure 2–4. Model 80i Rear Panel Use the following procedure to install the Model 80i Analyzer in an System Installation emissions monitoring application. 1. Connect the Hg ELEMENTAL LINE #2 from the Model 83i Extraction Probe to the Model 80i Hg ELEMENTAL bulkhead (Figure 2–5).
Page 32: Figure 2-5. 80I And 81I Plumbing Connections
4. Connect the outlet of the sample pump to a vent suitable for mercury or to a suitable scrubber. 5. Connect the Model 80i SPAN bulkhead to the 81i CAL GAS bulkhead with an atmospheric dump (Figure 2–6). Model 80i Instruction Manual...
Page 33: Connecting External Devices
6. Connect the ZERO bulkhead to the 81i ZERO AIR bulkhead with an atmospheric dump (Figure 2–6). Figure 2–6. Model 80i Bypass Dump Connections 7. Connect a suitable recording device to the rear panel connector. See “Instrument Controls > I/O Configuration” in the “Operation”...
Page 34: Terminal Board Pcb Assemblies
I/O is desired, an alternative means of connection is required. ▲ See Detail “B” See Detail “A” Component Side Viewed from Top of Board Detail “A” Detail “B” Assembled Connector Figure 2–7. I/O Terminal Board Views Model 80i Instruction Manual Thermo Fisher Scientific...
Page 35: Figure 2-8. D/O Terminal Board Views
D/O terminal board using the included tie-down and spacer. Table 2–2 identifies the connector pins and associated signals. See Detail “A” See Detail “B” Component Side Viewed from Top of Board Detail “A” Detail “B” Assembled Connector Figure 2–8. D/O Terminal Board Views Thermo Fisher Scientific Model 80i Instruction Manual...
Page 36: Figure 2-9. 25-Pin Terminal Board Views
The 25-pin terminal board is included with the I/O Expansion Board. 25-Pin Terminal Board See Detail “A” See Detail “B” Component Side Viewed from Top of Board Detail “A” Detail “B” Assembled Connector Figure 2–9. 25-Pin Terminal Board Views 2-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 37: Table 2-3. 25-Pin Terminal Board Pin Descriptions
Startup Use the following procedure when starting the instrument. Note The correct startup sequence is to start the 82i, the 81i, and the 80i. If the 81i and the 80i are ON, turn them OFF before starting the 82i. ▲...
Page 39: Operation
“Calibration Menu” on page 3-13 ● “Instrument Controls Menu” on page 3-18 ● “Diagnostics Menu” on page 3-59 ● “Alarms Menu” on page 3-69 ● “Service Menu” on page 3-87 ● “Password” on page 3-104 ● Thermo Fisher Scientific Model 80i Instruction Manual...
Page 40: Display
CAUTION If the LCD panel breaks, do not to let the liquid crystal contact your skin or clothes. If the liquid crystal contacts your skin or clothes, wash it off immediately using soap and water. ▲ Model 80i Instruction Manual Thermo Fisher Scientific...
Page 41: Pushbuttons
) move the cursor up, down, left, and right or = Left, Right change values and states in specific screens. = Enter is used to select a menu item, accept/set/save a change, and/or toggle on/off functions. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 42: Soft Keys
DIAGS ALARM Firmware Overview The Model 80i utilizes the menu-driven firmware as illustrated by the flowchart in Figure 3–3. The Power-Up screen, shown at the top of the flowchart, is displayed each time the instrument is turned on. This screen is displayed while the instrument is warming up and performing self-checks.
Page 43: Figure 3-3. Flowchart Of Menu-Driven Firmware
Operation Firmware Overview Figure 3–3. Flowchart of Menu-Driven Firmware Thermo Fisher Scientific Model 80i Instruction Manual...
Page 44: Power-Up Screen
Operation Firmware Overview The Power-Up screen is displayed on power up of the Model 80i. The Self- Power-Up Screen Test is displayed while the internal components are warming up and diagnostic checks are performed. Please wait while booting... Run Screen...
Page 45: Main Menu
XXLO WCONCENTRATIONXXLO Hg(0) 0.55 µg/m3 Hg(2+) 2.00 µg/m3 Hg(t) 2.55 µg/m3 SAMPLE 12:34 ALARM MAIN MENU: >RANGE AVERAGING TIME CALIBRATION FACTORS CALIBRATION INSTRUMENT CONTROLS DIAGNOSTICS  ALARMS RANGE DIAGS ALARM SERVICE PASSWORD Thermo Fisher Scientific Model 80i Instruction Manual...
Page 46: Range Menu
Custom ranges are user-defined ranges. In the standard range mode, any value between 1.5 and 600 μg/m can be specified as a range. In the Main Menu, choose Range > Set Custom Ranges. ● Model 80i Instruction Manual Thermo Fisher Scientific...
Page 47: Custom Ranges
Hg modes: 1, 2, 5, 10, 20, and 30 seconds. For more information about the manual modes, see “Auto/Manual Mode” later in this chapter. In the Main Menu, choose Averaging Time. ● Thermo Fisher Scientific Model 80i Instruction Manual...
Page 48: Calibration Factors Menu
The background signal is a combination of electrical noise, dark current, and scattered light. Before the instrument sets the Hg reading to zero, it stores this value as the Hg background correction. 3-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 49: Hg , Hg , And Hg Coefficients
Coefficient screens allows the Hg , Hg , and Hg span coefficients to be manually changed while sampling span gas of known concentration. The Hg , Hg , and Hg coefficient screens operate the same Thermo Fisher Scientific Model 80i Instruction Manual 3-11...
Page 50: Dilution Ratio
In the Main Menu, choose Calibration Factors > Dilution Ratio. ● DILUTION RATIO: CURRENTLY: 001.0 :1 SET TO: 002.0 :1 ?  MOVE CURSOR  CHANGE VALUE  SAVE RANGE DIAGS ALARM 3-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 51: Reset User Calibration Default
15 minutes for a system zero. The display shows the current Hg reading. It is important to note the averaging time when calibrating. The longer the averaging time, the more accurate the calibration will be. To be most Thermo Fisher Scientific Model 80i Instruction Manual 3-13...
Page 52: Auto Zero/Span Check
For more information about the manual modes, see “Auto/Manual Mode” later in this chapter. In the Main Menu, choose Calibration > Auto Zero/Span Check. ● 3-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 53: Next Time
Periods between 0 and 999 hours are acceptable. To turn the zero/span check off, set the period to 0. In the Main Menu, choose Calibration > Auto Zero/Span Check > ● Period Hours. Thermo Fisher Scientific Model 80i Instruction Manual 3-15...
Page 54: Instrument/System Zero/Span Duration Minutes
The Zero/Span Averaging Time screen allows the user to adjust the zero/span averaging time. The zero/span averaging time is used by the instrument only when performing an automatic zero or span check. The 3-16 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 55: Zero/Span Averaging Time
Model 81i Calibrator, the next time an automatic orifice or system calibration is performed. In the Main Menu, choose Calibration > Auto Zero/Span Check > ● System Hg Span Conc. Thermo Fisher Scientific Model 80i Instruction Manual 3-17...
Page 56: Instrument Controls Menu
DATE/TIME TIMEZONE Gas Mode The Gas Mode screen is used to set the Model 80i, or entire Hg Freedom System into sample mode, various calibration states, or blow back modes. The selected item is shown by “<--” after it. In the Main Menu, choose Instrument Controls > Gas Mode.
Page 57: Component Power
The Lamp Supply screen is used to turn the Lamp Supply on or off. In the Main Menu, choose Instrument Controls > Component Power ● > Lamp Supply. LAMP SUPPLY: CURRENTLY: SET TO: OFF ?  TOGGLE VALUE RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-19...
Page 58: Pmt Supply
The Probe Power screen is used to turn the probe power on or off. In the Main Menu, choose Instrument Controls > Component Power ● > Probe Power. PROBE POWER: CURRENTLY: SET TO: OFF ?  TOGGLE VALUE RANGE DIAGS ALARM 3-20 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 59: Stinger Power
The Eductor Valve Power screen is used to turn the eductor valve power on or off. In the Main Menu, choose Instrument Controls > Component Power ● > Eductor Valve Power. EDUCTOR VALVE POWER: CURRENTLY: SET TO: OFF ?  TOGGLE VALUE RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-21...
Page 60: Auto/Manual Mode
32 items once each minute for a week (>20,000 total records). If logging is limited to the minimum content of date, time, concentration and error flags, the analyzer can store data once each minute for four months (>190,000 records). 3-22 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 61: Select Srec/Lrec
In the Main Menu, choose Instrument Controls > Datalogging Settings ● > Select SREC or LREC > View Logged Data. SELECT START POINT BY: SET TO: # OF RECS   CHANGE ACCEPT RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-23...
Page 62: Number Of Records
If set to one minute logging, this would be at “20 JUN 2005 10:01”. DATE AND TIME: 20 JUN 2005 10:00  DAYS  SET CURSOR TO MONTHS  ACCEPT AS SHOWN RANGE DIAGS ALARM The Record Display screen (read only) displays the selected records. 3-24 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 63: Erase Log
In the Main Menu, choose Instrument Controls > Datalogging Settings ● > Select Content. LREC FIELDS: >FIELD 1 FIELD 2 FIELD 3 FIELD 4 RGHG0 FIELD 5 RGHG2 FIELD 6 RGHGT  FIELD 7 RFINT RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-25...
Page 64: Concentrations
“Commit Content” that follows. In the Main Menu, choose Instrument Controls > Datalogging Settings ● > Select Content > Select Field > Other Measurements. 3-26 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 65: Commit Content
If no changes have been made “NO CHANGES TO RECORD LIST!” will appear. For more information about selecting the analog output signal group choices, see “Select Content” described previously. Thermo Fisher Scientific Model 80i Instruction Manual 3-27...
Page 66: Reset To Default Content
RANGE DIAGS ALARM The Configure Datalogging menu deals with datalogging configuration for Configure Datalogging the currently selected record type. In the Main Menu, choose Instrument Controls > Datalogging Settings > Configure Datalogging. 3-28 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 67: Memory Allocation Percent
In the Main Menu, choose Instrument Controls > Datalogging Settings ● > Configure Datalogging > Memory Allocation %. SET PERCENT LRECS: CURRENTLY: SET TO: 60% ?  CHANGE VALUE  SAVE RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-29...
Page 68: Communication Settings
TCP/IP SETTINGS RANGE DIAGS ALARM Serial Settings The Serial Settings screen is used for serial communications control and configuration. In the Main Menu, choose Instrument Controls > Communication Settings > Serial Settings. 3-30 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 69: Baud Rate
CHANGE VALUE SAVE VALUE RANGE DIAGS ALARM The Parity screen is used to select the parity bit for the serial port. Parity Selections of NONE, EVEN, or ODD are available (defaults to NONE). Thermo Fisher Scientific Model 80i Instruction Manual 3-31...
Page 70: Rs-232/Rs-485 Selection
ID number if two or more of the same instruments are connected to one computer. Valid Instrument ID numbers are from 0 to 127. The Model 80i has a default Instrument ID of 80. For more 3-32...
Page 71: Communication Protocol
Choices are Concentrations, Other Measurements, and Analog Inputs. In the Main Menu, choose Instrument Controls > Communication ● Settings > Streaming Data Config. Thermo Fisher Scientific Model 80i Instruction Manual 3-33...
Page 72  RANGE DIAGS ALARM PROBE SPAN Hg(0) SPAN Hg(t) SPAN Hg(0) BKG Hg(t) BKG Hg(0) COEFF Hg(t) COEFF PROBE FSAFE Hg(0) DICONC Hg(0) DTIME Hg(t) DICONC Hg(t) DTIME Hg(0) DSCONC Hg(0) DSTIME 3-34 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 73: Analog Inputs
(none or analog inputs 1-8) that is tied to the selected streaming data item. The selected item is shown by “<--” after it. In the Main Menu, choose Instrument Controls > Communication ● Settings > Streaming Data Config > Select Item > Analog Inputs. Thermo Fisher Scientific Model 80i Instruction Manual 3-35...
Page 74: Use Dhcp
In the Main Menu, choose Instrument Controls > Communication ● Settings > TCP/IP Settings. TCP/IP SETTINGS: >USE DHCP IP ADDR 192.168.1.15 NETMASK 255.255.255.0 GATEWAY 10.209.42.1 HOST NAME ISERIES NTP SVR 192.168.1.15 RANGE DIAGS ALARM 3-36 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 75: Ip Address
In the Main Menu, choose Instrument Controls > Communication ● Settings > TCP/IP Settings > Netmask. NETMASK: CURRENT: 255.255.255.0 SET TO: 255.255.255.000  MOVE CURSOR  CHANGE VALUE  SAVE VALUE RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-37...
Page 76: Default Gateway
In the Main Menu, choose Instrument Controls > Communication ● Settings > TCP/IP Settings > NTP Server. NTP SERVER IP ADDRESS: CURRENT: 192.168.1.20 SET TO: 192.168.001.015  MOVE CURSOR  CHANGE VALUE  SAVE RANGE DIAGS ALARM 3-38 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 77: I/O Configuration
DIAGS ALARM Logic State The Logic State screen is used to change the I/O relay to either normally open or normally closed. Press to toggle and set the logic state open or closed. Thermo Fisher Scientific Model 80i Instruction Manual 3-39...
Page 78: Instrument State
ALARM STATUS ITEMS: >NONE <-- GEN ALARM INT TEMP CHAMB TEMP CHAMB PRES SAMPLE FLOW  INTENSITY RANGE DIAGS ALARM Hg(0) CONC MAX Hg(0) CONC MIN Hg(2+) CONC MAX Hg(2+) CONC MIN 3-40 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 79 Note The digital inputs must be asserted for at least one second for the action to be activated. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 3-41...
Page 80: Digital Input Settings
The span level will remain at this setting for the remainder of the System Integrity Test unless otherwise changed again. This is to facilitate multi-level integrity checks. ▲ 3-42 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 81: Analog Output Configuration
1-6, and current channels 1-6. Configuration choices include selecting range, setting minimum/maximum values, and choosing signal to output. In the Main Menu, choose Instrument Controls > I/O Configuration > ● Analog Output Config. Thermo Fisher Scientific Model 80i Instruction Manual 3-43...
Page 82: Allow Over/Under Range
Possible ranges for the voltage outputs are: 0-100 mV, 0-1, 0-5, 0-10 V. In the Main Menu, choose Instrument Controls > I/O Configuration > ● Analog Output Config > Select Channel > Select Range. 3-44 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 83: Select Output Range
Range Setting Probe Span Zero (0) Range Setting Span Zero (0) Range Setting Span Zero (0) Range Setting Background Zero (0) Range Setting Background Zero (0) Range Setting Coefficient Zero (0) Range Setting Thermo Fisher Scientific Model 80i Instruction Manual 3-45...
Page 84: Choose Signal To Output
In the Main Menu, choose Instrument Controls > I/O Configuration > ● Analog Output Config > Select Channel > Choose Signal to Output. CHOOSE SIGNAL TYPE: >CONCENTRATIONS OTHER MEASUREMENTS ANALOG INPUTS RANGE DIAGS ALARM 3-46 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 85: Table 3-3. Signal Type Group Choices
Background Eductor Pressure Coefficient Vacuum Pressure Coefficient Flow PMT Volts Chamber Pressure Dil Factor Lamp Temp Oxid Temp Ext Alarms P-G Ratio Perm Oven Gas Perm Oven Htr Capillary HT 84i Pressure Thermo Fisher Scientific Model 80i Instruction Manual 3-47...
Page 86: Analog Input Configuration
In the Main Menu, choose Instrument Controls > I/O Configuration > ● Analog Input Config > Select Channel > Descriptor. ANALOG INPUT DESCRIPTOR: CURRENTLY: IN1 ABCDEFGHIJKLMN BKSP OPQRSTUVWXYZ PAGE 0123456789 ./- SAVE RANGE DIAGS ALARM 3-48 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 87: Units
The points range from 2 to 10, with a default of 2. In the Main Menu, choose Instrument Controls > I/O Configuration > ● Analog Input Config > Select Channel > Table Points. Thermo Fisher Scientific Model 80i Instruction Manual 3-49...
Page 88: Number Of Table Points
-999.9 to 999.9. The default table is a two-point table with point 1: 0.00 V = 000.0 U and point 2: 10.00 V = 10.0 U. 3-50 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 89: Temperature Compensation
When pressure compensation is off, the first line of the display shows the factory standard pressure of 50 mmHg. In the Main Menu, choose Instrument Controls > Pressure ● Compensation. Thermo Fisher Scientific Model 80i Instruction Manual 3-51...
Page 90: Lamp Compensation
Mercury System is running house air for dilution. The installation and procedure for reading and calibrating the Stack Oxygen concentration is as follows. The user will need to provide the 80i with real time readings of stack oxygen concentration using a 3 party oxygen sensor.
Page 91: Compensation Mode
Diagnostics>Analog Input Readings and choose an input that is not actively reading voltage. 2. On the rear panel of the 80i connect your Analog In wire to the correct channel on the I/O expansion board.
Page 92: Compensation Coefficients
The Oxygen Sensor can be connected to an unassigned Digital ● Input on the rear panel of the 80i Mercury Analyzer. Next, this Digtial Input can be assigned to a variable called EXT Alarm. The logic can be normally open or normally closed. For instance, if the Digital Input is grounded with Normally Open logic, then the alarm will be active and displayed in the alarms menu.
Page 93: Oxidation Schedule
The Next Time screen is used to view and set the next Probe Blow Back Schedule date and time. In the Main Menu, choose Instrument Controls > Probe Blow Back ● Schedule > Next Time. Thermo Fisher Scientific Model 80i Instruction Manual 3-55...
Page 94: Period
The Solenoid State screen displays the state of the 10 digital outputs and allows toggling of the state to either on (1) or off (0). The solenoids are restored to their original states upon exiting this screen. 3-56 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 95: Screen Contrast
The Service Mode screen is used to turn the service mode on or off. The service mode locks out any remote actions and includes parameters and functions that are useful when making adjustments or diagnosing the Thermo Fisher Scientific Model 80i Instruction Manual 3-57...
Page 96: Date/Time
Operation Instrument Controls Menu Model 80i. For more information about the service mode, see “Service Menu” later in this chapter. Note The service mode prevents remote operation and should be turned off when finished. ▲ In the Main Menu, choose Instrument Controls > Service Mode.
Page 97: Diagnostics Menu
In the Main Menu, choose Diagnostics > Program Version. ● PROGRAM VERSION: PRODUCT: MODEL 80i VERSION: 00.05.68.192 FIRMWARE: 10.13.77 RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-59...
Page 98: Voltages
-3.3 V RANGE DIAGS ALARM Interface Board 80i The Interface Board 80i screen (read only) is used to display the current voltage readings on the Model 80i interface board. In the Main Menu, choose Diagnostics > Voltages > Interface Board ●...
Page 99: I/O Board Voltages
In the Main Menu, choose Diagnostics > Voltages > I/O Board ● Voltages. I/O BOARD VOLTAGES: 3.3 SUPPLY 3:3 V 5.0 SUPPLY 5.0 V 24.0 SUPPLY 24.0 V -3.3 SUPPLY -3.3 V RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-61...
Page 100: Temperatures
RANGE DIAGS ALARM Probe The Temperatures Probe screen (read only) displays the current umbilical temperature, probe temperature, oxidizer, and converter temperature. In the Main Menu, choose Diagnostics > Temperatures > Probe. ● 3-62 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 101: Pressure
● PRESSURE ANALYZER: CHAMBER 50.1 mmHg RANGE DIAGS ALARM Probe The Pressures Probe screen (read only) displays the current pressure readings. In the Main Menu, choose Diagnostics > Pressure > Probe. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-63...
Page 102: Flow
VACUUM 21.0 INHG RANGE DIAGS ALARM Note Venturi pressure is not visible when the 80i is configured to work with the 83 GC probe. ▲ Flow The Flow screen (read only) displays the flow rate. The flow is measured by internal flow sensors.
Page 103: Analog Input Readings
The Digital Inputs screen (read only) displays the state of the 16 digital Digital Inputs inputs. Pull-ups are provided on all the inputs, so if nothing is connected they will read (1), if an input is brought to ground, it will read (0). Thermo Fisher Scientific Model 80i Instruction Manual 3-65...
Page 104: Relay States
In the Main Menu, choose Diagnostics > Test Analog Outputs. ● TEST ANALOG OUTPUTS: >ALL VOLTAGE CHANNEL 1 VOLTAGE CHANNEL 2 VOLTAGE CHANNEL 3 VOLTAGE CHANNEL 4 VOLTAGE CHANNEL 5  VOLTAGE CHANNEL 6 RANGE DIAGS ALARM 3-66 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 105: Set Analog Outputs
81i, “81i CAL ENABLED” should be set to “YES”. 81i TCPIP If the Model 80i is used with a Model 81i, the 81i TCPIP Address screen is used to enter the IP address of the connecting Model 81i. The IP address can only be changed when DHCP is on.
Page 106: Probe Type
For applications measuring high levels of mercury concentrations (greater than 80 μg/m ), the user can change the gain algorithm to the “Enhanced Gain” setting. Using the enhanced gain setting will not affect measurement 3-68 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 107: Contact Information
Operation Alarms Menu sensitivity, linearity, or repeatability. All 80i specifications remain the same whether or not the enhanced gain setting is chosen. Note Changing the Enhanced Gain setting will set backgrounds to 0.00 and coefficients to 1.000. A full PMT calibration, Instrument calibration, and System calibration will be required.
Page 108: Instrument
I/O expansion board status indicate that the power supplies are working and connections are successful. There are no setting screens for these alarms. In the Main Menu, choose Alarms > Instrument. ● 3-70 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 109: Internal Temperature
The minimum and maximum internal temperature screens function the same way. In the Main Menu, choose Alarms > Instrument > Internal Temp > ● Min or Max. Thermo Fisher Scientific Model 80i Instruction Manual 3-71...
Page 110: Chamber Temperature
The Lamp Temperature screen displays the current lamp temperature and sets the minimum and maximum alarm limits. Acceptable alarm limits range from 45 to 50 °C. If the lamp temperature reading goes beyond 3-72 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 111: Lamp Temperature
The word “ALARM” appears in the Run screen and in the Main Menu. In the Main Menu, choose Alarms > Instrument > Pressure. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-73...
Page 112: Min And Max Pressure Limits
Run screen and in the Main Menu. In the Main Menu, choose Alarms > Instrument > Flow. ● SAMPLE FLOW: ACTUAL 0.251 LPM >MIN 0.100 LPM 0.300 LPM RANGE DIAGS ALARM 3-74 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 113: Min And Max Flow Limits
The Minimum Intensity alarm limit screen is used to change the minimum lamp intensity alarm limit. The minimum and maximum intensity screens function the same way. In the Main Menu, choose Alarms > Instrument > Intensity > Min or ● Max. Thermo Fisher Scientific Model 80i Instruction Manual 3-75...
Page 114: Zero And Span Auto Calibration
Their functions are similar. In the Main Menu, choose Alarms > Instrument > Zero, Span or ● Probe Zero Check. ZERO CHECK: ALARM: RESPONSE: >MAX OFFSET 10.0 RANGE DIAGS ALARM 3-76 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 115: Max Zero/Span/Probe Zero Offset
The minimum and Dilution Factor Limits maximum probe dilution factor screens function the same way. In the Main Menu, choose Alarms > Instrument > Probe Dilut Factor ● > Min or Max. Thermo Fisher Scientific Model 80i Instruction Manual 3-77...
Page 116: Hg , Hg 2+ , And Hg T Concentration
In the Main Menu, choose Alarms > Instrument > Hg(0), Hg(2+), or ● Hg(t) Concentration > Min or Max. CONCENTRATION: ACTUAL MIN: SET MIN TO: 00001.00 ?  MOVE CURSOR  INC/DEC SAVE VALUE RANGE DIAGS ALARM 3-78 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 117: Min Trigger
In the Main Menu, choose Alarms > Probe. ● ALARMS PROBE: ALARMS DETECTED >UMBILICAL TEMP PROBE TEMP CONVERTER TEMP OXIDIZER TEMP VENTURI PRESSURE ORIFICE PRESSURE  RANGE DIAGS ALARM DILUTION PRESSURE BLOW BACK PRESSURE EDUCTOR PRESSURE VACUUM PRESSURE Thermo Fisher Scientific Model 80i Instruction Manual 3-79...
Page 118: Umbilical Temperature
The word “ALARM” appears in the Run screen and in the Main Menu. In the Main Menu, choose Alarms > Probe > Probe Temp. ● 3-80 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 119: Min And Max Probe Temperature Limits
The word “ALARM” appears in the Run screen and in the Main Menu. In the Main Menu, choose Alarms > Probe > Converter Temp. ● CONVERTER TEMPERATURE: ACTUAL 760.0 >MIN 600.0 850.0 RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-81...
Page 120: Min And Max Converter Temperature Limits
The minimum and Temperature Limits maximum oxidizer temperature screens function the same way. In the Main Menu, choose Alarms > Probe > Oxidizer Temp > Min or ● Max. 3-82 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 121: Venturi Pressure
The Orifice Pressure screen displays the current orifice pressure and sets the minimum and maximum alarm limits. Acceptable alarm limits range from -3.0 psig minimum to 3.0 psig maximum. If the orifice pressure reading Thermo Fisher Scientific Model 80i Instruction Manual 3-83...
Page 122: Min And Max Orifice Pressure Limits
The word “ALARM” appears in the Run screen and in the Main Menu. In the Main Menu, choose Alarms > Probe > Dilution Pressure. ● 3-84 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 123: Blow Back Pressure
Main Menu. In the Main Menu, choose Alarms > Probe > Blow Back Pressure. ● BLOW BACK PRESSURE: ACTUAL 0.0 PSIG >MIN 40.0 PSIG 65.0 PSIG RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-85...
Page 124: Min And Max Blow Back Pressure Limits
The minimum and maximum Pressure Limits eductor pressure screens function the same way. In the Main Menu, choose Alarms > Probe > Eductor Pressure > Min ● or Max. 3-86 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 125: Vacuum Pressure
19.1 INHG ?  INC/DEC  SAVE VALUE RANGE DIAGS ALARM Service Menu The Service menu appears only when the instrument is in the service mode. To put the instrument into the service mode: Thermo Fisher Scientific Model 80i Instruction Manual 3-87...
Page 126: Pmt Voltage Adjustment
It is visible only when the instrument is in service mode. For more information on the service mode, see “Service Mode” earlier in this chapter. 3-88 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 127: Bench Set Temperature
For more information on the service mode, see “Service Mode” earlier in this chapter. Note This adjustment should only be performed by an instrument service technician. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 3-89...
Page 128: Umbilical Set Temperature
For more information on the service mode, see “Service Mode” earlier in this chapter. Note This adjustment should only be performed by an instrument service technician. ▲ 3-90 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 129: Converter Set Temperature
The oxidizer set temperature screen is visible only when the instrument is in service mode. For more information on the service mode, see “Service Mode” earlier in this chapter. Note This adjustment should only be performed by an instrument service technician. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 3-91...
Page 130: Lamp Set Temperature
For more information on the service mode, see “Service Mode” earlier in this chapter. Note This adjustment should only be performed by an instrument service technician. ▲ In the Main Menu, choose Service > Set Pressures. ● 3-92 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 131: Blow Back Set Pressure
Mode” earlier in this chapter. Note This adjustment should only be performed by an instrument service technician. ▲ In the Main Menu, choose Service > Set Pressures > Eductor Set Pres. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-93...
Page 132: Dilution Set Pressure
The pressure sensor’s zero counts and span slope are displayed on the menu. Note These adjustments should only be performed by an instrument service technician. ▲ In the Main Menu, choose Service > Pressure Calibration. ● 3-94 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 133: Calibrate Pressure Zero
The operator should use an independent, NIST traceable, barometer to measure the ambient pressure and enter the value on this screen before calibrating. ▲ In the Main Menu, choose Service > Pressure Calibration > Span. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-95...
Page 134: Restore Default Calibration
Note These adjustments should only be performed by an instrument service technician. ▲ In the Main Menu, choose Service > Flow Calibration. ● FLOW SENSOR CAL: >ZERO SPAN 1.0000 SET DEFAULTS RANGE DIAGS ALARM 3-96 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 135: Calibrate Flow Zero
Restore Default Calibration The Restore Default Calibration screen allows the user to reset the flow calibration configuration values to factory defaults. In the Main Menu, choose Service > Flow Calibration > Set Defaults. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-97...
Page 136: Input Board Calibration
Note The measurement system and the PMT are both shut off inside this screen. ▲ 1. In the Main Menu, choose Service > Input Board Calibration > Manual Input Cal. 2. Press to leave the warning screen. 3-98 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 137: Automatic Input Calibration
The Input Frequency Display screen is used to manually adjust the input board gain. This may be used as a troubleshooting tool for the input board. The gain setting and test mode are reset upon exiting this screen. Thermo Fisher Scientific Model 80i Instruction Manual 3-99...
Page 138: Temperature Calibration
The analog output calibration is visible only when the instrument is in service mode. For more information on the service mode, see “Service Mode” earlier in the chapter. 3-100 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 139: Analog Output Calibrate Zero
The operator must connect Full-Scale a meter to the output and adjust output until it reads the value shown in the set output to: field. Thermo Fisher Scientific Model 80i Instruction Manual 3-101...
Page 140: Analog Input Calibration
INPUT CHANNEL 2 INPUT CHANNEL 3 INPUT CHANNEL 4 INPUT CHANNEL 5 INPUT CHANNEL 6  INPUT CHANNEL 7 RANGE DIAGS ALARM ANALOG INPUT CAL: >CALIBRATE ZERO CALIBRATE FULL SCALE RANGE DIAGS ALARM 3-102 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 141: Analog Input Calibrate Zero
For more information on the service mode, see “Service Mode” earlier in the chapter. In the Main Menu, choose Service > Display Pixel Test. ● Thermo Fisher Scientific Model 80i Instruction Manual 3-103...
Page 142: Restore User Defaults
The items visible under the password menu are determined by the instrument’s password status. In the Main Menu, choose Password. ● PASSWORD MENU: >SET PASSWORD LOCK INSTRUMENT CHANGE PASSWORD REMOVE PASSWORD UNLOCK INSTRUMENT RANGE DIAGS ALARM 3-104 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 143: Set Password
In the Main Menu, choose Password > Lock Instrument ● LOCK FRONT PANEL: XXXPRESSING ENTER WILLXXXX PREVENT USER FROM CHANGING XCONFIG FROM FRONT PANELXX  LOCK AND RETURN TO RUN RANGE DIAGS ALARM Thermo Fisher Scientific Model 80i Instruction Manual 3-105...
Page 144: Change Password
The unlock instrument is shown if the instrument is locked. In the Main Menu, choose Password > Unlock Instrument ● ENTER NEW PASSWORD: RANGXXXXXE ABCDEFGHIJKLMN BKSP OPQRSTUVWXYZ PAGE 0123456789 ./- SAVE RANGE DIAGS ALARM 3-106 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 145: Chapter 4 Calibration
● Note There are two sets of backgrounds and coefficients within the 80i firmware. One set is for 80i calibration and the other is for system calibration. The background and coefficient displayed under Main Menu > Calibration Factors applies only to the mode in which the instrument is currently operating.
Page 146: Scrubbing
1. Allow the instrument to warm up and stabilize overnight. 2. Check to see that there are no alarms. 3. If the Model 80i is being used as a stand-alone unit, plumb a 250 sccm orifice to the Hgt bulkhead connector on the rear panel and cap the Hg ELEMENTAL bulkhead connector.
Page 147: Calibration
The following procedure calibrates the Model 80i analyzer using the 81i Calibration calibrator. Connect the CAL GAS from the 81i to the SPAN port on the 80i. Ensure Connect 80i to 81i that an atmospheric dump is present. Connect the ZERO AIR from the 81i to the ZERO port on the 80i.
Page 148: Calibrate The Hg Channel To The Hg Calibration Gas
If desired, record the stable zero air responses as ZHg0, ZHgt, and ZHg2+ (recorder response, percent scale or use Excel). 3. Set the 81i (or the 80i when used in a system) to Analyzer Span mode and set the desired calibration concentration using one of the six preset span values in the 80i (Calibration >...
Page 149: Calibrate The Hgt Channel
Note Since the Hg2+ converter is located in the Model 83i, Hg0 cal gas should be used to calibrate the Model 80i if it is used as a stand-alone unit. Do not introduce Hg2+ gas directly into the 80i without running it through a converter.
Page 150: Zero And Span Check
4. When the calibration check has been completed, record the Hg0, Hgt, and Hg2+ values. This check can be repeated for the system using system zero/system span gas modes. Stabilization time will vary. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 151: Safety Precautions
(Figure 7–1). If an antistatic wrist strap is not available, be sure to touch the instrument chassis before touching any internal components. When the instrument is unplugged, the chassis is not at earth ground. ▲ Thermo Fisher Scientific Model 80i Instruction Manual...
Page 152: Replacement Parts
Cleaning the mirrors can damage the mirrors. ▲ Critical Orifice The 80i uses two 250 sccm glass critical orifices to control both zero and calibration gas flows through the measurement bench. The orifices Inspection and normally only require inspection when instrument performance indicates Replacement that there may be a flow problem.
Page 153: Figure 5-1. Inspecting And Replacing The Orifices
5. Check orifice frit filter for particulate deposits. Replace the orifice as necessary. Cleaning is not recommended because the cleaning solvent may interact with the mercury sample and skew the results. 6. Repeat Steps 3 through 5 for the opposite channel. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 154: Fan Filter Inspection And Cleaning
3. Flush the filter with warm water and let dry (a clean, oil-free purge will help the drying process) or blow the filters clean with compressed air. 4. Re-install the filter and fan guard. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 155: Lamp Voltage And Frequency Check
0.35 LPM, use the following procedure to perform a leak test. 1. Block the Hg ELEMENTAL and Hg TOTAL bulkhead connectors with leak-tight caps. 2. Press to move the cursor to Instrument Controls and press to display the Instrument Controls menu. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 156 8. If the instrument passes the leak test, but still has low flow, check the critical orifices for blockage. 9. If the flow drops to zero during the flow check, but the pressure is above 100 mmHg, the pump may need to be replaced. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 157: Chapter 6 Troubleshooting
This chapter provides the following troubleshooting information: “Safety Precautions” on page 6-2 ● “Troubleshooting Guides” on page 6-2 ● “Board-Level Connection Diagrams” on page 6-9 ● “Connector Pin Descriptions” on page 6-10 ● “Service Locations” on page 6-23 ● Thermo Fisher Scientific Model 80i Instruction Manual...
Page 158: Safety Precautions
PWR” on the motherboard and the interface board. If lit, power is OK. Display failure If possible, check instrument function through RS-232 or Ethernet. Reboot instrument. Contact Thermo Fisher Scientific Service Department. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 159: Table 6-2. Troubleshooting - Calibration Failures
Check the source pressure or zero, but there is weak or expired/empty calibration. no response to span gas. Calibration system Check solenoids or other hardware to failure be sure that span gas is being delivered. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 160 Averaging time is not Check the Averaging Time (Main set correctly. Menu). If too high, the unit will be slow to stabilize. If too low, the signal may appear noisy. Set Averaging Time to one minute. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 161: Table 6-3. Troubleshooting - Measurement Failures
At Gain = 100; Frequency = approx. 400 kHz. Signal cable failure Go to Service menu and select Input Board Calibration > Input Frequency Display (ignore warning), and press Enter (leave Test off). Change Gain to 100. Frequency should be Thermo Fisher Scientific Model 80i Instruction Manual...
Page 162 Perform a leak test, as described in the “Preventive Maintenance” chapter. Hg is being absorbed Replace any lines made of vinyl or other and/or released by dirt plastics with fresh Teflon. Replace Teflon Model 80i Instruction Manual Thermo Fisher Scientific...
Page 163: Table 6-4. Troubleshooting - Alarm Messages
Check flow system for leaks. Alarm - Flow Flow low Check Model 80i Analyzer and Model 83i Probe critical orifices. Make sure the sample particulate filter in the Model 83i Probe is not blocked. Disconnect lines from the...
Page 164 Check blow back pressure set point. Alarm - Eductor Low pressure - Perform a leak test. Pressure leak High pressure Check eductor pressure set point. Alarm - Vacuum Low pressure - Perform a leak test. Pressure leak Model 80i Instruction Manual Thermo Fisher Scientific...
Page 165: Board-Level Connection Diagrams
Figure 6–1 is a board-level connection diagram for the common electronics Board-Level and measurement system. This illustration can be used along with the Connection Diagrams connector pin descriptions in Table 6–5 through Table 6–10 to troubleshoot board-level faults. Figure 6–1. Board-Level Connection Diagram Thermo Fisher Scientific Model 80i Instruction Manual...
Page 166: Connector Pin Descriptions
Ethernet Input (-) EXPANSION BD +24V +24V Ground Ground Ground +RS485 to Expansion Board -RS485 to Expansion Board SPARE DATA +24V +24V Ground Ground Ground +RS485 to Spare Board -RS485 to Spare Board 6-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 167 TTL Input 3 TTL Input 4 TTL Input 6 Ground TTL Input 9 TTL Input 11 TTL Input 12 TTL Input 14 TTL Input 16 Ground Analog Voltage Output 2 Analog Voltage Output 4 Thermo Fisher Scientific Model 80i Instruction Manual 6-11...
Page 168 SPI Input SPI Output SPI Board Select SPI Clock EXT. RS485 -RS485 to Rear Panel +RS485 to Rear Panel Ground Ground Ground +24V +24V +24V +24V +24V 24V MONITOR 24V Power Monitor 6-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 169 Keypad Row 1 Input Keypad Row 4 Input Keypad Row 3 Input Keypad Col 2 Select Keypad Col 1 Select Keypad Col 4 Select Keypad Col 3 Select Ground Ground Ground Ground +24V Thermo Fisher Scientific Model 80i Instruction Manual 6-13...
Page 170 Serial Port 2 TX (-RS485 OUT) Ground Serial Port 2 RTS (+RS485 OUT) Serial Port 2 CTS (+RS485 IN) AC IN AC-HOT AC-NEUT AC-Ground AC 24VPWR AC-HOT AC-NEUT AC-Ground AC INTF BD AC-HOT AC-NEUT AC-Ground 6-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 171: Table 6-6. Measurement Interface Board Connector Pin Descriptions
HVPS HV Power Supply Voltage Adjust Ground HV Power Supply On/Off Ground HV Power Supply Voltage Monitor Ground Ground FLOW SW Ground Oz. Flow OK Switch FLOW Flow Sensor Input Ground +15V Thermo Fisher Scientific Model 80i Instruction Manual 6-15...
Page 172 AC-NEUT AC-Ground FAN 1 +24V Ground FAN 2 +24V Ground AC IN AC-HOT AC-NEUT AC-Ground COOLER Cooler Thermistor Ground +15V_PWR Cooler On/Off Control VALVE 1 +24V Total Solenoid Control VALVE 2 +24V 6-16 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 173 Ground LAMP HVPS HVPS Voltage Adjust +24V HVPS ON/OFF SPARE ON/OFF Ground Ground SPARES Spare Analog Input Spare Temp Input Spare Analog Output Spare ON/OFF 2 +15 V -15 V Ground Ground Thermo Fisher Scientific Model 80i Instruction Manual 6-17...
Page 174: Table 6-7. Front Panel Board Connector Pin Diagram
Keypad Row 1 Input Keypad Row 4 Input Keypad Row 3 Input Keypad Col 2 Select Keypad Col 1 Select Keypad Col 4 Select Keypad Col 3 Select Ground Ground Ground Ground 6-18 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 175 Keypad Row 3 Input Keypad Row 4 Input Keypad Col 1 Select Keypad Col 2 Select Keypad Col 3 Select Keypad Col 4 Select LCD BACKLIGHT LCD Backlight Voltage 1 LCD Backlight Voltage 2 Thermo Fisher Scientific Model 80i Instruction Manual 6-19...
Page 176: Table 6-8. I/O Expansion Board Connector Pin Descriptions
Current Output Return Current Output 3 Current Output Return Current Output 4 Current Output Return Current Output 5 Current Output Return Current Output 6 MOTHER BD +24V +24V Ground Ground Ground +RS485 to Motherboard 6-20 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 177: Table 6-9. Digital Output Board Connector Pin Descriptions
Solenoid Drive Output 1 Solenoid Drive Output 2 Solenoid Drive Output 3 Solenoid Drive Output 4 Solenoid Drive Output 5 Solenoid Drive Output 6 Solenoid Drive Output 7 Solenoid Drive Output 8 Thermo Fisher Scientific Model 80i Instruction Manual 6-21...
Page 178: Table 6-10. Input Board Connector Pin Descriptions
Table 6–10. Input Board Connector Pin Descriptions Connector Label Reference Designator Signal Description PMT IN PMT Input Ground INTF BD +15V Ground -15V Ground Measurement Frequency Output Amplifier Zero Adjust Voltage SPI Input SPI Clock SPI Board Select 6-22 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 179: Service Locations
For additional assistance, Thermo Fisher Scientific has service available from exclusive distributors worldwide. Contact one of the phone numbers below for product support and technical information or visit us on the web at www.thermo.com/aqi. 1-866-282-0430 Toll Free 1-508-520-0430 International Thermo Fisher Scientific Model 80i Instruction Manual 6-23...
Page 181: Chapter 7 Servicing
(or is an “expendable” item not covered under warranty). Expendable items are indicated by an asterisk (*) in the “Model 80i Replacement Parts” table. For fault location information refer to the “Preventive Maintenance”...
Page 182: Safety Precautions
● “Service Locations” on page 7-42 ● Safety Precautions Read the safety precautions before beginning any procedures in this chapter. WARNING The service procedures in this manual are restricted to qualified representatives. ▲ Model 80i Instruction Manual Thermo Fisher Scientific...
Page 183: Figure 7-1. Properly Grounded Antistatic Wrist Strap
▲ Do not place the LCD module near organic solvents or corrosive gases. ▲ Do not shake or jolt the LCD module. ▲ Figure 7–1. Properly Grounded Antistatic Wrist Strap Thermo Fisher Scientific Model 80i Instruction Manual...
Page 184: Firmware Updates
Ethernet. This includes both the main processor firmware and the firmware in all low-level processors. Refer to the iPort manual for the firmware update procedure. Table 7–1 lists the replacement parts for the Model 80i major Replacement Parts List subassemblies. Refer to Figure 7–2 to identify the component location.
Page 185: Cable List
102841-00 High Voltage Lamp Supply Expendable item not covered by warranty. Cable List Table 7–2 describes the Model 80i cables. See the “Troubleshooting” chapter for associated connection diagrams and board connector pin descriptions. Table 7–2. Model 80i Cables Part Number...
Page 186: Figure 7-2. Model 80I Component Layout
Front Panel Module Measurement Interface Critical Orifice Board Thermistor Input Board Critical Orifice Pressure Transducer PMT Power Supply Lamp Lamp Reference Detector (4) Optical Flow Heaters (4) Bench Sensor Figure 7–2. Model 80i Component Layout Model 80i Instruction Manual Thermo Fisher Scientific...
Page 187: Removing The Measurement Bench And Lowering The Partition Panel
When the instrument is unplugged, the chassis is not at earth ground. ▲ 1. Turn instrument OFF and unplug the power cord. 2. If the instrument is mounted in a rack, remove it from the rack. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 188: Accessing The Service Mode
Service Mode > and press The Service Mode screen appears. 2. Press to toggle the Service Mode to ON. 3. Press > to return to the Main Menu. 4. Return to the procedure. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 189: Fuse Replacement
2. Remove the fan guard from the fan and remove the filter. 3. Pull the power connectors off the fan. 4. Remove the four fan mounting screws and remove the fan. 5. Install a new fan following the previous steps in reverse. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 190: Optical Bench Replacement
2. Disconnect the electrical cables from the optical bench: a. Lamp connector on the Lamp HVPS board b. Heater cable from AC BENCH connector on the measurement interface board c. PMT BNC cable from the input board connector 7-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 191: Figure 7-5. Replacing The Optical Bench
Retaining Screws (4) Figure 7–5. Replacing the Optical Bench 5. Replace the optical bench by following the previous steps in reverse order. 6. Calibrate the instrument. Refer to the “Calibration” chapter in this manual. Thermo Fisher Scientific Model 80i Instruction Manual 7-11...
Page 192: Lamp Replacement
Socket Assembly and Lamp Figure 7–6. Replacing the Lamp 4. Remove the old lamp from the socket assembly by pulling straight out and insert the new lamp into the lamp housing with notch in 12:00 7-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 193: Lamp Hvps Assembly Replacement
If an antistatic wrist strap is not available, be sure to touch the instrument chassis before touching any internal components. When the instrument is unplugged, the chassis is not at earth ground. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-13...
Page 194: Photomultiplier Tube Replacement
Figure 7–7. Replacing the Reference Detector Assembly 5. Install the new reference detector by following this procedure in reverse. Use the following procedure to replace the photomultiplier tube. Photomultiplier Tube Equipment Required: Replacement Photomultiplier tube Philips screwdriver, #1 7-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 195: Figure 7-8. Replacing The Pmt
This can permanently damage the tube. ▲ 4. Pull PMT and PMT base from the PMT housing by twisting it slightly back and forth. 5. To install a new PMT, follow previous steps in reverse. Thermo Fisher Scientific Model 80i Instruction Manual 7-15...
Page 196: Pmt High Voltage Power Supply Replacement
4. Loosen the two retaining screws securing the power supply bracket to the floor plate and slide the power supply towards the rear slightly and lift it off the base screws (Figure 7–9). 7-16 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 197: Pmt Voltage Adjustment
2. From the Main Menu, press to scroll to Service > press > to scroll to PMT Voltage Adjustment > and press The Set PMT Voltage - Manual screen appears. Thermo Fisher Scientific Model 80i Instruction Manual 7-17...
Page 198: Dc Power Supply Replacement
2. Disconnect all the power supply electrical connections. Note connector locations to facilitate re-connection. 3. Loosen the captive screw securing the power supply to the chassis plate and lift out the power supply. 7-18 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 199: Analog Output Testing
Use the following procedure to test the analog outputs. 1. Connect a meter to the channel to be tested. Figure 7–11 shows the analog output pins and Table 7–4 identifies the associated channels. Thermo Fisher Scientific Model 80i Instruction Manual 7-19...
Page 200: Figure 7-11. Rear Panel Analog Input And Output Pins
5. Check that the meter is displaying a zero value. If the meter reading differs by more than one percent, the analog outputs should be adjusted. Refer to the “Analog Output Calibration” procedure that follows. 6. Press to set the output to full scale. 7-20 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 201: Analog Output Calibration
Analog Out Calibration, and press The Analog Output Cal screen displays. Note If Service is not displayed, refer to “Accessing the Service Mode” on page 7-8, then return to the beginning of this step. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-21...
Page 202: Analog Input Calibration
Note If Service is not displayed, refer to “Accessing the Service Mode” on page 7-8, then return to the beginning of this step. ▲ 2. At the Analog Input Cal screen, press to scroll to a channel, and press 7-22 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 203: Calibrating The Input Channels To Full Scale
The Analog Input Cal screen displays input channels 1-8. Note If Service is not displayed, refer to “Accessing the Service Mode” on page 7-8, then return to the beginning of this step. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-23...
Page 204: Pressure Transducer Assembly Replacement
(Figure 7–12). Assembly Equipment Required: Replacement Pressure transducer assembly Philips screwdriver Equipment Damage Some internal components can be damaged by small amounts of static electricity. A properly ground antistatic wrist strap must 7-24 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 205: Figure 7-12. Replacing The Pressure Transducer Assembly
Figure 7–12. Replacing the Pressure Transducer Assembly 5. To install the pressure transducer assembly, follow the previous steps in reverse. 6. Calibrate the pressure transducer. Refer to the “Pressure Transducer Calibration” procedure that follows. Thermo Fisher Scientific Model 80i Instruction Manual 7-25...
Page 206: Pressure Transducer Calibration
Pressure Calibration > and press The Pressure Sensor Cal screen appears. Note If Service is not displayed, refer to “Accessing the Service Mode” on page 7-8, then return to the beginning of this step. ▲ 7-26 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 207: Flow Transducer Replacement
▲ 1. Turn instrument OFF, unplug the power cord, and remove the cover. 2. Disconnect the plumbing connections from the flow transducer. Note the plumbing connections to facilitate reconnection. Thermo Fisher Scientific Model 80i Instruction Manual 7-27...
Page 208: Flow Transducer Calibration
WARNING The service procedures in this manual are restricted to qualified representatives. ▲ If the equipment is operated in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. ▲ 7-28 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 209 250 sccm critical orifice. 9. Press to return to the Flow Sensor Cal screen. 10. At the Flow Sensor Cal screen, press to select Span. The Calibrate Flow Span screen appears. Thermo Fisher Scientific Model 80i Instruction Manual 7-29...
Page 210: Heater Assembly Replacement
(Figure 7–5) 4. Lift the optical bench from the floor plate to gain access to the heater assembly. 5. Remove two retaining screws and washers from each heater and remove the heaters. 7-30 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 211: Thermistor Replacement
If an antistatic wrist strap is not available, be sure to touch the instrument chassis before touching any internal components. When the instrument is unplugged, the chassis is not at earth ground. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-31...
Page 212: Ambient Temperature Calibration
When the instrument is unplugged, the chassis is not at earth ground. ▲ 1. Remove the instrument cover. 7-32 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 213: Input Board Replacement
If an antistatic wrist strap is not available, be sure to touch the instrument chassis before touching any internal components. When the instrument is unplugged, the chassis is not at earth ground. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-33...
Page 214: Figure 7-16. Replacing The Input Board
6. Install the input board by following the previous steps in reverse. 7. Perform an input board calibration. See “Input Board Calibration” procedure that follows. 7-34 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 215: Input Board Calibration
Use the following procedure to replace the I/O expansion board I/O Expansion Board (Figure 7–17). Replacement Note After replacing the optional I/O expansion board, calibrate the current outputs and the analog voltage inputs. See the “Analog Output Thermo Fisher Scientific Model 80i Instruction Manual 7-35...
Page 216: Figure 7-17. Replacing The I/O Expansion Board (Optional)
5. To install the I/O expansion board, follow previous steps in reverse. Motherboard Support Bracket Mounting Studs Motherboard Digital Output Board I/O Expansion Board (Opt) Figure 7–17. Replacing the I/O Expansion Board (Optional) 7-36 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 217: Digital Output Board Replacement
Board Replacement” procedure in this chapter. 3. Disconnect the digital output board ribbon cable from the motherboard. 4. Using the nut driver, remove the two standoffs securing the board to the rear panel (Figure 7–18). Thermo Fisher Scientific Model 80i Instruction Manual 7-37...
Page 218: Motherboard Replacement
5. Using the nut driver, remove the standoffs securing the board to the rear panel. 6. Pop off the motherboard from motherboard support bracket, and remove the motherboard. 7. To install the motherboard, follow previous steps in reverse. 7-38 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 219: Measurement Interface Board Replacement
4. To install the measurement interface board, follow previous steps in reverse. 5. Re-install the measurement bench. Refer to “Removing the Measurement Bench and Lowering the Partition Panel” in this chapter. Thermo Fisher Scientific Model 80i Instruction Manual 7-39...
Page 220: Front Panel Board Replacement
3. Pop off the board from the two top mounting studs and remove the board by lifting it up and off the slotted bottom support. 4. Replace the front panel board by following previous steps in reverse. 7-40 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 221: Lcd Module Replacement
When the instrument is unplugged, the chassis is not at earth ground. ▲ Do not remove the LCD panel or frame from the LCD module. ▲ Thermo Fisher Scientific Model 80i Instruction Manual 7-41...
Page 222: Service Locations
For additional assistance, Thermo Fisher Scientific has service available from exclusive distributors worldwide. Contact one of the phone numbers below for product support and technical information or visit us on the web at www.thermo.com/aqi. 1-866-282-0430 Toll Free 1-508-520-0430 International 7-42 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 223: Chapter 8 System Description
“Hardware” on page 8-1 ● “Electronics” on page 8-5 ● “I/O Components” on page 8-8 ● Model 80i hardware components (Figure 8–1) include: Hardware Optics ● Lamp ● Rejection mirror ●...
Page 224: Optics
The PMT detects the UV light emission from the decaying Hg atoms and Photomultiplier Tube converts the optical energy from the reaction to an electrical signal. This (PMT) signal is sent to the input board which transmits it to the processor. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 225: Input Board
The external pump is used to draw the sample through the instrument and External Pump to create the instrument vacuum Firmware The processor firmware tasks are organized into four areas: Instrument Control ● Monitoring Signals ● Measurement Calculations ● Output Communication ● Thermo Fisher Scientific Model 80i Instruction Manual...
Page 226: Instrument Control
60 and 300 (the continuous modes have additional intervals of 1, 2, 5, 10, 20, 30, and 90 seconds). Note In switching mode, the averaging times are: 60, 120, 180, 240, and 300 seconds. ▲ Model 80i Instruction Manual Thermo Fisher Scientific...
Page 227: Output Communication
The motherboard also contains I/O circuitry and the associated connector to monitor external digital status lines and to output analog voltages that represent the measurement data. Connectors located on the motherboard include: External connectors ● Internal connectors ● Thermo Fisher Scientific Model 80i Instruction Manual...
Page 228: Measurement Interface Board
120VAC output for the optical bench temperature control ● Flow and pressure sensors ● Ambient temperature sensor ● PMT high voltage supply ● Input board ● Lamp intensity ● Lamp high voltage supply ● Model 80i Instruction Manual Thermo Fisher Scientific...
Page 229: Flow Sensor Assembly
1, 10, or 100 depending on the full-scale range of the Hg channel. The scaled voltage signal is converted to a frequency and sent to the microprocessor. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 230: Digital Output Board
Analog output (voltage and current) ● Analog input (voltage) ● Digital output (TTL levels) ● Digital input (TTL levels) ● Note The instrument has spare solenoid valve drivers and I/O support for future expansion. ▲ Model 80i Instruction Manual Thermo Fisher Scientific...
Page 231: Analog Voltage Outputs
Only two points are necessary for linear inputs, however a larger number of points may be used to approximate non-linear inputs. All voltage inputs have a resolution of 12 bits over the range of 0 to 10.5 volts. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 232: Digital Output Relays
IBM Compatible PC. However, a straight cable (one to one) may be required when connecting the instrument to other remote devices. As a general rule, when the connector of the host remote device is female, a 8-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 233: Ethernet Connection
The IP address may be configured for static addressing or dynamic addressing (set using a DHCP server). Any serial port protocols may be accessed over Ethernet in addition to the serial port. Thermo Fisher Scientific Model 80i Instruction Manual 8-11...
Page 234: External Accessory Connector
The external accessory connector port is used in to communicate with smart external devices, such as the 82i Probe Controller. These devices may Connector be mounted hundreds of feet from the instrument using an RS-485 electrical interface. 8-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 235: Chapter 9 Optional Equipment
Chapter 9 Optional Equipment The Model 80i is available with the following options: “Terminal Block and Cable Kits” on page 9-1 ● “Mounting Options” on page 9-3 ● Terminal Block The optional terminal block and cable kits provide a convenient way to connect devices to the instrument.
Page 236: Cables
End color codes for 25-pin cables continue for 37-pin cables. VIOLET PINK/GREEN GRAY PINK/RED WHITE PINK/VIOLET PINK LIGHT BLUE LIGHT GREEN LIGHT BLUE/BROWN BLACK/WHITE LIGHT BLUE/RED BROWN/WHITE LIGHT BLUE/VIOLET RED/WHITE LIGHT BLUE/BLACK ORANGE/WHITE GRAY/GREEN Model 80i Instruction Manual Thermo Fisher Scientific...
Page 237: Mounting Options
Mounted in an EIA-style rack, includes mounting slides, and front panel EIA-rack mounting handles. Retrofit rack The rail mounting location is lower on the case and the front mounting screw slots are in non-standard EIA locations. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 238: Figure 9-1. Rack Mount Option Assembly
Optional Equipment Mounting Options Figure 9–1. Rack Mount Option Assembly Model 80i Instruction Manual Thermo Fisher Scientific...
Page 239: Figure 9-2. Bench Mounting
Optional Equipment Mounting Options Figure 9–2. Bench Mounting Thermo Fisher Scientific Model 80i Instruction Manual...
Page 240: Figure 9-3. Eia Rack Mounting
Optional Equipment Mounting Options Figure 9–3. EIA Rack Mounting Model 80i Instruction Manual Thermo Fisher Scientific...
Page 241: Figure 9-4. Retrofit Rack Mounting
Optional Equipment Mounting Options Figure 9–4. Retrofit Rack Mounting Thermo Fisher Scientific Model 80i Instruction Manual...
Page 243: Appendix A Warranty
(ii) accident, disaster or event of force majeure, (iii) misuse, fault or negligence of or by Buyer, (iv) use of the Products in a manner for which they were not designed, (v) causes external to the Products such as, but not limited to, power Thermo Fisher Scientific Model 80i Instruction Manual...
Page 244 RESPECT TO THE PRODUCTS, INCLUDING WITHOUT LIMITATION ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. SELLER DOES NOT WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL ACCOMPLISH ANY PARTICULAR RESULT. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 245: Appendix B C-Link Protocol Commands
C-Link Protocol Commands This appendix provides a description of the C-Link protocol commands that can be used to remotely control a Model 80i analyzer using a host device such as a PC or a datalogger. C-Link protocol may be used over RS- 232, RS-485, or Ethernet.
Page 246: Instrument Identification Number
(ASCII) character. The command in the example that follows begins with the ASCII character code 208 decimal, which directs the command to the Model 80i, and is terminated by a carriage return “CR” (ASCII character code 13 decimal). T I M E <CR>...
Page 247: Accessing Streaming Data
If the Service Mode is active, C-Link “set” commands are not allowed. This Service Mode is to prevent parameters from being changed remotely while the unit is being serviced locally. Thermo Fisher Scientific Model 80i Instruction Manual...
Page 248: Commands List
C-Link Protocol Commands Commands List Commands List Table B–2 lists the 80i C-Link protocol commands. The interface will respond to the associated command strings. Table B–2. C-Link Protocol Commands Command Description Page Simulates pressing soft key 1 pushbutton B-33 Simulates pressing soft key 2 pushbutton...
Page 249 Reports/sets current umbilical temperature alarm maximum B-21 temp max value alarm umblical Reports/sets current umbilical temperature alarm minimum B-21 temp min value alarm vacuum Reports/sets current vacuum pressure alarm maximum value B-22 pres max Thermo Fisher Scientific Model 80i Instruction Manual...
Page 250 Clears away only long records that have been saved B-24 clr records Clears away all logging records that have been saved B-15 clr srecs Clears away only short records that have been saved B-15 contrast Reports/sets current screen contrast B-49 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 251 Returns a brief description of the main operating conditions in the B-25 format specified in the commands erec Returns a snapshot of the main operating conditions B-25 (measurements and status) in the specified format erec format Reports/sets erec format (ASCII or binary) B-27 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 252 Lists current selection in the scratchpad list B-24 list srec Lists current selection srec logging data B-24 list stream Lists current selection streaming data output B-24 list var aout Reports list of analog output, index numbers, and variables B-61 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 253 Reports current optical chamber pressure B-13 pres cal Reports/sets pressure used for calibration B-33 pres comp Reports/sets pressure compensation on or off B-47 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 254 Reports current layout of short record data B-27 srec mem size Reports maximum number of short records B-28 srec per Reports/sets short record logging period B-28 stack o2 channel Returns/sets O2 analog input channel B-40 B-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 255 Reports/sets current time (24-hour time) B-50 Reports the "tz" timezone string for the NTP server B-57 umblical set temp Reports/sets umbilical temperature B-37 Simulates pressing up pushbutton B-33 zero Sets zero/span valves to zero mode B-42 Thermo Fisher Scientific Model 80i Instruction Manual B-11...
Page 256: Measurements
120 seconds. Send: set avg time 8 Receive: set avg time 8 ok Table B–3. Averaging Times Selection Time, Hg0 Measure Mode, Time, Hg0/HGt Measure HGt Measure Mode Mode (Seconds) (Seconds) B-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 257 Receive: pmt voltage 799.2 pres This command reports the current Hg pressure. The example that follows shows that the actual Hg pressure is 42.8 mmHg. Send: pres Receive: pres 42.8 mm Hg Thermo Fisher Scientific Model 80i Instruction Manual B-13...
Page 258: Figure B-1. Flag Status
ON, eductor power is OFF, umbilical 2 power is OFF, umbilical 1 power is OFF, probe power is OFF, and there are no alarms. Send: flags Receive: flags 28300000 Figure B–1. Flag Status B-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 259: Alarms
C. The example that follows sets the chamber temperature alarm maximum value to 50.0 °C. Send: set alarm chamber temp max 50.0 Receive: set alarm chamber temp max 50.0 ok Thermo Fisher Scientific Model 80i Instruction Manual B-15...
Page 260 These commands set the converter temperature alarm minimum and maximum values for a specified probe number, where value is a floating- point number representing converter temperature alarm limits in degrees B-16 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 261 (1-4). If a probe number is not specified, the value is applied to the currently active probe. Thermo Fisher Scientific Model 80i Instruction Manual B-17...
Page 262 These commands set the sample flow alarm minimum and maximum values to value, where value is a floating-point number representing sample flow limits in psig. The example that follows sets the sample flow alarm maximum value to 0.600 lpm. B-18 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 263 The example that follows sets the orifice pressure alarm maximum value to 35.0 psig for probe number 2. Send: set alarm orifice pres max 35.0 2 Receive: set alarm orifice pres max 35.0 2 ok Thermo Fisher Scientific Model 80i Instruction Manual B-19...
Page 264 The example that follows sets the probe temperature alarm maximum value to 230 °C for probe number 2. Send: set alarm probe temp max 230.0 2 Receive: set alarm probe temp max 230.0 2 ok B-20 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 265: Table B-4. Alarm Trigger Values
These commands set the umbilical temperature alarm minimum and maximum values for a specified probe number, where value is a floating- Thermo Fisher Scientific Model 80i Instruction Manual B-21...
Page 266 0 in H O for probe number 3. Send: alarm venturi pres min 3 Receive: alarm venturi pres min 3 0 inh2o B-22 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 267: Diagnostics
This command reports the diagnostic voltage level measurements on the 82i measurement interface board. The sequence of voltages is: positive 24, positive 15, negative 15, positive 5, positive 3.3, and positive 15. Each voltage value is separated by a space. Thermo Fisher Scientific Model 80i Instruction Manual B-23...
Page 268: Datalogging
Refer to the “sp field” command for information on how to edit the scratch pad. B-24 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 269 14:24 04-13-07 flags 5B2526 hg0 0.000 hgt 0.000 hg2+ 0.000 1 lohg0 15.380 lohgt 14.020 lohg2+ -1.360 1 pmtv 799.201 tempal 1 pres 47.938 flow 0.276 hiavgtime 60 loavgtime 60 hg0bkg 1.288 hgtbkg 1.106 hg0coef Thermo Fisher Scientific Model 80i Instruction Manual B-25...
Page 270 21.348 smplf 0.415 pmtv 799.201 pres 41.347 dilf 30.000 hg81 3.000 obkg 1.288 tblg 1.106 ocoef 1.104 tcoef 0.860 hg0dic 31.483 hg0dit 503.438 hgtdic 86.136 hgtdit 188.385 hg0dsc 112.080 hg0dst 148.926 lampt 43.370 oxyt 0.000 B-26 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 271: Table B-5. Record Output Formats
Thermo Fisher Scientific Model 80i Instruction Manual B-27...
Page 272 50 recs malloc lrec malloc srec These commands report the currently set memory allocation for long and short records in percent of total memory. Send: malloc lrec Receive: malloc lrec 70% B-28 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 273 Refer to the “sp field” command for information on how to edit the scratch pad. Thermo Fisher Scientific Model 80i Instruction Manual B-29...
Page 274 = | 1 | 2 | 5 | 10 | 20 | 30 | 60 | 90 |120 | 180 | 240 | 300 | This command sets the time interval between two consecutive streaming data strings to numbervalue in seconds. The example that follows sets the number value to 10 seconds. B-30 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 275: Calibration
Hgt mode, the response to “set cal Hg0 bkg” will be “can’t, wrong settings”. The example that follows shows a successful auto-calibration of the Hg0 background. Send: set cal hg0 bkg Receive: set cal hg0 bkg ok Thermo Fisher Scientific Model 80i Instruction Manual B-31...
Page 276 These commands report the current Hg0 and Hgt backgrounds. The example that follows reports that the Hg0 background is 1.3 μg/m Send: hg0 bkg Receive: hg0 bkg 1.300E+00 ug/m3 B-32 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 277: Keys/Display
It is sent as a type '5' binary c_link response with no checksum. The RLE encoding consists of a 0 followed by an 8-bit count of consecutive 0xFF bytes. The following 'c' code will expand the incoming data. Thermo Fisher Scientific Model 80i Instruction Manual B-33...
Page 278 BMP files are upside down relative to this data, i.e. the top display line is the last line in the BMP. screen This command is meant for backward compatibility on the C series. Screen information is reported using the “iScreen” command described previously. B-34 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 279: Measurement Configuration
The example that follows reports the the blow back pressure is 2000 counts. Send: bb set pres counts Receive: bb set pres counts 2000 Thermo Fisher Scientific Model 80i Instruction Manual B-35...
Page 280 This command sets the blow back filter duration in seconds. The example that follows sets the blow back filter duration to 40 seconds. Send: set bb system duration 40 Receive: set bb system duration 40 ok B-36 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 281 760.0 deg C umblical set temp probenumber This command reports the umbilical temperature in degrees C for the specified probe. If a probe number is not specified, the value of the Thermo Fisher Scientific Model 80i Instruction Manual B-37...
Page 282 The example that follows reports the dilution pressure is 2050 counts for probe 1. Send: dilution set pres counts 1 Receive: dilution set pres counts 1 2050 B-38 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 283 2150 1 ok lamp comp This command reports the whether the lamp compensation is on or off. The following example reports that the lamp compensation is on. Send: lamp comp Receive: lamp comp on Thermo Fisher Scientific Model 80i Instruction Manual B-39...
Page 284 X This command sets the stack O analog input channel to X. The allowed range is 1 to 8. Send: set stack o2 channel 2 Receive: set stack o2 channel 2 ok B-40 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 285: Lamp Intensity
The example that follows sets the Hgt full-scale to 15.0 μg/m Send: set range hgt 3 Receive: set range hgt 3 ok Table B–7. Standard Ranges μ Selection 15.0 30.0 60.0 150.0 300.0 600.0 Thermo Fisher Scientific Model 80i Instruction Manual B-41...
Page 286 These commands set the current gas mode to sample, zero, or span. The example that follows sets the instrument to span mode, that is, the instrument is sampling span gas. B-42 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 287 This command sets the instrument to Hg0/Hgt (auto) mode, manual Hg0 mode, or manual Hgt mode. The example that follows sets the instrument to the manual Hg0 mode. Send: set meas mode hg0 Receive: set meas mode hg0 ok Thermo Fisher Scientific Model 80i Instruction Manual B-43...
Page 288 This command sets the converter power on or off for the selected probe. The probe number must be included in the command. The example that follows sets the converter power on for probe 1. B-44 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 289 This command sets the stinger power on or off for the selected probe. The probe number must be included in the command. The example that follows sets the stinger power off for probe 1. Thermo Fisher Scientific Model 80i Instruction Manual B-45...
Page 290: Pmt Supply
This command sets the PMT supply on or off. The example that follows sets the PMT supply on. Send: set pmt supply on Receive: set pmt supply on ok B-46 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 291 (1-4). The example that follows sets the probe failsafe temperature to 800 degrees C for probe 3. Send: set probe set failsafe temp 800 3 Receive: set probe set failsafe temp 800.0 3 ok Thermo Fisher Scientific Model 80i Instruction Manual B-47...
Page 292 These commands turn the temperature compensation on or off. The example that follows turns temperature compensation off. Send: set temp comp off Receive: set temp comp off ok B-48 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 293: Hardware Configuration
This command sets the screen’s level of contrast, according to the following table. The example that follows sets the contrast level to 50%. Send: set contrast 10 Receive: set contrast 10 ok Table B–8. Contrast Levels Contrast Level Level 100% Thermo Fisher Scientific Model 80i Instruction Manual B-49...
Page 294 This command reports the current internal time (24-hour time). The example that follows reports that the internal time is 2:15:30 pm. Send: time Receive: time 14:15:30 set time hh:mm:ss hh = hours mm = minutes ss = seconds B-50 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 295: Communications Configuration
This command sets the default gateway address, where address consists of four numbers ranging from 0-255 inclusive, separated by “.”. Send: set addr gw 192.168.1.1 Receive: set addr gw 192.168.1.1 ok Thermo Fisher Scientific Model 80i Instruction Manual B-51...
Page 296 Send: addr ntp Receive: addr ntp 192.168.1.2 set addr ntp address This command sets the NTP time server address, where address consists of four numbers ranging from 0-255 inclusive, separated by “.”. B-52 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 297 Until you cycle power, the address assigned by the DHCP server will still be used and reported as the current address. ▲ Send: set dhcp on Receive: set dhcp on ok Thermo Fisher Scientific Model 80i Instruction Manual B-53...
Page 298: Table B-9. Reply Termination Formats
This command sets the host name string, where string is 1-13 alphanumeric characters. Send: set host name analyzer01 Receive: set host name analyzer01 ok instr name This command reports the instrument name. Send: instr name Receive: instr name Hg0-Hg2+-HgT Analyzer Hg0-Hg2+-HgT Analyzer B-54 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 299 “ok” response). Note The instrument will always respond to the command “mode” with the status of the password lock as “mode local” or “mode remote” regardless of the above setting.  Thermo Fisher Scientific Model 80i Instruction Manual B-55...
Page 300: Table B-10. Allow Mode Command Values
If the instrument is set to power up in the local/unlocked mode, the keypad can be used to make changes via the front panel. If the instrument is set to B-56 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 301: Table B-11. Power Up Mode Command Values
Send: program no Receive: program no iSeries 80i 00.05.68.192 set layout ack value This command disables the stale layout/layout change indicator (*) that is attached to each response if the erec layout has changed since the last time erec layout was requested, where value represents the function.
Page 302: I/O Configuration
“calculated” value of channel 1 is 75.325 degrees F, volts are 2.796. This command responds with “feature not enabled” if the optional I/O expansion board is not detected. Send: analog vin 1 Receive: analog vin 1 75.325 2.796 B-58 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 303: Table B-14. Analog Voltage Output Range Values
This command assigns digital input channel (1-16) to activate the action indicated by index (1-35), when the input transitions to the designated state (high or low). Use “list din var” command to obtain the list of supported index values and corresponding actions. Thermo Fisher Scientific Model 80i Instruction Manual B-59...
Page 304: Table B-15. Default Output Assignment
D to A Function Single Range Voltage Output Voltage Output Hg2+ Voltage Output Voltage Output Not Assigned Voltage Output Not Assigned Voltage Output Not Assigned Current Output Current Output Hg2+ Current Output B-60 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 305 This command reports the current relay logic normally “open” or normally “closed,” if all the relays are set to same state, that is all open or all closed. Note The relay stat command is report only. ▲ Thermo Fisher Scientific Model 80i Instruction Manual B-61...
Page 306: Record Layout Definition
Normally, the specifier used to parse a particular datum from the input stream will be strongly related to the specifier used to display it (e.g., all of the floating B-62 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 307: Format Specifier For Ascii Responses
- parse a 16-bit signed number (2 bytes) N - parse a 16-bit unsigned number (2 bytes) m - parse a 24-bit signed number (3 bytes) M - parse a 24-bit unsigned number (3 bytes) Thermo Fisher Scientific Model 80i Instruction Manual B-63...
Page 308: Format Specifier For Front-Panel Layout
'4' would be translated into the printf command of '%.3f'). Alternately, the special character '*' can precede the precision specifier; this causes an indirection on the precision specifier (which now becomes a field number). B-64 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 309: Alarm Information
That is, the values read are translated before they are compared to the selection list options. L—Indicates a button which pops up a selection list without any translation. The output value is number of the selected option. Thermo Fisher Scientific Model 80i Instruction Manual B-65...
Page 310: Examples
There is a no-translation button which creates a selection list of twelve "Code nn" options. The number of the user selection is used to create the output command. 'Mode:6.12-13x{local remote service service}(0 1)Tset mode %s\n' B-66 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 311 The background value is taken from the 7th element, and the precision specifier is taken from the 8th. If the asterisk were not present, it would indicate instead that 8 digits after the decimal point should be displayed. Thermo Fisher Scientific Model 80i Instruction Manual B-67...
Page 313: Appendix Cmodbus Protocol
This is achieved by using the supported MODBUS commands listed that follows. For details of the Model 80i MODBUS Protocol specification, see the following topics: “Serial Communication Parameters” on page C-2 ●...
Page 314: Tcp Communication Parameters
0x00 to 0xFF (Passed back in response) A Slave address is not required in MODBUS over TCP/IP because the higher-level protocols include device addressing. The unit identifier is not used by the instrument. Model 80i Instruction Manual Thermo Fisher Scientific...
Page 315: Function Codes
If the returned output quantity is not a multiple of eight, the remaining bits in the final data byte will be padded Thermo Fisher Scientific Model 80i Instruction Manual...
Page 316 Here is an example of a request and response to read outputs 2–15: Request Field Name (Hex) Function 0x01 Starting Address Hi 0x00 Starting Address Lo 0x02 Quantity of Outputs Hi 0x00 Quantity of Outputs Lo 0x0D Model 80i Instruction Manual Thermo Fisher Scientific...
Page 317: (0X03/0X04) Read Holding Registers / Read Input Registers
Registers are addressed starting at zero. Therefore, registers numbered 1–16 are addressed as 0–15. The register data in the response message are packed as two bytes per register, with the binary contents right Thermo Fisher Scientific Model 80i Instruction Manual...
Page 318 Starting Address Lo 0x09 No. of Registers Hi 0x00 No. of Registers Lo 0x04 Response Field Name (Hex) Function 0x03 Byte Count 0x06 Register value Hi (10) 0x02 Register value Lo (10) 0x2B Model 80i Instruction Manual Thermo Fisher Scientific...
Page 319: (0X05) Force (Write) Single Coil
Response Function code 1 Byte 0x05 Starting Address 2 Bytes 0x0000 to maximum allowed by instrument Output Value 2 Bytes 0x0000 or 0xFF00 Error Response Function code 1 Byte Function code + 0x80 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 320: Modbus Addresses Supported
Data Unit (PDU) addresses. Verify the coil number on your MODBUS master to ensure that it matches the coil number on the instrument. ▲ Note Coil status 1 indicates active state. ▲ Table C–1. Read Coils for 80i Coil Number Status Invalid SERVICE...
Page 321 I/O BOARD STATUS ALARM 81i STATUS ZERO CHECK/CAL ALARM SPAN CHECK/CAL ALARM PROBE DILUTION ALARM SYSTEM DILUTION ALARM PROBE ZERO CHECK/CAL ALARM SYSTEM ZERO CHECK/CAL ALARM GENERAL PROBE ALARM PROBE 1 SELECTED Unused Thermo Fisher Scientific Model 80i Instruction Manual...
Page 322 MODBUS master to ensure that it matches the register number on the instrument. ▲ Note For additional information on how to read registers and interpret the data, refer to the “(0x03/0x04) Read Holding Registers / Read Input Registers” section in this appendix. ▲ C-10 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 323: Table C-2. Read Registers For 80I
MODBUS Protocol MODBUS Addresses Supported Table C–2. Read Registers for 80i Register Number Variable Invalid 1&2 3&4 5&6 7&8 RANGE 9&10 RANGE 11&12 RANGE 13&14 INTENSITY 15&16 INTERNAL TEMPERATURE 17&18 CHAMBER TEMPERATURE 19&20 PROBE TEMPERATURE 21&22 CONVERTER TEMPERATURE 23&24 UMBILICAL TEMPERATURE 25&26...
Page 324 103&104 INTEGRITY 105&106 UMBILICAL TEMP 2 107&108 EXT ALARMS 109&110 84i PERM GEN RATIO 111&112 84i PERM GAS TEMP 113&114 84i PERM OVEN HEATER TEMP 115&116 84i CAPILLARY TEMP 117&118 84i PRESSURE C-12 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 325: Table C-3. Write Coils For 80I
The span level will remain at this setting for the remainder of the System Integrity Test unless otherwise changed again. This is to facilitate multi-level integrity checks. ▲ Table C–3. Write Coils for 80i Coil Number Action Triggered Coil Group...
Page 326 HYDRATOR ALARM EXT ALARM THC ZERO MODE THC SPAN MODE THC BLOWBACK PERM SPAN 84i Perm Unused 84i CONNECT B 84i Perm SET Hg SPAN Measure Mode SET Hg SPAN Measure Mode C-14 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 327: Index
Analog Input Configuration menu, 3-48 Binary responses Analog Input Readings screen, 3-65 format specifier, B-63 Analog Input Voltages screen, 3-65 Blow Back Pressure screen, 3-85 Analog inputs Blow Back Set Pressure screen, 3-93 calibration, 7-22 Thermo Fisher Scientific Model 80i Instruction Manual...
Page 328 Component layout (Figure), 7-6 Display Pixel Test Component Power menu, 3-19 function, 3-103 Concentrations screen, 3-26, 3-34 Drift screen, 3-64 Connecting D-sub connector external devices, 2-7 usage, 2-8 Contact Information screen, 3-69 Contrast Levels (Table), B-49 Model 80i Instruction Manual Thermo Fisher Scientific...
Page 329 Flow sensor assembly description, 8-8 description, 8-7 I/O Expansion Board Connector Pin Descriptions, 6-20 Flow transducer I/O Terminal board calibration, 7-28 connecting to, 2-8 replacement, 7-27 pin descriptions (Table), 2-9, 6-10 Fluorescence chamber Icons Thermo Fisher Scientific Model 80i Instruction Manual...
Page 330 Instrument Zero Duration Minutes screen description, 8-4 description, 3-16 Measurement interface board Intensity screen, 3-75 description, 8-6 Interface Board 80i screen, 3-60 replacement, 7-39 Interface Board 82i screen, 3-61 Measurement Interface Board Connector Pin Descriptions Internal Temperature screen, 3-71 (Table), 6-15...
Page 331 Motherboard screen, 3-60 Photomultiplier tube (PMT) Mounting Options (Table), 9-3 description, 8-2 Plumbing N 80i and 81i connections (Figure), 2-6 Netmask screen, 3-37 Next Time screen, 3-55 description, 8-2 description, 3-15 PMT high voltage power supply Non-Alarm status screen, 3-41...
Page 332 Service menu, 3-87 Range menu Service mode function, 3-8 accessing, 7-8 Read Coils for 80i (Table), C-8 Service Mode screen, 3-57 Read Registers for 80i (Table), C-11 Set Analog Outputs screen, 3-67 Rear panel (Figure), 2-5 Set Layout Ack Values (Table), B-57...
Page 333 Volts screen, 3-50 description, 9-1 Terminal board PCB assembly W description, 2-8 Warranty statement, A-1 Test Analog Outputs menu, 3-66 Write Coils for 80i (Table), C-13 Thermistor replacement, 7-31 Z Timezone screen, 3-58 Troubleshooting Zero and Span Auto Calibration screens, 3-76...

Thermo Scientific 80i Instruction Manual

Chapter 4 Calibration

Chapter 5 Preventive Maintenance

Chapter 6 Troubleshooting

Chapter 7 Servicing

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Thermo Scientific 80i

Summary of Contents for Thermo Scientific 80i
