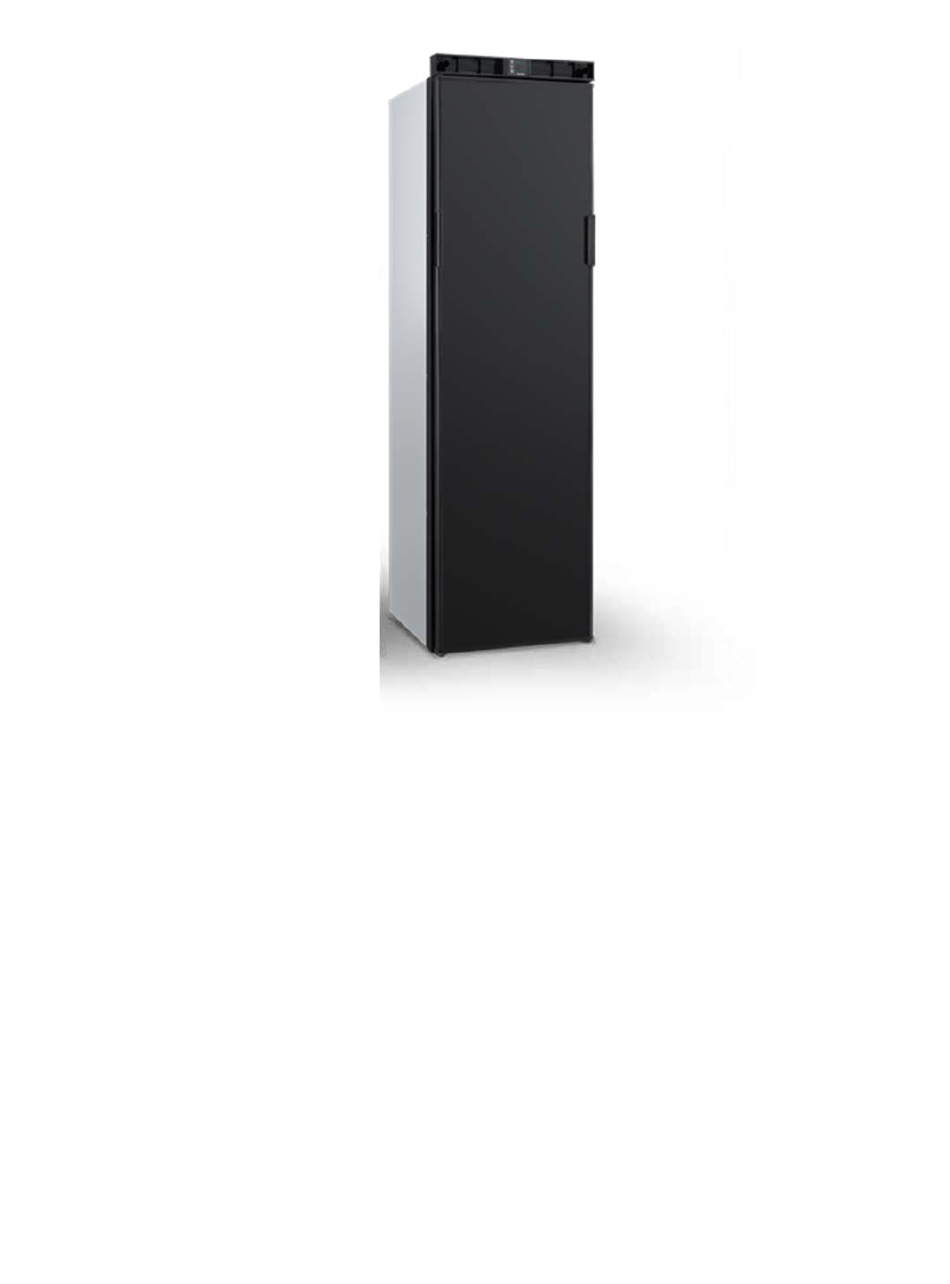

- Page 1 Refrigerator N1152 Series Owner’s Manual p/n 640254 Rev A 3/15/2019 ...
-
Page 2: Table Of Contents
22. Warranty ........................17 1. Introduction This is the user manual for your Norcold refrigerator. Read the safety instructions and information on use and maintenance of the refrigerator carefully before continuing. This will enable you to use the refrigerator safely and efficiently. Retain this manual for future reference. -
Page 3: Symbols
2. Symbols Key to symbols: Warning. Risk of serious injury and/or damage. Caution. Risk of injury and/or damage. Attention. Important information. Note. Information. 3. Safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities and/or lack of experience and knowledge only if they are supervised or have been given instructions on the safe use of this appliance by a person responsible for their safety. - Page 4 suspect poor performance. Never open or damage the refrigerant circuit of the cooling system at the back or on the inside of your appliance. The cooling system is pressurized and contains flammable substances. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.
-
Page 5: Main Components
4. Main components 1. Refrigerator door 2. Control panel 1 2 3. Freezer compartment 4. Slide-out box 5. Storage shelves 6. Bottle retainer 7. Vegetable bin 8. Door bins Control panel 1. Temperature setting button 2. Night mode button 3. -
Page 6: Switching On The Refrigerator
After the temperature setting button is activated, you can also select the cooling level by holding the button. Norcold advises to set the refrigerator on cooling level 3, with an ambient temperature between 16°C (61°F) and 25°C (77°F). A higher temperature needs... -
Page 7: Selecting Night Mode
a higher cooling level, a lower temperature a lower level. Your refrigerator meets different types of climate classes at different levels of the ambient temperature. Table 1: Climate classes Mode N1152 Climate class day mode 16°C 61°F) to 43°C 110°F) Climate class night mode N 16°C(61°F) to 32°C(89°F) -
Page 8: Use Of The Refrigerator Compartment
9. Use of the refrigerator compartment To organize your refrigerator as desired, move the storage shelves and door bins in height. Moving the storage shelves A number of shelves are secured to prevent inadvertent entrapment and possible suffocation of children. For the same reason, the bottle retainer is fixed to the drawer. Do not remove the fixed shelves or bottle retainer, so children have no space to be entrapped in the refrigerator. - Page 9 ■ Place the left side of the storage shelf without the clamp in the refrigerator wall. ■ Place the other side in the corresponding groove. ■ Turn the plastic clamp downwards. ■ Replace the screws after you have finished. The maximum storage capacity of the drawer is 33 lbs. Moving the door bins ■...
-
Page 10: Use Of The Freezer Compartment
■ The box is now free to remove. 10. Use of the freezer compartment ■ Use the freezer compartment to store perishable foodstuffs or frozen foods for short periods. Never keep carbonated liquids in the freezer compartment. The freezer temperature cannot be guaranteed if the refrigerator performs in a vehicle interior temperature below 16°C (60°F). -
Page 11: While Driving
When you close and press the door of the refrigerator, the door locks automatically. While driving this door lock also secures the door. 12. Maintenance and cleaning Norcold recommends an annual inspection service by an approved service center. Clean the refrigerator on a regular basis. ■... - Page 12 ■ Then slide the rail system to the right, as illustrated. ■ Remove and clean the slide-out box system. ■ After cleaning, place the system back in reverse order. ■ Make sure the slide-out box system snaps into place. Removing drawer To remove the drawer: ■...
-
Page 13: Switching Off The Refrigerator
■ Remove and clean the drawer. ■ After cleaning, place the drawer back in reverse order. 13. Switching off the refrigerator Switch off the refrigerator before defrosting or storing your vehicle: ■ Push the on/off button and hold it for 2 seconds. The blue light will dim. 14. -
Page 14: Troubleshooting
Too much ice on Defrost evaporator, make evaporator more than 1/8 sure door seal is in good order If you cannot solve a problem, contact the authorized local Service Centre or Norcold Customer Service in your country. -
Page 15: Storage
16. Storage If you do not use the refrigerator for a longer period: ■ Empty the refrigerator. ■ Defrost the freezer compartment. ■ Clean the complete refrigerator thoroughly. ■ Keep the refrigerator door, as well as the freezer compartment door, open during storage. To keep the door open during storage: ■... -
Page 16: Servicing
17. Servicing All servicing must be carried out by an authorized person. Before any service work is started, the appliance must be disconnected from the electrical supplies. For service, please contact your authorized local Service Centre giving details of the model and serial number on the data badge plus date of purchase. -
Page 17: Questions
Customer Service in your country. 21. Warranty Norcold offers the end users of its products a three-year warranty. In the case of malfunction within the warranty period, Norcold will replace or repair the product. In this situation, the costs of replacement, labor costs for the replacement of defective components and/or the costs of the parts themselves will be paid for by Norcold.
