Summary of Contents for Planet GSW-2824P

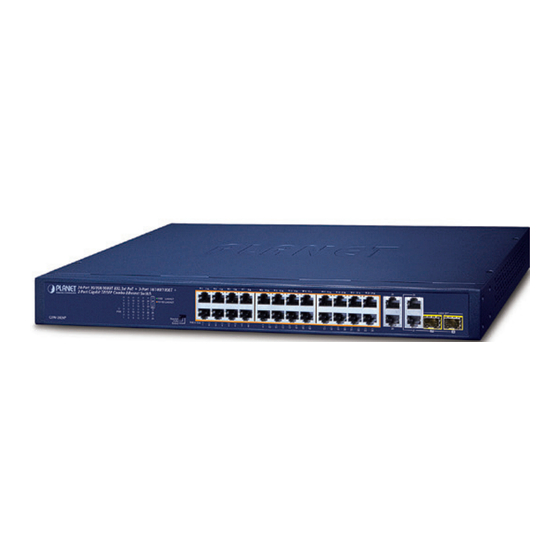

- Page 1 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch GSW-2824P User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Product Features.................... 4 3. Product Specifications ..................6 4. Hardware Introduction ................... 8 4.1 Front Panel ..................... 8 4.2 LED Indicators ..................8 4.3 Multiple Functions of DIP Switch .............. 9 4.4 Rear Panel ................... 10 5. -
Page 3: Package Contents
Thank you for purchasing PLANET 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch, GSW-2824P. “802.3at PoE+ Switch” mentioned in this Guide refers to the GSW-2824P. Open the box of the 802.3at PoE+ Switch and carefully unpack it. The box should contain the following items: The 802.3at PoE+ Switch x 1... -
Page 4: Product Features
2. Product Features Physical Port 24-port 10/100/1000BASE-T RJ45 copper with PoE injector function. 4 10/100/1000BASE-T RJ45 copper interfaces. 2 1000BASE-X SFP combo interfaces, shared with Ports 27~28. Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE. ... - Page 5 Hardware 19-inch rack-mount size, 1U height. LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act. 2 fans to provide stable and efficient power performance. Supports contact discharge of ±6KV DC and air distance discharge of ±8KV DC for Ethernet ESD protection. ...
-
Page 6: Product Specifications
3. Product Specifications Model GSW-2824P Hardware Specifications 10/100/1000BASE-T Copper Ports 28 auto MDI/MDIX 1000BASE-X SFP/mini-GBIC Slots 2 Selectable operation mode Standard DIP Switch VLAN Extend Dimensions (W x D x H) 207.3 x 441.5 x 44 mm (1U height) Enclosure... - Page 7 MAC Address Table 8K entries Jumbo Frame 9216 bytes IEEE 802.3x pause frame for full duplex; Flow Control back pressure for half duplex Power over Ethernet PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE PoE Injector Ports PoE Power Supply Type End-span: 1/2 (+), 3/6 (-) Per port 54±1V DC, 300mA.
-
Page 8: Hardware Introduction
1000 LNK/ACT 10/100 LNK/ACT 1000X SFP Standard GSW-2824P VLAN PoE-in-Use Extend Figure 4-1: GSW-2824P Switch Front Panel 4.2 LED Indicators System Color Function Green Lights to indicate the Switch has power. 10/100/1000BASE-T Ports (ports 1~28) Color Function Lights to indicate the link through that port is successfully 1000 established. -
Page 9: Multiple Functions Of Dip Switch
2. Ports 1 to 8 have a data rate of 10Mbps. 3. All ports can communicate with one anothe. Please adjust the DIP switch before powering on the 802.3at PoE+ Switch. Standard Mode (default) PoE IP Camera Standard VLAN Extend GSW-2824P Power 100 meters (328 feet) 10BASE-T UTP with PoE... -
Page 10: Rear Panel
10BASE-T UTP with PoE 4.4 Rear Panel The rear panel of the 802.3at PoE+ Switch indicates an AC power socket, which accepts input power from 100 to 240V AC, 50-60Hz, 5A. 100-240V , 5A max. 50/60Hz Figure 4-2: GSW-2824P Switch Rear Panel... - Page 11 AC Power Receptacle The device is a power-required device, which means it will not work till it is powered. If your networks should be active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or network downtime.
-
Page 12: Hardware Installation
5. Hardware Installation 5.1 Rack Mounting To install the 802.3at PoE+ Switch in a 19-inch standard rack, follow the instructions described below. Step 1: Place your 802.3at PoE+ Switch on a hard flat surface, with the front panel positioned towards your front side. Step 2: Attach a rack-mount bracket to each side of the 802.3at PoE+ Switch with supplied screws attached to the package. - Page 13 Step 5: After the brackets are attached to the 802.3at PoE+ Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 5-2. Figure 5-2: Mounting the 802.3at PoE+ Switch in a Rack Step 6: Connect your 802.3at PoE+ Switch to 802.3af/802.3at complied PDs and other network devices.
-
Page 14: Installing The Sfp Transceiver
The website link of approved PLANET SFP transceivers is shown below: https://www.planet.com.tw/en/product/mgb-series-transceiver It is recommended to use PLANET SFP on the 802.3at PoE+ Switch. If you insert an SFP transceiver that is not supported, the 802.3at PoE+ Switch will not recognize it. -
Page 15: Customer Support
Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. PLANET online FAQs: https://www.planet.com.tw/en/support/faq... - Page 16 FCC Warning This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
