Walker Edison Oswald OSWB4C Assembly Instructions Manual

Walker Edison Oswald OSWB4C Assembly Instructions Manual

Hide thumbs Also See for Oswald OSWB4C:

Advertisement

Quick Links

Item # : OSWB4C

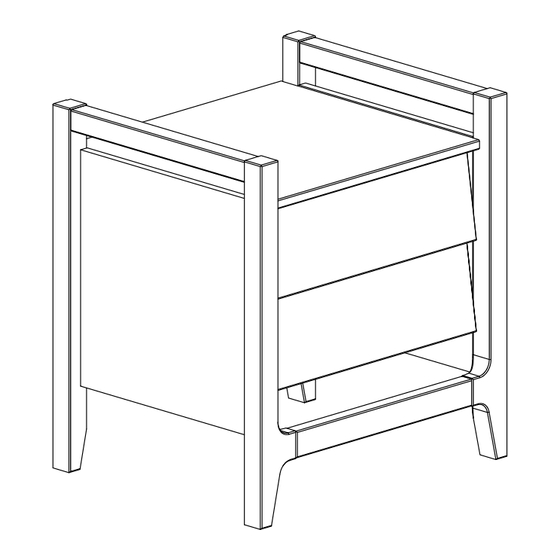

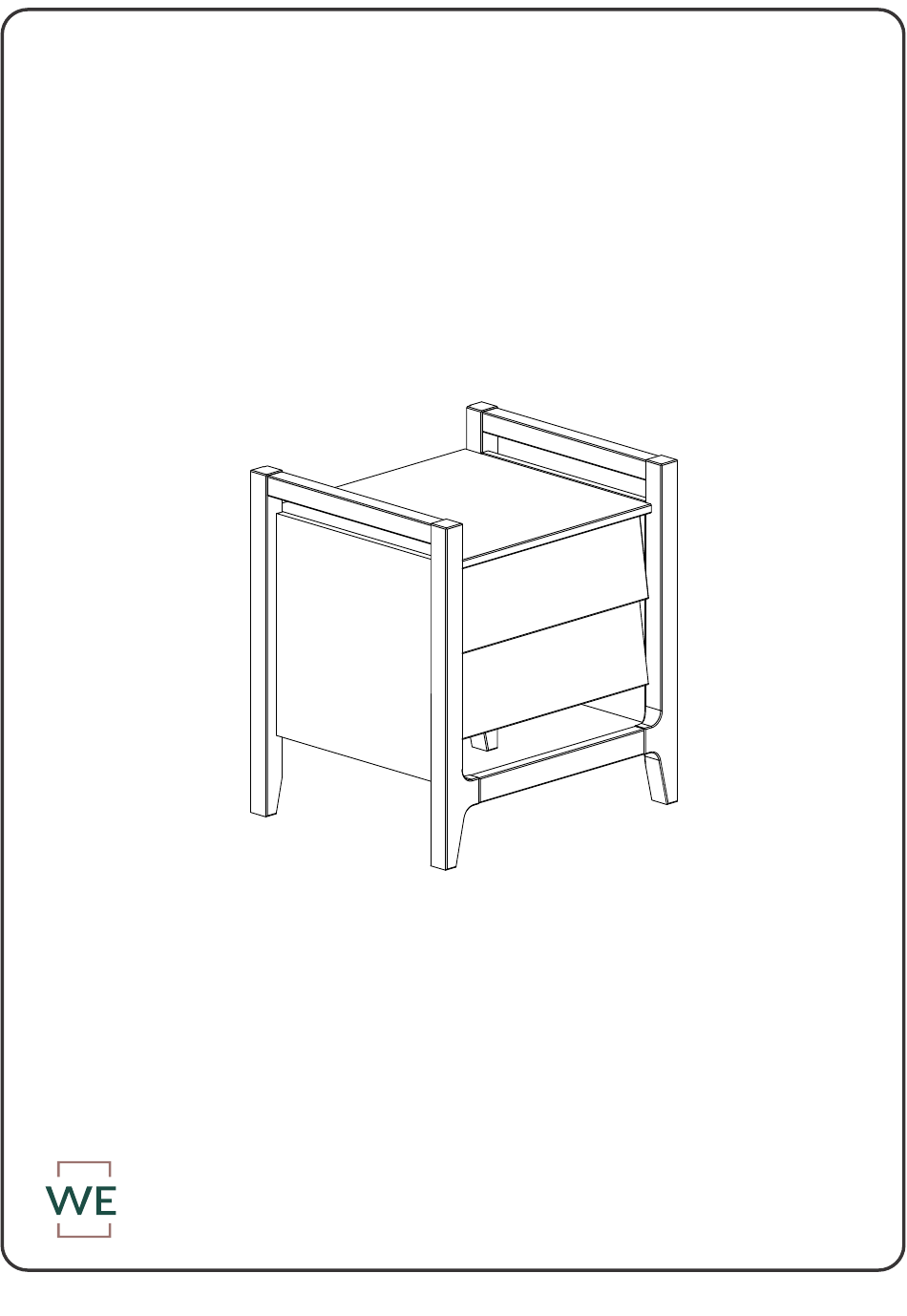

Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Revised 07/24 - V7
P.1
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oswald OSWB4C and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison Oswald OSWB4C

  • Page 1 Item # : OSWB4C Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 07/24 - V7 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
  • Page 2 and hammmer VII. Maintenance Guide To maintain long term performance and easy gliding of your solid wood drawers, we recommend applying wax to the wooden guide rails. 1. Bee's wax is recommended or Paraffin wax from a standard candle can be used. 2.
  • Page 3 Part# Description Part# Description Side top crossbar Left front foot 02 pcs 01 pc Left back foot Top panel 01 pc 01 pc Right side drawer 02 pcs Right side 01 pc Left side drawer 02 pcs Left side 01 pc Drawer bottom 02 pcs Bottom rear crossbeam...
  • Page 4: Hardware List

    Hardware List Wooden dowel Ø8*40mm Wooden dowel Ø8*30mm Screw Ø4,0*30mm Cam bolt Cam lock Ø15*09mm Ø3,0*16mm Screw Screw Ø7,0*50mm CB 10 Hex key Wooden dowel Ø10*20mm Ø4,0*25mm Screw Fixing device Tape measure and hammer recommended for assembly (not included)
  • Page 5 Step 1 Please assemble on a clean soft surface to avoid damage. Insert wood dowel (B) into parts (21,22,23,32,33). Ø8*30mm Step 2 Attention to the dowel size: Ø10*20mm Please assemble on Insert wood dowel (I) a clean soft surface into part (45). to avoid damage.
  • Page 6 Step 3 Insert cam bolt (D) to part (28,29,30, 31) with Phillips head screwdriver. Please assemble on a clean soft surface to avoid damage. Step 4 Attention Use screw (C,) to a ach parts (17) to part (28, 30), with Phillips head screwdriver. Attention Ø4,0*30mm...
  • Page 7 Step 5 Heads up: 05 holes up Please assemble on a clean soft surface to avoid damage. Secure part (23) to part (30). Insert cam locks (E) into part (23) and ghten with a phillips head screwdriver. Ø15*09mm Step 6 Please assemble on a clean soft surface to avoid damage.
  • Page 8 Step 7 Use screw (G) to a ach parts (29) to part (17) with Please assemble on Hex Key (H) a clean soft surface to avoid damage. Secure part (22) to part (29). Insert cam locks (E) into part (22) and ghten with a phillips head screwdriver.
  • Page 9 Step 9 Insert cam bolt (D) to part (22,23). with Phillips head screwdriver. Please assemble on a clean soft surface to avoid damage. Step 10 Use screw (J) to a ach part (45) to parts (22,23) with Phillips head screwdriver. Please assemble on a clean soft surface to avoid damage.
  • Page 10 Step 11 Use screw (C) to a ach part (27) to part (28) with Phillips head screwdriver. Insert cam bolt (D) to part (22,23,29,31). Ø4,0*30mm with Phillips head screwdriver. Step 12 Secure parts (21,24) to part (22). Insert cam locks (E) into part (21,22) and ghten with a phillips head screwdriver.
  • Page 11 Step 13 Name and address of the supplier and date of production. Insert part (26) into the grooves of parts (21,24). Step 14 Secure parts (21,24,27) to part (23). Insert cam locks (E) into part (21,24) and ghten with a phillips head screwdriver.
  • Page 12 Step 15 Use screw (F) to fix the device (K) to parts (21,22,23,24) with Phillips head screwdriver. Insert device (K) between parts (21,26), (22,26), (23,26) (24,26). 1° 2° Ø3,0*16mm Step 16 Insert cam bolt (D) to part (36). with Phillips head screwdriver. Please assemble on a clean soft surface to avoid damage.
  • Page 13 Step 17 Secure parts (32,33) to part (36). Insert cam locks (E) into parts (32,33) and ghten with a phillips head screwdriver. Please assemble on a clean soft surface to avoid damage. Ø15*09mm Step 18 Please assemble on a clean soft surface to avoid damage.
  • Page 14 Step 19 Ø8*30mm Insert the dowels (B) into the drawer slide. Step 20 Ø8*40mm Insert wood dowel (A) Insert wood dowel (A) on the inside of all drawers, with the drawer inside the unit, a er having passed the wood dowel that is in the drawer slide.
  • Page 15 Assembly Complete! P.15...
