Hinkley 980016FWH Installation Instructions Manual

NOTE: When installing the remote control, be sure your fan
control or pull chain switch are in the "HIGH SPEED"
position and the light control or switch is set to "ON".
GENERAL INFORMATION
This remote control is designed to separately control your ceiling fan
speed and light brightness.
● The fan button will control the fan speed. (low, medium and high)
● The Light button to control the up light and down light dimmer or
ON/OFF.
● The red indicator on the transmitter will light when the button is
pressed.
INSTALLATION AND OPERATING
INSTRUCTIONS
1. INSTALLING RECEIVER IN THE CEILING FAN
A. Safety precautions:
WARNING: HIGH VOLTAGE! Household electrical power can
cause serious injury or death. Disconnect the power to the ceiling
fan by removing the fuse or switching the power off at the circuit
breaker.
B. Installing receiver in fan.:

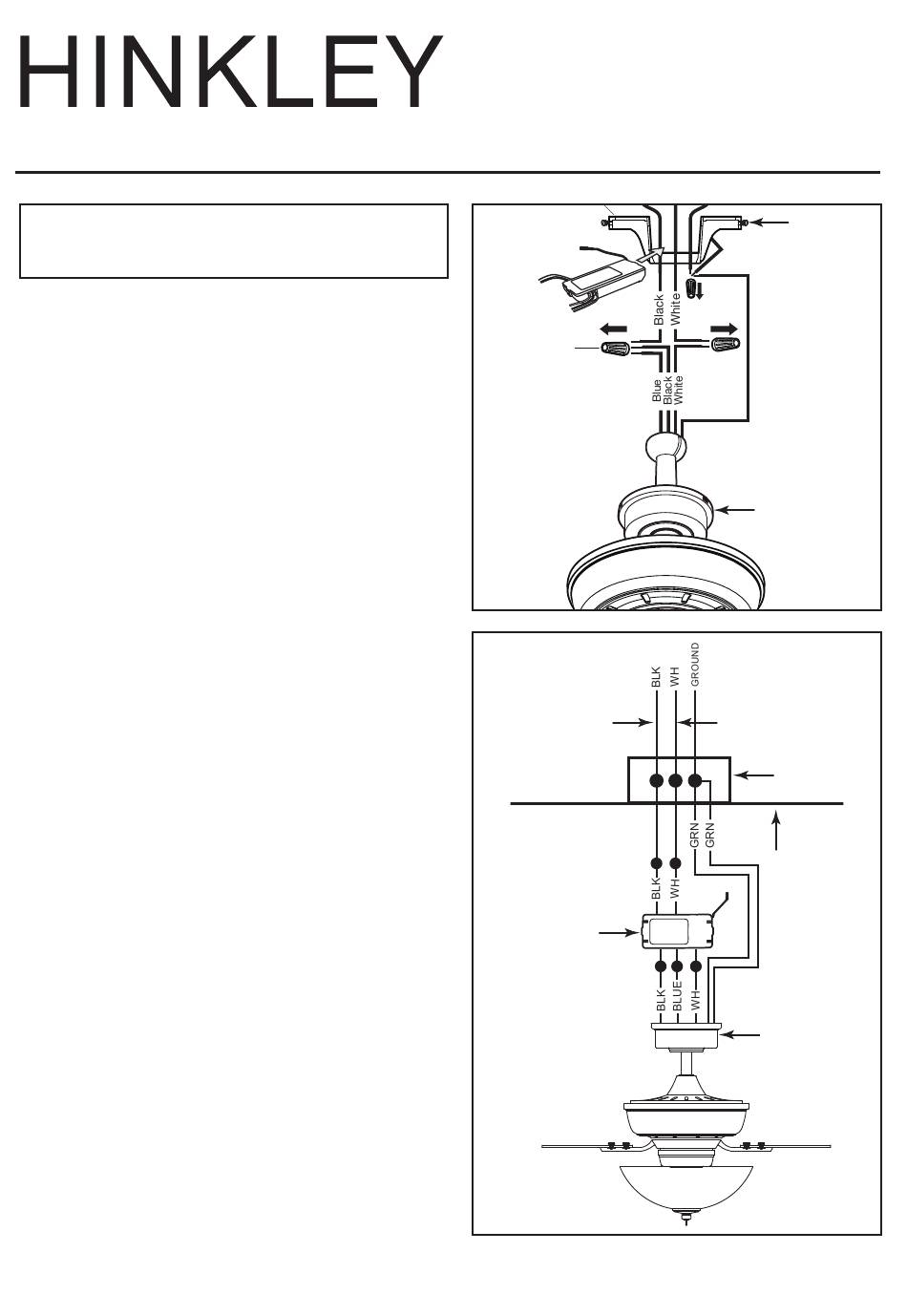

1. Remove the ceiling fan canopy from the hanger bracket. (Fig. 1)
2. Disconnect the existing wiring between the ceiling fan and
supply at the electrical junction box. (Fig. 1)
3. Lay the black antenna wire on top of the receiver, and put the
receiver in the mounting bracket. (Fig. 1)
4. Make the connections as follows, using the wire nuts supplied:
(Fig. 2)
a. Make wire connections from the fan to the receiver unit.
● Connect one BLACK wire from the fan to BLACK wire from
the receiver.
● Connect one BLUE wire from the fan to BLUE wire from the
receiver.
● Connect one WHITE wire from the fan to WHITE wire from
the receiver.
● Connect one GREEN wires from the fan to ground wire (green
or bare copper) from the ceiling.
b. Make wire connections from the receiver to the ceiling.
● Connect one BLACK wire from the filter to BLACK wire from
the ceiling.
● Connect one WHITE wire from the filter to WHITE wire from
the ceiling.
If there are wires with different colors, have this unit installed
by a qualified electrician.
5. Push all connected wires up into junction box.
6. Reinstall the canopy on the hanger bracket.
7. Restore the electrical power.
3 SPEED FAN & LIGHT
REMOTE CONTROL
INSTALLATION INSTRUCTIONS
AA
READ AND SAVE THESE INSTRUCTIONS
Hanger
bracket
Receiver
Wire nuts
Fig. 1
House
supply
wire
Receiver
RECEIVER
Fig. 2
Model: 980016FWH
Screws
Canopy
House
supply
wire
Outlet box
Ceiling
Fan
