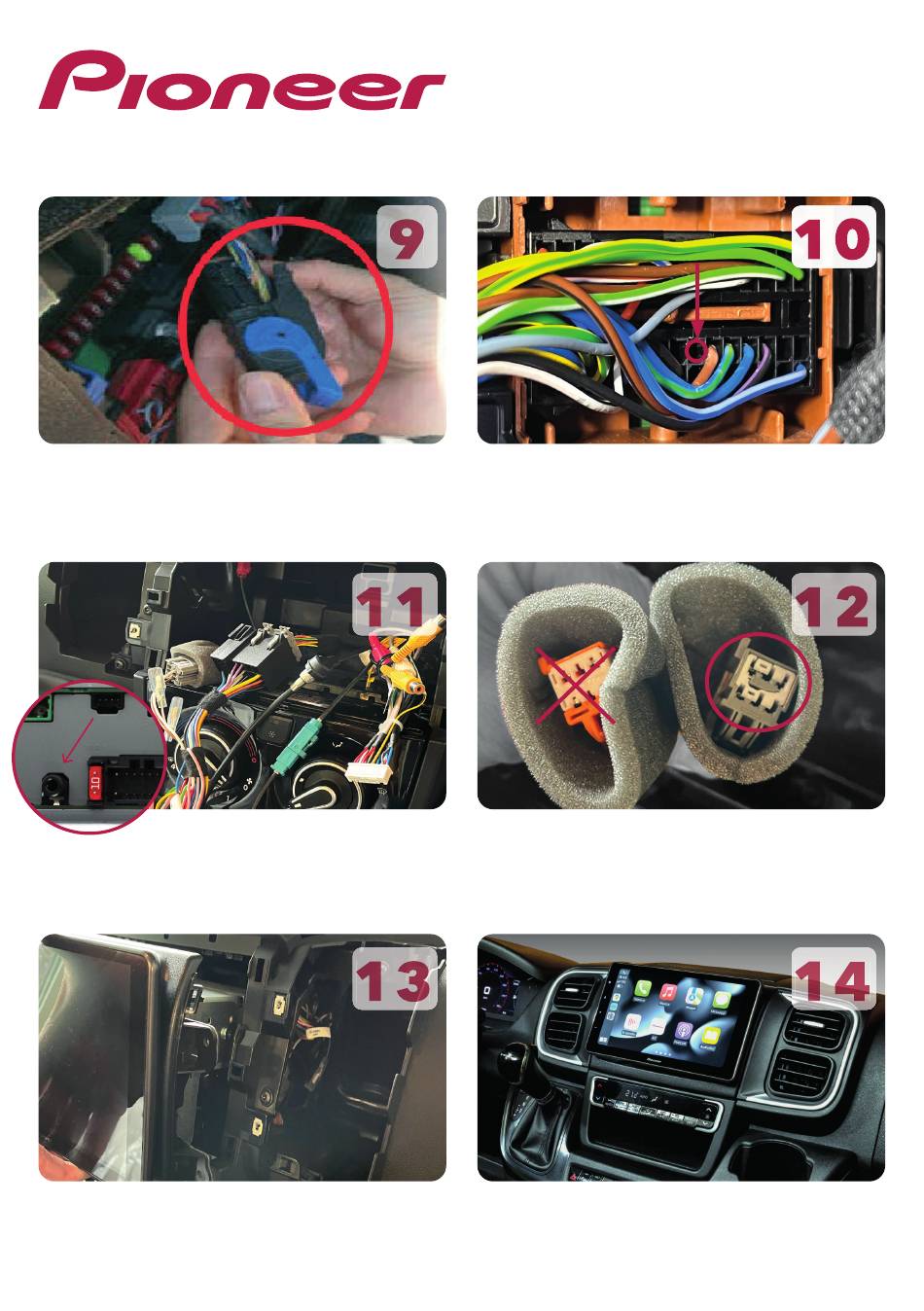

Open the black connector and
Insert the pink cable pin (speedpulse)
slide the cables out
to the open position twenty-two (22)
Connect all cables in the dashboard
For phone buttons only use the GREY connector.
including FM & DAB with the included cables
! DO NOT USE THE ORANGE CONNECTOR !
Insert the Pioneer head unit and secure with
Re-instal the airvents.
the original screws.
Pioneer installation manual - Fiat Ducato 8 SPH-EVO950DAB - v1.01
