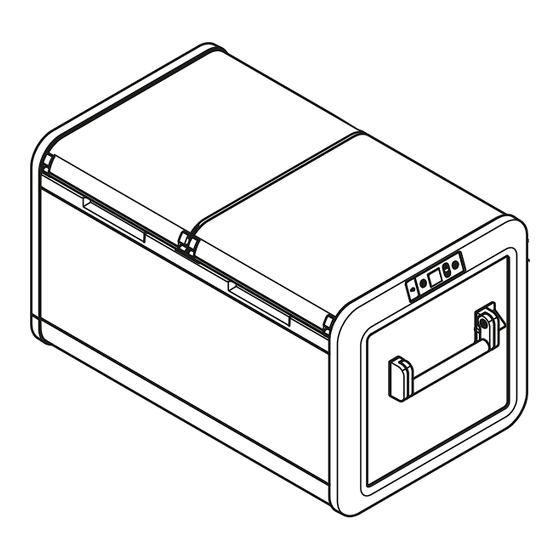

Dometic CFX5 25 Operating Instructions Manual
Portable fridge
Hide thumbs
Also See for CFX5 25:
- User manual ,
- Short operating manual (33 pages) ,
- Operating manual (552 pages)
Related Manuals for Dometic CFX5 25
Summary of Contents for Dometic CFX5 25
- Page 1 MOBILE COOLING CFX5 CFX5 25, CFX5 35, CFX5 45, CFX5 55, CFX5 55IM, CFX5 75DZ, CFX5 95DZ Portable fridge Operating manual.............3...
- Page 2 EN Dometic CFX5 Copyright © 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.
-
Page 3: Table Of Contents
This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com. -
Page 4: Safety Instructions
EN Dometic CFX5 3 Safety instructions DANGER! Electrocution hazard On boats: If the device is powered by the mains, ensure that the power supply has a residual current device (RCD), a residual current circuit breaker (RCCB), or a ground fault circuit interrupter (GFCI). - Page 5 Dometic CFX5 EN CAUTION! Electrocution hazard Before starting the cooling device, ensure that the power supply line and the plug are dry. Disconnect the cooling device from the power supply • Before each cleaning and maintenance • Aer every use CAUTION! Health hazard To avoid contamination of food, observe the following instructions: •...
-
Page 6: Scope Of Delivery
Connection cable for DC connection Connection cable for AC connection 5 Accessories Available as accessory (not included in scope of delivery): Designation Ref. no. Model Protective cover PC25 9620012808 CFX5 25 PC35 9620012806 CFX5 35 PC45 9620012805 CFX5 45 PC55 9620012810 CFX5 55... -
Page 7: Intended Use
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer • Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. -
Page 8: Technicial Description
EN Dometic CFX5 7 Technicial description A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and the powerful compressor ensure efficient and fast cooling. The cooling device is portable. The cooling device can withstand a short-term inclination of 30°, for example on boats. -
Page 9: Connection Sockets
Dometic CFX5 EN Item Description Explanation Switches the cooling device on when the button is pressed briefly Switches the cooling device off when the button is pressed for three seconds Returns to the previous menu Display : AC power supply is connected... -
Page 10: Before First Use
EN Dometic CFX5 Item Description Connection socket AC voltage supply AC fuse holder DC fuse cover Connection socket DC voltage supply 8 Before first use NOTE Before starting the cooling device for the first time, clean it inside and outside with a damp cloth... - Page 11 Dometic CFX5 EN Reversing the lid opening To reverse the lid opening proceed as shown: CFX5 55, CFX5 55IM ...
- Page 12 EN Dometic CFX5 CFX575DZ, CFX5 95DZ ...
-
Page 13: Operation
Dometic CFX5 EN Selecting the temperature units Proceed as shown: 9 Operation Avoiding food waste To avoid food waste, note the following Keep temperature fluctuation as low as possible. Only open the cooling device as oen and for as long as necessary. - Page 14 EN Dometic CFX5 Proceed as shown: Connecting to the Portable Battery Pack PLB40 or the Hardwiring Kit HWK-DC (accessories) Proceed as shown: ...
-
Page 15: Using The Battery Monitor
Dometic CFX5 EN Connecting to an AC power supply DANGER! Electrocution hazard Never handle plugs and switches with wet hands or if you are standing on a wet surface. If you are operating the cooling device on board a boat from a AC power supply, you must install a residual current circuit breaker between the AC power supply and the cooling device. -
Page 16: Using The Cooling Device
EN Dometic CFX5 Proceed as shown: Using the cooling device NOTICE! Risk of overheating Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Ensure that the device is sufficiently far away from walls and other objects so that the air can circulate. -
Page 17: Display States
Dometic CFX5 EN NOTE When operating with the battery: • When voltage is ≥ 8 V and ≤ 12 V the display may show “!ALERT - Voltage low” depending on the • When voltage is < 8 V the display switches off automatically. -
Page 18: Display Overview
EN Dometic CFX5 Item Description Stand by Idle Locked Display overview: Navigating through the menus The highlighted menu is selected. Press to navigate upwards. Press to navigate downwards. Choosing a menu Press to select the required menu. -
Page 19: Changing Settings
Dometic CFX5 EN Changing settings The highlighted value or setting is selected. Press to increase the selected value or to choose the previous setting. Press to decrease the selected value or to choose the next setting. Returning to the previous menu Press to return to the previous menu without saving. -
Page 20: Setting The Temperature
EN Dometic CFX5 Setting the temperature Proceed as shown: ... - Page 21 Dometic CFX5 EN 9.10 Switching a compartment off or on (CFX5 75DZ, CFX5 95DZ only) You can activate each zone individually or both of them. Proceed as shown: 9.11 Using the ice maker (CFX5 55IM only) NOTE Independent of the main compartment‘s temperature setting, the ice maker zone is designed for making ice cubes if the ice maker is switched on.
- Page 22 EN Dometic CFX5 Filling the ice trays with water Remove the ice trays (Fig. on page 22 1) from the ice maker housing (Fig. on page 22 2). Removing the ice cubes NOTE Removal may require additional force using two hands in high humidity conditions which may create an ice bond underneath the ice trays.
- Page 23 Dometic CFX5 EN Aer extended periods of non-use clean the inside of the ice trays with a mild dish washing solution and rinse with clean water prior to use. 9.12 Using Bluetooth and Wi-Fi Downloading the Mobile Cooling app The cooling device can be monitored and controlled via Bluetooth or Wi-Fi using an app that you can install on a compatible device.
-
Page 24: Resetting To Factory Settings
EN Dometic CFX5 Setting the Wi-Fi signal Proceed as shown: Operating Bluetooth and Wi-Fi Follow the instructions in the mobile cooling app. The Bluetooth or Wi-Fi LED lights up when the cooler is connected. 9.13 Resetting to factory settings The reset function changes all display menu and app fields to the original factory settings. -
Page 25: Defrosting The Cooling Device
Dometic CFX5 EN Proceed as shown: 9.15 Defrosting the cooling device Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. NOTICE! Damage hazard Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place. -
Page 26: Replacing The Dc Plug Fuse
3. Reverse the fuse cover and use hook to remove the defective blade fuse. 4. Push in a new fuse of the same type and rating. • CFX5 25, CFX5 35, CFX5 45, CFX5 55, CFX5 55IM: 10 A • CFX5 75DZ, CFX5 95DZ: 15 A 5. -
Page 27: Troubleshooting
Dometic CFX5 EN NOTICE! Damage hazard Never clean the cooling device under running water or in dish water. Do not use abrasive cleaning agents or hard objects during cleaning. Occasionally clean the device interior and exterior with a damp cloth. Ensure that the air inlet and outlet vents on the cooling device are free of any dust and dirt, so that heat can be released and the cooling device is not damaged. -
Page 28: Warning Codes
EN Dometic CFX5 Alert message Description Possible cause Suggested remedy !ALERT - Lid open > 3 min Lid open more than 3 min Lid not fully latched Check lid latched fully Internal fault Authorized repair center in- spection required !ALERT - Voltage low... -
Page 29: Warranty
NOTE The minimum temperature shown in “Cooling capacity” cannot be attained if the ambient temperature is above 32°C for models CFX5 25/35/45/55/55IM or if the ambient temperature is above 30°C for models CFX5 75DZ/95DZ set small – 22°C/large 4°C). - Page 30 EN Dometic CFX5 Test/certificates: CFX5 35 CFX5 25 CFX5 45 Connection voltage 12 V / 24 V 100 V … 240 V Rated current 12 V : 9.2 A 12 V : 8.9 A 12 V : 9.4 A 24 V : 4.2 A 24 V : 3.8 A...
- Page 31 Dometic CFX5 EN CFX5 55IM CFX5 55 20°C … – 22°C Cooling capacity Climate class N, T Total volume 55 L 55 L Ambient temperature 16°C … 43°C Refrigerant R600a Refrigerant quantity 22 g Frequency range WiFi: 2400 MHz … 2483.5 MHz Bluetooth/BLE: 2400 MHz …...
- Page 32 EN Dometic CFX5 CFX5 75DZ CFX5 95DZ RF output power WiFi: 19.91 dBm (802.11b), 19.91 dBm (802.11g), 19.91 dBm (802.11n), Bluetooth: 11.23 dBm Bluetooth LE: 11.23 dBm Dimensions W x D x H (including han- 892 mm × 495 mm × 472 mm 962 mm ×...
