Summary of Contents for Lenz W1 EVSE

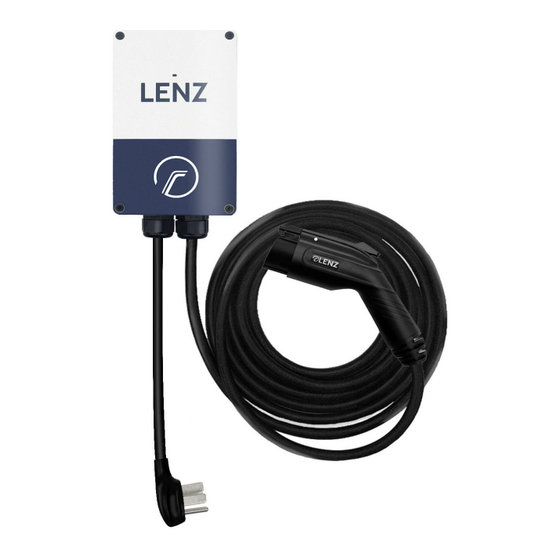

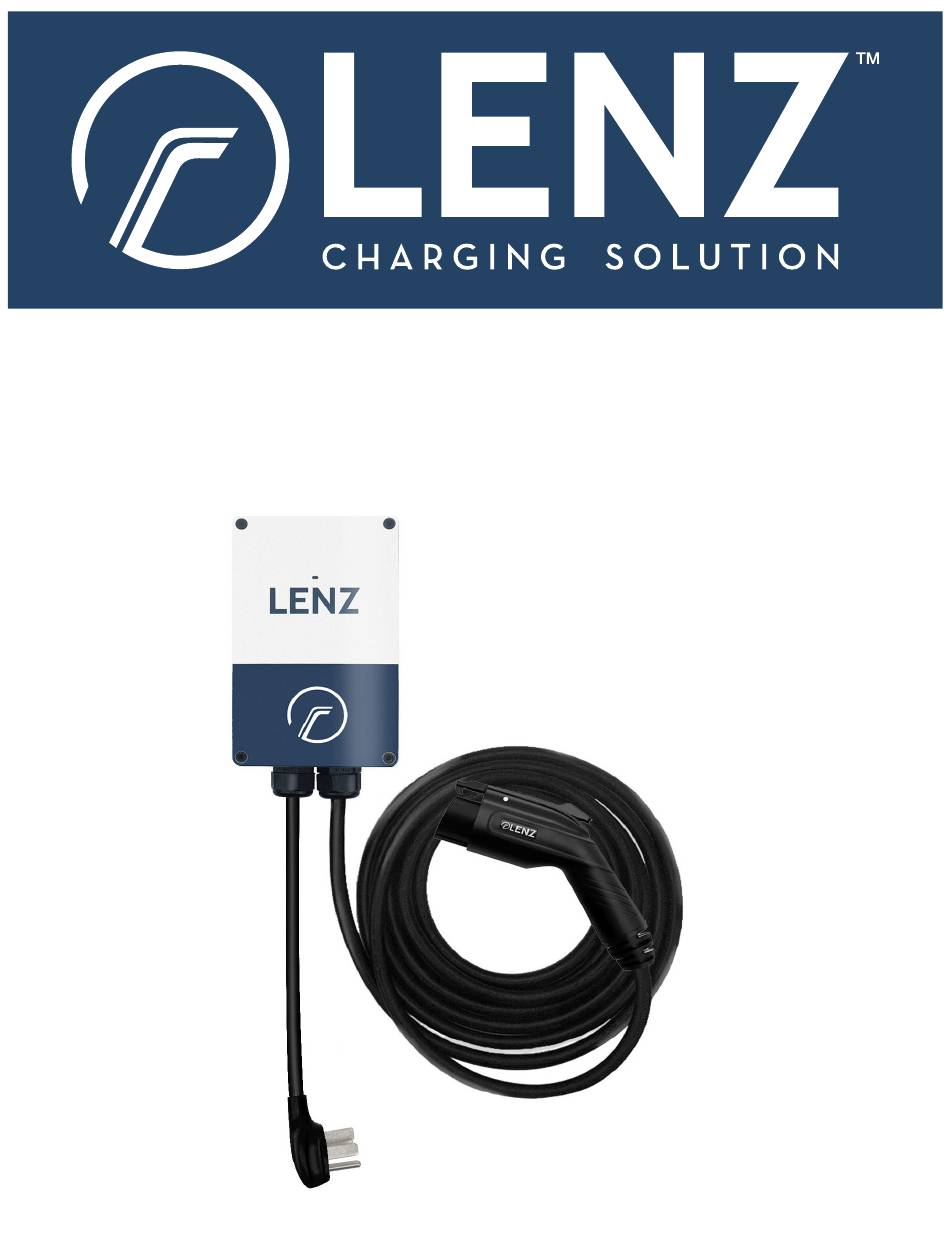

- Page 1 LENZ W1 EVSE User Manual & Installation Guide Model No: EVSE-W1-40-A Version 001-2023...
-
Page 2: Table Of Contents
The LENZ W1 EV Charger enables you to charge your vehicle at up to 10kW, with adjustable internal switches providing current ranging from 16 to a maximum of 40 Amps. -
Page 3: Parts & Tools
CAUTION notes and symbols, to ensure proper installation and safe usage of the EVSE. This manual is intended solely for the LENZ W1 EV Charger (EVSE) and should not be used for any other charging product. Prior to installation or use of this product, read this manual carefully and consult a licensed contractor, licensed electrician, or trained installation expert to ensure compliance with local building codes and safety standards. - Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING – When using electric products, basic precautions should always be followed, including the following: a) Read all the instructions before using this product. b) This device should be supervised when used around children. c) Do not put fingers into the electric vehicle connector.
-
Page 5: Product Specifications
Product Specifications Model Number EVSE-W1-40-A Operating Temperature -22°F to 122°F (-30°C to 50°C) Cable Length 23 feet (7 meters) Gross Weight 20 lbs (9.1 kg) Product Dimensions 17.7 x 20.25 x 9.4 inches (45 x 51.5 x 24 cm) Housing Heavy-duty aluminum, airtight enclosure Enclosure Rating NEMA 4X (weatherproof and corrosion-resistant) -
Page 6: Adjustable Amperages (Dip Switches)
Adjustable Amperages (DIP Switches) CAUTION: Unplug the EVSE before adjusting the maximum current output. Step 1: With the front of the EVSE facing out, lay and secure the EVSE on a flat surface. Step 2: Remove the front cover of the EVSE by unscrewing the screws on the 4 corners. Step 3: Refer to the DIP switch combination settings in the chart below to set the Maximum Current Output to 40A, 32A, 24A, or 16A. -
Page 7: Step-By-Step Installation
Step-by-Step Installation Step 1: Separate the front and back pieces of the mounting bracket. Step 2: Attach the front piece of the mounting bracket to the backside of the charging station using the Socket Cap Screws (Part D). The top of the mounting bracket should be aligned with the top of the charging station. - Page 8 2. Insert and slide the security pin or outdoor security lock through both sets of holes to securely fasten the EVSE in place. Slightly lift or lower bracket as needed to slide the security pin into place. Holster Installation: Your LENZ W1 EVSE comes equipped with a holster. For more details, please visit here:...
-
Page 9: Status, Indicator And Buzzers
Status, Indicator and Buzzers Description Sound LED Indicator Status No Light No Sound Power Off Rapid Flashing Blue No Sound Vehicle Detection Static Green No Sound Ready Slow Flashing Green No Sound Charging in Progress Rapid Flashing Red Buzz sound Error Auto-Restart If a charging session is interrupted, the status indicator lights will flash. -
Page 10: Maintenance
EVSE Maintenance To maintain optimal operating conditions, we recommend periodic inspection and cleaning of the EVSE. When cleaning the EVSE, use a soft cloth dampened with soap and water to gently remove any dirt, debris, or dust. If any of the components, including the power cable or charging connector, are damaged, do not use the charging station and turn off the circuit breaker connected to the EVSE. - Page 11 To redeem this warranty, contact LENZ in writing with a description of the damage. LENZ will confirm the nature and extent of the damage of your EVSE prior to sending you a replacement.
- Page 12 For additional customer support, scan here: CONTACT US 17 Hammond, Unit 401 Irvine, CA 92618 info@lenzcharging.com...
