Summary of Contents for Asus ZenScreen MQ17QH

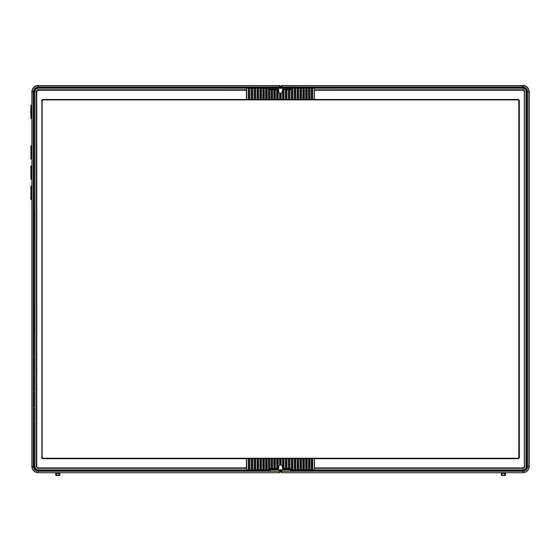

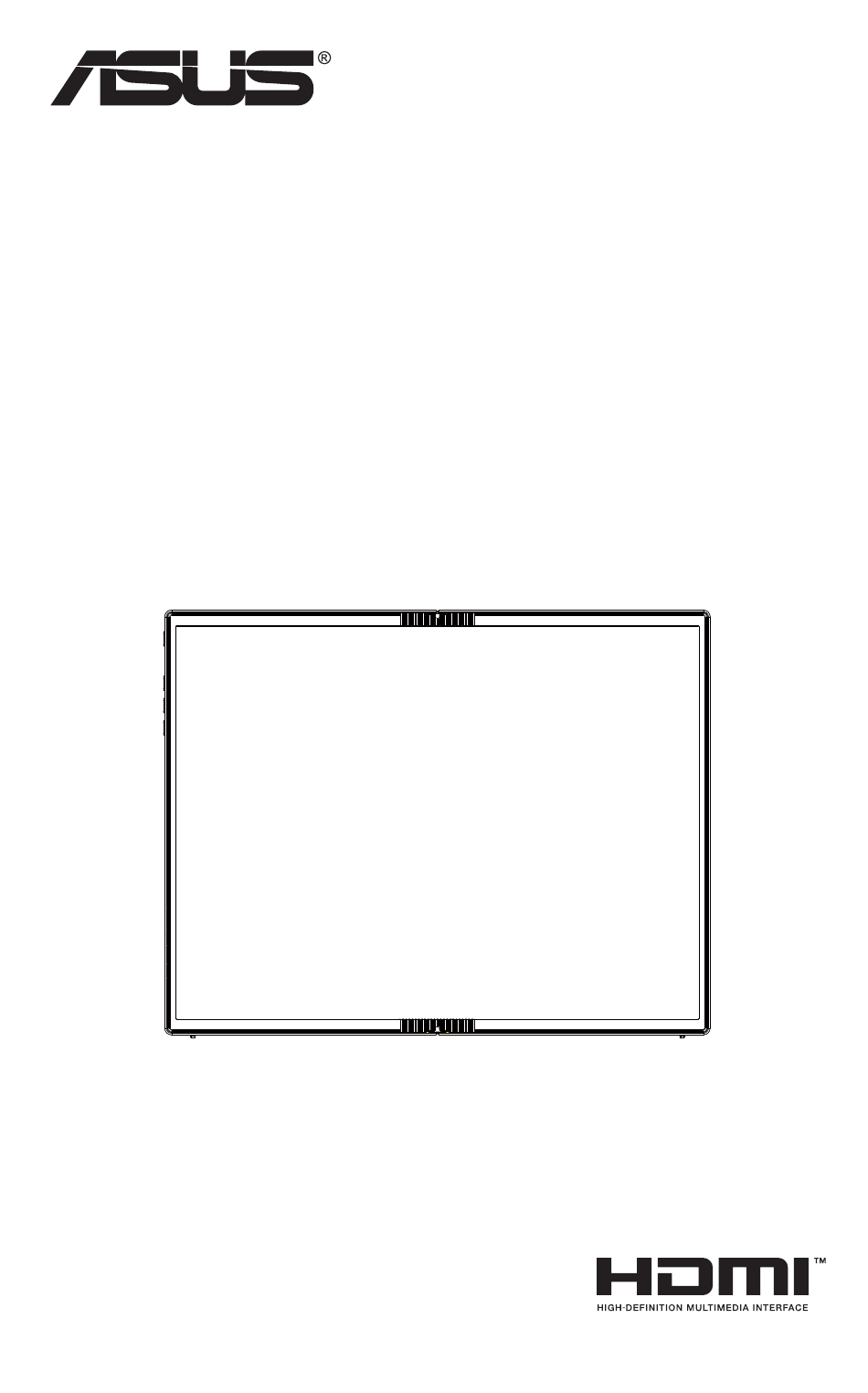

- Page 1 MQ17QH ASUS ZenScreen Fold OLED User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Declaration Of Conformity
NOTE: This monitor is ENERGY STAR certified. This product qualifies for ENERGY STAR in the factory default setting which can be restored by “Factory Reset” function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed the ENERGY STAR specified limits. -
Page 5: Safety Information
Safety information • Before setting up this Portable USB Monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose this Portable USB Monitor to rain or moisture. • Never try to open this Portable USB Monitor cabinet. •... - Page 6 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F, No.15, Address 48720 Kato Rd, Fremont, Address Harkortstr.
-
Page 7: Care & Cleaning
NOTE: Tips and additional information to aid in completing a task. Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com... -
Page 8: Optional Documentation
These documents are not part of the standard package. Takeback services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
Welcome! ® Thank you for purchasing the ASUS Portable USB Monitor! The latest ASUS Portable USB Monitor provides great portability and simplicity to your daily life, enhancing both of your viewing experience and style. Package contents Check your package for the following items:... -
Page 10: Warning
Warning Please do not pressure around the hinge area. Due to the unique hinge material, adding pressure may damage its foldable design and panel display. Hinge Area Hinge Area Please avoid folding MQ17QH as shown below. Please use MQ17QH by the following methods. Please avoid leaving objects on MQ17QH. - Page 11 MQ17QH. • Due to the unique materials and characteristics of foldable OLED displays, it is normal for creases to appear in the folding area. This does not affect the quality or performance of the display. ASUS USB Type-C Monitor MQ17QH...
-
Page 12: Monitor Introduction
Monitor introduction 1.4.1 Front view Power button/Power LED • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. Status Description Ice Blue Amber Standby mode Dark Menu button •... - Page 13 Earphone Mini HDMI port USB Type-C 1 port USB Type-C 2 port ASUS USB Type-C Monitor MQ17QH...
-
Page 14: Quickfit Function
1.4.2 QuickFit Function The QuickFit function contains two patterns: (1) Grid (2) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment grid 1 will be rotated automatically if auto rotation is enabled. -
Page 15: Monitor Standing Positions
Monitor standing positions You can stand up the monitor by several positions with the kickstand. 33° 12° 70° Compatible tripod stand: ASUS ZenScreen Stand MTS02D *Tripod stand not included. MTS02D ASUS USB Type-C Monitor MQ17QH... -
Page 16: Connect The Usb Monitor With System
Connect the USB monitor with system Mini-HDMI Type-C Chapter 2: Setup... - Page 17 For higher brightness, please plug in the monitor adapter, the system will enable brightness adjustment to maximum value again. • If remove the monitor adapter, it may cause the monitor to restart (due to limited power supply capability of the laptop). ASUS USB Type-C Monitor MQ17QH...
-
Page 18: Announcements
Announcements As this product includes magnet in the structure, there could be potential risk to cause the damage of computer hard disc and objects that are sensitive to magnet. Please ensure not to stack the product with the computer when computer is in use (power on or standby mode) otherwise the hard drive could possibly be influenced by the result of permanent data missing or the computer display could be switched off due to computer auto protection... -
Page 19: Osd (On-Screen Display) Menu
Select the to return to previous menu or to accept and return to previous menu. ASUS USB Type-C Monitor MQ17QH... -
Page 20: Osd Function Introduction
2560 x 1920 60 Hz Standard Mode HDMI Standard Mode Splendid sRGB Mode Scenery Mode Blue Light Theater Mode Game Mode ASUS DisplayWidget Center Color Learn More Night View Mode Reading Mode Image Darkroom Mode Signal Navigate Select Exit •... -
Page 21: Blue Light
(2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy Blue Light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue Light to reduce 70% (max.) harmful Blue Light to avoiding CVS (Computer Vision Syndrome). ASUS USB Type-C Monitor MQ17QH... - Page 22 2560 x 1920 60 Hz Standard Mode HDMI Brightness Splendid Contrast Saturation Blue Light Color Temp. ASUS DisplayWidget Center Color Learn More Image Signal Navigate Select Exit • Brightness: The adjusting range is from 0 to 100. When HDR is enabled, the brightness cannot be adjusted.
- Page 23 0 to 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “1:1 Ratio”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. • HDR: High Dynamic Range. Contains two HDR modes, Cinema HDR and Gaming HDR, this item is open to choose when HDR is enabled.
- Page 24 Auto Input Detection function is disabled. MQ17QH Splendid Signal 2560 x 1920 60 Hz Standard Mode HDMI HDMI Splendid Type-C1 Type-C2 Blue Light Auto Detection ASUS DisplayWidget Center Color Learn More Image Signal Navigate Select Exit Chapter 3: General Instruction...
- Page 25 GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, Chrosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. To active GamePlus: ASUS USB Type-C Monitor MQ17QH...
- Page 26 • Select ON to enter the GamePlus main menu. • Press button to select between Chrosshair, Timer and Display Alignment function. • Press to confirm the function you choose. Select to go off, and exit. GamePlus main menu GamePlus-Crosshair Crosshair6 GamePlus-Timer GamePlus- Display Alignment...
- Page 27 Shortcut : User can select from “Blue Light” “Splendid”, “Brightness”, “Contrast”, “Auto Rotation”, “Signal”, “Energy Saving” and set as shortcut key.The default setting is Signal. • Customized Setting : You can do your setting according to your favorite. ASUS USB Type-C Monitor MQ17QH...
-
Page 28: Specifications
1.17 kg Gross Weight (Esti.) 2.77 kg Voltage Rating 5V or 9V , 3.0A or 12V , 2.5A ASUS/AD2166*20 100-240V~, 50/60Hz, 0.8A Adapter , 3.0A(Normal model) , 3.0A or 12V , 2.5A or 15V , 2A or 20V 1.5A (Quick charge model) *Specifications are subject to change without notice. -
Page 29: Troubleshooting (Faq)
*Due to the unique materials and characteristics of foldable OLED displays, it is normal for creases to appear in the folding area. This does not affect the quality or performance of the display. ASUS USB Type-C Monitor MQ17QH 3-11... -
Page 30: Supported Timing List
Supported Timing List PC Supported Primary Timing H Freq V Freq DCLK Resolution Mini HDMI USB-C (KHz) (Hz) (MHz) 640x480-60Hz 31.469 59.94 25.175 800x600-60Hz 37.879 60.317 1024x768-60Hz 48.363 60.004 1280x720-60Hz 44.772 59.855 74.5 1280x720-60Hz 44.444 59.979 1280x720-60Hz 74.25 1280x960-60Hz 1280x1024-60Hz 63.981 1440x900-60Hz 55.469...
