APR PERFORMANCE Porsche Cayman GT4 Canards Installation Manual

Download this manual

WWW.APRPERFORMANCE.COM

Porsche Cayman GT4 Canards Installation Manual

Components List:

Approximate Installation Time:

2 x Carbon Canards

45 minutes

Hardware:

6 x M5 x 20mm Bolts

6 x M5 Washers

6 x M5 Nuts

APR Performance, Inc.

4850 Murrieta St

Chino, CA 91710 U.S.A

Phone: (909) 594-3796 Fax: (909)594-3926

sales@aprperformance.com

Need help?

Do you have a question about the Porsche Cayman GT4 Canards and is the answer not in the manual?

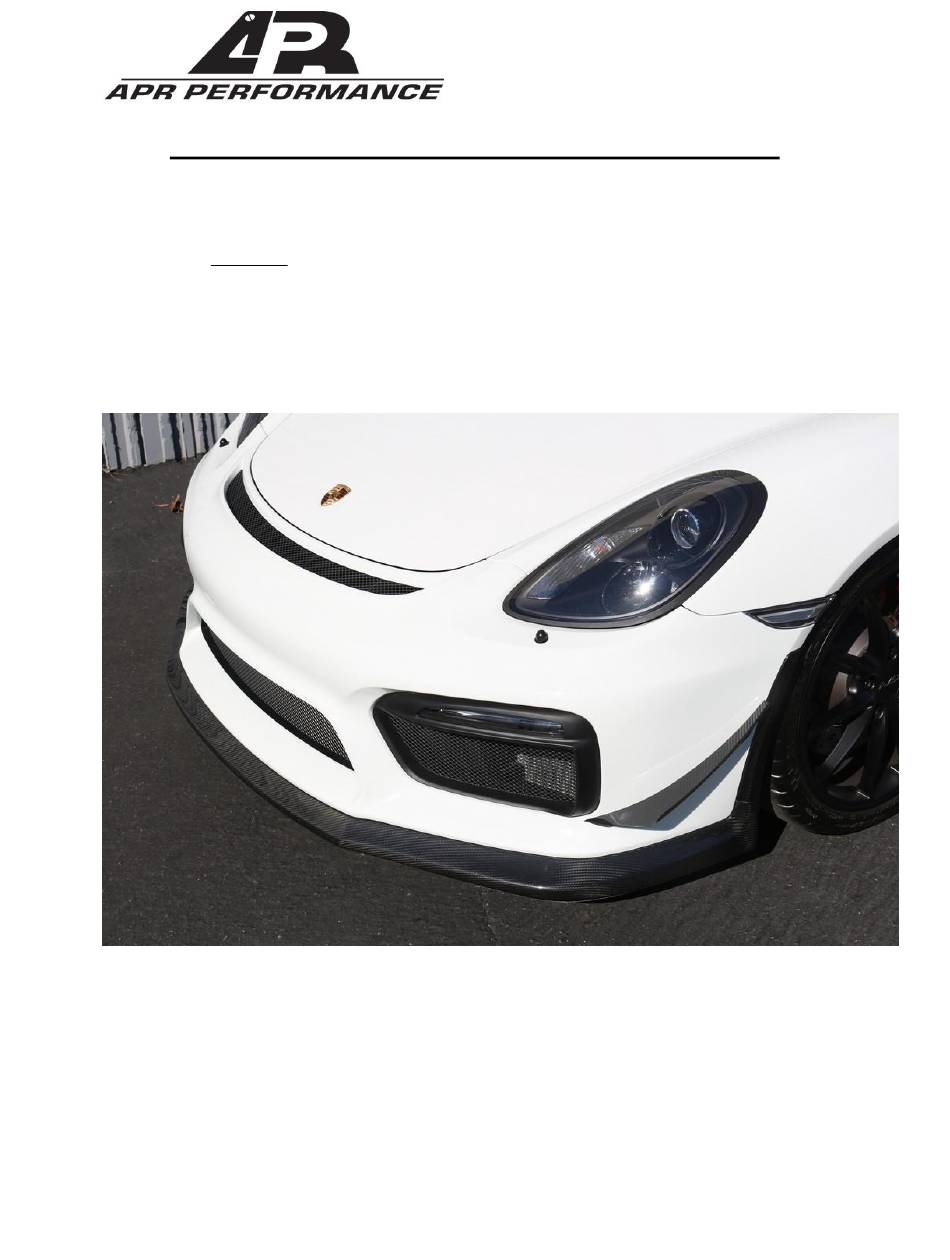

Page 1 WWW.APRPERFORMANCE.COM Porsche Cayman GT4 Canards Installation Manual Components List: Approximate Installation Time: 2 x Carbon Canards 45 minutes Hardware: 6 x M5 x 20mm Bolts 6 x M5 Washers 6 x M5 Nuts APR Performance, Inc. 4850 Murrieta St Chino, CA 91710 U.S.A Phone: (909) 594-3796 Fax: (909)594-3926 sales@aprperformance.com...
Page 2 6.75” and mark a horizontal line. See photo. 2. This marked point is where you line up the trailing edge of the canard to. See photo. APR Performance, Inc. 4850 Murrieta St Chino, CA 91710 U.S.A Phone: (909) 594-3796 Fax: (909)594-3926 sales@aprperformance.com...
Page 3 4. Once the canard is placed at this suggested location, use a marker and mark all three pre-drilled holes on the canard to the bumper skin. APR Performance, Inc. 4850 Murrieta St Chino, CA 91710 U.S.A Phone: (909) 594-3796 Fax: (909)594-3926...
Page 4 2. This step is to gain access to inside bumper. Remove torx screws on the bottom of the wheel well cover. See photo. APR Performance, Inc. 225 Pacific Street Pomona, CA 91768 U.S.A Phone: (909) 594-3796 Fax: (909)594-3926 sales@aprperformance.com...
Page 5 5. Install the canard with supplied hardware. Repeat steps to other side and reinstall all the factory torx screws back. Now the installation is complete. APR Performance, Inc. 225 Pacific Street Pomona, CA 91768 U.S.A Phone: (909) 594-3796 Fax: (909)594-3926 sales@aprperformance.com...
