UNILITE TL-6000 Manual

PRODUCT FEATURES
■ Ultra bright 6000 lumen SMD LEDs
■ Multiple colour temperatures - CCT: 2700k / 3500k / 4500k /
5500k / 6500k
■ Dual Power - rechargeable and mains powered

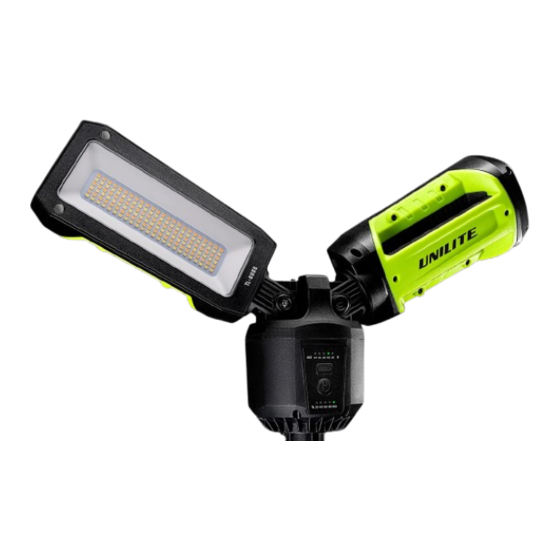

■ 2 Independent heads fold-out 90˚ and pivot 330˚ for light direction
where its required
■ Super tough heavy duty nylon, polycarbonate & aluminium
construction
■ Quick release set-up & fold for rapid deployment/pack up
■ Extends to 2.24m & folds down to 1.2m
■ Smart Memory switch - remembers last mode used
■ IP65 dust & water resistant
■ IK07 shock proof and 2m drop resistant
■ High capacity internal 14.8V 5200mAh Li-ion battery
■ 5 x Battery level and charging indicators
■ Multi-national mains 20V 1.1A charger/power lead included
■ Quick 4.5 hour charge time
BATTERY - 14.8v 5200mAh Li-ion Rechargeable Battery
WEIGHT - 4400g
DIMENSIONS - Folded: W 142 x H 1200 x D 142mm
RECHARGING
Mains powered 20V 1.1A charger/power lead included, with UK/EU/AU/
US plug adaptors included.
Only use the charger provided otherwise damage may occur and
warranty will be void.
1. Lift the charging port cover on the back of the unit.
2. Plug the DC end of the cable into the circular charge port.
3. Plug the AC/DC plug into a mains plug socket.
4. The 5 x battery indicators on the front of the unit will illuminate and
flash to show charging status. Once fully charged, all the indicator
LEDs will illuminate continually.
5. If the battery indicators do not illuminate, remove the charger and
try again.
6. Charge Time: 3.5 hours
The intelligent battery and charging lead means the light can still be
used during charging. Even with a fully charged battery, the lead can
be used as a constant power supply.
Please note: brightness decreases when plugged in for safety & over
heating reasons.
*Warranty void if not used with the charger provided*
www.unilite.co.uk
English
ANSI FL1 Standard
HIGH
MEDIUM
LOW
ECO
OPERATING THE LAMP
Press the On/Off circle switch on the front of the unit, keep pressing to
get the desired light output from the 4 dim setting options.
Press the rectangle switch to change the colour temperature, keep
pressing to get the desired light colour as shown by the row of 5 green
lights above.
Smart Memory - If left ON in any MODE for 5+ seconds, next press will
turn OFF. Next press ON will return to the last MODE used.
NOTE: this lamp has an automatic saftey shut-off. When the light
heads are shut it will automatically switch the lamp off. This also stops
any accidental activation when in transit/storage.
ADVICE & IMPORTANT INFORMATION!
■ LEDs will become warm/hot when switched on; DO NOT touch and NEVER
place face down on any surface – risk of fire! Even once the lamp has been
switched off, DO NOT place face down as the LED and Lens can stay hot/warm
for a while.
■ Do not look directly at LEDs.
■ Do not operate in direct sunlight or extreme temperature conditions (below
-20˚C or above 40˚C).
■ Do not use the device if there is any visible damage.
ƒ Do not use the device in the immediate vicinity of flammable materials or gases.
■ Take care when charging, always check for any damage first. Only use the
charger/power lead provided. DO NOT exceed the stated Max charging input
or damage may occur to the battery. Never remove the charger from the mains
power socket with wet hands, and do not attempt to remove by pulling the
cord, always grasp the plug unit.
■ The rechargeable battery will reach full performance after a few complete
charging and discharging cycles.
■ To keep the rechargeable battery in optimum condition, it should be recharged
every 3-6 months, especially if it is not being used for a long period of time.
Always fully charge batteries before storage.
■ Always protect lithium batteries from heat, intense sunlight, fire, water and
moisture – danger of explosion!
■ If a battery is damaged, fluids can leak out. AVOID contact as this can lead to
skin irritation and/or burns. If skin contact occurs, rinse thoroughly with water.
If irritation persists, seek medical advice. Seek immediate medical assistance if
lithium battery fluid comes into contact with the eyes.
■ Children under 12 years of age should only use the product under adult
supervision.
■ Do not open, disassemble or attempt to modify the product; this will void the
warranty and can be dangerous. Improper use or modification is not covered
under the warranty.
■ Take care not to let the lens come into contact with hard/sharp objects,
damage/scratches to the lenses will affect light output.
■ This product is water resistant to IPX5 - DO NOT SUBMERGE. If the product has
been subjected to excessive water the warranty may be void.
ƒ This product has a 1 year standard warranty (or extended to 2 years once
registered online at WWW.UNILITE.CO.UK/WARRANTY) against manufacturing
faults and defects. It does not cover normal wear and tear, modifications,
accidental damage or poor maintenance. Unilite standard warranty does not
cover disposable batteries that have leaked or the use of incorrect chargers
and cables that can damage rechargeable batteries.
■ Do not dispose of this device in normal household waste. It must be disposed
of via an authorised electrical appliance disposal centre or at your local waste
disposal unit.
■ Please re-use or recycle packaging responsibly.
■ Keep these instructions for future reference or for subsequent possessors.
CCT Switch
On/Off Switch
TL-6000
6000
64 M 2 H
Lumen
2500
41 M 4 H
Lumen
1400
27 M 8 H
Lumen
700
19 M 16 H
Lumen
Battery/Charge
Indicators
