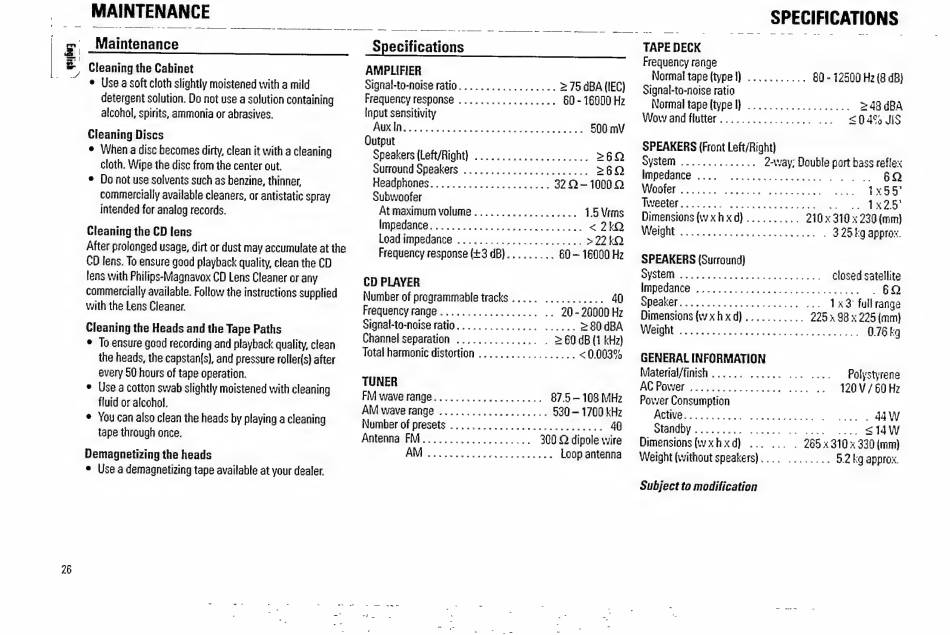

MAINTENANCE
Maintenance
Cleaning the Cabinet
e Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution containing
alcohol, spirits, ammonia or abrasives.
Cleaning Discs
e When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center out.
e Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic spray
intended for analog records.
Cleaning the CD lens
After prolonged usage, dirt or dust may accumulate at the
CD lens. To ensure good playback quality, clean the CD
lens with Philips-Magnavox CD Lens Cleaner or any
commercially available. Follow the instructions supplied
with the Lens Cleaner.
Cleaning the Heads and the Tape Paths
e To ensure good recording and playback quality, clean
the heads, the capstan(s), and pressure roller(s) after
every 50 hours of tape operation.
e Use a cotton swab slightly moistened with cleaning
fluid or alcohol.
e You can also clean the heads by playing a cleaning
tape through once.
Demagnetizing the heads
e Use a demagnetizing tape available at your dealer.
¿ _ E - _ _ 7 —— — O TI P —=— s a —— ne — n
Specifications
AMPLIFIER
Signal-to-noise ratio.................. > 75 dBA (IEC)
Frequency response .................. 60 - 16000 Hz
Input sensitivity
ANR Kz patan EM 500 mV
Output
Speakers (Left/Right) ..................... 260
Surround Speakers ....................... 262
Headphones...................... 32 Q- 1000 2
Subwoofer
At maximum volume ................... 1.5 Vrms
Impedance............................ < 2kQ
Load impedance ....................... > 22 kQ
Frequency response (+3 dB)......... 60 — 16000 Hz
CD PLAYER
Number of programmable tracks ..... ........... 40
Frequency range .................. .. 20 - 20000 Hz
Signal-to-noise ratio. ...,....,..... ...... 2 80 dBA
Channel separation ..,..........,. . > 60 dB (1 kHz)
Total harmonic distortion .................. < 0.003%
TUNER
FM waverange.................... 87.5 — 108 MHz
AM wave range ..................., 530 — 1700 kHz
Number of presets ............................ 40
Antenna FM...............,.... 300 Q dipole wire
|) ss onde Loop antenna
SPECIFICATIONS
TAPE DECK
Frequency range
Normal tape (type |)
Signal-to-noise ratio
80 - 12500 Hz (8 dB)
PO A um wA et e et `
Normal tape (type I} ................... > 48 dBA
Wow and flutter.......... S A ON E < 0 455 JIS
SPEAKERS (Front Left/Right)
System .............. 2-vvay, Double port bass reflex
Impedance .... _................ a Le 6Q
1/011) sos moe ee 1x55'
Tweeter........ ................ e, eq i
Dimensions (wxhxd).......... 210 x 310 x 230 (mm)
Wen init sacs . 3 25 kg approx.
SPEAKERS (Surround)
SN closed satellite
Impedance .............................. . 60
Spëaker...................... ... 1x3 full range
Dimensions (wxhxd)........... 225 x 98 x 225 (mm)
310 11 E E E iii 0.76 kg
GENERAL INFORMATION
Material/finish . ..... ...... ... .... Polystyrene
AG ROOT, plas nenen A 120 V / 60 Hz
Power Consumption
Active. .......... ......... I,
DIANOOY aq Puna ee Gjë < 14 W
Dimensions (wxhxd) ... ... . 265x310 x 330 (mm)
Weight (without speakers)... ..... ... 5.2 kq approx.
Subject to modification
