Summary of Contents for DORIC DE20

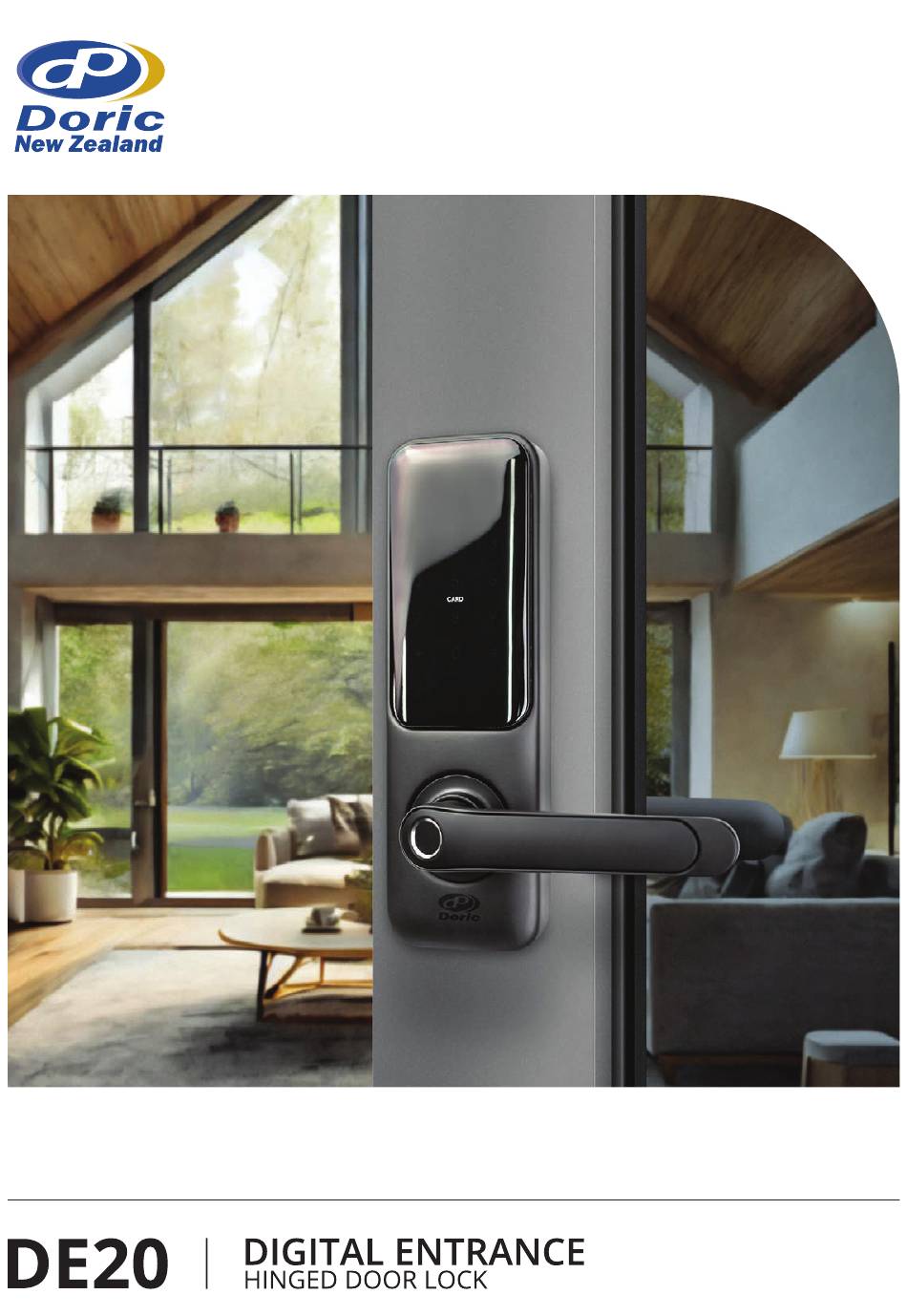

  • Page 1 User Manual...
  • Page 2: Special Attention

    DE20 l DIGITAL ENTRANCE HINGED DOOR LOCK Special 1. Mechanical keys 2. Please replace for 3. Reading this please keep the battery when manual carefully Attention: outdoor, just in low wattage alarm. before installation, case keys lock in and keep it for doors.
  • Page 3: Specifications

    1.3. Specifications SUITABLE FOR Aluminium door DE20 DOORS APPLICABLE MODELS Wooden door Handle: Aluminium alloy MATERIALS WORKING VOLTAGE 6V/4x AA Batteries Panel: Stainless steel DOOR THICKNESS LOCK WEIGHT 2 KG 35-60mm TO FIT Bluetooth Fingerprint (option) Fingerprint: 200 Password UNLOCKING WAY...
  • Page 4: Installation

    2. Installation: 2.1. Turn the Handle Notice: Adjust the handle according to the direction you open the door. INNOVATORS OF HARDWARE FOR WINDOWS AND DOORS...
  • Page 5: Installation Diagram

    2.2. Installation Diagram Step 1. Install Mortise Step 2. Install Sliding Screw Casing Step 3. Install back gasket www.doric.co.nz...
  • Page 6: Step 6. Installation Complete

    Step 4. Install Back Panel and link wire Step 5. Install battery and back cover Step 6. Installation Complete INNOVATORS OF HARDWARE FOR WINDOWS AND DOORS...
  • Page 7: Operation

    TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone. www.doric.co.nz...
  • Page 8: User Management

    3.4. User Management 3.4.1. Bluetooth Management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click “ “to unlock. (The phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock.
  • Page 9 “ . All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock record. 3.4.8. Unlock Records Click “ “ you can query your unlock record as shown in figure. www.doric.co.nz...
  • Page 10 3.5. Gateway Management (Optional) The TTlock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.
  • Page 11: Warranty

    Labour charges, transportation and other costs associated with the replacement or re-installation of the parts or product are excluded from this warranty and will not be paid by Doric New Zealand. www.doric.co.nz...
  • Page 12 Wetherill Park Albany, North Shore, SetiaWalk, Persiaran Wawasan, Sydney, NSW 2164 Auckland 0632 Pusat Bandar Puchong, Australia New Zealand 47160 Puchong, Selangor, Malaysia Ph: +61 2 9609 2555 Ph: +64 9 415 5535 Ph: +603 8602 2100 www.doric.com.au www.doric.co.nz www.doric.com.my...
