Locking System
When mounted on a vertical surface, a locking system is used to
secure the scanner when it is in the stand. When mounted on a
horizontal surface, the locking mechanism should be set to
unlocked (pushed up). When mounted on a vertical surface, the
locking mechanism should be set to locked (pushed down).

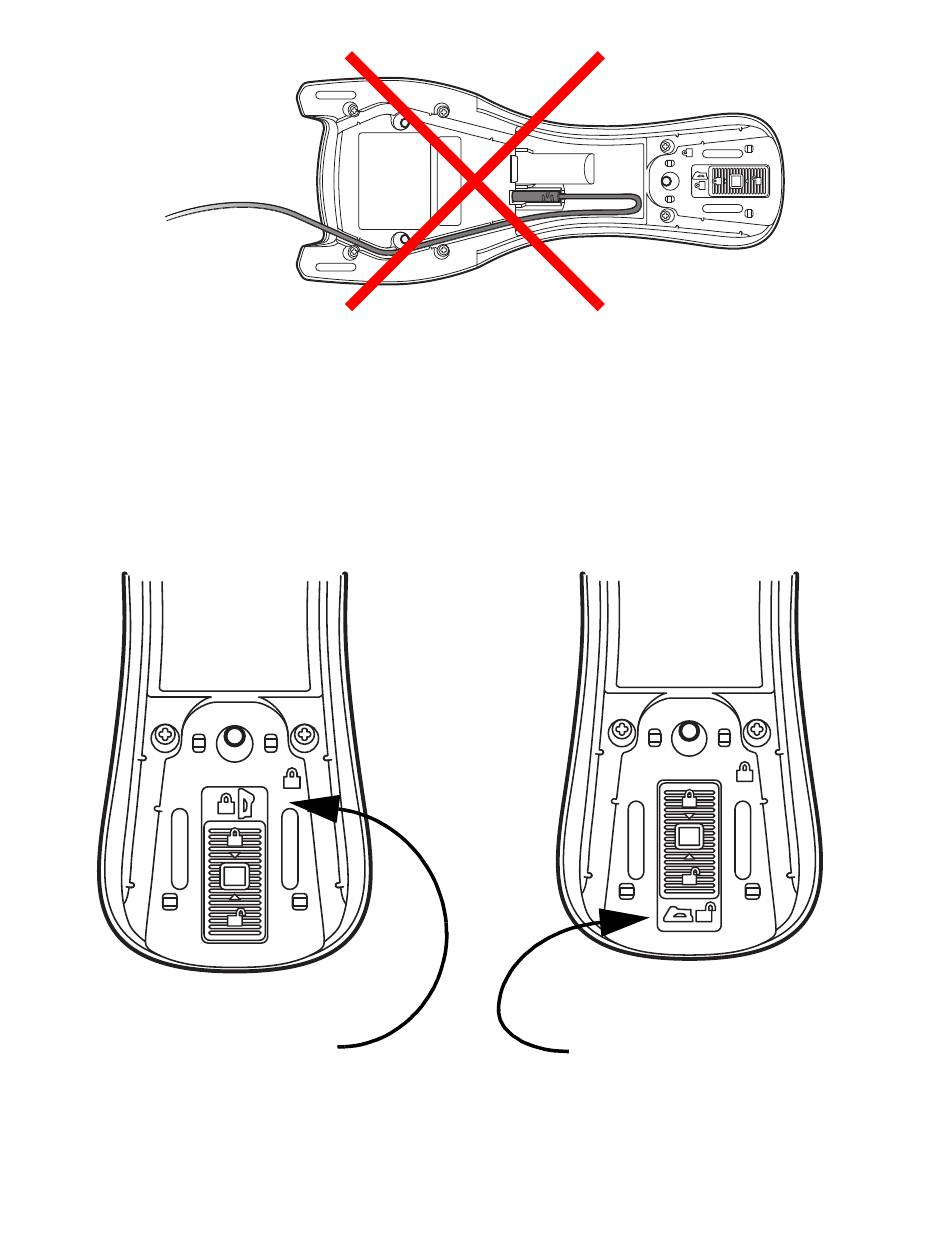

Locked
position for
vertical mount
Unlocked
position for
horizontal
mount
4
