Summary of Contents for Kromek D3M

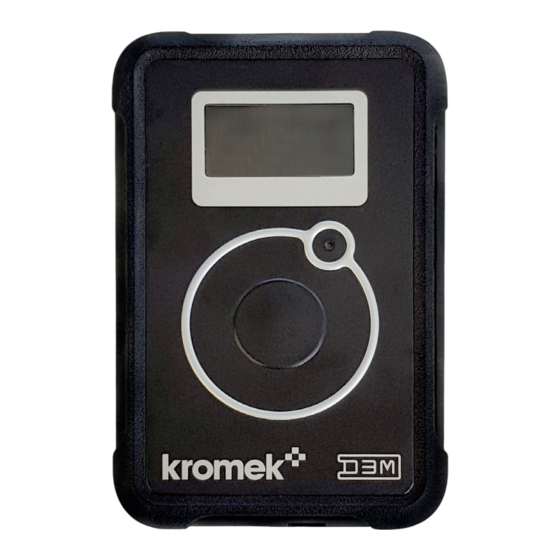

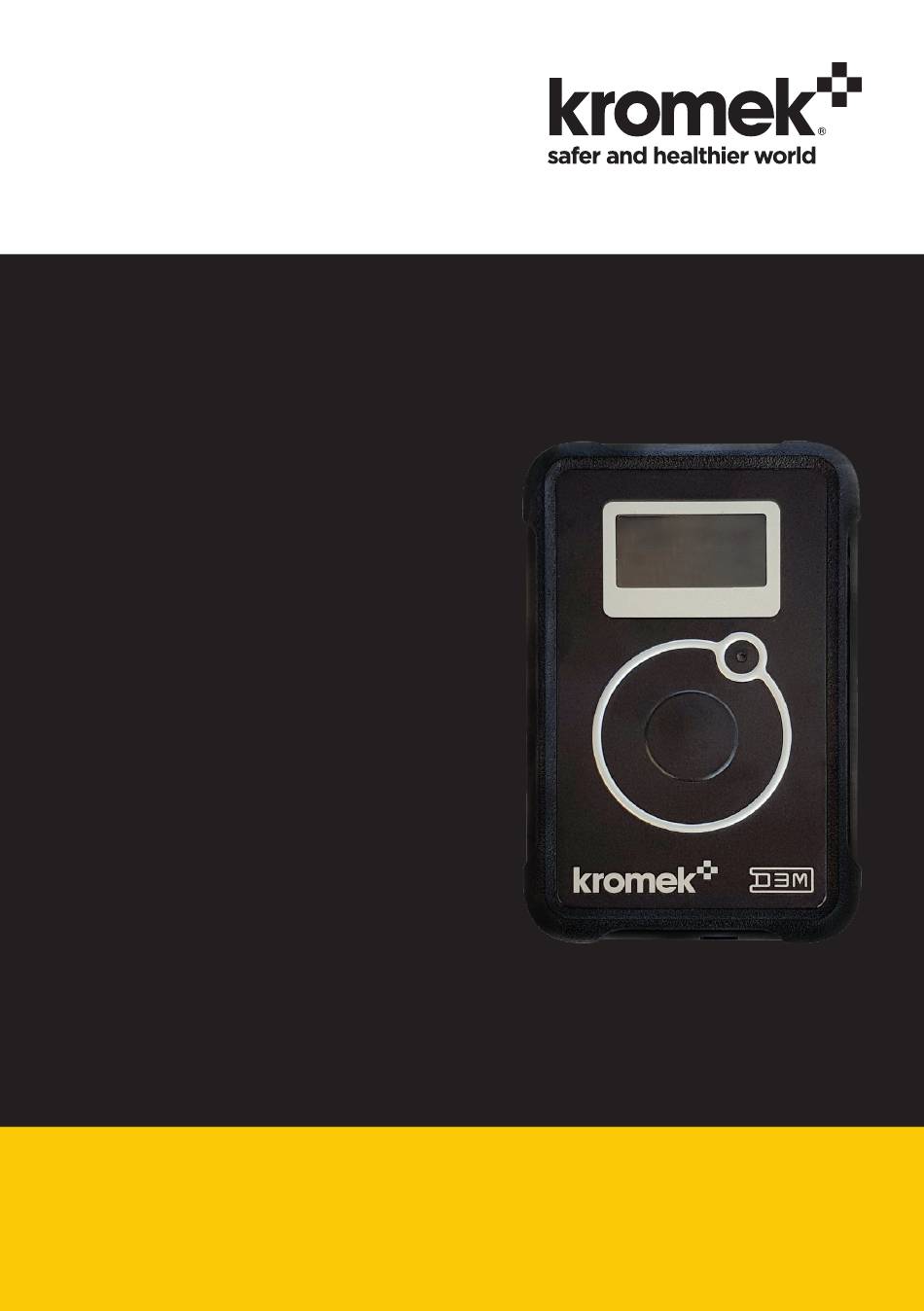

- Page 1 USER MANUAL www.kromek.com...
- Page 2 MAL-OPS-0969 Version 2.2...
-
Page 3: Table Of Contents
Contents Introduction ....................3 D3M Functionality ..................4 2.1 Powering On ................... 4 2.2 D3M Status Screen ................. 4 2.3 Screens ....................5 2.4 Pinning the Screen ................. 5 2.5 Waking the Screen .................. 6 2.6 Indicator Light ..................6 2.7 Charging the D3M .................. -
Page 4: Introduction
(1 Sv/h) combined with a very low false alarm rate. The D3M can be used in isolation as a PRD or with the SIGMA LE app to create a networked solution that allows multiple detectors to be tracked and monitored. -
Page 5: D3M Functionality
2. D3M Functionality 2.1 Powering On To turn the D3M on, the central button should be pressed and held down for five seconds. D3M Status Screen The following table shows the meaning of the symbols that can appear on the status screen on the D3M. -
Page 6: Screens
2.3 Screens The D3M displays the dose rate and accumulated dose on two separate screens, as shown below. Pressing the central button will toggle between the two screens instantly. 2.4 Pinning the Screen If the user wishes to view one screen continuously, then it is possible to pin the screen to avoid toggling between screens. -
Page 7: Waking The Screen
To illuminate the screen once more, the central button can be pressed. 2.6 Indicator Light At the top of the device, an LED is used to convey the status of the D3M using the LED colour and light operation. LED Light Colours... -
Page 8: Alarms
Kromek’s Ciris software. Please not, these values are set at the discretion of the Ciris user. When this upper limit is exceeded, the D3M will alert the user. The user is also able to edit the displayed text. Please refer to the separate CIRIS manual for instruction on how to change alarm thresholds and customise this using CIRIS. -
Page 9: Detector Reference Points
4. Detector Reference Points The CsI Gamma Detector position is as follows: 13.1 mm 22.25 mm The neutron detector position is as follows: 24.3 mm 7 mm MAL-OPS-0969 Version 2.2... -
Page 10: Data Storage
5. Data Storage 5.1 SD Card The D3M is fitted with an SD card for storage of spectra. To save data to the SD card, the central button should be pressed and held for three seconds. The screen will begin to fill with white bars when the button is pressed and should be released when the third bar fills the screen. -
Page 11: Connecting To A Smartphone
6. Connecting to a Smartphone The D3M can be used in isolation as a PRD or can be used with a smartphone as a part of the SIGMA network, using the SIGMA LE app. The detector is connected to a smartphone using either Bluetooth connection or via USB cable. - Page 12 Readings. Ensure that BLE is turned on my checking the box. Return to the SIGMA LE application home then go to Menu > Sigma Service > Sensors > Kromek D3M. Ensure that the tab is green to ensure that the connection is successful. MAL-OPS-0969...
- Page 13 SIGMA home screen Return to the SIGMA LE application home then go to Menu > Sigma Service > Sensors > Kromek D3M. The bar should be fully green. If the indicator is red, press the refresh button at the top of the page to reconnect the two devices.
-
Page 14: Pairing Via Usb
The SIGMA LE app can be used when the D3M device is connected to a smartphone for isotope ID. Using this app also turns the D3M into a part of the larger SIGMA system, thereby ensuring that the device contributes to a networked system of detectors used for radiation monitoring of a given area. -
Page 15: Detectable Isotopes
7. Detectable Isotopes This table indicates the isotopes that the D3M can detect when connected to the SIGMA LE app. Notes: Americium-241* Iodine-123 Radium-226* Antimony-124 Indium-111 Scandium-46 *Mandatory radionuclides as Barium-133* Iodine-131* Selenium-75 defined in ANSI Indium-192 in various Bromine-82 Sodium-22 N42.34... -
Page 16: Detector Specification
Charging Charging via USB or inductive charging External LEDs Visual detector status Device status indicator External LED Geospatial positioning GPS on Android Smartphone, GPS-denied tracking on D3M Alarm sounder Yes, ANSI N42.32 Alarm vibration Yes, ANSI N42.32 MAL-OPS-0969 Version 2.2... -
Page 17: Fault Codes
9. Fault Codes Error Code Description Gamma Faults Gamma Buffer Locked Gamma No Power Gamma Temperature Read Error Gamma No Counts Gamma Spectrum Error Gamma ADC Timeout Neutron Faults Neutron Buffer Locked Neutron No Power Neutron Temperature Read Error Neutron No Counts Neutron Spectrum Error Neutron ADC Timeout USB Faults... - Page 18 This File is Not Compatible with the Bootloader Memory Erase Function Failed Program Memory Function Failed Programming Address is Out of Range Calculated CRC Does Not Match File CRC Signature Does Not Match Kromek Signature Invalid KromekSerialOTACommandReport.unlock key Battery Charge Too Low Unknown...
- Page 20 | info@kromek.com | +44 (0) 1740 626060 Kromek Group plc, NETPark, County Durham, TS21 3FD, United Kingdom...
