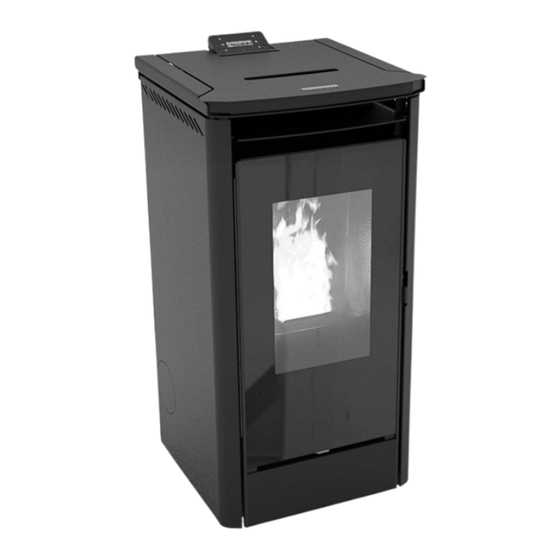

Installation, use and maintenance guide
URBAN EVO
ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE.
FRA - MANUEL D'INSTALLATION, D'UTILISATION ET ENTRETIEN.
ENG - INSTALLATION, USE AND MAINTENANCE GUIDE.
DEU - INSTALLATIONS, BETRIEBS UND WARTUNGSANLEITUNG.
ESP - MANUAL DE INSTALACIÓN USO Y MANTENIMIENTO.
NL - HANDLEIDING VOOR INSTALLATIE, GEBRUIK EN ONDERHOUD.
ITA - Informazioni importanti per la sicurezza ed il corretto funzionamento.
FRA - A lire impérativement ! Informations importantes pour la sécurité et le bon fonctionnement.
ENG - Must read! Important information for safety and correct operation.
DEU - Unbedingt lesen! Wichtige informationen zur sicherheit und zum sicheren betrieb.
ESP - ¡Leer! Informaciones importantes para la seguridad y el correcto funcionamiento.
NL - Belangrijke informatie voor de veiligheid en correcte werking.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THERMOROSSI URBAN EVO
Summary of Contents for THERMOROSSI URBAN EVO

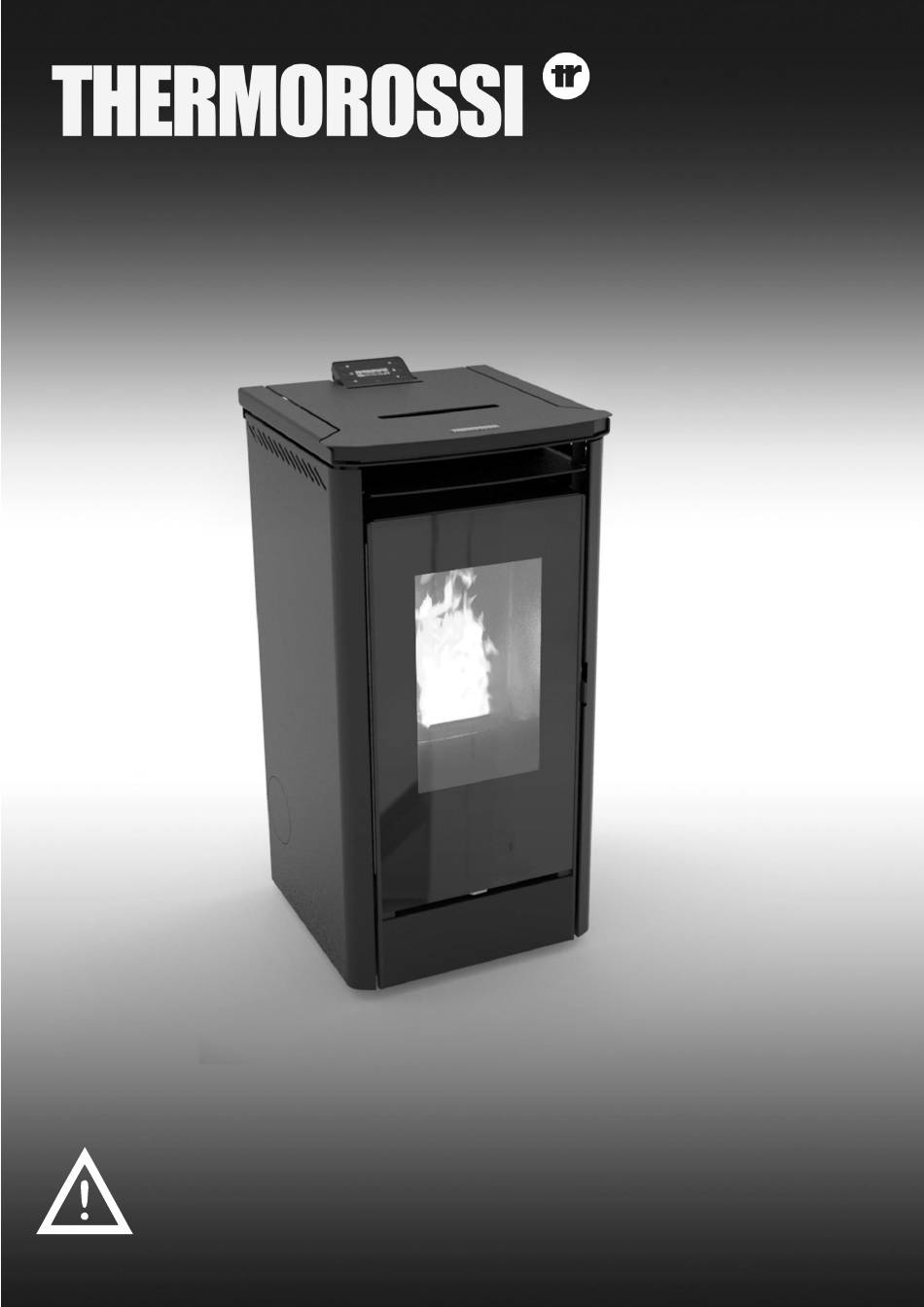

- Page 1 Installation, use and maintenance guide URBAN EVO ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE. FRA - MANUEL D’INSTALLATION, D’UTILISATION ET ENTRETIEN. ENG - INSTALLATION, USE AND MAINTENANCE GUIDE. DEU - INSTALLATIONS, BETRIEBS UND WARTUNGSANLEITUNG. ESP - MANUAL DE INSTALACIÓN USO Y MANTENIMIENTO.
- Page 2 Installation, use and maintenance guide URBAN EVO Page 1...
-
Page 3: Table Of Contents
Installation, use and maintenance guide URBAN EVO INDEX 1 – INTRODUCTION..........................4 2 – TECHNICAL CHARACTERISTICS...................... 5 3 – GENERAL DESCRIPTION ........................6 4 – INSTALLATION ........................... 7 5 – DESCRIPTION OF THE CONTROLS ....................8 6 – USE OF THE APPLIANCE .........................12 7 –... - Page 4 DECLARATION OF PERFORMANCE ACCORDING TO REGULATION (EU) 305/2011 Codice di identificazione unico del prodotto-tipo: URBAN EVO Modello, lotto, serie ai sensi dell'articolo 11, paragrafo 4: URBAN EVO Unique identification code of the product type: Model, batch or serial number required under Article 11 (4):...
-
Page 5: Introduction
Thermorossi reserves the right to apply changes to the content of this manual anytime and without notice. Thermorossi S.p.A. retains copyright on this manual. These instructions may not be reproduced or communicated to third parties or used in any other way without the necessary authorisation. -
Page 6: Technical Characteristics
Installation, use and maintenance guide URBAN EVO itself can reach extremely high temperatures: do not touch them! Do not expose your body to hot air for long, do not overheat the room in which the appliance is installed, as these actions could cause health problems. Do not expose plants or animals directly to the hot air flow as this could have noxious effects on them. -
Page 7: General Description
Installation, use and maintenance guide URBAN EVO 95.1 82.7 * All the data are based on the stove fuelled with standards UNI EN 14961-2 A1 and A2 type-approved pellets. ** Important: It is important to take into consideration the fact that the heatable volume is greatly influenced by the insulation... -
Page 8: Installation
Installation, use and maintenance guide URBAN EVO 4 – INSTALLATION 4.1 APPLIANCE LOCATION Follow the general guidelines set out in paragraph 1.1 to the letter. Keep in mind that the flooring of the room in which the appliance is to be installed must withstand the total weight of the appliance combined with the pellets contained in the tank. -
Page 9: Description Of The Controls
Installation, use and maintenance guide URBAN EVO 5 – DESCRIPTION OF THE CONTROLS The appliance, when operating, could be hot to the touch, particularly the door of the combustion chamber: take care when handling the appliance components. Your appliance has obtained the CE marking and has been made to run for at least one hour to check that it functions correctly. - Page 10 Installation, use and maintenance guide URBAN EVO Displays the preset combustion power, and consequently the pellet consumption, by the number of bars that are lit up around the flame symbol, using this logic: One bar lit: Minimum combustion power (and therefore with minimum pellet consumption).
- Page 11 Installation, use and maintenance guide URBAN EVO 3) Now press the Scroll Buttons to change the day of the week; each number corresponds to one day of the week (e.g. 1 corresponds to Monday, 2 corresponds to Tuesday, etc...). To confirm the selection of the day of the week, press the Flame Button.
- Page 12 Installation, use and maintenance guide URBAN EVO The following screen will appear: At this point if no further programming is required for that day go to point 6-A. If, on the other hand, you wish to program a third ON/OFF cycle for that day go to point 6-B.
-
Page 13: Use Of The Appliance
Installation, use and maintenance guide URBAN EVO Resetting the programmed cycles: Moreover, it is possible to reset, in other words delete, all the programmed cycles entered by the user by holding down the Clock Button in the initial screen for approx. five seconds. - Page 14 Installation, use and maintenance guide URBAN EVO Then carry out the following operations: Power up the appliance and turn the I/0 switch to position “I”. Ensure that the appliance is connected to the smoke exhaust: we recommend against using aluminium tubes and we recommend always using sealing gaskets.
-
Page 15: Chronothermostat (Optional)
Chrono function on the panel. In the event of connections to the chronothermostat Thermorossi shall not be held responsible for the appliance not starting up, smoke leaks, breakage of the lighting component. -
Page 16: Cleaning And Maintenance
Installation, use and maintenance guide URBAN EVO 8 – CLEANING AND MAINTENANCE 8.1 FOREWORD Before beginning any maintenance operation ensure that the appliance is switched OFF and disconnected from the electric power socket. Your appliance, being a pellet-fuelled appliance, requires regular general controls and cleaning. - Page 17 Installation, use and maintenance guide URBAN EVO FIGURE - 1 FIGURE - 2 FIGURE - 3 FIGURE - 4 FIGURE - 5 FIGURE - 6 FIGURE - 7 Page 16...
- Page 18 Installation, use and maintenance guide URBAN EVO FIGURE - 8 FIGURE - 9 FIGURE - 10 8.3 REPLACING THE BATTERY OF THE CONTROL PANEL Inside the control panel there is a buffer battery type CR1632. When the time and programming are not being memorised, then the battery needs replacing.
-
Page 19: Smoke Discharge Tube And Ventilation Of The Rooms
Installation, use and maintenance guide URBAN EVO 9 – SMOKE DISCHARGE TUBE AND VENTILATION OF THE ROOMS 9.1 FOREWORD Due to the frequent accidents caused by poor functioning of flue outlets installed in private dwellings, we have prepared the following paragraph to assist the installer in his inspection of the parts concerned with eliminating the gases produced by combustion. - Page 20 Installation, use and maintenance guide URBAN EVO 9.3.1 FLUE OUTLET / FLUE SYSTEM COMPONENTS Every chimney must have minimum number of components as laid down by standard UNI EN 10683 which are also indicated in the figure below. Components and accessories of a...
- Page 21 Installation, use and maintenance guide URBAN EVO COMIGNOLO E CANNA FUMARIA SECONDO NORMA UNI 10683 LASTRA DI COPERTURA INTERNO ESTERNO LAMIERA DI ACCIAIO A TENUTA STAGNA ISPEZIONE ISPEZIONE It must be possible to inspect and remove all the smoke tube sections for clean-out purposes.
-
Page 22: Alarms
ATTENTION: the appearance of one of the alarms described below does not necessarily imply a defect in the product, but simply Thermorossi S.p.A.’s intention to inform the user of the need for corrective actions in order to guarantee maximum safety, greater reliability and high performance of the appliance. -
Page 23: Electronic Board
Installation, use and maintenance guide URBAN EVO 11 – ELECTRONIC BOARD LEGENDA TERMOSTATO A RIARMO RESET THERMOSTAT PRESSOSTATO PRESSURE SWITCH ASPIRATORE FUMI SMOKE SUCTION UNIT VENTILATORE AMBIENTE ROOM FAN MOTORE COCLEA SCREW FEEDER MOTOR RESISTENZA ACCENSIONE LIGHTING HEATER TERMOSTATO 95°... -
Page 24: Information For The Skilled Technician
Installation, use and maintenance guide URBAN EVO 12 – INFORMATION FOR THE SKILLED TECHNICIAN 12.1 MAIN COMPONENTS AND THEIR POSITION SMOKE PRESSURE SWITCH This is a safety switch that stops the screw feeder motor whenever necessary. The main cause for the pressure switch tripping is a blocked flue outlet or smoke exhaust pipe. - Page 25 Installation, use and maintenance guide URBAN EVO 12.3 TROUBLESHOOTING CAUSE-SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION CLEAN THE BRAZIER AS INDICATED IN THIS USE AND PELLET TANK IS EMPTY MAINTENANCE GUIDE, THEN FILL UP THE TANK WITH THE “NO PELLET – CLEAN BURNER” ALARM IS SHOWN ON THE DISPLAY...
- Page 26 Installation, use and maintenance guide URBAN EVO PROBLEM POSSIBLE CAUSE SOLUTION CLEAN THE BRAZIER AS INDICATED IN THIS USE AND DELAYED START BECAUSE THE SCREW FEEDER IS EMPTY THE APPLIANCE ENTERS MAINTENANCE GUIDE, THEN FILL UP THE TANK WITH THE “FAILED START – CLEAN BURNER” ALARM IS SHOWN ON THE DISPLAY...
- Page 27 Installation, use and maintenance guide URBAN EVO Page 26...
- Page 28 Installation, use and maintenance guide URBAN EVO Fire Lovers Via Grumolo, 4 (Z.I.) 36011 Arsiero (VI) - ITALY Fax 0445.741657 - www.thermorossi.com - info@thermorossi.it Page 27...
