7.2.2 DISASSEMBLY

- Removing the Case(not shown)
1. Insert and turn a screwdriver to remove the case.
- Removing the Cassette Mechanism Module
(not shown)
1. Removing the four screws.
2. Disconnect the connector , and then removing the
Cassette Mechanism Module.

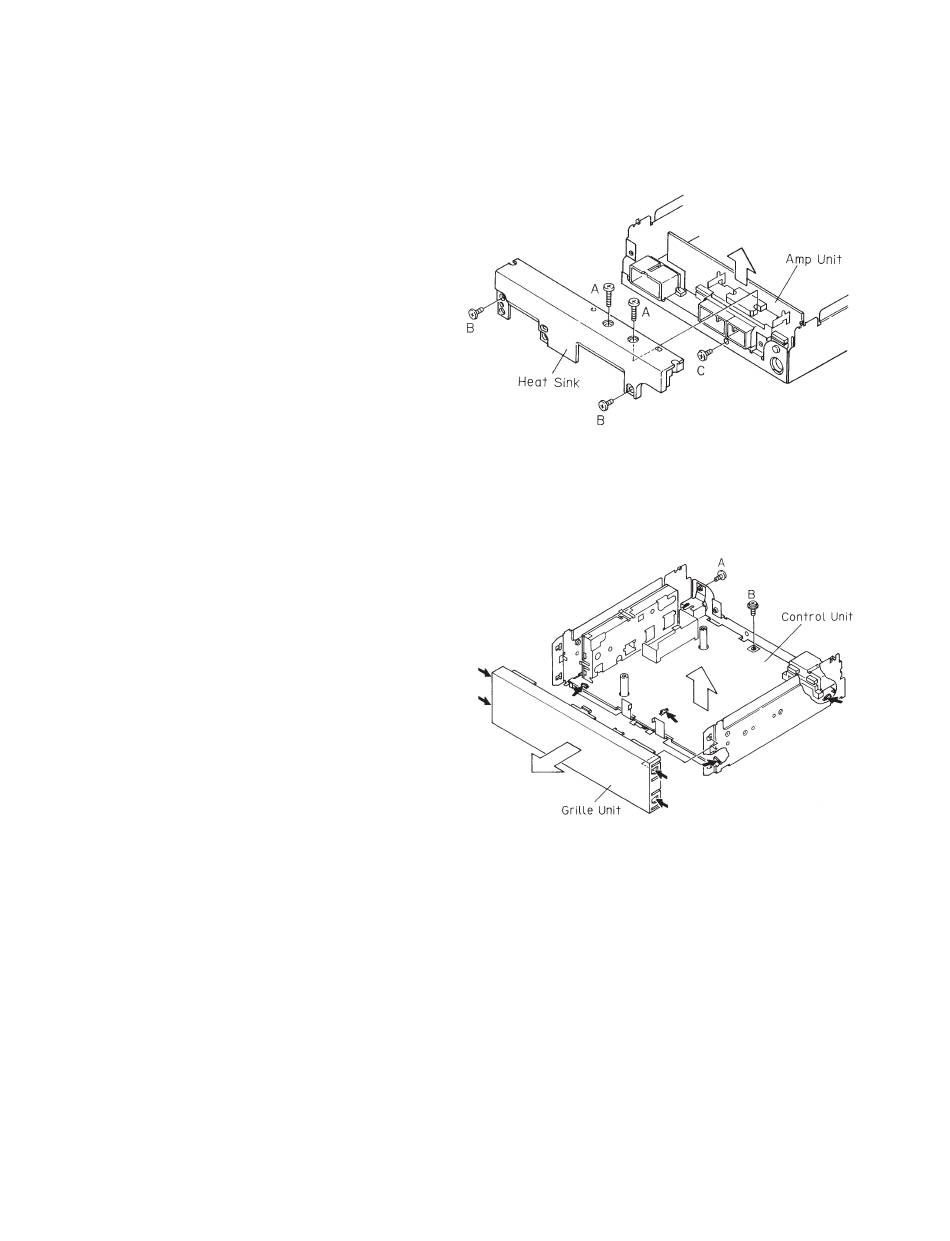

- Removing the Heat Sink and Amp Unit (Fig. 22)
1. Removing the two screws A, two screws B and
screw C.
2. Removing the Heat Sink and Amp Unit.
- Removing the Grille Unit (Fig. 23)
1. Disengage the stopper at four locations indicated by
arrows.
2. Removing the Grille Unit.
- Removing the Control Unit (Fig. 23)
1. Removing the screw A and screw B.
2. Unbend the tabs at a location indicated by arrow
until straight.
3. Removing the Control Unit.
46
Fig. 22
Fig. 23
