KEH-M8276ZT

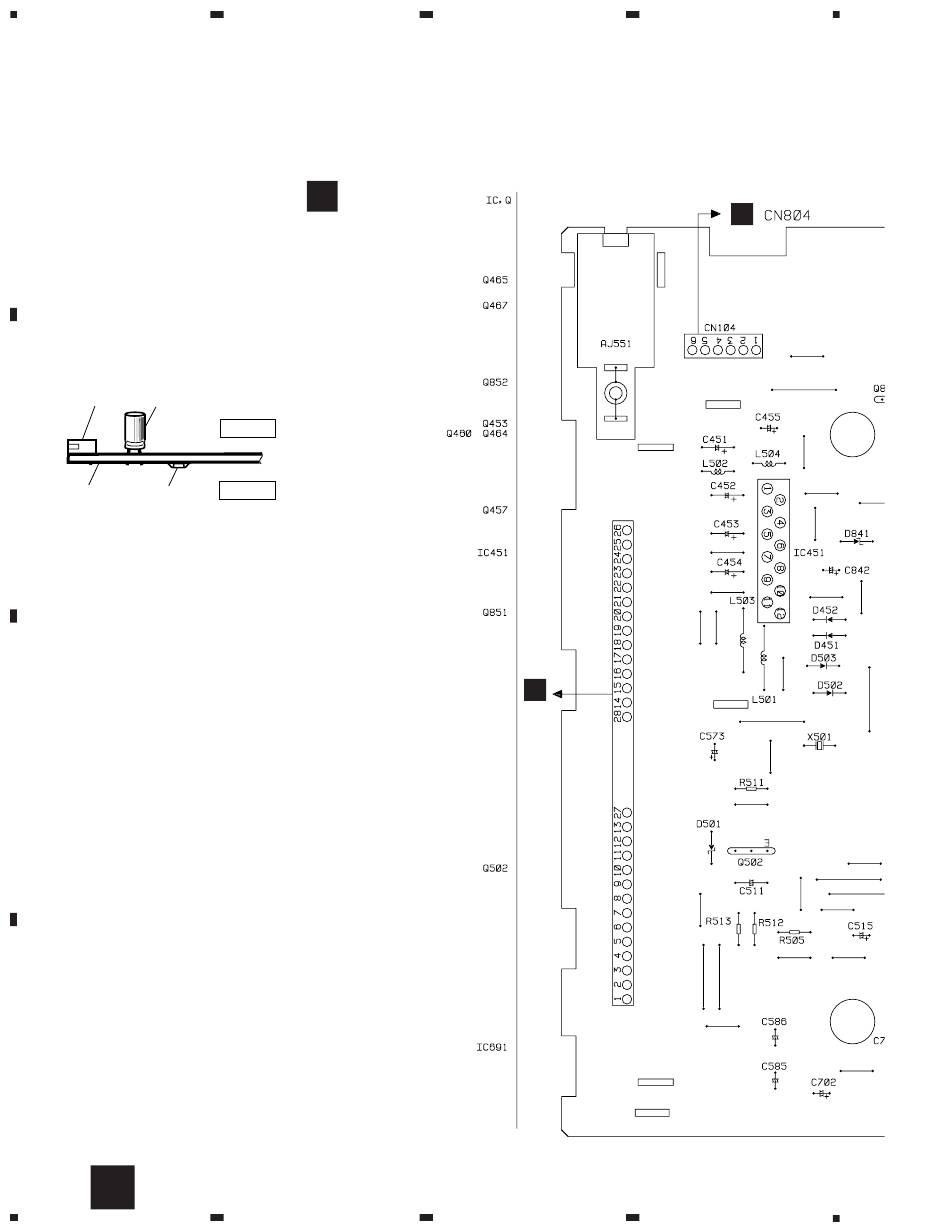

4. PCB CONNECTION DIAGRAM
4.1 CONTROL UNIT
A
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic
diagram.
2. Viewpoint of PCB diagrams
Capacitor
Connector
B
P.C.Board
Chip Part
C
D
A
18
1
2
A
CONTROL UNIT
SIDE A
SIDE B
2
3
D
3
4
B
4
