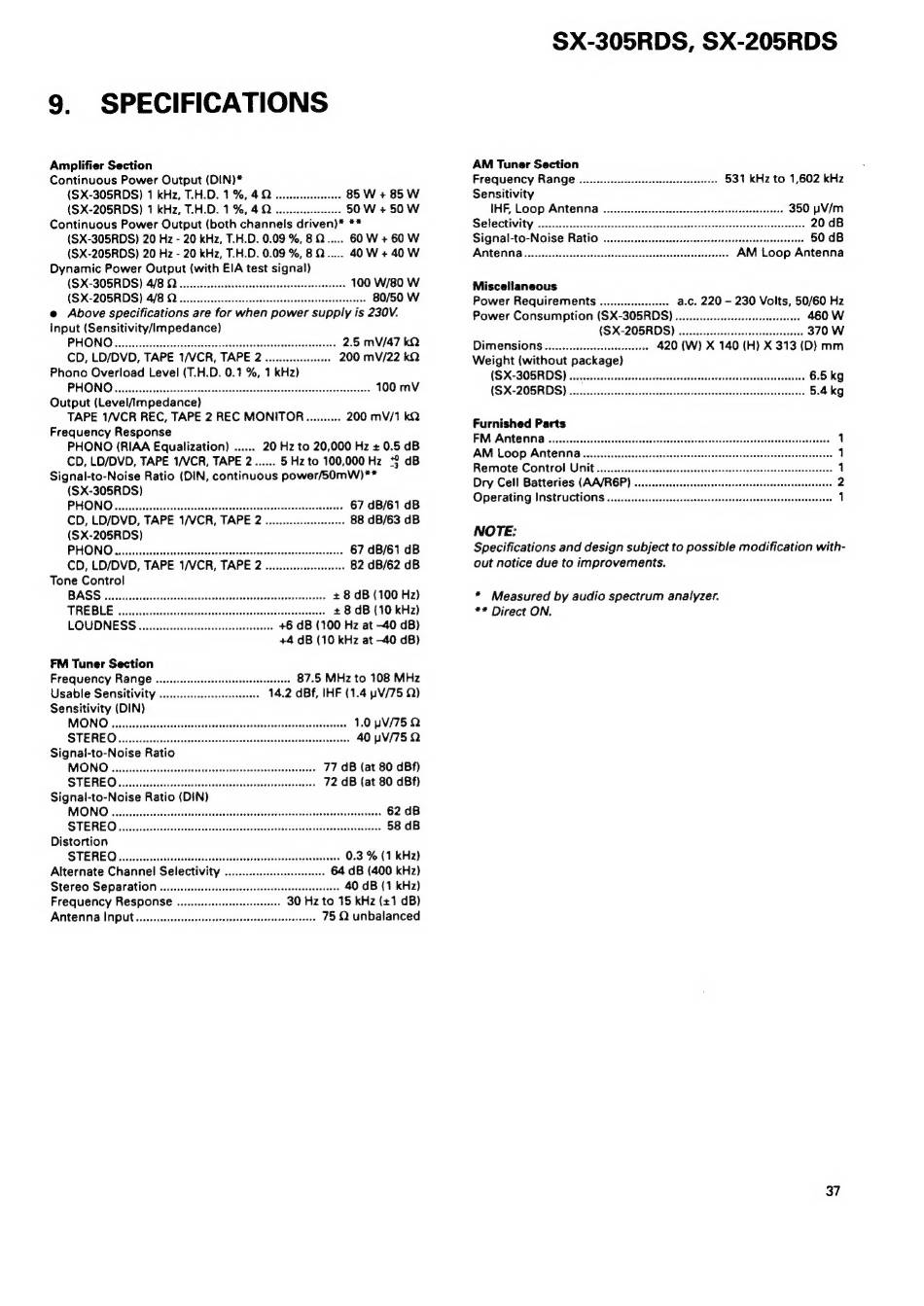

9. SPECIFICATIONS
Amplifier Section
Continuous Power Output (DIN)*
(SX-305RDS) 1 kHz, T.H.0.1%,4Q... 85 W + 85 W
(SX-205RDS) 1 kHz, T.H.D. 1%, 4Q oe eee 50 W + 50 W
Continuous Power Output (both channels driven)* **
(SX-305RDS) 20 Hz - 20 kHz, T.H.D. 0.09 %, 8Q..... 60 W +60 W
(SX-205RDS) 20 Hz - 20 kHz, T.H.D. 0.09 %, 8Q..... 40 W +40 W
Dynamic Power Output (with EIA test signal)
(SX-305RDS) 4/8 QQ oo... csessecscesneececeneeseeeceteeersess 100 W/80 W
(SX-ZO5RDS) 4/8 Qo. cesccecccscseesssessetsceeacetessotereesoees 80/50 W
e Above specifications are for when power supply is 230V.
Input (Sensitivity/impedance)
PHONO ssucseisesscisisovscesntssecesessotsovatesuessvsavssessescentee' 2.5 mV/47 kQ
CD, LD/DVD, TAPE 1/VCR, TAPE 2 ..........:csc0e 200 mV/22 kQ
Phono Overload Level (T.H.D. 0.1 %, 1 kHz)
PHONO occ icicncecesecssiesndcsstuscbeoueibeons abode suersenienesvecsscgscenesetet 100 mV
Output (Level/mpedance)
TAPE 1/VCR REC, TAPE 2 REC MONITOR.......... 200 mV/1 kQ
Frequency Response
PHONO (RIAA Equalization) ...... 20 Hz to 20,000 Hz + 0.5 dB
CD, LD/DVD, TAPE 1/VCR, TAPE 2...... 5 Hz to 100,000 Hz *? dB
Signal-to-Noise Ratio (DIN, continuous power/5OmW)**
(SX-305RDS)
PHONO siscicontesscercnssvistesosssiseccscssbiccstestetatreisaescosastas 67 dB/61 dB
CD, LD/DVD, TAPE 1/VCR, TAPE 2 .........s.ssecsseeeese 88 dB/63 dB
(SX-205RDS)
PHONO sicsssssescstdonsescesssncseossctesdedsesssesesiensensaasonstencs 67 dB/61 dB
CD, LD/DVD, TAPE 1/VCR, TAPE 2 ........sescesseeeee 82 dB/62 dB
Tone Control
sel Neat en Mite tao cet Ri este Seteetseoes Meamiesraeks + 8 dB (100 Hz)
pedebccattiake clea es + 8 dB (10 kHz)
+6 dB (100 Hz at -40 dB)
+4 dB (10 kHz at -40 dB)
FM Tuner Section
Frequency Range .......... ssc cerssecesseeseees 87.5 MHz to 108 MHz
Usable Sensitivity 00.0... eee eeeeseees 14.2 dBf, IHF (1.4 yV/75 Q)
Sensitivity (DIN)
MONO iviscecsisesonssacsasseciccenseedesserasacsrsncadesarsaeastesesestes 1.0 yV/75 Q
STEREO secciecocadecestetgvesctecetariencc ievssnsvesevsdessstcersbectise 40 yV/75 2
Signai-to-Noise Ratio
MONO 77 dB (at 80 dBf)
STEREO 72 dB (at 80 dBf)
Signal-to-Noise Ratio (DIN)
MONO) ecsesincisctesucsicscievscestescessutevsosustuesienccensereceandaeandoureeses
STEREO
Distortion
STERE Qs vcssvssescsuteuseusasecesissoasandevessvossisuesscassiacsettace 0.3 % (1 kHz)
Alternate Channel Selectivity .... 64 dB (400 kHz)
Stereo Separation ..........ccecesenssensecrsetssessesnsarenteees 40 dB (1 kHz)
Frequency Response .. 30 Hz to 15 kHz (+1 dB)
Aten INPUt ....... cree ceessectseseseseeceeteeevenerereaees 75 Q unbalanced
SX-305RDS, SX-205RDS
AM Tuner Section
Frequency Range ............ceeesesesessesseeseeeeeeee 531 kHz to 1,602 kHz
Sensitivity
IHF, Loop Antenna ...........ccccccsescsesscesecesseseeseeceneenaeeas 350 pV/m
Selectivity .............:ee 20 dB
Signal-to-Noise Ratio . 50 dB
ATMO Bisse a eaieeed oct ere cidhisaiee sees tees AM Loop Antenna
Miscellaneous
Power Requirements ...........cc0se00 a.c. 220 - 230 Volts, 50/60 Hz
Power Consumption (SX-305RDS) ............eessseesreesecereeeee 460 W
(SX-205RDS) 0.0... cececesecesesseeseeseneenes 370 W
DIMENSIONS ............2cccccesseceesseee 420 (W) X 140 (H) X 313 (D) mm
Weight (without package)
(SX-3OSRDS) svsscccsscoscvcevsvstyssvieds Cities NioeacSoeeasees vanessa 6.5 kg
(SX-ZOGSRDS) :scccsdecssesedeselaccstdevces concvads dectses sosiockscceseievelees 5.4 kg
Furnished Parts
BM Ante inal siccasits chit alecticccccecndecesstesssatccesccesccccvocsdesaececsseseaseseesanses 1
AM Loop Antenna ........cescccccseesseeeesecesectesseasesesesseenecconseessacesenseaees 1
Remote Control Unit... eeseeesceesceessseeeseeeeseeeneseesseeensensenenece 1
Dry Cell Batteries (AA/REP) ............cececsseeessenseessccnsessncnassenseesonse 2
Operating IMStructions ............ccescesceeeeecseseeesecoeansoeesseessessseaeoeneee 1
NOTE:
Specifications and design subject to possible modification with-
out notice due to improvements.
* Measured by audio spectrum analyzer.
** Direct ON.
37
