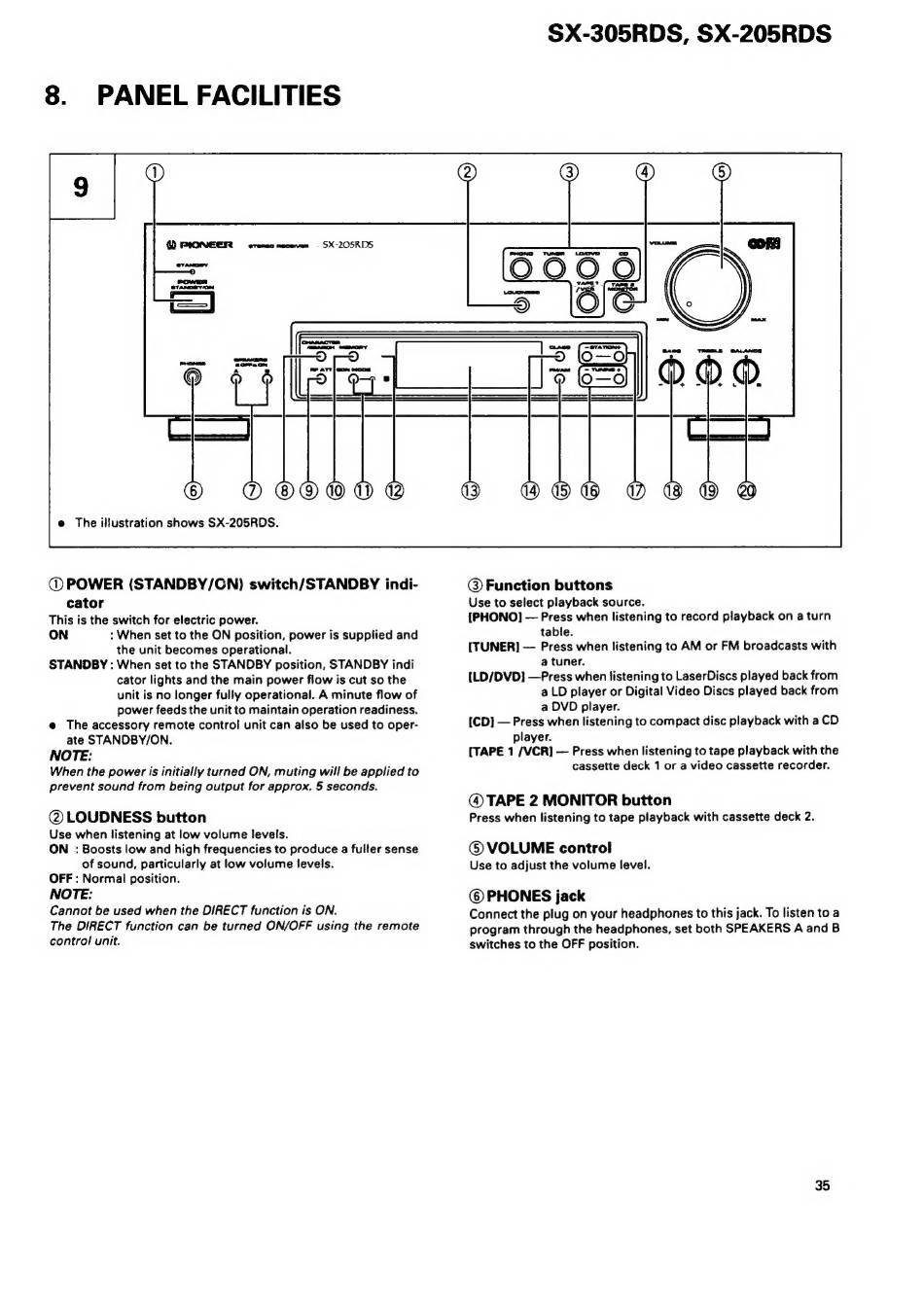

8. PANEL FACILITIES
@D PIONEER erento meceven = 5X -205RD5
POWER
eTANDavON
e@ The illustration shows SX-205RDS.
@ POWER (STANDBY/GN) switch/STANDBY indi-
cator
This is the switch for electric power.
ON : When set to the ON position, power is supplied and
the unit becomes operational.
STANDBY : When set to the STANDBY position, STANDBY indi
cator lights and the main power flow is cut so the
unit is no longer fully operational. A minute flow of
power feeds the unit to maintain operation readiness.
@ The accessory remote control unit can also be used to oper-
ate STANDBY/ON.
NOTE:
When the power is initially turned ON, muting will be applied to
prevent sound from being output for approx. § seconds.
@ LOUDNESS button
Use when listening at low volume levels.
ON : Boosts low and high frequencies to produce a fuller sense
of sound, particularly at low volume levels.
OFF : Normal position.
NOTE:
Cannot be used when the DIRECT function is ON.
The DIRECT function can be turned ON/OFF using the remote
control unit.
SX-305RDS, SX-205RDS
@ Function buttons
Use to select playback source.
[PHONO] — Press when listening to record playback on a turn
table.
[TUNER] — Press when listening to AM or FM broadcasts with
a tuner.
({LD/DVD} —Press when listening to LaserDiscs played back from
a LD player or Digital Video Discs played back from
a DVD player.
[CD] — Press when listening to compact disc playback with a CD
player.
(TAPE 1 /VCR] — Press when listening to tape playback with the
cassette deck 1 or a video cassette recorder.
@ TAPE 2 MONITOR button
Press when listening to tape playback with cassette deck 2.
© VOLUME control
Use to adjust the volume level.
© PHONES jack
Connect the plug on your headphones to this jack. To listen to a
program through the headphones, set both SPEAKERS A and B
switches to the OFF position.
35
