- Page 1 Installation Guide NUMI 2.0 INTELLIGENT TOILET English page 2-22 23-43 1392137-T01-...
-
Page 2: Before You Begin
All information in the instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. - Page 3 Drill and bits, expansion bolt and inserts, gaskets, assorted screwdrivers (crosshead, flat and hex), wire stripper, scissor, socket wrench, utility knife, pen, pliers, tape, test pencil, PTFE Tape Other Pad and protection material Masking tape Drill and bits Screwdriver Scissors Socket wrench Utility knife Pliers Tape Test pencil PTFE Tape 、 、 Kohler Co. 1392137-T01-...
-
Page 4: Specifications
305/400 Kohler reserves the right to change marked dimensions without prior notice. SPECIFICATIONS Average 3.3L, Full flush 3.8L, Flush ECO 3.0L Flush volume Level III Water efficiency grade* Floor drain 305/400mm Pit distance Min water pressure 0.14MPa (dynamic pressure) Water pressure Max water pressure 0.74MPa... - Page 5 2. Press and hold pairing button more than 2s until one “beep” is generated on remote, which Ambient light indicating remote pairing is successful and the remote is able to operate toilet. Microphone Side sensing zone Kohler Co. 1392137-T01-...
- Page 6 Confirm if water inlet valve is open. Check if there’s any damage on new toilet carefully. Access Kohler website (Koher.com) HG for more detailed information. Kohler reserves the right to make changes in product design at any time without notice. Check missing accessary before installation. 1392137-T01-...
-
Page 7: Other Accessories
Remote and accessary kit One remote One remote Two ST3.9X35 Two Φ6 Two rubber One M2X7 One Rubber docking station CS tapping screw inserts washers 4 screw washer 2 Other accessories One wax ring One angle valve One water inlet Kohler Co. 1392137-T01-... - Page 8 WARNING: Risk of electric shock. Connect only to circuits protected by Ground-Fault Circuit-Interrupters (GFCI's) or Earth-Leakage Circuit-Breakers (ELCB's). Keep bath and shower head away from electrical parts (such as remote controller, receptacle etc). When the electrical supply is mounted on the wall, an anti-splash and waterproof receptacle is required. 1392137-T01- Kohler Co.
- Page 9 □ Measure the actual distance between the floor drain to finished wall. □ □ Make sure adjusted discharge pipe bottom align to the drain hole centerline on the finished floor. □ Mark down the “+” centerline for four screw holes of discharge pipe and then drill four holes. Kohler Co. 1392137-T01-...
- Page 10 Mounting block □ Connect provided new water inlet pipe with toilet. □ Lift toilet up (2 assistants needed), align toilet axis with drainage centerline and the toilet close to the wall, and gently place it on the floor. 1392137-T01- Kohler Co.
- Page 11 □ Measure the actual distance between the floor drain to finished wall. □ □ Make sure adjusted discharge pipe bottom align to the drain hole centerline on the finished floor. □ Mark down the “+” centerline for four screw holes of discharge pipe and then drill four holes. Kohler Co. 1392137-T01-...
- Page 12 Mounting block □ Connect provided new water inlet pipe with toilet. □ Lift toilet up (2 assistants needed), align toilet axis with drainage centerline and the toilet close to the wall, and gently place it on the floor. 1392137-T01- Kohler Co.
-
Page 13: Connect Inlet Pipe
Place bushing into screw holes at the bottom of the toilet on both sides, then tighten ST3.5X25 CS tapping screw into the block from the bottom, place deco cover on screws afterwards. Bushing ST3.5X25 Deco cover CS head tapping screw Kohler Co. 1392137-T01-... - Page 14 Remote docking station Back panel Set screw Remote docking station Remote docking station cover open illustration: The figure shows the docking station cover position afte Set screw Loosen t Turn the docking station cover counterclockwise to open docking station cover. 1392137-T01- Kohler Co.
- Page 15 Pay attention to rotation direction of docking station tap and fasten by set screws. Remove rubber protection on remote battery cover and docking station cover before installation. Waterproof rubber plug Rubber washer 2 Screw M2X7 Kohler Co. 1392137-T01-...
-
Page 16: Power Connection
NOTE: This product is designed for installation with the electrical supply attached to the wall. Both types are illustrated. Strictly observe the information on the dimension drawing when installing the hard wire power cord. Plug the power cord into receptacle. G. Power on and water on test 1392137-T01- Kohler Co. - Page 17 1/3 from the front of the seat (sensor area). Test different toilet function per “Remote interface” and “mobile APP interface” requirement. Kohler Co. 1392137-T01-...
-
Page 18: Troubleshooting
Trouble shooting This guide of trouble shooting is for general help only. Authorized representatives or qualified electricians of Kohler Company shall be able to solve all electrical failures. If you want to know about the service of warranty, please contact local dealers or wholesalers. - Page 19 B. Call the Customer Care Center using the information provided on the back page of this manual. 2. The bowl light, located in the tip A. Ambient light is too bright. A. Please shield photoreception window of the cleansing wand, does not completely. work. Kohler Co. 1392137-T01...
-
Page 20: Remote Troubleshooting
B. Remote and toilet distance exceed communication range. Close remote to the toilet. C. Replace battery. D. Reconnect remote and toilet. E. Call the Customer Care Center using the information provided on the back page of this manual. 1392137-T01- Kohler Co. -
Page 21: Power Troubleshooting
Bluetooth troubleshooting Symptoms Possible causes Recommended actions 1. Bluetooth device is silent when A. Bluetooth is not connected. A. Re-pairing bluetooth. playing music. B. Bluetooth speaker mode is not enabled. A. Enable Bluetooth speaker mode on mobile APP. Kohler Co. 1392137-T01-... - Page 22 Thermal expansion of hard setting material (cement mortar) will damage or crash the feet of toilet. Kohler will not be responsible for any damage because of using hard setting material (cement mortar) for toilet installation. Do not throw into the toilet what that will cause the toilet to block such as newspapers and sanitary towel. Do not bump the vitreous with great force as it will cause damage and leaking.

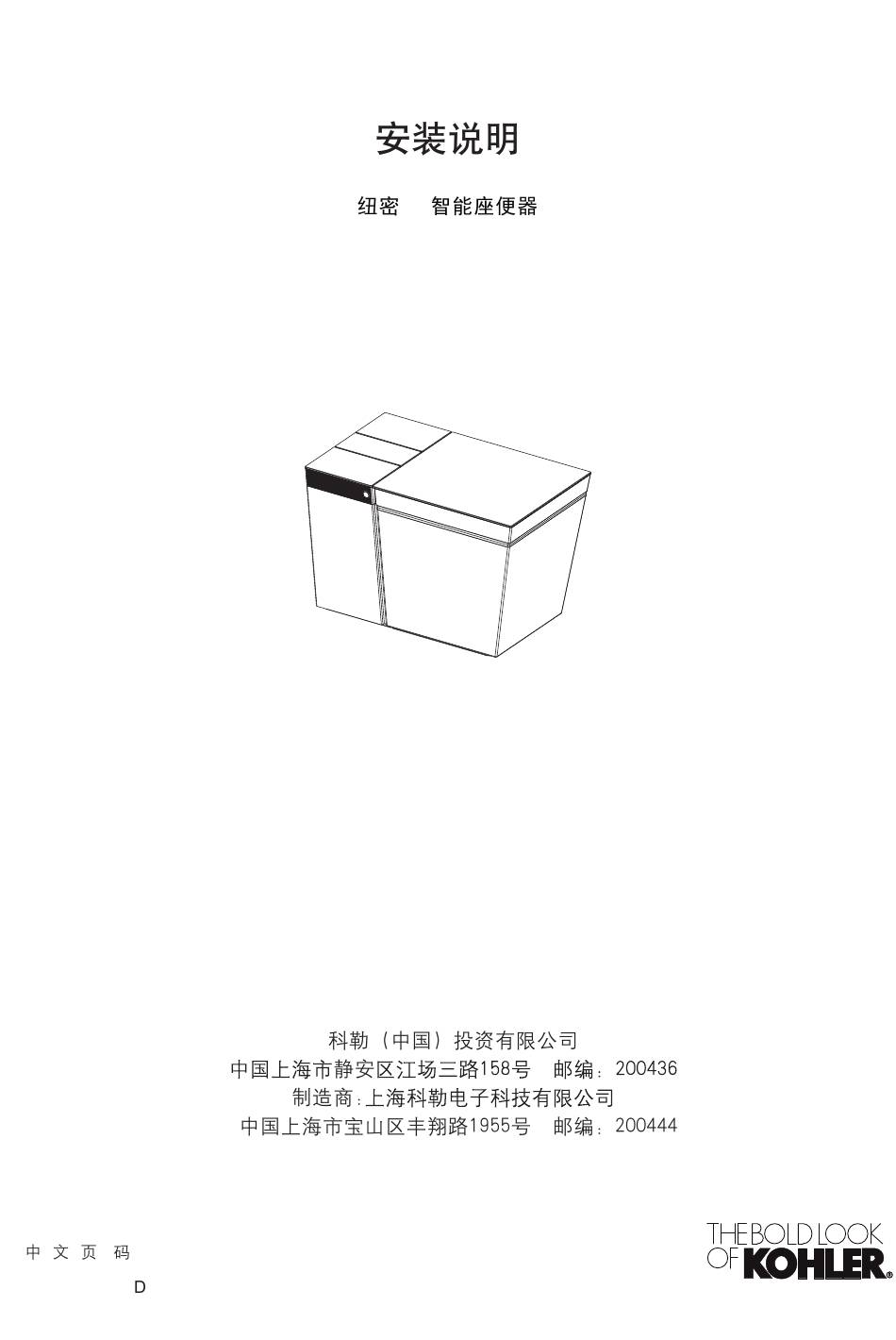

- Page 23 NUMI 2.0 I NSTALLATION INSTRUCTIONS INTELLIGENT TOILET GFCI ELCB 220V~ , 50 H z, 10A Kohler Co. 1392137-T01-...
- Page 24 1392137-T01- Kohler Co.
- Page 25 305/400 3.3L 3.8L 3.0L 305/ 400mm 0.14MPa ( 0.74MPa 220V~, 50Hz 975W 1.2m 707mm x 382mm x 458mm 60kg 1-35 1-40 0.2MPa, Kohler Co. 1392137-T01-...
- Page 26 “ ” 2 “ ” “ ” GB21551.2-2010 1392137-T01- Kohler Co.
- Page 27 Kohler.com Kohler Co. 1392137-T01-...
- Page 28 ST3.5X25 ST3.9X35 M2X7 1392137-T01- Kohler Co.
- Page 29 (GFCI) (ELCB) Kohler Co. 1392137-T01-...
- Page 30 305mm □ 305mm 290mm 15mm □ □ □ 1392137-T01- Kohler Co.
- Page 31 □ Ø Ø MOUNTING BLOCK LOCATION 4XØ BOLT LOCATIONS 200.5mm □ □ □ Kohler Co. 1392137-T01-...
- Page 32 400mm □ 400mm 375mm □ 400mm 420mm A 25mm □ □ 1392137-T01- Kohler Co.
- Page 33 □ Ø Ø MOUNTING BLOCK LOCATION 4XØ1 BOLT LOCATIONS 200.5mm □ □ □ Kohler Co. 1392137-T01-...
- Page 34 ST3.5X25 ST3.5X25 1392137-T01- Kohler Co.
- Page 35 Kohler Co. 1392137-T01-...
- Page 36 40mm ST3.9X35 ST3.9X35 M2X7 1392137-T01- Kohler Co.
- Page 37 (GFCI) 220V~, 50Hz, 10A Kohler Co. 1392137-T01-...
- Page 38 1392137-T01- Kohler Co.
- Page 39 122cm Kohler Co. 1392137-T01-...
- Page 40 1392137-T01- Kohler Co.
- Page 41 122cm Kohler Co. 1392137-T01-...
- Page 42 1392137-T01- Kohler Co.
- Page 43 Kohler Co. 1392137-T01-...
