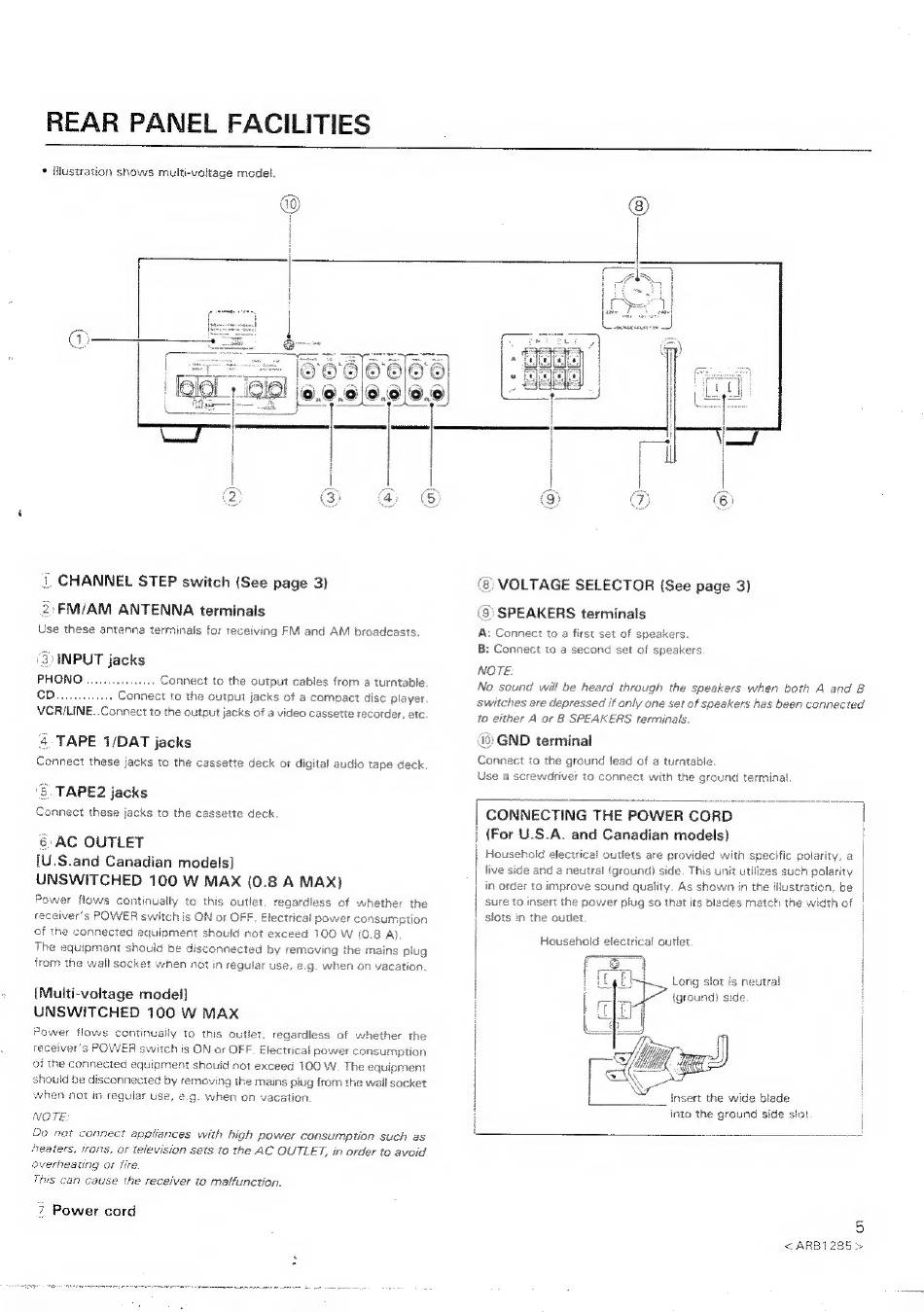

Pioneer SX-2800 Operating Instructions Manual page 5

* Iilustration shows muiti-voltage model.
i, CHANNEL STEP switch (See page 3)
2: FM/AM ANTENNA terminals
Use these antenna terminais for receiving FM and AM broadcasts.
'SHINPUT jacks
4. TAPE 1/DAT jacks
'8. TAPE2 jacks
Connect these jacks to the cassette deck,
6 AC OUTLET
{U.S.and Canadian models]
UNSWITCHED 100 W MAX (0.8 A MAX)
{Multi-voltage model]
UNSWITCHED 100 W MAX
Power flaws continually to this outh
receiver's POWER switch is ON or OFF
of the connected equipment
. regardless of whether the
Electrical power consumption
houid not exceed 100 W. The equi
should be disconnected by removing the mains plug from the wail socket
when not in regular use, e.g. when on vacation
NOTE:
7 Power cord
(8) VOLTAGE SELECTOR (See page 3)
(9) SPEAKERS terminals
A: Connect to a first set of speakers.
B: Connect to a second set of speakers.
NOTE:
No sound will be heard through the speakers when both A and B
Switches are depressed if only one set of speakers has been connected
to either A or B SPEAKERS terminals.
Jo) GND terminal
Connect to the ground !fead of a turntable.
Use a screwdriver to connect with the ground terminal,
CONNECTING THE POWER CORD |
| (For U.S.A. and Canadian models) |
Household electrical outlets are provided with specific polarity, a |
| live side and a neutral (ground) side. This unit utilizes such polarity
in order to improve sound quality. As shown in the illustration, be
sure to insert the power plug so that its blades match the width of
; slots in the outlet.
Household electrical outlet
/
:
Long slot is neutral
(ground) side
Hy insert the wide blade
i
i d e
e l ,
inte the ground side stat
o
<ARB1285 >
