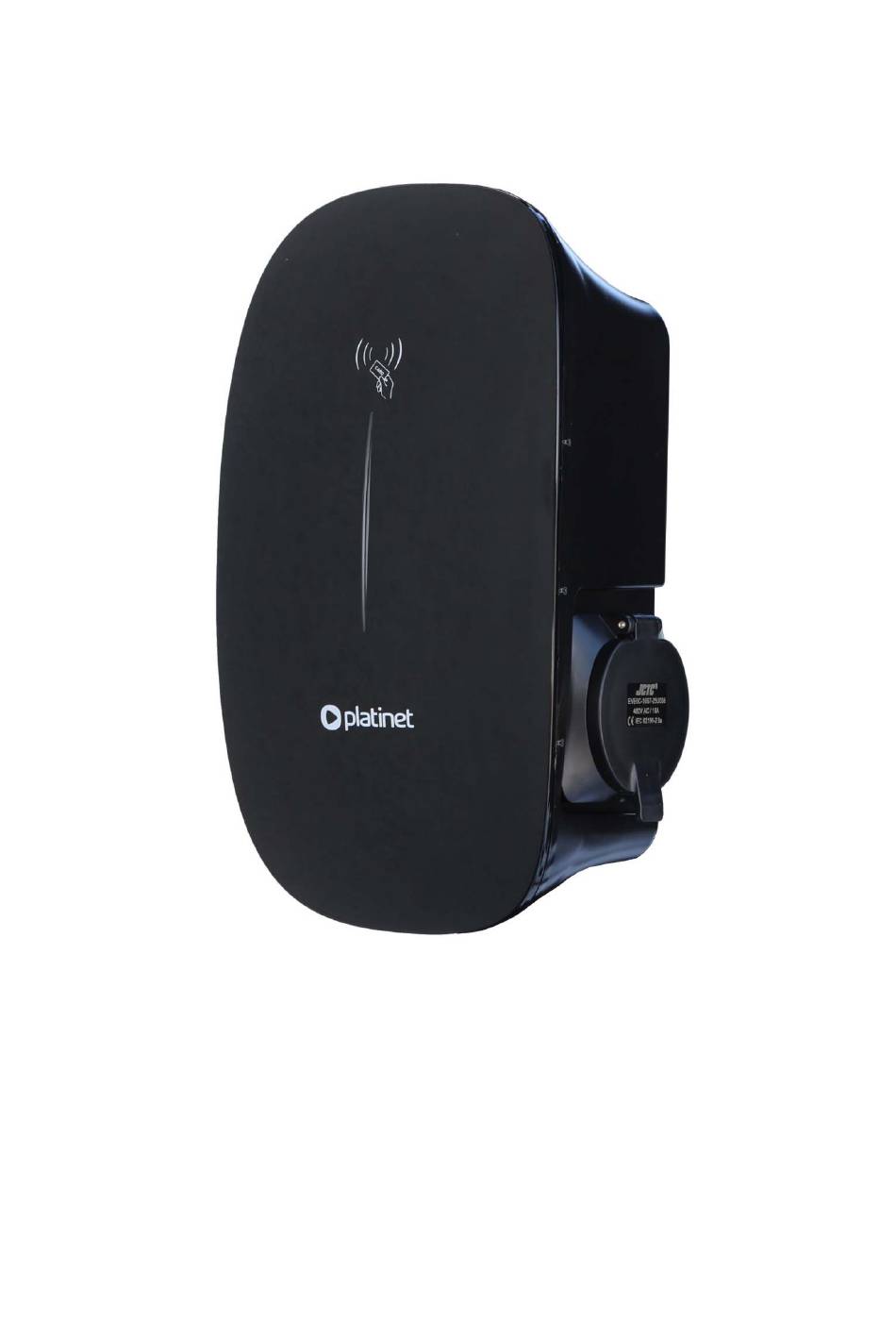

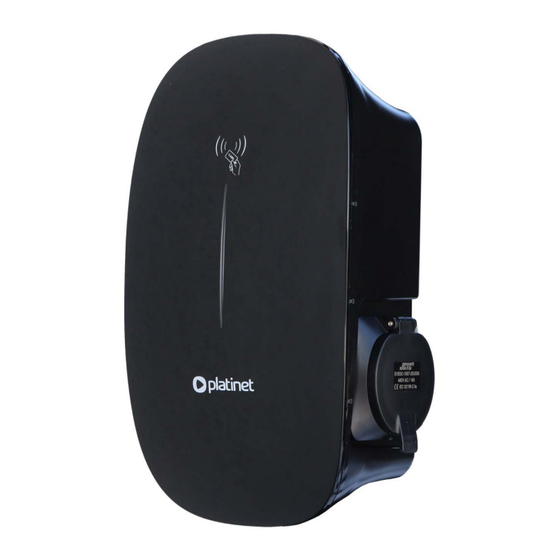

- Page 1 User Manual PWBS11KW ‐ PLATINET WALL CHARGER SOCKET 11KW TYPE2 ICON BLACK ...
-
Page 2: Table Of Contents
Table of contents 1. Safety & Warnings 2. Charger 3. Installa on 4. Opera on & Configura on 5. Fault lights 6. Maintenance 7. Warranty ... -
Page 3: Safety & Warnings
1. Safety & Warnings Keep these instruc ons. Read all instruc ons before installing or using the charger. Keep the charger away from explosive or flammable materials, chemicals, vapors, and other hazardous objects. Keep the charging point socket clean and dry. If it gets dirty, wipe it with a clean, dry cloth. Do not touch the socket contact when the device is turned on. Do not use the charging point if any visible damage to the product is observed, such as cracks, abrasions, exposed leaks, or other visible defects. Contact a qualified technician immediately upon first no cing such damages. Do not a empt to disassemble, repair, or reassemble the charging point. Contact a qualified technician if necessary. Improper handling will cause damage to the device, electric leakage, and other hazards. In case of any adverse condi ons, immediately turn off the power source. Protect the charger from lightning strikes and heavy rain. Keep children away from the charging point. Do not drive the electric vehicle while it is charging. Charge only when the electric vehicle is turned off. For hybrid cars, charge only with the engine off Our packaging is environmentally friendly and recyclable. A er unpacking, place the packaging in appropriate containers for recycling. Do not dispose of this device with household waste. It should be taken to a suitable point for recycling electrical and electronic equipment. For more detailed informa on about recycling this device, contact your local city office or household waste disposal facility Warning ... - Page 4 2. Contents of the package AC Charger Insulated Terminal (5 pcs) for M4*32 Screw (6 pcs) for the (Socket Version) Three‐Phase Power Supply Socket Version Expansion Plugs φ6 (6 pcs) RFID Activation Card (5 pcs) Disassembly Tool for the Socket Version (1 pcs) User manual (1 pcs) M4 Allen key (1 pcs) Mounting template(1pc) ...
-
Page 5: Charger
2. Charger Socket Version 192mm 135mm 95mm Type 2 Socket ... - Page 6 Details Products Removable outer cover of the PCB Board Protec on Enclosure device 6 4 7 3. RFID card reader, this area can read the RFID card. 4. No fica on bar 5. Type 2 socket 6. Moun ng holes for moun ng the charger on the wall and drain holes to prevent water from ge ng inside the device 7. Power cord hole Note: Installa on and connec on of the device to the power supply should be performed only by a person with appropriate qualifica ons. ...
-
Page 7: Installa On
Specifica on PWBS11KW Socket Version Power three‐phase Voltage 400V AC Input Parameters Current 32A Frequency 50/60 Hz Output Voltage 400V AC Output Parameters Maximum Current 32A Power Output 11kW Connector Type Type 2 Housing Material Plastik User Interface Led Tak Startup mode Aplikacja/RFID/Plug&Play RFID Reader Mifare ISO / IEC 14443A Communication Wi‐Fi 2.4G/Ethernet Protocol OCPP1.6 Communication Frequency of communication 2400‐2483.5MHz (Wi‐Fi) 13.553‐13.567MHz (RFID) ... - Page 8 3. Device Installa on Opening the Device Enclosure Step 1 – Remove the two screws on the bo om of the charger Step 2 – Use the disassembly tool to pry up the points along the edges Step 3 – Use the disassembly tool to pry the points along the edges on the other side of the device. Step 4 – The case should open. Assembling the device 1. Based on the template, determine the installa on posi on and mark the two holes for the wall screws that will be inserted into the upper rear of the charger. 2. Drill two holes with a 6mm drill bit and insert the dowels horizontally into the holes, paying a en on to the force and depth with which they are screwed in (make sure the dowel goes completely into the hole). 3. Insert two M4x32 screws into the wall plugs so that the screw heads protrude at least 5 mm. 4. Posi on the charger temporarily by inser ng the screw heads into the top holes on the back. 5.Open the front of the charger. 6. Mark the loca on of the third moun ng screw. The hole is located at the bo om of the charger. 7. Remove the sta on and make a third hole by inser ng the wall plug. 8. Reposi on the sta on and ghten the third screw at the bo om. ElectricalConnec on AC Wiring ...
- Page 9 3. Dis nguish different input wires of three‐phase and single‐phase, then insert the wire into the corresponding wire slot Single‐phase Connec on Three‐phase Connec on Note: If your charger is with PEN protec on func on, please connect the wires as follow. Checks before Power-on Please check/re‐check the following items prior to ini al Power‐on: ‐ The charger’s loca on allows good opera onal access tonormal use and repair & maintenance. ‐ The AC input components within the premise’s power supply are fi ed correctly with required protec on items prior to installa on of the charger. ‐ No componentsor other items have been le on the top of the charger ...
- Page 10 Power-on status checking Power‐on the charger, the LED indicator should be in standby status. State Description LED status Flashing green, 1second on; 3 Standby Power‐on, but no gun plug‐in seconds off Ready to charge Gun plugged in, but not yet started charging Constantly green Breathing green, 1second on; Charging in progress Gun plugged in, charging in progress 1second off An error condition has occurred; See Fault has occurred Section 6 (Troubleshooting) for details of Flashing red or constantly red error conditions 4. Device Configura on The detailed process of configuring the device is described in a separate document and is available at the link: h p://pla net.eu/downloads/EVchargo_manual.pdf ...
-
Page 11: Fault Lights
Solid yellow light Przyczepność przekaźnika Solid red light Leakage current fault Flashes red 1 time every 3 seconds CP error Flashes red 2 times every 3 seconds Overcurrent Error Flashes red 3 times every 3 seconds Reverse Polarity Input Flashes red 4 times every 3 seconds Invalid current loop Flashing red 5 times every 3 seconds Input Terminal Temperature Excessive Flashes red 6 times every 3 seconds Relay Temperature Overload Flashes red 7 times every 3 seconds Solid yellow light for 2s and flashing red 1 time every 3 Overvoltage/undervoltage fault seconds Over/Under Frequency Error Solid yellow light for 2s and flashing red 2 times for 3 seconds Incorrect meter communication Solid yellow light for 2s and flashing red 3 times for 3 seconds Incorrect communication of the Smart Meter Solid yellow light for 2s and flashing red 4 times for 3 seconds CT Error Solid yellow light for 2s and flashing red 5 times for 3 seconds Incorrect charging connector lock Solid yellow light for 2s and flashing red 6 times for 3 seconds Incorrect charging connector current Solid yellow light for 2s and flashing red 7 times for 3 seconds Note: If you encounter any problems not described above, please contact the customer service of PLATINET S.A. ... -
Page 12: Maintenance
6. Maintenance 1. Keep the charging dock clean 2. Use a cloth to clean the surface of the charger. 3. If the vehicle connector, charging cable, or vehicle connector holder is damaged or dirty, please contact customer service immediately. 4. Keep the charging dock intact. 5. Do not hit or press the housing firmly. If the enclosure is damaged, contact customer service. 6. Avoid moisture or water ge ng into the charging dock. 7. If there is water or moisture inside the charging dock, please disconnect the electrical supply immediately to avoid immediate danger. Before con nuing to use the sta on, no fy the service. 8. Keep the charging dock away from hazardous substances such as flammable gases and corrosive materials. 7. Warranty Term: Unless otherwise required by local laws, we provide a limited warranty of up to 2 years from the date of purchase. The Limited Warranty does not cover the following: 1. Normal wear and tear. 2. Damage or failures caused by unauthorized updates carried out by the customer. 3. Damage or failure caused by external factors such as: fire, flood, incorrect voltage, other natural disasters and secondary disasters. 4. Damage or malfunc ons caused by improper handling of the charging dock, such as impact from a fall and careless transporta on of the charger. 5. Damage or malfunc on caused by customer's failure to follow the user manual. 6. Damage or failures caused by factors unrelated to the equipment, such as human error made by a person without proper knowledge and qualifica ons. 7. Unauthorized repairs will void the warranty. 8. Damage or failures caused by external factors, such as power grid failures. ... - Page 13 Limita on of Liability: We have compiled this document to the best of our knowledge, but we cannot guarantee that all informa on provided is error‐free, nor do we accept any liability in this regard. To the maximum extent permi ed by local applicable law, we hereby disclaim all indirect, incidental, special, and consequen al damages arising out of or related to the AC charger, including, but not limited to, loss of me, loss of revenue, loss of use, loss of personal or commercial property, inconvenience or deteriora on, distress or emo onal damage, commercial losses (including, but not limited to, lost profits or earnings), addi onal charges, such as telephone calls, fax transmissions and postage expenses. To the maximum extent permi ed by local applicable law, we will not be liable for any direct damages in excess of the market value of the AC charger at the me the claim is made. The above limita ons and exclusions will apply whether your claim is based on contract, tort (including negligence and gross negligence), breach of warranty or condi on, misrepresenta on (whether based on negligence), or otherwise in accordance with law or equity, even if you have been advised of the possibility of such damages or such damages are reasonably foreseeable. Nothing in this manual excludes or in any way limits our liability for death or personal injury caused solely and directly by their negligence, employees, agents or subcontractors (as applicable), fraud or fraudulent misrepresenta on, or any other liability to the extent proven in a court of competent jurisdic on in a final judgment not subject to appeal and cannot be excluded limited by local law. User Informa on on Electrical and Electronic Equipment. Users in countries where this symbol is depicted in this sec on has been defined in na onal law for the collec on and treatment of e-waste. Our products are made of high‐quality components that are recyclable. The symbol below can be found on our ...
