Toa TZ-107-AS Instruction Manual

COLUMN SPEAKER
Safety Instructions
• Thank you for purchasing TOA's TOA's Column Speaker.
• Please carefully follow the instructions in this manual to ensure long,
trouble-free use of your equipment.

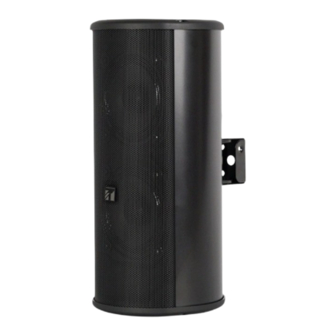

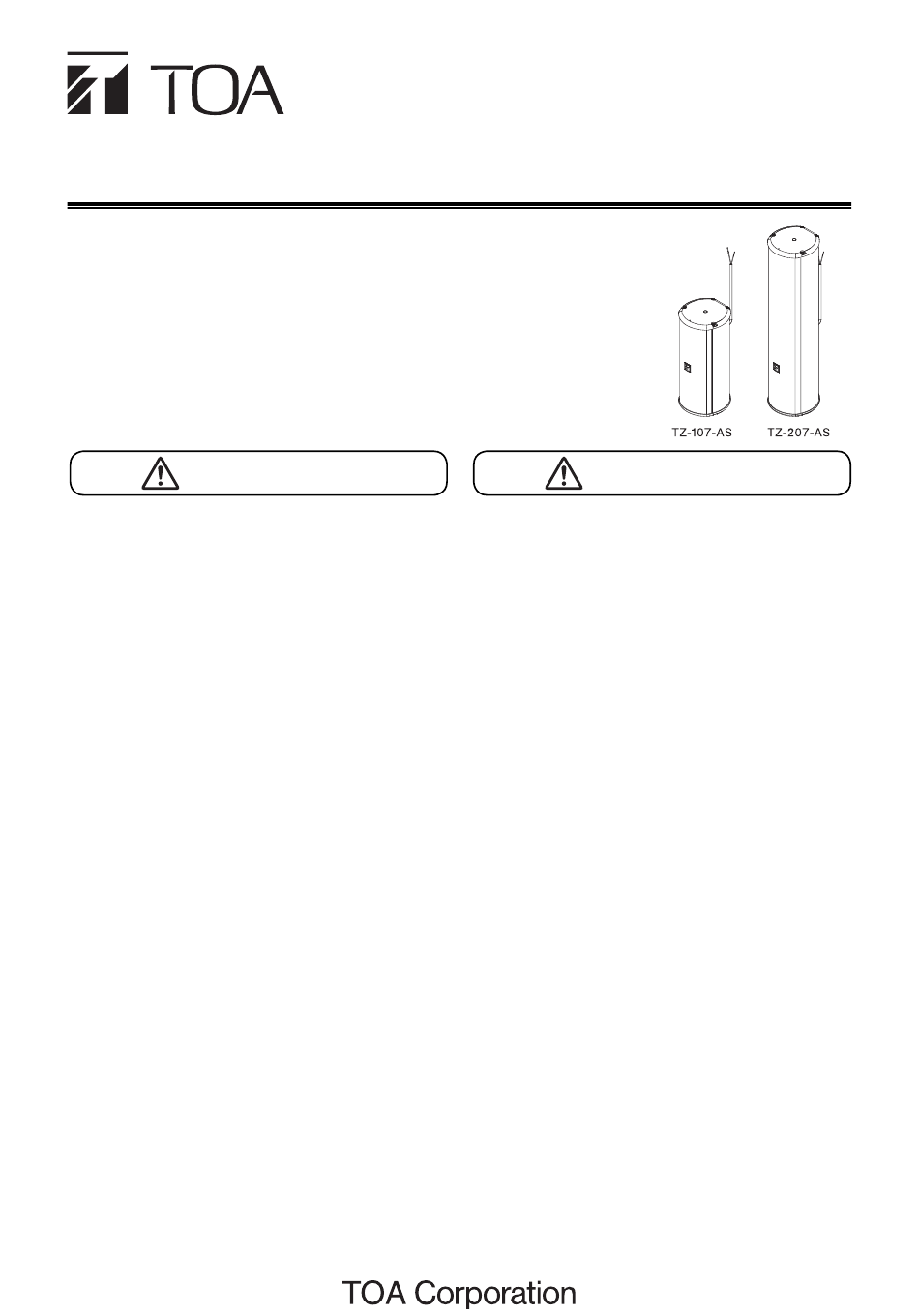

• Column speaker models TZ-107-AS and TZ-207-AS can be used for indoor
or semi-outdoor sound system development. This type of speaker has the
following advantages:
- Vertical distribution of multi-speakers so that it improves the distribution of
sound (directivity) in the horizontal direction.
- Sturdy and dynamic body.
- Speaker design with minimum obstruction, resulting in optimal sound clarity.
WARNING
• The installation of the bracket should be as
described in the picture of this instruction.
• Make sure the bracket is tight enough and make
sure the bracket is not loose.
• Avoid installation in close proximity to gasoline,
thinner or flammable materials.
• Install the speaker column in a place that is
structurally strong enough to withstand the weight of
the speaker and the bracket.
• Avoid installing the column speaker in a place that
often vibrates, the bracket can be damaged which
can eventually result in someone being injured.
How to connect the cables on the Amplifier
This speaker column should be installed into an amplifier that has an output of 100 V line. The number of watts
of the connected speakers is greater than or equal to the wattage output of the Amplifier. Pair these multiple
speakers in a parallel manner with a maximum impedance of 31
Note
* For all types of low impedance speakers (4
this Column speaker (using transformer matching). Also attention to the type of amplifier whether there is a high
impedance output.
How to install the Mounting Bracket
Give attention to the illustration below for bracket installation. Attach the bracket to the wall according to the
recommended model and size. Then combine the colum speaker by using the available accessories.
(100 V).
Mounting the speaker close to the wall surface
Use the provided mounting bracket, and speaker bracket to allow for horizontal and vertical mounting. The Hor-
izontal speaker coverage angle is 45°, or for vertical conditions is 15°.
* Horizontal speaker mounting (option 1)
Step 1. Using the wall bracket provided, attach the wall bracket to the wall. The position of the screw thread
guide is on top, then the wall bracket is screwed tightly.
Step 2. The screw on the back side of the speaker column is removed, install the speaker bracket as shown and
on the screw tightly, from the screw that was previously removed.
Step 3. Attach the speaker bracket to the wall bracket and in the screws.
Step 4. P osition the Speaker as needed, and screw it in tightly. The direction of this configuration, the speaker
can only rotated in the Horizontal direction*.
• To avoid electric shock, make sure the power
amplifier switch is off when connecting the speaker
cables.
• Do not operate the speaker with distorted sound for
long periods of time, as this indicates a malfunction,
which may eventually result in a fire.
• Do not stand, sit, or rely on the unit's speakers, as
they may fall and get hurt.
• When carrying/moving the speaker unit, do not pull
the cable, as it may result in breakage of the speaker
unit cable.
.
Ω
or 8 , without transformer matching) can not be combined with
Ω Ω
INSTRUCTION MANUAL
TZ-107-AS
TZ-207-AS
CAUTION
