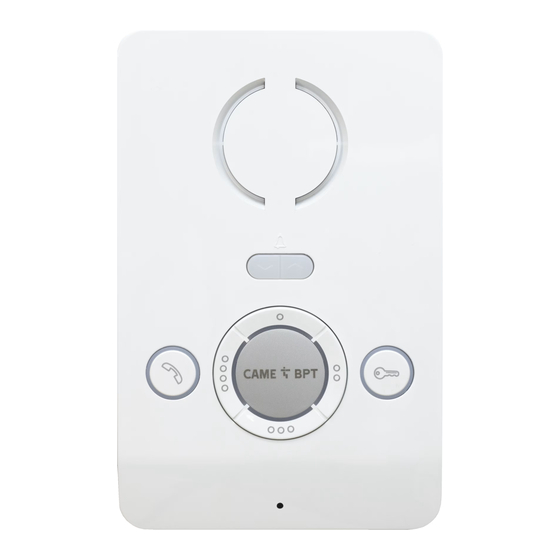

- Page 1 IP INDOOR FB01094-EN RECEIVER INTERCOM PEC IP INSTALLATION AND SETTINGS MANUAL EN English...
-
Page 2: General Precautions
General Precautions Carefully read the instructions before starting in- • stallation and performing any procedures as explai- ned by the manufacturer. Installation, programming, commissioning and • maintenance should only be done by qualified and skilled staff that is trained to follow the laws in ef- fect, including all pertinent safety regulations Before doing any cleaning or maintenance jobs, •... -
Page 3: Functional Characteristics
Technical features Type PEC IP Class 2 (<6.5 W) - PoE absorption not insulated Stocking temperature °C -25°C ÷ +70 Operating temperature °C +5 ÷ +40 Protection rating (IP) Characteristics of network interface Ethernet IEEE 802.3 10/100 Base T(X), auto speed, auto half/full duplex mode, auto MDI/MDI-X Functional characteristics Standard SIP Protocol (rfc3261) audio... - Page 4 Duplex installation diagrams This device can operate in multi-household intercom systems. Using an ETI/MiniSER in an apartment is only needed for forwarding calls to mobile devices via CAMEConnect. ROUTER SWITCH POE VAS/100MH ETI/MINISER ROUTER SWITCH POE VAS/100MH ETI/MINISER SWITCH POE MTMV/IP MTMA/IP...
- Page 5 Configuring and commissioning through the device's interface Preliminary operations on the PCS Xip This device is an integral part of an IP360-based system, that's why the system architecture must be previously built by using the PCS Xip software. IP Unit 1 XIP Multi server ETI/miniSER IP Receiver 1...
- Page 6 Settings and commissioning by using the WEB interface The device is configured by using a WEB interface: you need to assign, to your PC, an address that belongs to the Switch PoE same subnet as the device. The default IP address for the IP PEC device is 192.168.1.4.
-
Page 7: Maintenance
[System] Status ▼ System ▼ Network ▼ General Options ▼ Exit [Maintenance] MAINTENANCE [SOFTWARE UPDATE] this screenview is for updating the device's firmware, by proceeding as follows: Configuration Software update Press the [BROWSE] key, select the file containing the Software Update firmware update in your computer and press [UPDATE]. -
Page 8: Interfaces - Lan
It is automatically updated after proper configuration. Server 192.168.61.230 [SERVER] In this space enter the server's IP address. De- fault IP addresses of the CAME-BPT servers: ETI/MiniSER Status and ETI/DOMO XIP: 192.168.0.3 (port 0) - 192.168.1.3 (port 1); ETI/SER: 192.168.1.1; MTMV-MTMA/IP and Registration status Stored DC-DVC/IP: 192.168.1.5... - Page 9 If all operations have been properly executed and the SIP Status ▼ System ▼ Network ▼ General Options ▼ Exit server is active, on the [STATUS]-[SUMMARY] page, the [REGISTRATION STATUS] line will read [REGISTERED], STATUS otherwise it will read [NOT REGISTERED]. System Model IP PEC...
-
Page 10: Functions Settings
[General Options] Status ▼ System ▼ Network ▼ General Options ▼ Exit [Functions Settings] FUNCTIONS SETTINGS Selecting the Default Door Opener and Programming the AUXs This screen is for associating to each key found on the dial, one of the available controls. Functions settings Default door opener MTMA IP... -
Page 11: Log Setting
[LOG Setting] Status ▼ System ▼ Network ▼ General Options ▼ Exit The screen view is for configuring the system log level. LOG SETTING Viewing and downloading the log can be done from the This sections lets you configure the level of the system log and of each service [STATUS]-[SYSTEM LOG] screen view. - Page 12 ID marker. THE DATA PRESENTED IN THIS MANUAL MAY BE CHANGED, AT ANY TIME, AND WITHOUT NOTICE. MEASUREMEN- TS, UNLESS OTHERWISE STATED, ARE IN MILLIMETERS. CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy...
