TR 900 Quick Manual

TR 900
Height adjustable bathtubs
NOTE: This document is a complement to the Operating Manual, not a substitute.
Quick Guide for TR 900, -C, -CW
Before and during bathing
Anyone operating the Bathtub must fully under-stand all proceedings before -
during and after the entire bathing cycle (see operating manuals).

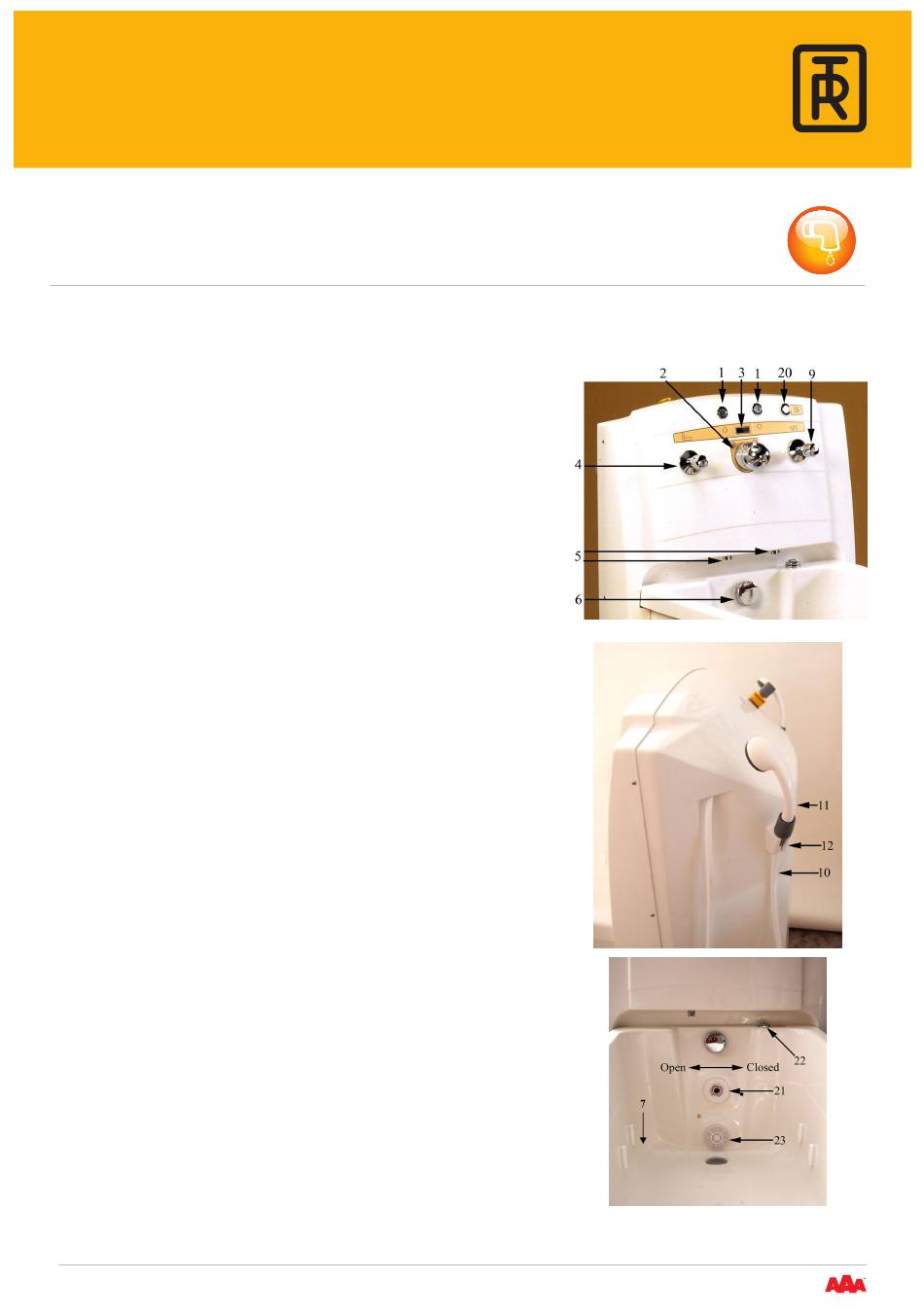

Preparing Tub
A.
Press control button (1) to lower the tub to it lowest position.
B.
Close the drain plug by turning the overflow drainage knob (6).
C.
Set foot rest (7) into position appropriate for the patient legs. Footrest is
not used with TR´s Stretcher Lift.
D.
Ensure that the whirlpool inlet screen (23) is in place.
E.
Turn the whirlpool outlet jet (21), anticlock-wise to full open position.
F.
Fill tub (5) using shut-off valve (4).
G.
Set and monitor fill water temperature with mixer (2) and thermometer (3)
Note: Always physically check water temperature before and during bathing.
Read operating manual for patient handling.
Showering
A.
Lift the shower handle (11 on the right side on the panel) with the white
hose (10) and hold it over the tub, away from patient.
B.
Turn shut-off valve (9 on front of control panel) on for patient shower.
C.
Set the mixer (2) to desired temperature.
D.
Physically test water temperature and adjust the mixer (2) to suit. Adjust
water flow with shut-off valve (9).
E.
Shower or rinse patient with shower spray handle.
F.
After showering, turn shut-off valve (9) to "OFF" position and return han-
dle to its bracket (12)
Note: Shower handle shall not be held in the bath water while showering.
Whirlpool
A.
The water level shall cover the outlet jet (21)
B.
Adjust the jet (21) for desired flow direction: centred for perineal area; to
either side for circular flow. Avoid placing the jet in a full upward position,
as this could cause the water to splash.
C.
Make sure the whirlpool inlet screen (23) is not obstructed.
D.
With the patient in the bathtub, turn on the whirlpool unit by pushing the
"ON-OFF" control button (20).
E.
To adjust water flow direction, turn the whirlpool jet (21).
F.
Increase or decrease whirlpool stream by turning the air control (22).
G.
Turn the whirlpool unit off by pushing the "On-Off" control button (20).
