Maintenance and Repair
10.2.3 Replacing the Transitional Member

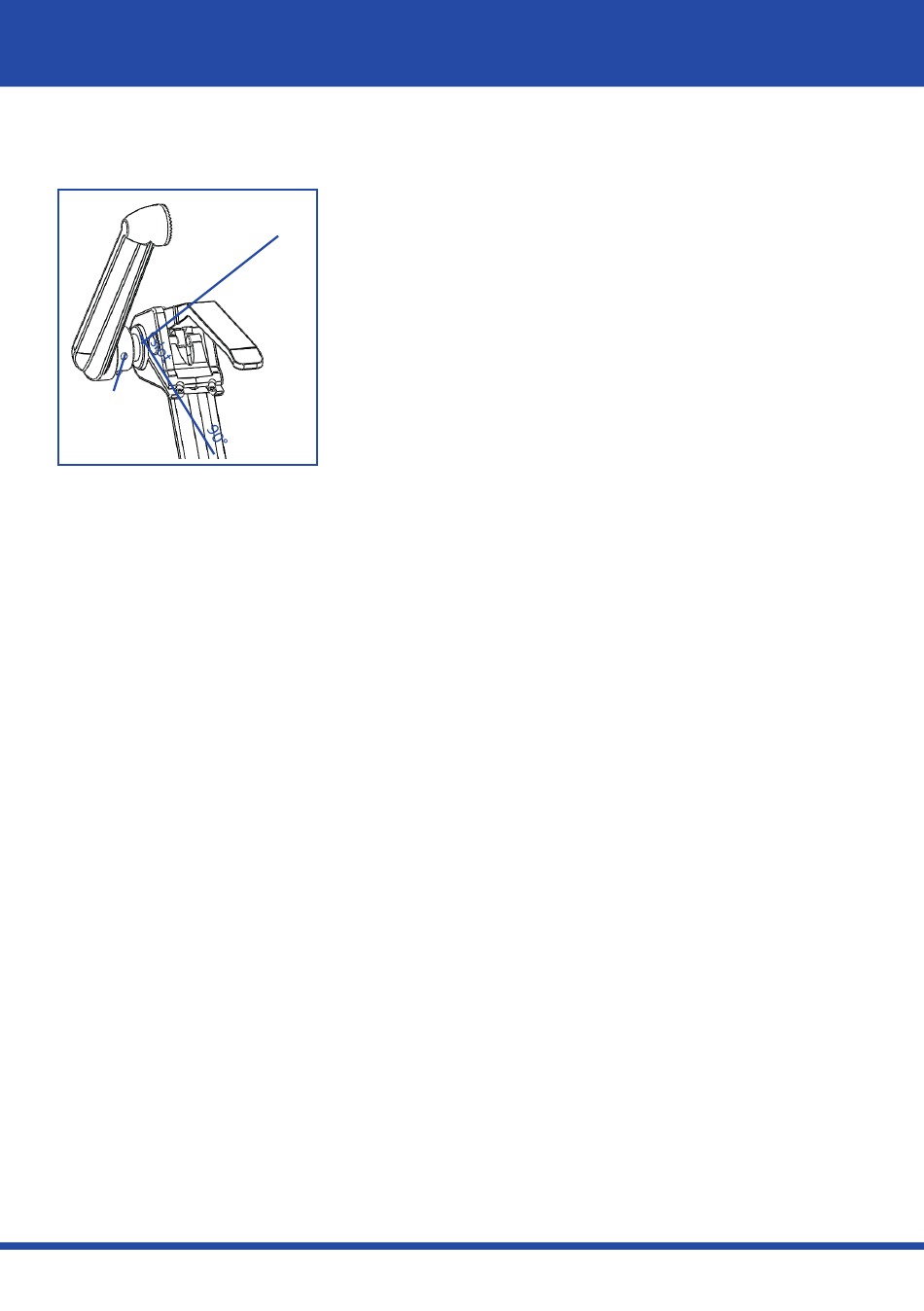

knob
Instruction Manual
1. Open the Locking Lever by lifting up to release.
2. Removing: Align the Transitional Member with the
slot of the base handle assembly at an angle of 90°.
Remove the Transitional Member from the Base
Handle Assembly by pulling it slowly to the left-
hand side (or to the right-hand side). US-Version:
The Transitional Member is equipped with a manual
lock lever. Turn the manual lock lever clockwise to
unlock the Transitional Member, then remove it as
described above.
3. Replacing: Align the cleaned (or new) Transitional
Member with the slot of the base handle assembly
at an angle of 90° (knob should glide through slot).
Insert the cleaned (or new) Transitional Member
into the receptacle of the Base Handle Assembly
until a click indicates that you have fully engaged
the Transitional Member. US-Version: After repla-
cing the Transitional Member, turn the manual lock
counter-clockwise to lock the Transitional Member
in place. The Transitional Member should be locked
before using or transporting the base unit.
