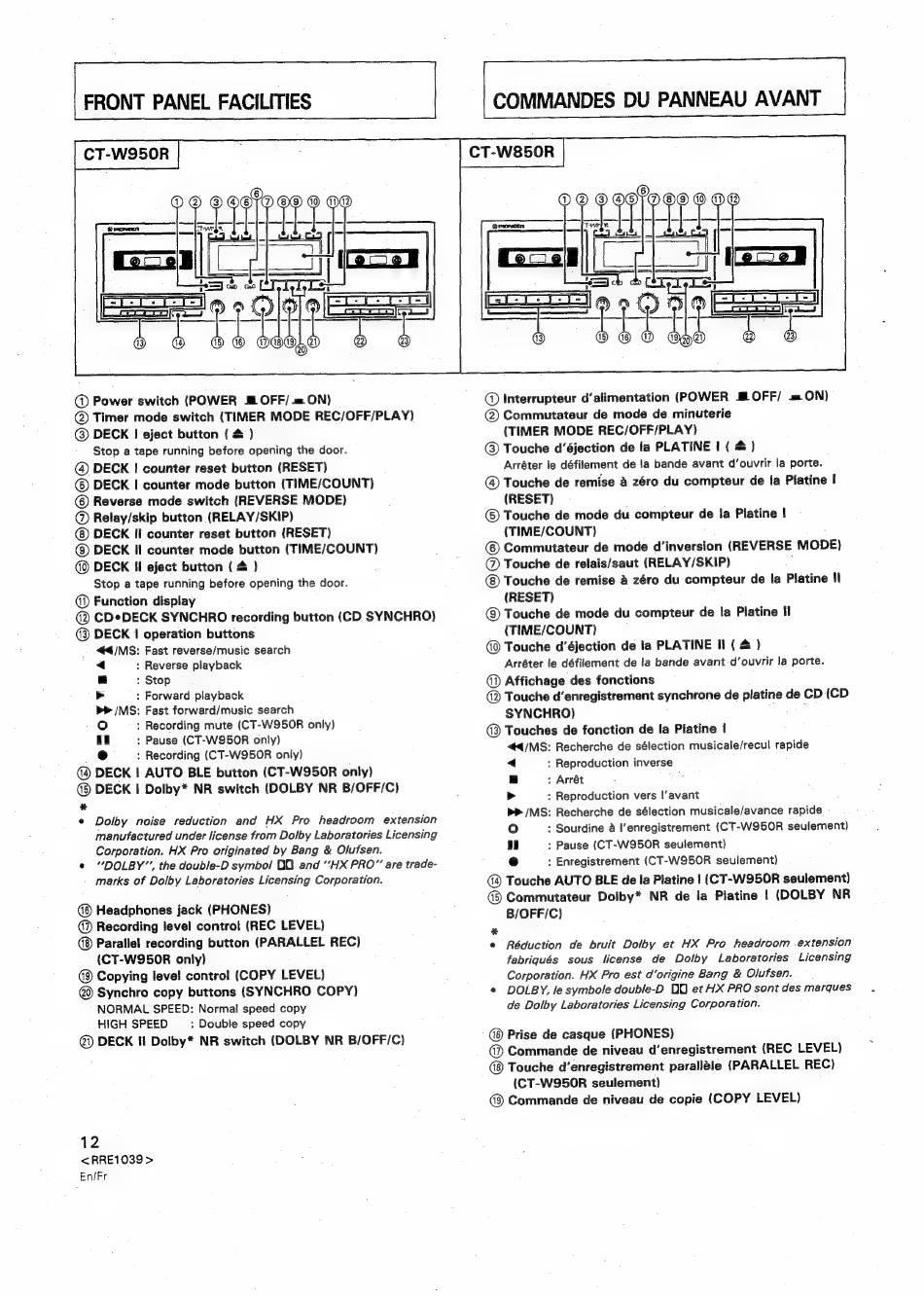

FRONT PANEL FACILITIES
CT-W950R
@ Power switch (POWER Sf OFF/ ON)
@ Timer mode switch (TIMER MODE REC/OFF/PLAY)
@) DECK | eject button ( & )
Stop a tape running before opening the door.
@ DECK | counter reset button (RESET)
© DECK | counter mode button (TIME/COUNT)
@) Reverse mode switch (REVERSE MODE)
@ Relay/skip button (RELAY/SKIP)
DECK Il counter reset button (RESET)
@) DECK Il counter mode button (TIME/COUNT)
DECK ff eject button (4 )
Stop a tape running before opening the door.
@ Function display
@ CD*DECK SYNCHRO recording button (CD SYNCHRO)
@ DECK | operation buttons
44/MS: Fast reverse/music search
< : Reverse playback
a : Stop
> : Forward playback
>> /MS;: Fast forward/music search
(a) : Recording mute (CT-W950R only)
ii : Pause (CT-W950R only)
eo : Recording (CT-W950R only)
DECK | AUTO BLE button (CT-W950R only)
@ DECK | Dolby* NR switch (DOLBY NR B/OFF/C)
*
© Dolby noise reduction and HX Pro headroom extension
manufactured under license from Dolby Laboratories Licensing
Corporation. HX Pro originated by Bang & Olufsen.
¢ "DOLBY", the double-D symbol OO and "HX PRO" are trade-
marks of Dolby Laboratories Licensing Corporation.
Headphones jack (PHONES)
@ Recording level control (REC LEVEL)
Parallel recording button (PARALLEL REC)
(CT-W950R only)
Copying level control (COPY LEVEL)
Synchro copy buttons (SYNCHRO COPY)
NORMAL SPEED: Normal speed copy
HIGH SPEED : Double speed copy
@ DECK Il Dolby* NR switch (DOLBY NR B/OFF/C)
12
<RRE1039 >
En/Fr
CT-W850R
< : Reproduction inverse
| : Arrét
> : Reproduction vers l'avant
bP /MS: Recherche de sélection musicale/avance rapide
0 : Sourdine a l'enregistrement (CT-W95OR seulement)
i : Pause (CT-W950R seulement)
e : Enregistrement (CT-W950R seulement)
*
Prise de casque (PHONES)
Touche d'enregistrement paralléle (PARALLEL REC)
(CT-WS50R seulement)
Commande de niveau de copie (COPY LEVEL)
