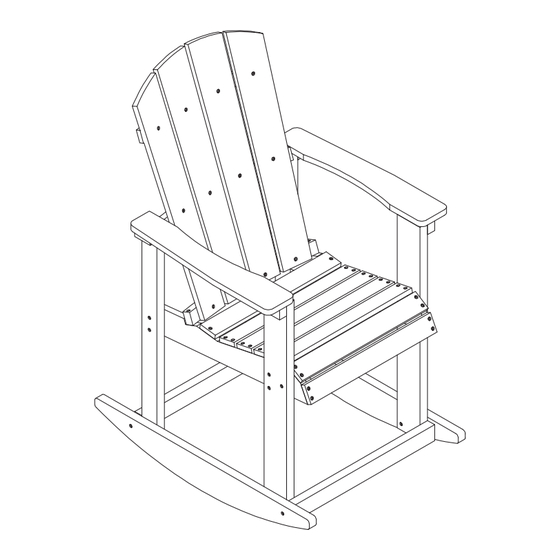

- Page 1 Faux Wood Rocker SKU # 273-5122 Questions or Missing Parts Please call 1-888-243-9985 between 8:30 am to 5:00 pm EST Or email: service@merryproducts.com Made in China...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Pre-Assembly .............. 3-4 Table of Contents ............2 Safety Information ............2 Hardware Included .............. 3 Package Contents ..............4 Warranty ..............2 Assembly ..............5-6 1 Year Frame Limited Warranty ..........2 .. -
Page 3: Pre-Assembly
Pre - Assembly Pre - Assembly TOOLS REQUIRED (not included) Phillips screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Screw (5x35mm) Bolt (M6x70mm) Bolt (M6x35mm) 18+1 Allen Key Bolt (M6x40mm) Bolt (M6x50mm) Bolt (M6x60mm) -
Page 4: Package Contents
Pre - Assembly (continued) Pre - Assembly (continued) PACKAGE CONTENTS Part Description Quantity Seat Panel Rear Seat Slat Front Leg Back Leg Rocker Crosser *Note: DO NOT TIGHTEN ANY BOLTS Armrest BEFORE THE UNIT IS PUT TOGETHER. Rocker Backrest... -
Page 5: Assembly
Note: DO NOT TIGHTEN ANY BOLTS As s e mbly As s e mbly BEFORE THE UNIT IS PUT TOGETHER. Attaching the rear seat slat Attaching the legs □ □ Attach the rear seat slat (2) to the seat panel (1) with Attach the front legs (3) and back legs (4) to the screws (A), using a Phillips screwdriver. - Page 6 Note: DO NOT TIGHTEN ANY BOLTS As s e mbly (continued) As s e mbly (continued) BEFORE THE UNIT IS PUT TOGETHER. Attaching rockers to the legs Attaching the rockers to the rocker crossers □ Attach the rockers (7) to the front legs (3) and □...
