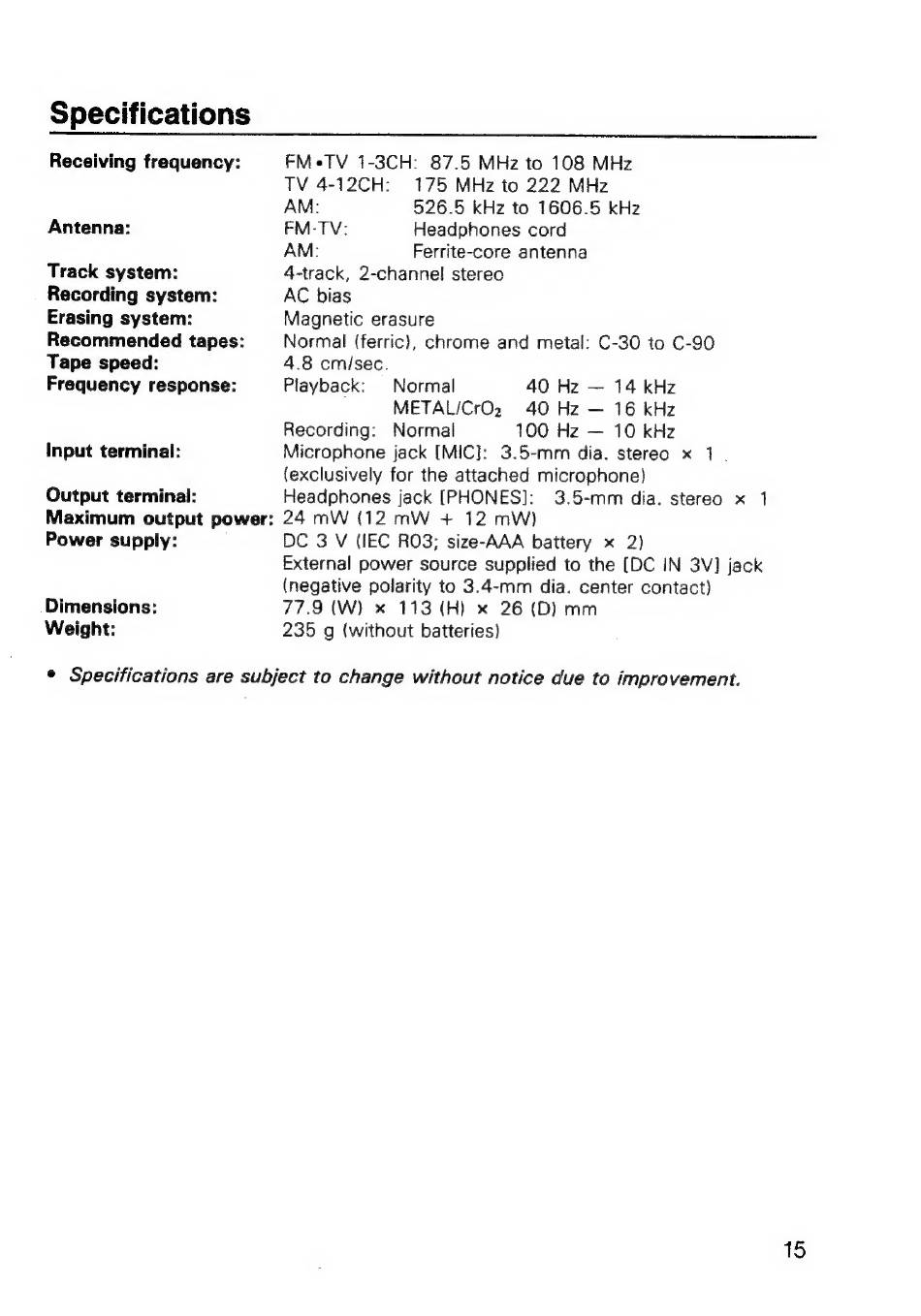

Specifications - Toshiba KT-V890 Manual

Specifications
Receiving frequency:
Antenna:
Track system:
Recording system:
Erasing system:
Recommended tapes:
Tape speed:
Frequency response:
Input terminal:
Output terminal:
Maximum output power:
Power supply:
Dimensions:
Weight:
FMeTV 1-3CH: 87.5 MHz to 108 MHz
TV 4-12CH: 175 MHz to 222 MHz
AM: 526.5 kHz to 1606.5 kHz
FM-TV: Headphones cord
AM: Ferrite-core antenna
4-track, 2-channel stereo
AC bias
Magnetic erasure
Normal (ferric), chrome and metal: C-30 to C-90
4.8 cmisec.
Playback: Normal 40 Hz — 14 kHz
METAL/CrO2 40 Hz — 16 kHz
Recording: Normal 100 Hz — 10 kHz
Microphone jack [MIC]: 3.5-mm dia. stereo x 1.
(exclusively for the attached microphone}
Headphones jack [PHONES]: 3.5-mm dia. stereo x 1
24 mW (12 mW + 12 mW)
DC 3 V (IEC RO3; size-AAA battery x 2)
External power source supplied to the [DC IN 3V] jack
(negative polarity to 3.4-mm dia. center contact)
77.9 (W) x 113 (HK) x 26 (D) mm
235 g (without batteries)
* Specifications are subject to change without notice due to improvement.
15
