- Page 1 User Manual Curtis Genesis Skyline Coffee machine English 01.03.03 Series 1975 33 4487 5900 01.2023...
- Page 2 Never alter built-in safety devices. Ensure that there is always a receptacle under the outlet when dispensing hot beverages to avoid scalding. Do not touch hot machine components. Never reach into the coffee grinder. User Manual Curtis Genesis Skyline...
- Page 3 Never reach under the spouts while system cleaning. Do not reach into the bean hopper or the brewing unit opening when the Coffee Machine is switched on to avoid bruising or crushing when handling moving parts. User Manual Curtis Genesis Skyline...
- Page 4 Introduction and General information Congratulations on the purchase of your Curtis coffee machine. The Curtis Genesis Skyline coffee machine is a fully automatic machine for dispensing portions of filtered coffee, brewed fresh and taken from a coffee urn, and a single-cup coffee machine for freshly brewed coffee and hot water dispensed directly into the cup.
-
Page 5: Safety
> Follow all the safety instructions. General safety instructions Hazards to the operator At Curtis, safety is one of the most essential product features. The effectiveness of safety devices can only be ensured if the following points are observed: >... - Page 6 A coffee machine poses a potential for hazard when correctly used, despite the use of safety devices. Please observe the following instructions when using the coffee machine to prevent injury and health hazards: User Manual Curtis Genesis Skyline...
- Page 7 Pull out the plug to do so. The person performing the maintenance or repair must always be able to check, with a clear line of sight, that the power supply has been disconnected. User Manual Curtis Genesis Skyline...
- Page 8 > Do not reach beneath the spouts during the heating-up phase. > Do not touch the spouts immediately after dispensing. > Always place an appropriate cup under the spout before dispensing a beverage. User Manual Curtis Genesis Skyline...
- Page 9 > Always switch off the coffee machine and unplug the mains plug before reaching into the coffee grinder or the opening of the brewing unit. > Carefully and gently close the operating panel. User Manual Curtis Genesis Skyline...
- Page 10 Health hazard CAUTION • The cleaning tablets are irritants. > Follow the protective measures on the packaging of the cleaning agents. > Only put in a cleaning tablet when an appropriate message is displayed. User Manual Curtis Genesis Skyline...
- Page 11 • Fluids can be discharged from the coffee machine if used improperly or if errors occur. These fluids can cause a slipping hazard. > Regularly check the coffee machine for leaks, and make sure no water is coming out. User Manual Curtis Genesis Skyline...
-
Page 12: Intended Use

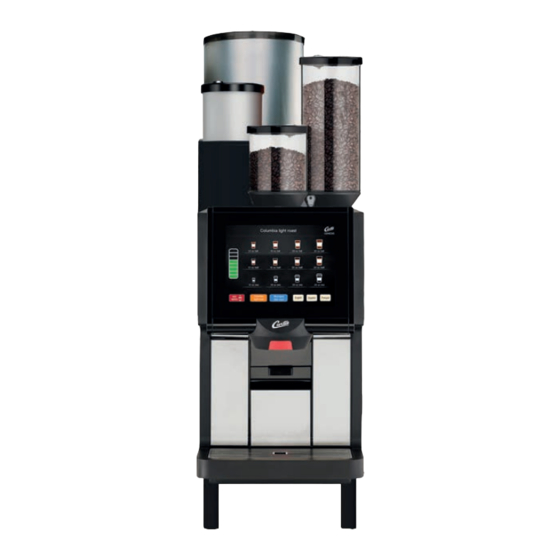

> The coffee machine must only be used as intended. • The Curtis Genesis Skyline is designed to dispense beverages made with coffee into suitable containers. • The coffee beans must be suitable for processing in a fully automated coffee machine. The products must not be processed after their expiration date. - Page 13 • The set of hoses provided with the new coffee machine and/or the new water filter must be used. Do not use the old set of hoses. Ambient temperature • Ambient temperature 41 °F to 95 °F (+5 °C to +35 °C) User Manual Curtis Genesis Skyline...
- Page 14 The manufacturer shall not be liable for any damage resulting from this. • Under no circumstances may the Curtis Genesis Skyline be used to dispense and heat liquids other than coffee, hot water.
-
Page 15: Conditions For Use And Installation
The Curtis Service engineers must only connect the coffee machine to existing prepared connection points. Curtis Service is neither authorized nor responsible for carrying out any on-site installation work prior to connection. User Manual Curtis Genesis Skyline... -
Page 16: Table Of Contents
Change hot water recipes ............User Manual Curtis Genesis Skyline... - Page 17 Storage urn............... 4.10 Language User Manual Curtis Genesis Skyline...
- Page 18 Error messages and malfunctions Errors without error message Safety and warranty Hazards to the coffee machine Directives Duties of the owner / operator Warranty claims Appendix: Technical data Technical data for coffee machine Appendix: Accessories and spare parts Index User Manual Curtis Genesis Skyline...
- Page 19 User Manual Curtis Genesis Skyline...
-
Page 20: Introduction
12 oz half 16 oz half 20 oz half 24 oz half 12 oz ind. 16 oz ind. 20 oz ind. 24 oz ind. Function bar Columbia Nicaragua English Spanish French light roast dark roast WATER User Manual Curtis Genesis Skyline... - Page 21 Fill a cup with reduced cup volume Thermo cups The pads and buttons available on the display depend on the settings and the machine model. The functions shown here are examples. Software w starting on page 32 User Manual Curtis Genesis Skyline...
- Page 22 • for the installation location w starting on page 87 > Always follow the User Manual. Technical data w starting on page 88 Note / tip NOTE • Instructions for safe use and tips for easier operation. User Manual Curtis Genesis Skyline...
-
Page 23: Glossary
Prior to brewing cycle, coffee is briefly infused in order to ensure a more intense release of its aromatic compounds. Pressing Automatic pressing of ground coffee prior to brewing cycle. Rinsing Intermediate cleaning Self-service mode Self-service customer operation User Manual Curtis Genesis Skyline... -
Page 24: Operation
Pinching or crushing hazard / CAUTION risk of injury • The coffee machine contains moving parts that can cause finger or hand injury. > Do not reach into the area of the moving spout. User Manual Curtis Genesis Skyline... -
Page 25: Switch On The Coffee Machine
“Ready to operate” display appears. The coffee machine can be switched on and off using the timer. PIN access control w PIN rights page 53 Set timer switching times w Timer page 55 User Manual Curtis Genesis Skyline... -
Page 26: Coffee Dispensing - Self-Service (Sb Mode)
Touching the button selects the absolut filling volume oft the cups. Fill Cup = The previously selected quantity is Leave room Fill Cup dispensed. Leave Room = The previously selected quantity is reduced to leave room for more ingredients (e.g. cream, syrup). User Manual Curtis Genesis Skyline... -
Page 27: Coffee Dispensing - Serve Mode
Beverages page 35 ✻ Touch the blend button ✻ Touch the desired beverage button Cancel beverage ✻ Touch the desired beverage button again Cancel beverage w Operating options page 48 User Manual Curtis Genesis Skyline... -
Page 28: Hot Water Dispensing
• Foreign objects can damage the grinders. IMPORTANT Such damage is not covered under the Follow the Warranty chapter warranty. w starting on page 87 > Ensure that no foreign objects land in the coffee bean hopper. User Manual Curtis Genesis Skyline... -
Page 29: Grounds Container
68 opening that passes through the on-site counter on which the machine is placed. The spent coffee grounds are collected in a separate container under the counter. User Manual Curtis Genesis Skyline... -
Page 30: Drip Tray
On coffee machines with a drain connection the NOTE drip tray may also be removed (e.g. for cleaning). For coffee machines without a drain connection, the drip tray must be emptied regularly. ✻ Carefully remove, empty, and replace drip tray User Manual Curtis Genesis Skyline... -
Page 31: 3.10 Switch Off The Coffee Machine
The ON/OFF switch is on the right side, behind the operating panel. ✻ Press the ON/OFF switch briefly until a signal sounds Coffee machine switches off. ✻ Disconnect mains plug ✻ Turn off main water supply tap PIN access control w PIN rights page 53 User Manual Curtis Genesis Skyline... -
Page 32: Software
Columbia Nicaragua English Spanish French WATER light roast dark roast Function bar “Ready to operate” display SY_HW Hot water SY_Language WATER Language selection SY_Getr English Spanish French Blend selection Columbia Nicaragua light roast dark roast User Manual Curtis Genesis Skyline... -
Page 33: Main Menu Functions
Menu control pads Main menu / back Confirm value / setting DI_pin PIN entry Delete value / setting Next / start Preparation test Load settings Back Save settings Show keyboard Cancel Change recipe Cup volume Messages on the display Event and error message User Manual Curtis Genesis Skyline... -
Page 34: Care
The touch display can now be cleaned. w Care page 68 The touch display is activated again 15 seconds after the last time it was touched. DS_04_03_09 Settings Settings Switch off rinsing Options: • active • inactive Default value: active User Manual Curtis Genesis Skyline... -
Page 35: Beverages
✻ Mark the desired recipe ✻ Touch the “Save recipes” pad The beverage button is assigned to the newly selected recipe. Adjust text Names and headlines can be customized by pressing the corresponding keyboard icon. User Manual Curtis Genesis Skyline... -
Page 36: Cup Volume, Multiple Brewing, And Dispensing Option
Optionally, the color can also be defi ned by entering the HTML color code. DI_04_03_02 Display background Cup volume, multiple brewing, and dispensing option Cup volume Set the desired filling volume. The recipe is adjusted accordingly. 100 % indicates the previously saved value. User Manual Curtis Genesis Skyline... -
Page 37: Sb Mode (Self-Service)
The set volume is dispensed. The dispensing option is available for hot water. DI_04_03_03 4.3.1 SB mode (self-service) Beverage settings 12 oz fill cup M Touch the desired beverage button MILD BOLD MILD BOLD WATER User Manual Curtis Genesis Skyline... -
Page 38: Change Recipes
Leave room / Fill cup w Beverage page 32 Beverage settings Columbia light roast Touch the desired beverage button Storage urn Fresh brew DI_04_03_05 Beverage settings 12 oz leave room Touch the desired beverage button 12 oz leave room User Manual Curtis Genesis Skyline... - Page 39 ✻ Touch the desired addition and then touch the desired position in the recipe composition again The addition is immediately inserted at the desired position. Delete addition Delete a marked addition from the current recipe composition. User Manual Curtis Genesis Skyline...
- Page 40 The setting options for the selected addition are displayed. The saved and current data are displayed. The current values The values saved by Service The factory values Ground coffee quantity Enter in grams (g) Water quantity Enter in milliliters (ml) User Manual Curtis Genesis Skyline...
- Page 41 After pressing and a pre-infusion, a second wet pressing occurs. Same as for Quality 4, but with stronger wet pressing. Same as for Quality 5, but with stronger wet pressing. Same as for Quality 6, but with longer wet pressing. User Manual Curtis Genesis Skyline...
-
Page 42: Select Coffee Grinder
The beverage name and photo of a beverage button Load custom beverage pictures w USB are adjusted here. page 62 Activate the keyboard by touching the keyboard pad Note A note about the beverage can be saved here. User Manual Curtis Genesis Skyline... -
Page 43: Serve-Mode
The beverage name and photo of a beverage button are set here. ✻ Activate the keyboard by touching the keyboard pad DI_04_03_08 Change storage urn recipe Beverage settings urn “Storage urn” menu w “Ready to operate” display page 32 24 oz User Manual Curtis Genesis Skyline... - Page 44 Brewing batch for the storage urn can be defined and stored here. DI_04_03_09 Standard: 24 oz Beverage settings urn filling Change recipe - change addition - urn 5300 1000 1100 1200 1300 1400 1500 1600 1000 1000 User Manual Curtis Genesis Skyline...
-
Page 45: Change Recipes
16 oz ind. 20 oz ind. 24 oz ind. Columbia Nicaragua Columbia WATER light roast dark roast light roast DI_04_03_05 Beverage settings 12 oz leave room Touch the desired beverage button 12 oz leave room User Manual Curtis Genesis Skyline... -
Page 46: Change Hot Water Recipes
Pause !Touch the desired addition and drag it Change hot water recipes ✻ Press the hot water button in the beverage settings Hot water settings can be made by clicking on the “Change recipe” button. User Manual Curtis Genesis Skyline... -
Page 47: Operating Options
Button layout “Self-service+Flags” w Button layout pre-selection can be set from the beverage settings. page 48 “Language pre-selection” can be activated here, or by selecting the “Self-service+Flags” button layout. Options: • active • inactive Default value: inactive User Manual Curtis Genesis Skyline... -
Page 48: Button Layout
The functions and their pads are not displayed in the inactive state. Cancel beverage Options: • active • inactive Default value: inactive active Beverage dispensing can be interrupted by touching the beverage button again. User Manual Curtis Genesis Skyline... -
Page 49: Logo
Load customer's logo Insert the USB stick containing the customer’s logo. Load the customer’s logo. Size of customer’s logo The logo must not be greater than 80 pixels high. Larger logos will be scaled to this size automatically. User Manual Curtis Genesis Skyline... -
Page 50: Information
Filter and descaling Information on the remaining capacity of the water filter and the time of the next descaling. DS_04_06_06 Journal Journal Journal of events and errors during operation and cleaning of the coffee machine. User Manual Curtis Genesis Skyline... -
Page 51: Automatic Setup Information
Remote service The WMF Service department can activate Smart Remote. This function can now be activated here. Options: • active • inactive Default value: inactive active Technicians can connect to the coffee machine for service tasks. User Manual Curtis Genesis Skyline... -
Page 52: Accounting
Each counter can be reset. Vending machines See vending machines User Manual. External accounting See the waiter accounting instructions. DS_04_07_02 Free of charge settings Free of charge settings The free settings are available, along with optional accounting units. User Manual Curtis Genesis Skyline... -
Page 53: Currency
One PIN can be assigned for each of the areas listed below. • Cleaning • Settings • Accounting The PINs are hierarchical. This means, for example: the settings PIN simultaneously grants all rights for the cleaning PIN, but not the rights for the accounting PIN. User Manual Curtis Genesis Skyline... -
Page 54: Cleaning Pin
Accounting PIN, it can be reset only (with “delete”) by our service department. DS_04_07_06 Re-enter PIN Re-enter PIN Once a PIN has been assigned for access rights, DI_service-pin the PIN number must be entered here in order to assign a new PIN. User Manual Curtis Genesis Skyline... -
Page 55: Timer
10:00 PM 11:00 PM Delete timer To delete a previously highlighted switching time, touch the Delete symbol. Daily timer overview Switching between daily and weekly overview. The daily overview shows switching times for the current day. User Manual Curtis Genesis Skyline... -
Page 56: Set Timer Switching Times
The timer switching times are not carried out. DS_04_09_06 Button layout Button layout Options: • active • inactive Default value: inactive For example: Self-service from active Button layouts can be assigned automatically 9:00 pm to 06:00 am. via the timer. User Manual Curtis Genesis Skyline... -
Page 57: Time / Date
The brewing mode (fill levels) can be set as needed using the timer. For example: Fill the coffee urn with 128 oz until 10:00 a.m. Then fill with 64 oz until 2:00 p.m. Switch the coffee urn to “Off” after 2:00 p.m. User Manual Curtis Genesis Skyline... -
Page 58: System
The color design for the touch display can be set here. • Color of the main page • Color for additional pages Scren saver The display duration for the screen saver can be set here. User Manual Curtis Genesis Skyline... -
Page 59: Dispensing Animation
No liability is assumed for any resulting damage. Determine the water hardness ✻ Request drinking water hardness reading from water supplier, or determine using Curtis carbonate hardness test (complete with instructions) in the accessories Measured total hardness Enter the measured total hardness. -
Page 60: Temperature
An overview is available. Digital solutions Remote actions Media packets that have been received via WMF Coffee Connect but were not directly installed can be installed here at a later point in time. User Manual Curtis Genesis Skyline... -
Page 61: Storage Urn
The coffee in the coffee urn is used for as long as it is possible to dispense the largest beverage. DI_sprache 4.10 Language The language used in the display is set here. The available languages are displayed in English. User Manual Curtis Genesis Skyline... -
Page 62: 4.11 Usb
Save recipes Save recipes Current recipes are exported from the coffee machine to the USB stick here. DS_04_13_05 Export counters Export counters Current counter levels are exported from the coffee machine to the USB stick here. User Manual Curtis Genesis Skyline... -
Page 63: Haccp Export
If available, another display language can be loaded to the coffee machine from the USB stick here. DS_04_13_10 Firmware update Firmware update For Service only. DS_04_13_11 Customer update Customer update Load new software on the coffee machine. User Manual Curtis Genesis Skyline... -
Page 64: Care
• Germs can multiply in a coffee machine that Follow the Safety chapter is not in use. w starting on page 5 > Prior to and after every instance that the machine is shut off for several days, perform all cleanings. User Manual Curtis Genesis Skyline... - Page 65 • Hot cleaning fluid and hot water runs out of Follow the Safety chapter the combi spout when cleaning. w starting on page 5 > Before starting the cleaning, place the cleaning hose under the spout. > Never reach under the spout while cleaning. User Manual Curtis Genesis Skyline...
-
Page 66: Cleaning Intervals Overview
= Daily, at least once per day, and as needed Weekly = Weekly cleaning Regularly = Regularly as needed Automatic = Automatic processing Message = After the display shows a message = Daily for severe soiling = Optional (depending on the model) User Manual Curtis Genesis Skyline... -
Page 67: Cleaning Programs
Care | Cleaning programs Cleaning programs 5.3.1 System cleaning System cleaning is an automated cleaning program for cleaning the coffee system and uses Curtis cleaning granulate. Total duration is approx. 10 minutes. Health hazard / CAUTION irritation and scalding hazard Follow the Safety chapter w starting on page 5 •... -
Page 68: Manual Cleaning
✻ Dry the grounds container and replace it > On coffee machines with grounds disposal IMPORTANT through the counter, the grounds chute must Follow the Warranty chapter be cleaned daily. w starting on page 87 > Never use force. Danger of breakage. User Manual Curtis Genesis Skyline... -
Page 69: Clean The Brewing Unit
The brewing unit should be cleaned when needed and at regular intervals. Recommendation: monthly. ✻ Press the ON/OFF switch briefly until a signal sounds ✻ Disconnect mains plug ✻ Remove grounds container ✻ Remove the drip tray Brewing unit is now fully accessible. User Manual Curtis Genesis Skyline... - Page 70 ✻ Pull the springs outward and press them down This unlocks the insertion chute. Illustration 3 ✻ Swing the insertion chute [2] upwards ✻ Clean the brewing sieve under running water or with a cloth Illustration 4 User Manual Curtis Genesis Skyline...
- Page 71 > Turn the thread on the brewing unit head w starting on page 87 slightly to the left or right with the multitool until the brewing unit slides into the guide. > Never use force. Danger of breakage. User Manual Curtis Genesis Skyline...
-
Page 72: Clean The Drip Tray
✻ Lift up the front of the drip tray slightly and remove it ✻ Clean drip tray thoroughly ✻ Rinse the drip tray with clear drinking water ✻ Dry off the drip tray and replace it User Manual Curtis Genesis Skyline... -
Page 73: Clean The Housing
✻ Allow the coffee machine to cool ✻ Once the coffee machine has cooled down, clean the housing with a damp cloth Clean the display with a clean, damp cloth. Do not use any cleaners or implements. User Manual Curtis Genesis Skyline... -
Page 74: Clean The Bean Hopper
✻ Completely empty bean hoppers and wipe out thoroughly with a damp cloth ✻ Allow bean hoppers to dry completely ✻ Refill and replace bean hoppers ✻ Turn the lock on the bean hopper 180° to lock it User Manual Curtis Genesis Skyline... -
Page 75: Haccp Cleaning Schedule
63 be established and implemented. With correct installation, care, maintenance, and cleaning, Curtis coffee machines meet the requirements described above. If care and cleaning of the coffee machine is not carried out properly, dispensing beverages will constitute a food hygiene hazard point. - Page 76 HACCP cleaning schedule User Manual Curtis Genesis Skyline...
-
Page 77: Maintenance And Descaling
The following care or maintenance stages are provided: • Descaling must be undertaken by the Curtis service. • Maintenance after the display message; may only Service maintenance message w Messages and instructions... -
Page 78: Curtis Service
Maintenance and descaling | Curtis Service Curtis Service You can reach Curtis Service if the local service point is Important. not known. For other maintenance work and repairs, please contact your local Curtis Service. The telephone number Technical service: can be found on the address sticker on the coffee machine and on the Phone: +1 800–995–0417... -
Page 79: Messages And Instructions
Grounds container missing ✻ Replace the grounds container correctly Change water filter ✻ Change water filter Follow water filter instructions. ✻ Call Curtis Service when needed Call Curtis Service Error messages and malfunctions w page 80 Error number is displayed Service message Service messages are instructions. -
Page 80: Error Messages And Malfunctions
The beverage buttons that are still illuminated can continue to be used. Your Curtis Genesis Skyline is provided with a diagnostics program. Any errors that occur are shown on the display. The error messages listed may also be caused by an interruption to the mains electricity supply. - Page 81 Boiler: ✻ Switch the coffee machine off, allow to cool over-temperature and switch on again ✻ If error not remedied call Curtis Service Boiler: ✻ Switch the coffee machine off and on again heat-up time error ✻ If error not remedied call Curtis Service...
-
Page 82: Errors Without Error Message
9507 Flow error: ✻ Open the water tap or fill up the water tank water pressure missing ✻ If error not remedied call Curtis Service 9678 Right grinder blocked ✻ Set the grinding degree one level coarser until 9679... -
Page 83: Safety And Warranty
Coffee grinder • Foreign objects can damage the grinders. Such damage is not covered under the warranty. > Ensure that no foreign objects land in the coffee bean hopper. User Manual Curtis Genesis Skyline... - Page 84 • For drinking water with carbonate hardness from 5 °dKH (5 gpg) or higher, a water filter must be fitted. Failing to use the water filter recommended by Curtis Service may damage the coffee machine (e.g. due to scale deposits). • For insurance reasons always ensure that, at the end of operation, the mains switch is switched off or the device is unplugged.
-
Page 85: Directives
This device complies with part 15 of the FCC Rules and ICES 003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. User Manual Curtis Genesis Skyline... -
Page 86: Duties Of The Owner / Operator
Machine cleaning must be carried out using only the Curtis special cleaning agent w Accessories and spare parts Curtis special cleaning agent intended by Curtis for the page 92 coffee machine (tablets). Machine descaling may be performed only by Curtis Service. -
Page 87: Warranty Claims
Important modifications undertaken without the consent of Maintenance w page 77 Curtis, or by repair or reconditioning work on the part of the purchaser or by third parties. • With respect to faults caused by inappropriate or improper use. User Manual Curtis Genesis Skyline... -
Page 88: Appendix: Technical Data
EU member states. It may be necessary to also observe additional country-specific regulations. Outside the EU countries acceptance of the standards quoted is to be checked by the legal entity or natural person who wishes to use the coffee machine. User Manual Curtis Genesis Skyline... - Page 89 We reserve the right to make technical modifications. A-evaluated sound pressure level Lpa (slow) and Lpa (impulses) at operating personnel workplace is under 70 dB(A) in any working mode. User Manual Curtis Genesis Skyline...
- Page 90 Installation clearances For operating, service, and safety reasons the machine should be installed with a clearance from the building or non-Curtis components of not less than 1.97 in (50 mm) at the sides and 1.97 in (50 mm) at the back. A minimum working space of 31.50 in (800 mm) in front the coffee machine and overhead clearance of at least 7.87 in (200 mm) above...
- Page 91 (see DIN EN 50310 VDE 0800–2–310). CAUTION Risk of fire and electric shock. Replace only with manufacturer´s cord set, please see spare parts list. (33 2402 5100) User Manual Curtis Genesis Skyline...
-
Page 92: Appendix: Accessories And Spare Parts
33 1389 3000 Complete bean hopper Cover for bean hopper, right / left 33 2925 5099 Bean hopper, center (500 g) Bean hopper, right (2,000 g) Order numbers for the Curtis care program Pack Curtis special cleaning agent (1,000 g) 33 2118 6000 Documentation and instructions Set of documents... - Page 93 User Manual Curtis Genesis Skyline...
-
Page 94: Index
Cup volume 36 Current recipe composition 39 Curtis Service 78 Customer’s logo 49 Information 50 Installation clearances 90 Installation surface 89 Intended use 12 Daily timer overview 55 Introduction 20 Data back-up 63 Inventory of factory additions 39 Daylight saving time 57 Decrease display brightness 58 Delete addition 39 Delete timer 55 Journal 50 User Manual Curtis Genesis Skyline... - Page 95 PIN rights 53 Portioner 60 PostSelection 48 Warranty claims 87 Water filter 50, 59 Water quality 88 Water quantity 40 Quality level 41 Water supply 88 Ready to operate 32 “Ready to operate” display 20, 21 Reduced cup volume 21 Re-enter PIN 54 Removable drip tray with drip grid 21 User Manual Curtis Genesis Skyline...
- Page 96 Your nearest Curtis Service: © 2022 WMF GmbH All rights reserved, in particular duplication, distribution and translation rights. No part of this manual may be reproduced in any form or processed, duplicated or distributed using electronic systems without written consent. Design and production / typesetting and print presentation: WILBUR CURTIS COMPANY Montebello, CA 90640–5403, USA...
