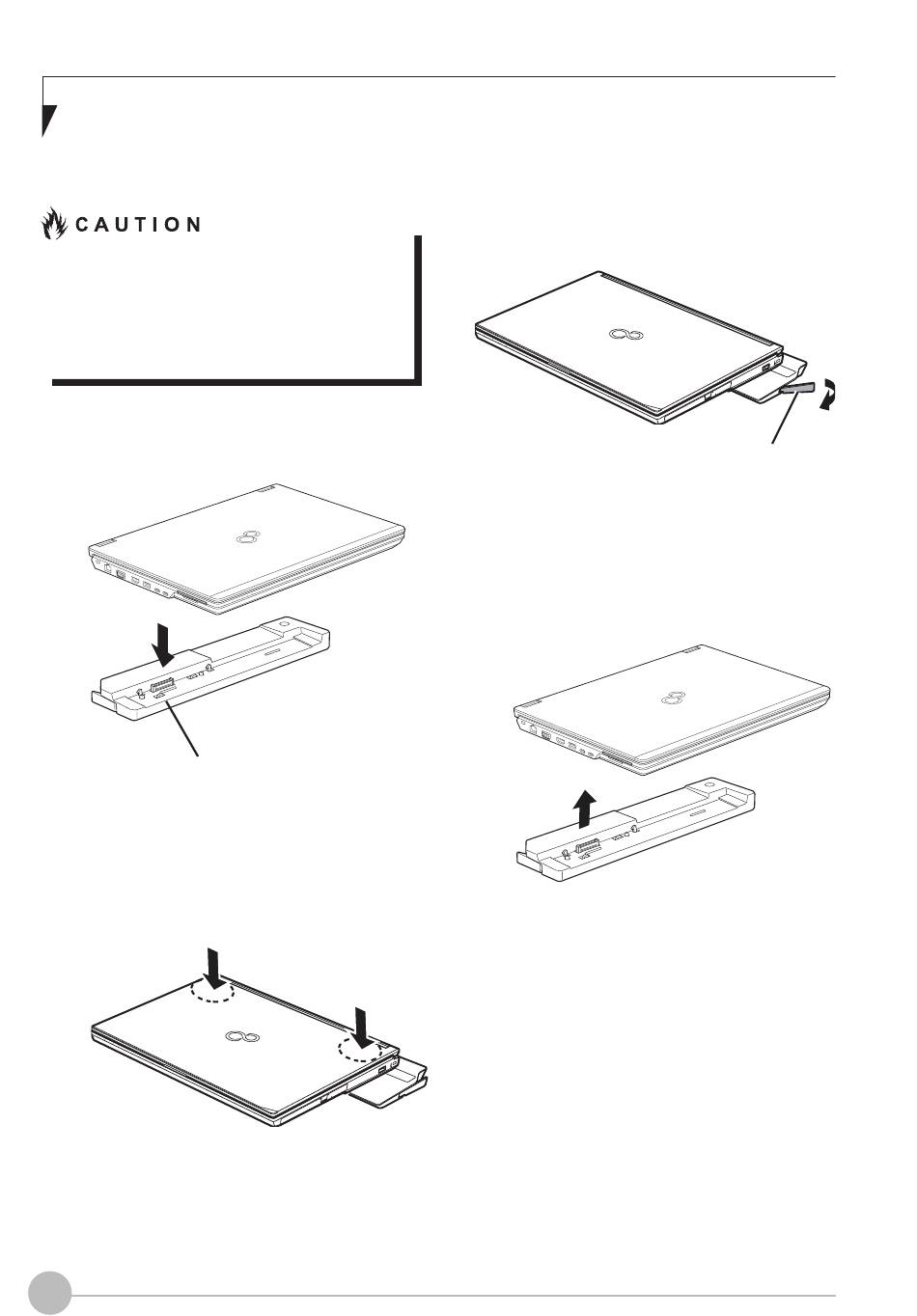

Connecting the Port Replicator
Before port replicator or undocking your
workstation with the port replicator, be
sure to touch a grounded metal object
to prevent electrostatic discharge from
affecting the computer components.
Align your workstation to the docking
1.
connector.
Port Replicator Connector
2. Place your workstation to the port replicator
and press both sides of your workstation until
a "click" sound occurs. Your workstation is
now connected to the port replicator.
18
Disconnecting the Port Replicator
1. Pull the slide lock as shown.
2. Disconnect your workstation from the port
replicator.
Slide Lock
