Port Replicator - Fujitsu Celsius H7510 User Manual

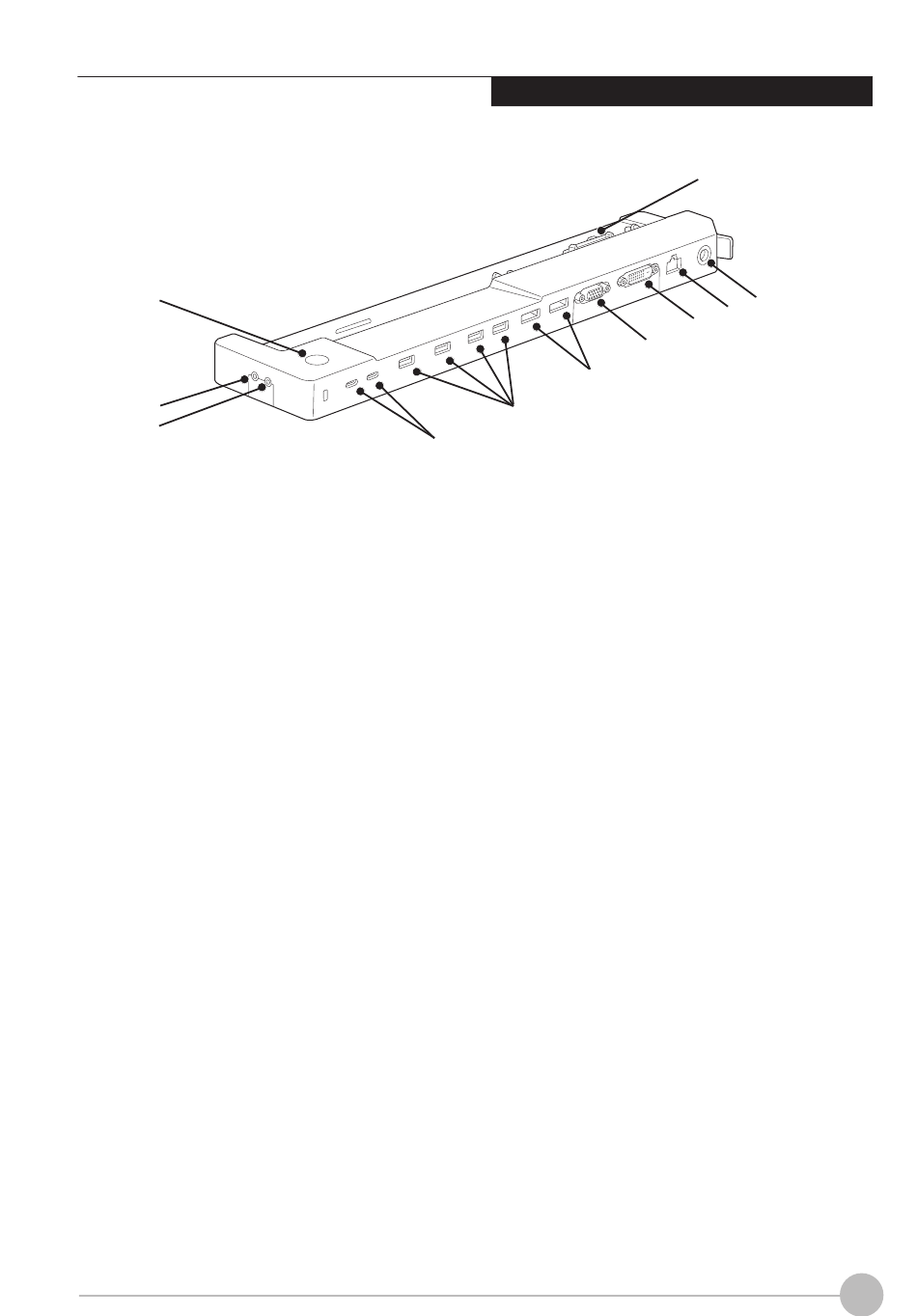

Port Replicator

1
2
3
(This picture is for illustration purpose only and may look different from the actual unit)
1. Power Button
2. Microphone Jack
Headphone/Speaker Jack
3.
TM
USB Type-C Connector
4.
5. USB 3.1 (GEN 1) Connector
The USB 3.1 (GEN 1) connector allows you
to connect Universal Serial Bus devices and
backward compatible with USB 2.0 devices.
DisplayPort Connector
6.
7. VGA Connector
8. Digital Video Interface (DVI-D)
The DVI-D connector allows you to connect
a flat-panel LCD display or television that is
equipped with a DVI-D connector for ultra-
crisp digital images and graphics. This port
is not to be used in conjunction with Display
port.
Explicit Self-install
6
5
4
9. LAN (RJ45)
It allows you to connect to a LAN (local area
network) using an optional LAN cable.
DC-in
10.
Docking Connector
11.
11
10
9
8
7
17
