- Page 1 Hardware Manual – Operation Instructions, Safety Guidelines and Specifications SEA 9745 4G/GPS Communication Module for CompactRIO (USA) Part No.: 60000070 Doc. No.: HB/SEA 9745 Hardware Manual/2.0/Nov-2016...
-
Page 2: Table Of Contents
End User License Agreement (EULA)..........5 Safety Guidelines..............6 Operator Protection................6 Safety Critical Applications..............7 Hazardous Locations...............7 Hazardous Voltages.................8 Electromagnetic Compatibility Guidelines.......9 Prerequisites.................11 Connecting SEA 9745.............13 GSM/GPS Antenna(s)..............14 GPS External Connector..............15 Ethernet Port.................16 SIM Card Slot.................17 DIP Switches..................19 LEDs....................20 Backup Battery................21 Reset Switch.................22 Sleep Mode................24... - Page 3 Electromagnetic Compatibility............28 Maintenance.................31 Contact and Support.............32 Hardware Manual...
-
Page 4: Getting Started
To determine the safety ratings and specification of the entire system refer to each component in the system. Before starting to work with the SEA 9745 module please read this docu ment and the software manual carefully. If there are any questions about operating the module or if any term is not understood, please contact the vendor before using the module. -
Page 5: End User License Agreement (Eula)
The reader should consult the vendor if errors are suspected. End User License Agreement (EULA) Before operating the SEA 9745 and the provided software you have to agree to the terms and conditions (EULA). This agreement is part of the software installation procedure. -
Page 6: Safety Guidelines
Safety Guidelines To protect persons against any harm and the module from damage, the operation of the SEA 9745 module is only allowed according to the rules described in this document. Operator Protection Hot or Cold Surface The metallic surface of the module might be... -
Page 7: Safety Critical Applications
Keep the module and the antennas at least 1 meter away from hu man bodies during operation. Safety Critical Applications The module is not failure tolerant and therefore not suitable for use in safety critical applications. Do not use the module for medical applications or any live sup porting apparatus. -
Page 8: Hazardous Voltages
Hazardous Voltages A voltage is hazardous when higher than 25 V or 60 VDC to earth ground according to IEC 60364-4-41 (SELV). If the module specifications al low to connect hazardous voltages to the module, take the following pre cautions, when connecting hazardous voltages to the module: Make sure that only qualified personnel wires hazardous voltage adhering to local electrical standards. -
Page 9: Electromagnetic Compatibility Guidelines
Electromagnetic Compatibility Guidelines This equipment has been tested and found to comply with the regulatory requirements and limits for electromagnetic compatibility (EMC). These re quirements and limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in... - Page 10 To meet the RF exposure rules and regulations and minimize the radio fre quency exposure to humans, you must follow the following directives: Installers and operators have to follow the transmitter operating • and antenna installation instructions for satisfying RF exposure compliance, please refer to the user manual of the antenna.
-
Page 11: Prerequisites
Prerequisites The SEA 9745 module is shipped with the following accessory: Printed 'Hardware Manual - Operation Instructions, Safety • Guidelines and Specifications' In order to operate the module further components are required (not shipped with the module): Power cable for external power supply, order no.: 61000011, •... - Page 12 SIM card • Is required to use the GSM features. The SIM card has to be pur chased from a MNO. S.E.A. does not provide SIM cards or any mobile services. GPS antenna • Is required to use the GPS features. Matching GPS antennas can be purchased separately from S.E.A.
-

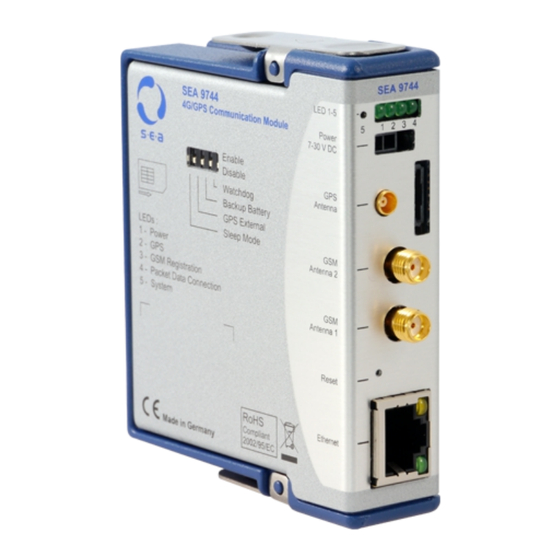

Page 13: Connecting Sea 9745
DIP switches is available. With these switches the behaviour of the module can be con trolled, refer to Fig. DIP Switches on page 18. Only one SEA 9745 module can be op erated within a single CompactRIO system. It is not possible to operate more than one SEA 9745 module in... -
Page 14: Gsm/Gps Antenna(S)
GSM Antenna 1 socket. For GPS the SEA 9745 module provides one antenna socket of type MCX. Only active GPS antennas with a supply voltage of 3.3 V and a maximum current of 40 mA are allowed. -
Page 15: Gps External Connector
(pins 4 and 3) and a 5V-TTL compatible Timepulse signal (pin 5). S.E.A. separately provides suitable cables for connecting external GPS re ceiver. Refer to http://www.sea-gmbh.com for details. Depending on the external GPS receiver type or manufacturer the control (configuring) GPS API functions may not be supported, be... -
Page 16: Ethernet Port
cause these functions use proprietary commands for the integ rated GPS receiver. When reading the GPS data using the GPS Read Messages API function no limitations are to be expected, as long as the external GPS receiver outputs the GPS data in NMEA-0183 format. Do not switch between internal and external GPS receiver while the module is operating. -
Page 17: Sim Card Slot
SIM Card Slot On the back side of the module there is a slot for SIM cards, refer to Fig. Insert SIM on the right. It accepts mini SIM cards. Nano and mi cro SIM cards can be used with an adequate SIM adapter. -
Page 18: Dip Switches
For operation of the SEA 9745 module it is mandatory to supply power through the front side power supply connector because the power supply through the backplane is insufficient for the needs of the module. Connect the module with an adequate power source using the enclosed power cable. - Page 19 in the following table: Switch Meaning Watchdog This switch allows to enable the module's internal system monitoring. This is useful if the module is operated head less and a recovery strategy is required. Enable: Watchdog is enabled. If an internal system error occurs the module executes a reset.
-
Page 20: Leds
Backup The battery keeps the system clock (RTC) running and Battery stores the GPS almanac while the module is switched off. Refer to chapter 'Backup Battery' for details. Enable: The battery is charged when the module is powered. The GPS almanac and the RTC are maintained while switched off. -
Page 21: Backup Battery
Is steady on when a Packet Data connection (GSM) is estab lished. Flashes when the module is booting or performs a factory reset. Is steady on when module is operational. Tab. 2: LEDs Backup Battery The backup battery provides the following features: Stores the last GPS almanac. -
Page 22: Reset Switch
The battery should not be discharged below a minimum limit to avoid its damage. Therefore do not store the module with enabled battery for long time periods. An acceptable store period is between 2 and 6 weeks depending on the battery condition and the storage conditions (temperature, humidity...). - Page 23 Power down the module Press and hold the Reset switch Power up the module and wait until LED 5 blinks continuously Release the Reset switch and wait until LED 5 is steady on (this can take up to some minutes) After the reset remember that the module's IP address may have changed.
-
Page 24: Sleep Mode
Fig. DIP Switches. This is useful if the entire system should be set to the sleep mode but it still needs to be accessible through the SEA 9745 module. If the hardware sleep mode switch is set to Enable, the sleep mode selection by software takes effect on the SEA 9745 module. -
Page 25: Specifications
Specifications The following specifications are typical for the nominal temperature of 20 °C unless otherwise noted. GSM Characteristics Frequency Bands GSM GPRS EDGE 850 / 900 / 1800 / 1900 UMTS HSDPA HSUPA 850 / 1900 / 2100 700 / AWS (B4) / 2100 Max. - Page 26 GPS Characteristics Number of Channels Frequency Band GPS L1 Time-To-First-Fix Cold Start, w/o Battery Cold Start w. Battery Max. Update Rate Position Accuracy Horizontal Vertical 10 to 40 Velocity Accuracy Max. Altitude 2000 Max. Speed km/h Timepulse Accuracy Timepulse Logic 0 to 0.3 High 0.7 to 5...
- Page 27 Power Requirements Operating Voltage 7 to 30 Typical Operating Current Typical Peak Sleep Mode Physical Characteristics Weight ca. 200 Dimensions 80 x 23 x 88 Environmental Conditions Operating Temperature °C -25 to +60 Storage Temperature °C -40 to +85 Ingress Protection IP 30 Operating humidity 10 to 90...
- Page 28 (10 shocks at 6 orientations) Tab. 3: Specifications Electromagnetic Compatibility For EMC compliance, it is only allowed to operate the SEA 9745 with origi nal and shielded antenna cabling only. For further information about an tennas and cabling please refer to our website: http://www.sea-gmbh....
- Page 29 PTCRB This product is tested to comply with PTCRB standards. PTCRB is a global organization created by mobile network operators to provide an independent evaluation process where GSM/UMTS/LTE type certification can take place. For more information see http://www.ptcrb.com. Industry This product meets the requirements of the of Canada Rules.
- Page 30 Health: EN 62311 • Safety: EN 60950-1 • Note: The R&TTE compliance is partly covered by the integrated radio mod ule. Hardware Manual...
- Page 31 Maintenance Only use a clean and dry towel to wipe the SEA 9745. The SEA 9745 is not water resistant and should not be operated in humid environments. The SEA 9745 does not contain components, which have to be maintained.
- Page 32 Contact and Support Address: S.E.A. Datentechnik GmbH Muelheimer Strasse 7 53840 Troisdorf Germany Support channels: website: http://www.sea-gmbh.com email: techsupport@sea-gmbh.com phone: + 49 2241 12737 – 0 fax: + 49 2241 12737 – 14 Hardware Manual...
